Travel Sun Gear Shaft 20Y-27-22110 Fit Excavator Komatsu PC200-6 PC210-6 PC200-7 PC210-7 PC228 PC228US PC228UU
Original price was: $135.00.$109.00Current price is: $109.00.

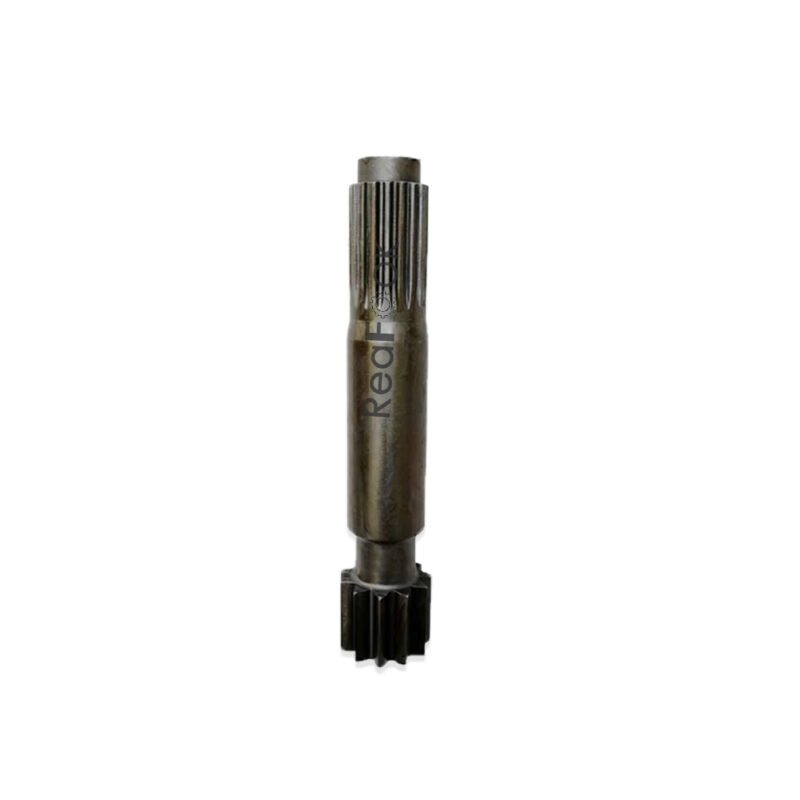

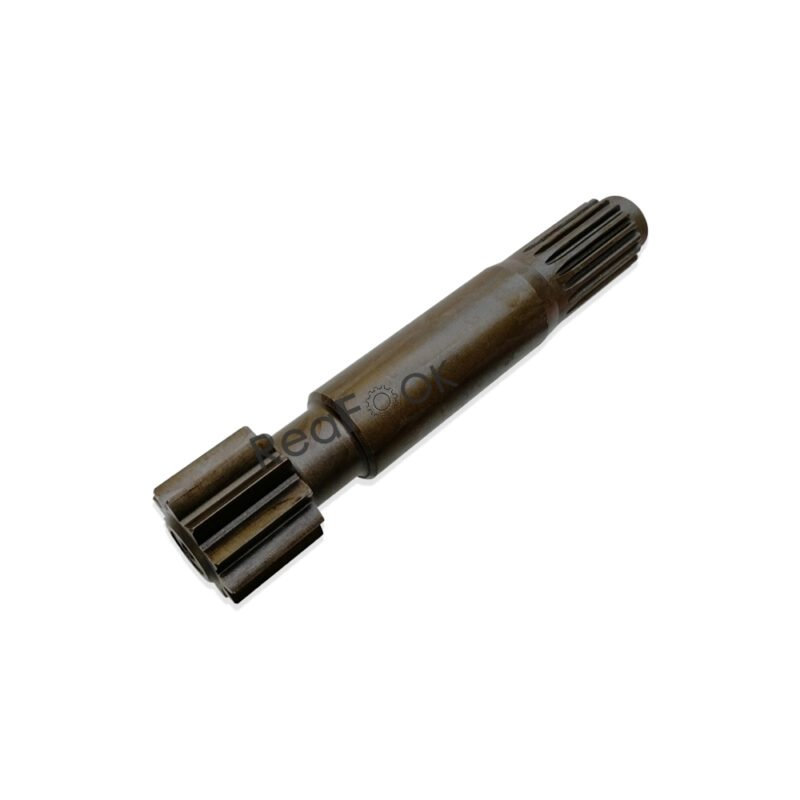

Sun Gear Shaft 20Y-27-22110
18 Splines, 10 Teeth, Overall Length 213mm
Engine 6D102;
Used in Final Drive Gearbox Device;
Free Shipping and High Quality Standards!!
Product Name: Sun Gear Shaft
Reference Part Number: 20Y-27-22110
Compatible Machine: Excavator Komatsu PC200-6Z PC200-6 PC200-7 PC200LC-7 PC200-8 PC210-7 PC210-6 PC210-6E PC228US PC228UU…
Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

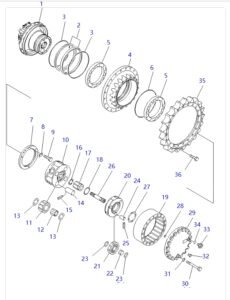

Pos. Part No Qty Parts name Comments
20Y-27-00203 [1] FINAL DRIVE ASS’Y 560 kg.
20Y-27-00200 [1] FINAL DRIVE ASS’Y 560 kg.
1. 708-8F-00111 [1] MOTOR ASS’Y 102.801 kg.
1. 708-8F-00110 [1] MOTOR ASS’Y 102.801 kg.
1. 708-8F-00061 [1] MOTOR ASS’Y
1. 708-8F-00060 [1] MOTOR ASS’Y
150-27-00330 [1] FLOATING SEAL ASS’Y 2.99 kg.
150-27-00029 [1] FLOATING SEAL ASS’Y 2.99 kg.
4. 20Y-27-22181 [1] HUB 78 kg.
4. 20Y-27-22180 [1] HUB
5. 20Y-27-22230 [2] BEARING 4.6 kg.
6. 20Y-27-22280 [1] O-RING 0.02 kg.
7. 20Y-27-22261 [1] LOCK 5.22 kg.
7. 20Y-27-22260 [1] LOCK 4.05 kg.
8. 20Y-27-22270 [1] LOCK 0.07 kg.
9. 01010-81020 [2] BOLT 0.161 kg.
10. 20Y-27-22170 [1] CARRIER 20.4 kg.
11. 20Y-27-22140 [4] GEAR 3.72 kg.
12. 20Y-27-22220 [4] BEARING 0.3 kg.
13. 20Y-27-21250 [8] WASHER 0.03 kg.
14. 20Y-27-21230 [4] PIN 1.54 kg.
15. 20Y-27-21290 [4] PIN 0.03 kg.
16. 20Y-27-13310 [1] WASHER 0.08 kg.
17. 20Y-27-22130 [1] GEAR 1.75 kg.
18. 20Y-27-22240 [1] WASHER 0.03 kg.
19. 20Y-27-22150 [1] GEAR 43.7 kg.
20. 20Y-27-22160 [1] CARRIER 6 kg.
21. 20Y-27-22120 [3] GEAR 2.5 kg.
22. 20Y-27-22210 [3] BEARING 0.12 kg.
23. 20Y-27-21240 [6] WASHER 0.02 kg.
24. 20Y-27-21220 [3] PIN 0.411 kg.
25. 20Y-27-21280 [3] PIN 0.01 kg.
26. 20Y-27-22110 [1] SHAFT 1.4 kg.
27. 20Y-27-21310 [1] WASHER 0.17 kg
28. 20Y-27-22250 [1] BUTTON 0.05 kg.
29. 20Y-27-22190 [1] COVER 17.6 kg.
30. 20Y-27-13281 [18] BOLT 0.31 kg.
31. 01643-31645 [18] WASHER 0.072 kg.
32. 07049-01012 [2] PLUG 0.001 kg.
33. 07044-12412 [2] PLUG 0.09 kg.
34. 07002-02434 [2] O-RING 0.01 kg.
35. 20Y-27-11582 [1] SPROCKET 36.2 kg.
35. 20Y-27-11581 [1] SPROCKET 36.2 kg.
36. 20Y-27-11561 [20] BOLT
| Weight | 1.8 kg |
|---|
Be the first to review “Travel Sun Gear Shaft 20Y-27-22110 Fit Excavator Komatsu PC200-6 PC210-6 PC200-7 PC210-7 PC228 PC228US PC228UU”
You must be logged in to post a review.
Related products
-
SALE
Travel Reduction Sun Gear 3049870 Fit Hitachi Excavator EX220-2 EX220-3 EX220-5 EX225USR EX230-5 EX230H-5 EX230LC-5
Original price was: $169.00.$139.00Current price is: $139.00. -
SALE
Final Drive Sun Gear 2028798 3043237 Fit Hitachi Excavator EX120-2 EX120-3 EX120-5 EX130H-5 EX135UR
Original price was: $239.00.$199.00Current price is: $199.00. -
SALE
Final Drive Sun Gear 2022128 Prop Shaft Fit Hitachi Excavator EX100 EX120 EX100-1 EX120-1
Original price was: $150.00.$108.00Current price is: $108.00. -
SALE

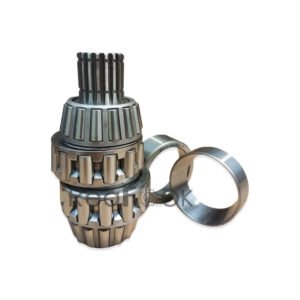

Travel Reduction Crank Shaft with Bearings Fit Excavator Komatsu PC60-7 PC70-7 PC75UU-3
