Name: Final Drive Gear Ring 1010014 Fit Hitachi Excavator EX100 EX120 EX100-1 EX120-1
Price: 635.00 USD
Availability: InStock

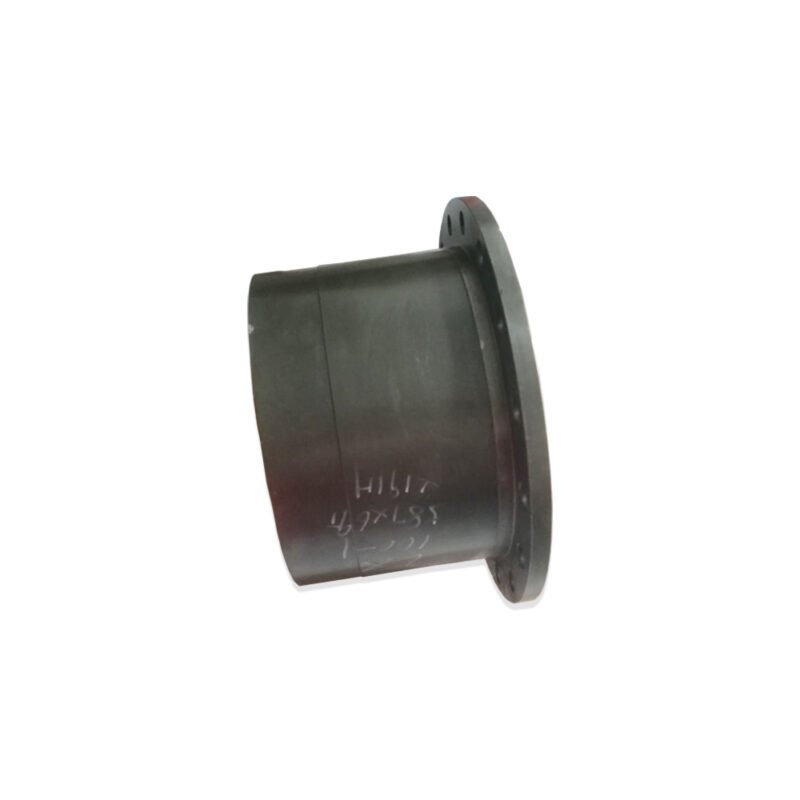

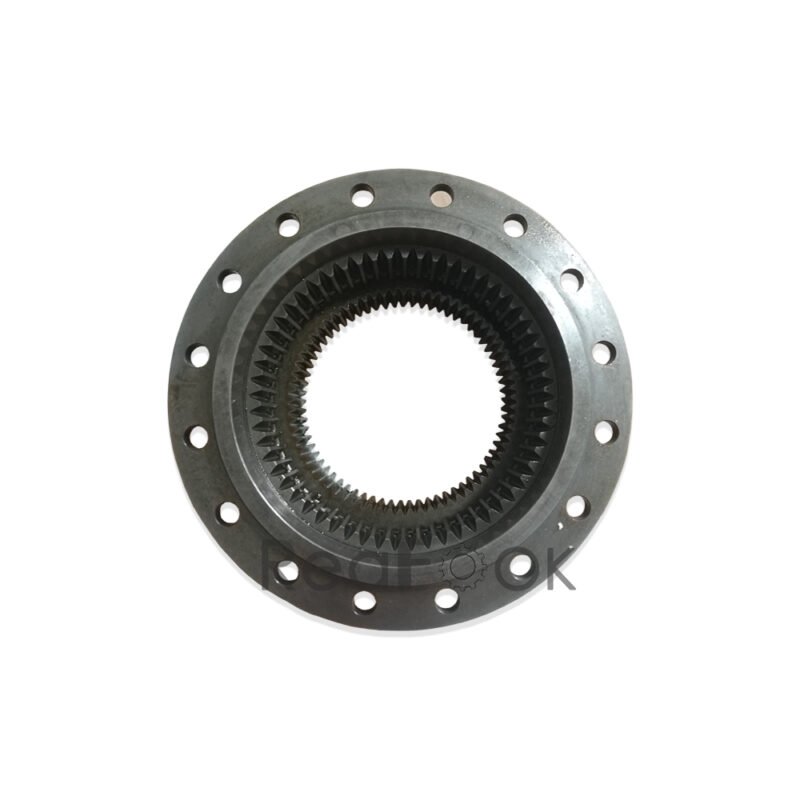

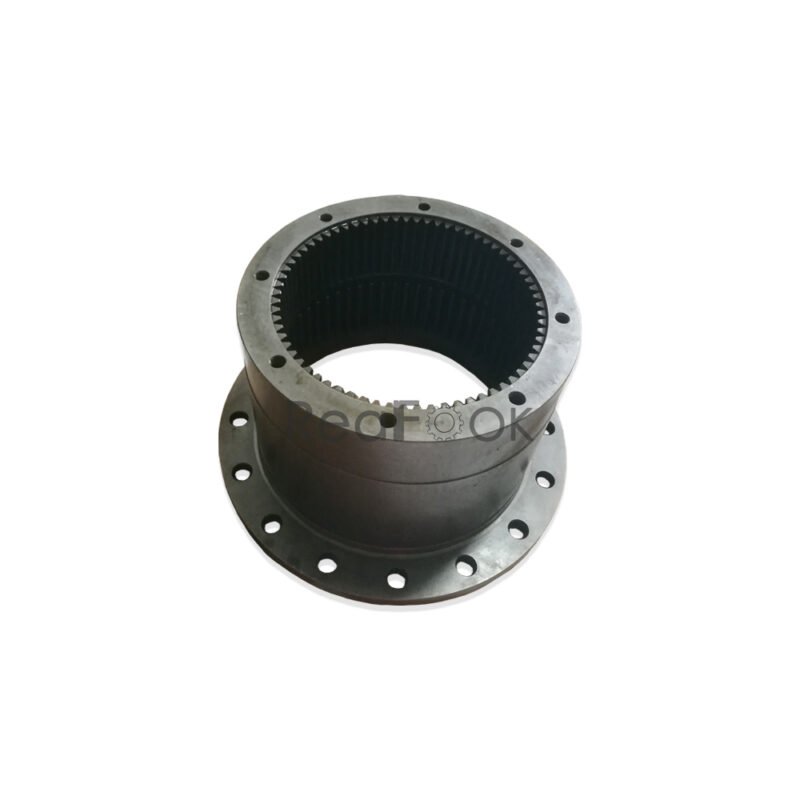

Final Drive Gear Ring 1010014 Fit Hitachi Excavator EX100 EX120 EX100-1 EX120-1

Gear Ring 1010014, Double Stages
58/69 Teeth, OD 353mm, Height 191mm;
Used in Travel Reduction Gearbox;
Free Shipping and High Quality Standards!!

Product Name: Gear Ring
Reference Part Number: 1010014
Compatible Machine: Hitachi Excavator EX100 EX120 EX100-1 EX120-1…

Description:
Gear for use in planetary gear sets of final drives.

EX100 EX120 Travel Diagram

Parts on group TRAVEL DEVICE:
Pos. Part No Qty Parts name Comments
00. 9066006 [1] MOTOR;OIL
00. 9080112 [1] MOTOR;OIL Y 9080113
00. 9080113 [1] MOTOR;OIL
00-44. 9065934 [2] TRAVEL DEVICE ASS’Y
00-44. 9080068 [2] TRAVEL DEVICE ASS’Y Y 9096481
00-49. 9096481 [2] TRAVEL DEVICE ASS’Y
00A. 9066005 [1] VALVE;BRAKE
00A. 9080510 [1] VALVE;BRAKE Y 9080511
00A. 9080511
[1] VALVE;BRAKE
01. 1009905 [1] HOUSING
02. 4179741 [1] SEAL;GROUP
03. 1009401 [1] FLANGE
04. 4178201 [2] BRG.;ROL. Y 4240716
04. 4178201 [2] BRG.;ROL.
04. 4240716 [2] BRG.;ROL.
04. 4240716 [2] BRG.;ROL.
05. 1010325 [1] SPROCKET
06. A590916 [34] WASHER;SPRING
07. J931640 [32] BOLT
08. 3033234 [1] NUT
09. 4178862 [1] PLATE;LOCK
11. J901020 [2] BOLT
12. 1009808 [1] CARRIER
13. 3034195 [3] GEAR;PLANETARY
14. 4183108 [6] BRG.;NEEDLE
15. 4196487 [6] PLATE;THRUST
16. 4183107 [3] PIN
17. 4144020 [3] PIN;SPRING
18. 1010014 [1] GEAR;RING
19. 3033236 [1] GEAR;SUN
21. 2021634 [1] CARRIER
22. 4187683 [1] SPACER
23. 3033238 [3] GEAR;PLANETARY
24. 4113606 [3] BRG.;NEEDLE
25. 4196489 [6] PLATE;THRUST
26. 4178203 [3] PIN
27. 4173093 [3] PIN;SPRING
28. 3033235 [1] GEAR;SUN
29. 2022129 [1] CARRIER
29. 2025957 [1] CARRIER
31. 4178208 [1] SPACER
31. 4187683 [1] SPACER
32. 3034194 [3] GEAR;PLANETARY
32. 3041960 [3] GEAR;PLANETARY
33. 4177007 [3] BRG.;NEEDLE
34. 4192910 [6] PLATE;THRUST
35. 4178202 [3] PIN
36. 4169566 [3] PIN;SPRING
37. 2022128 [1] SHAFT;PROP.
37. 2025958 [1] SHAFT;PROP.
37. 2028644 [1] SHAFT;PROP.
38. 2022681 [1] COVER T 2025960
38. 2025959 [1] COVER 94-2023
38. 2025960 [1] COVER
39. A590912 [8] WASHER;SPRING
41. M221228 [8] BOLT
42. 4245797 [3] PLUG
42. 4245797 [3] PLUG
42. 94-2013 [2] PLUG
42. 94-2013 [3] PLUG Y 4245797
42. 94-2013 [3] PLUG
43. 4092970 [1] O-RING
44. J931670 [2] BOLT
48. M492564 [2] SCREW;DRIVE
49. 3053559 [1] NAME-PLATE
60. J931665 [28] BOLT
61. A590916 [28] WASHER;SPRING
