Travel Ring Gear 205-27-71530 205-27-71531 Fit Excavator Komatsu PC200-3 PC200LC-3 PC220-3 PC220LC-3

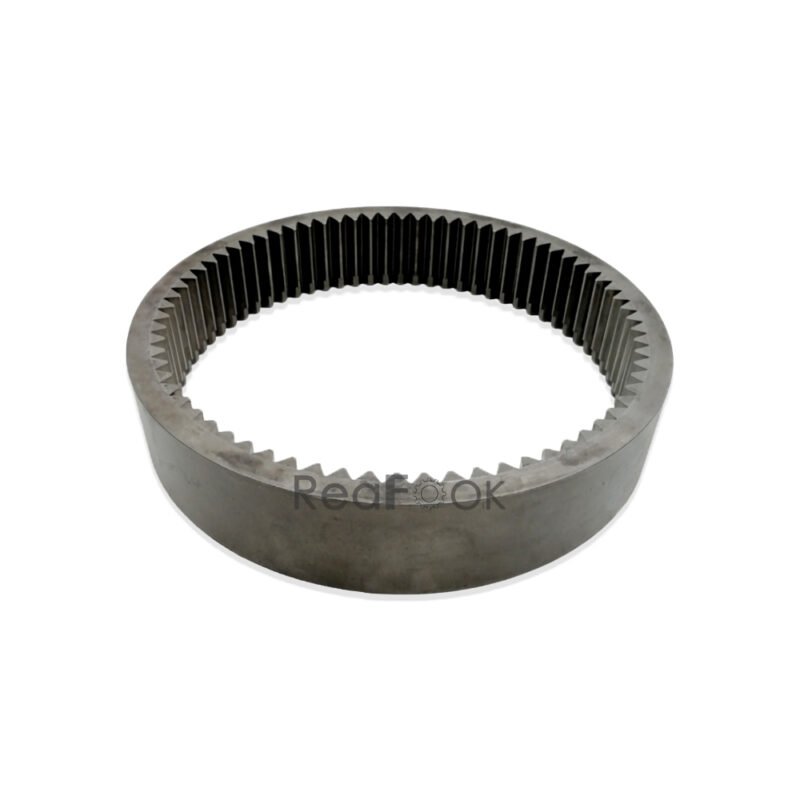

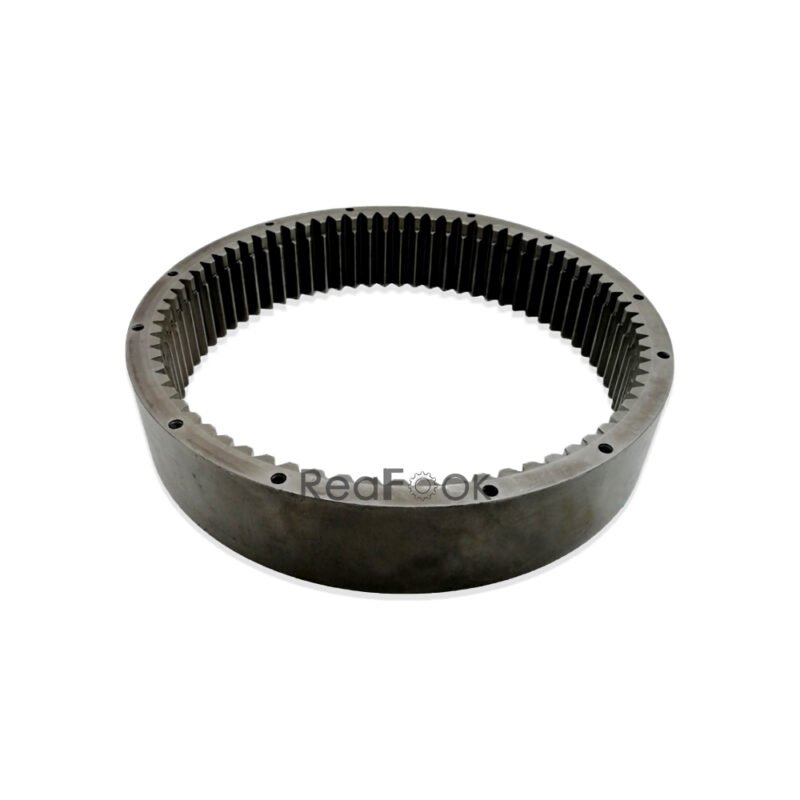

Product Name: Gear Ring
Reference Part Number: 205-27-71530, 205-27-71531
Compatible Machine: Excavator Komatsu PC200-3 PC200LC-3 PC220-3 PC220LC-3 BP500-3 CS360-1 CS360-2 PF5-1…

Description:
The Internal Steel Ring Gear serves to securely attach the final drive gear to the hub, ensuring efficient power transmission, which is commonly used in planetary gear sets of final drives.

Pos. Part No Qty Parts name Comments

1. 01010-51670 [36] BOLT 0.142 kg. :[“0101061670”, “0101031670”, “0101081670”]

2. 01643-31645 [36] WASHER 0.072 kg.[“802170005”, “0164301645”]

205-27-00081 [2] FINAL DRIVE ASS’Y 633 kg. [05-27-00082, 05-27-00083, 05-27-00084, 05-27-00085, 05-27-00086, 05-27-00087]

205-27-00080 [2] FINAL Drive Assy 633 kg..

3. 205-27-71481 [1] SHAFT 41 kg.

3. 205-27-71480 [1] SHAFT

[1] (205-27-71481, 205- 27-71471)

150-27-00027 [1] FLOATING SEAL ASS’Y 2.4 kg. [“1502724130”, “1502700026”, “1502700025”, “1502700028”]

4. 150-27-00262 [1] SEAL RING ASS’Y 2.2 kg.

5. 150-27-00270 [1] O-RING ASS’Y 0.29 kg.

6. 205-27-71430 [2] BEARING 5.2 kg.

7. 205-27-71471 [1] HUB 92.05 kg.

7. 205-27-71470 [1] HUB

8. 07044-12412 [1] PLUG 0.09 kg. ][“0704402412”, “R0704412412”]

9. 07002-02434 [1] O-RING 0.01 kg.:[“0700212434”, “0700213434”]

10. 205-27-71281 [1] SPROCKET 38.6 kg.

11. 205-27-71670 [20] BOLT .1 kg.

11. 01010-51640 [20] BOLT 0.264 kg. :[“0101061640”, “801015186”, “0101031640”, “0101081640”]

12. 20Y-27-11310 [1] SPACER, 4.85MM

12. 205-27-00060 [1] SHIM ASS’Y 0.01 kg. :[“2052771660”, “2052771650”]

13. 205-27-71531 [1] GEAR 14.625 kg.

13. 205-27-71530 [1] GEAR 14.625 kg.:[“2052771531”]

14. 205-27-71610 [6] PLATE

15. 01010-50820 [12] BOL 0.013 kg. :[“0101080820”, “801014067”, “801015086”]

16. 01643-50823 [12] WASHER 0.01 kg.

17. 205-27-71630 [1] GEAR 10.8 kg.

18. 04020-01842 [2] PIN,DOWEL0.09 kg.

19. 205-27-71680 [18] BOLT

20. 205-27-71550 [1] GEAR 1.2 kg.

21. 205-27-71510 [1] CARRIER 30 kg.

22. 205-27-00070 [1] PLANETARY GEAR A. 19.5 kg. [“2052771540”]

23. 205-27-71560 [3] BEARING 2.373 kg.

24. 205-27-71582 [3] PIN

24. 205-27-71580 [3] PIN

25. 205-27-71592 [3] COLLAR 0.22 kg.

25. 205-27-71591 [3] COLLAR [“2052771590”]

26. 04020-00616 [3] PIN,DOWEL 0.004 kg.

26. 01658-03618 [3] WASHER 0.017 kg. [“0165823618”]

27. 01010-51465 [3] BOLT 0.103 kg. [“0101031465”, “0101081465”, “0101061465”]

27. 01530-03610 [3] NUT,LOCK 0.083 kg. [“SN: 20001-21521”]

28. 205-27-71570 [2] SPACER 0.044 kg. [“20Y2711250”]

29. 205-27-71520 [1] GEAR 15 kg.

30. 205-27-71360 [1] BUTTON 0.125 kg.

31. 205-27-71492 [1] COVER 36.2 kg.

31. 205-27-71491 [1] COVER

31A. 07043-70312 [1] PLUG 0.016 kg.

32. 07040-12414 [1] PLUG 0.092 kg.: [“0704002412”, “0704012412”]

32. 07040-13618 [1] PLUG 0.245 kg. :[“0704113612”]

33. 07002-03634 [1] O-RING: [“0700213634”]

34. 01010-51685 [24] BOLT 0.165 kg.

36. 205-27-71131 [2] COUPLING 0.665 kg.

37. 07000-05190 [2] O-RING 0.022 kg.

12. 20Y-27-11320 [2] SPACER, 4.90MM

12. 20Y-27-11330 [2] SPACER, 4.95MM

12. 20Y-27-11340 [2] SPACER, 5.00MM 0.42 kg.

12. 20Y-27-11350 [2] SPACER, 5.05MM

12. 20Y-27-11360 [2] SPACER, 5.10MM
