Fuel Shutoff Solenoid 7000769 Fit Bobcat Loader S160 S185 S205 S450 S510 S530 S550 S570 S630 S650 T180 T190 T550 T630 T650

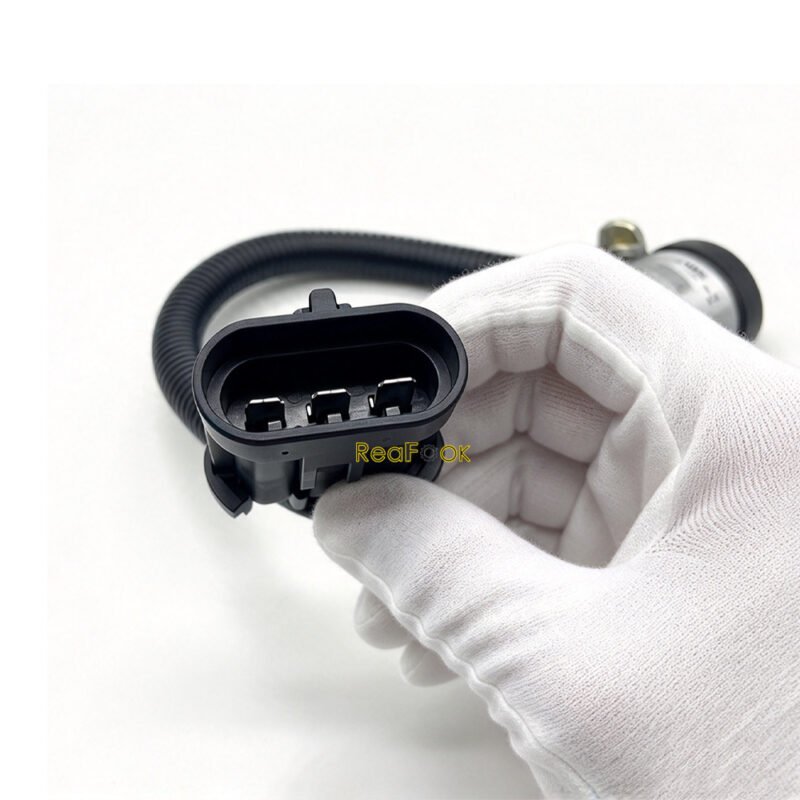

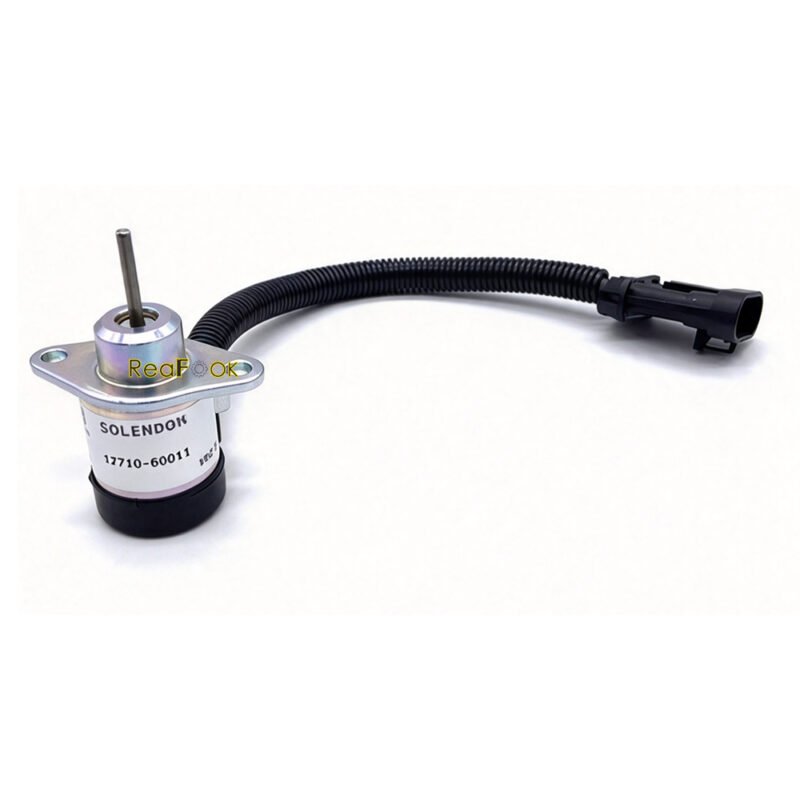

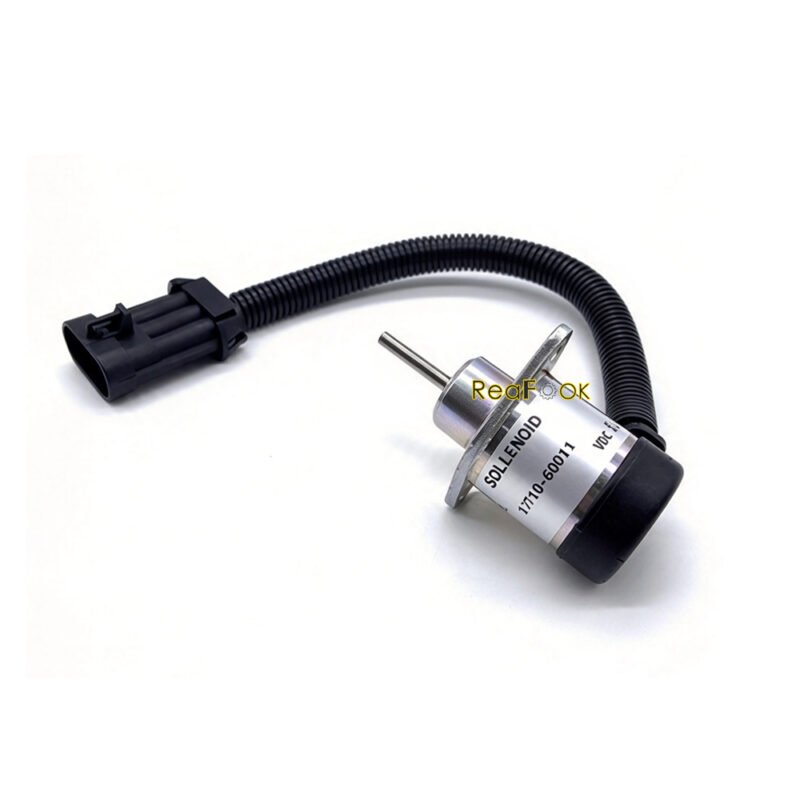

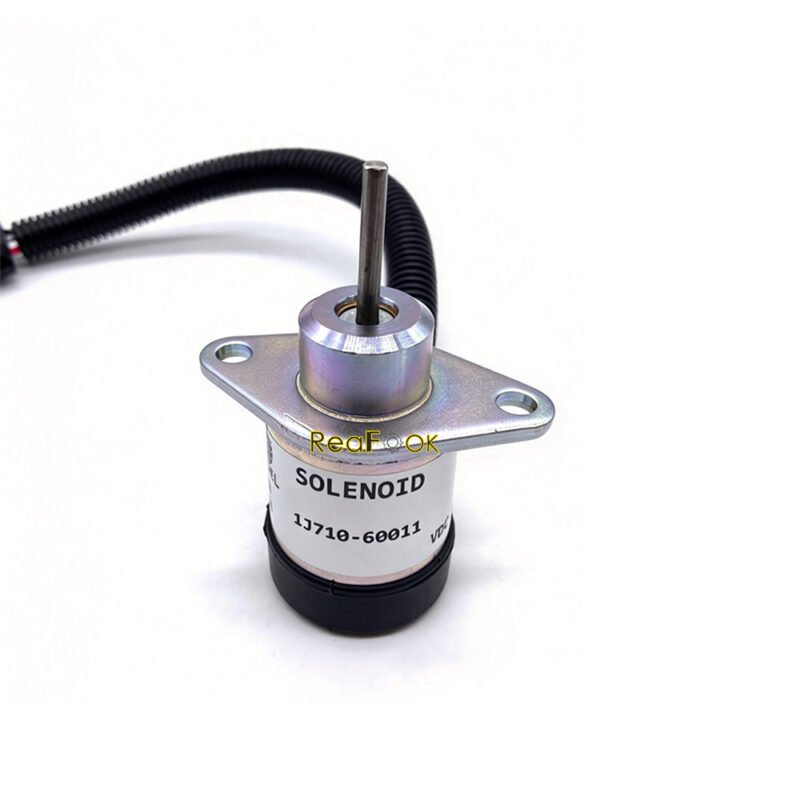

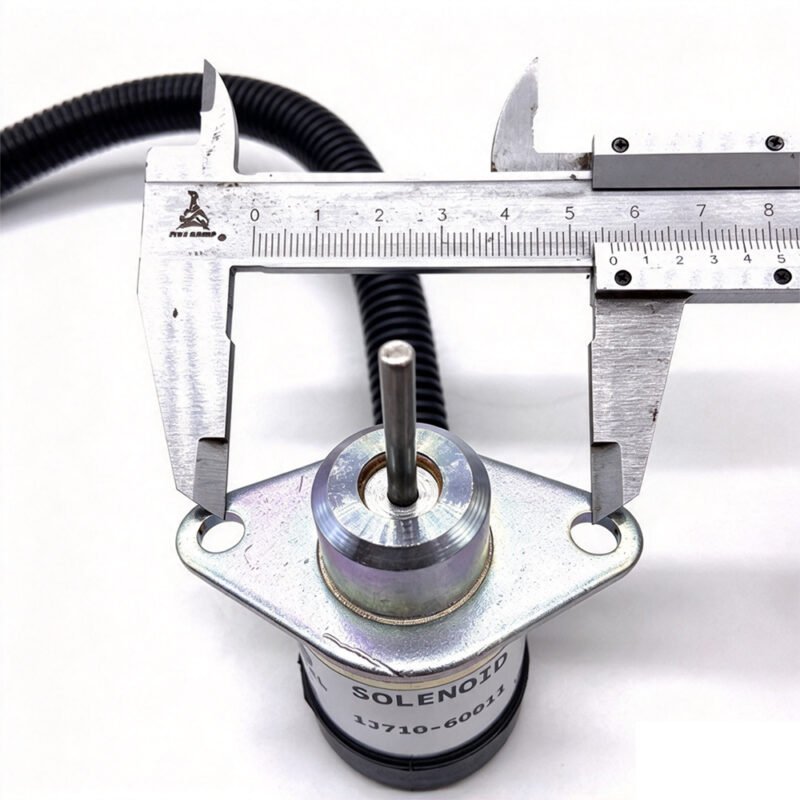

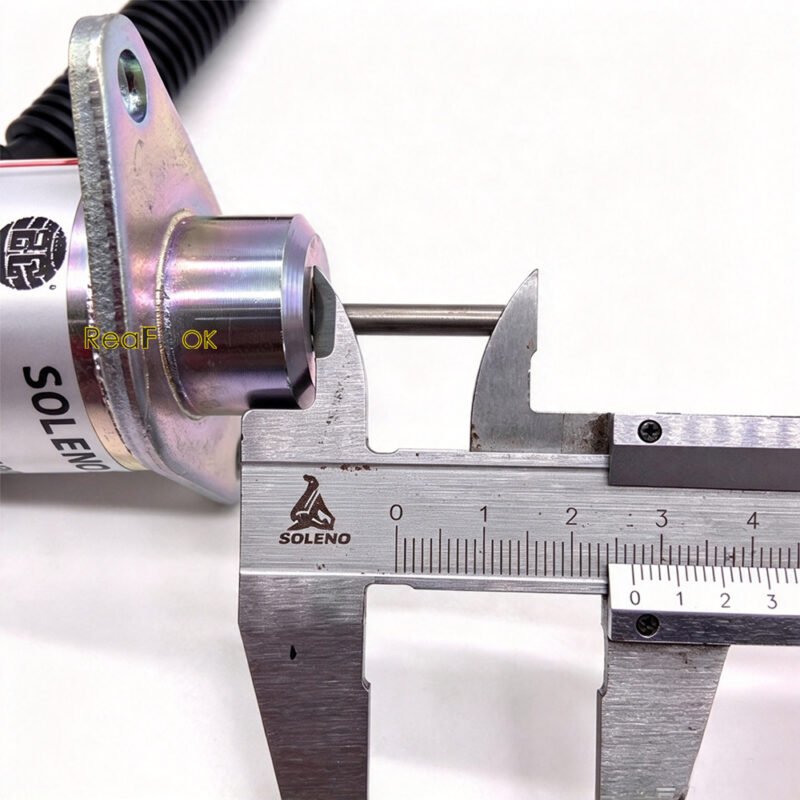

Product Name: Fuel Shutoff Solenoid
Reference Part Number: 7000769, 1J710-60011
Compatible Machine: Fit Bobcat Skid Steer Loaders S160, S185, S205, S450, S510, S530, S550, S570, S590, S630, S650; Track Loaders T180 T190 T550 T630 T650…

Description:
It is used to close the main fuel circuit in the carburetor when the key is turned off. Plugs into the engine and the governor.

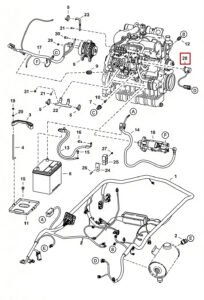

Ref #       Part #       Description       Q-ty
1 7139414 HARNESS MFR MF TURBO loader A3L311001 – A3L334999A3L411001 – A3L434999
1 7169389 HARNESS A3L335001 & AboveA3L435001 & Above
2 6665371 SWITCH VACUUM condition indicator 1
3 6569203 CLAMP BATTERY 1
4 6576280 BOLT BENT 2
5 6624289 CABLE TIE 7
6 7312552 BATTERY 650 CCA DRY Was 6674687 1
6 7269859 BATTERY 650 CCA 1
7 7321588 SENSOR PRESSURE Was 6697920 1
8 – ALTERNATOR, C3529 1
9 6693921 SENSOR SPEED rpm 1
10 7102451 FITTING STRAIGHT 1
11 6718260 PAN BATTERY 1
12 6718414 SENDER TEMP 1
13 7160652 CABLE NEGATIVE 1
14 6719141 CABLE POSITIVE 1
15 84G3712 SCREW THD ROLLING TT 3
16 35C612 SCREW FLGD HEX CAP 1
17 7141854 HARNESS, ENG 1
18 – STARTER, B16488R 1
19 59D5 NUT LOCK HEX PT 2
20 25E15 WASHER FLAT PLAIN 2
21 4CM816 SCREW HEX HD 8.8 Was 1CM816 3
22 7160280 BRACKET HARNESS 1
23 7161098 BRACKET GLOW PLUG 1
24 6715132 RETAINER 1
25 6715197 CLAMP 1
26 17C540 BOLT 2
27 95D5 NUT PRETRQ HEX LOCK 1
28 7000769 SOLENOID SHUTOFF FUEL 240 mm (9.45″) lead 1
29 43DM8 NUT FLANGED HEX 1
30 SCREW HEX HD W/F 8.8 1
31 NUT HX THDLK PREAPPL 2
31 – STUD, – for harness bracket 2
