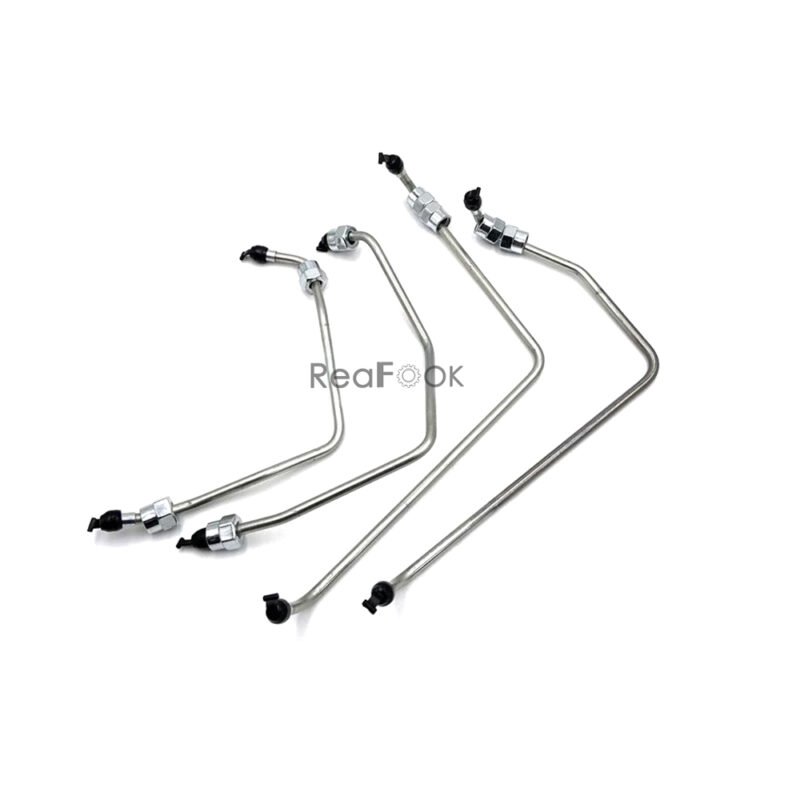

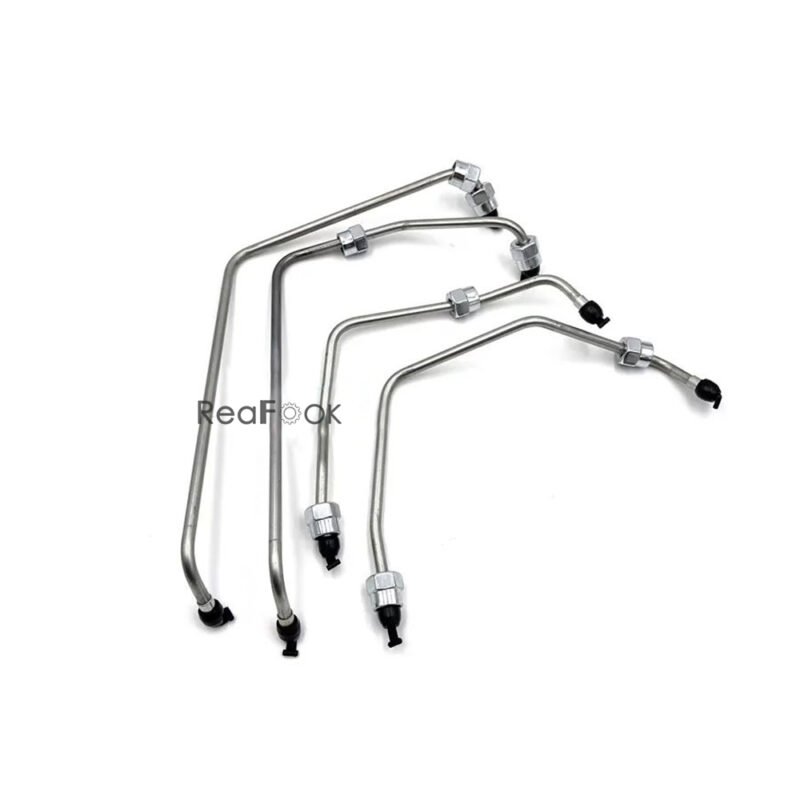

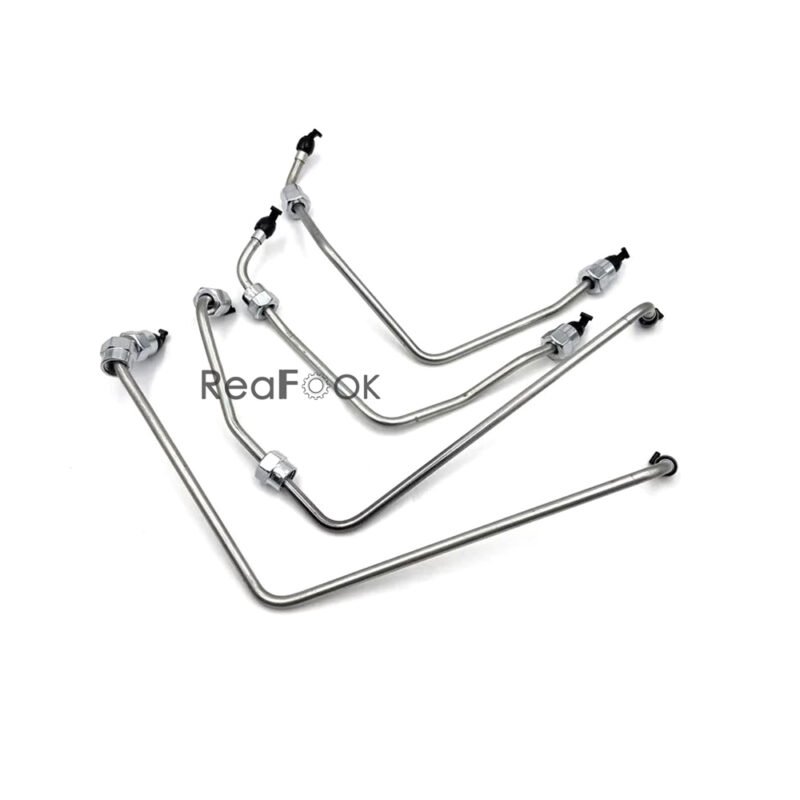

Name: Fuel Injection Pump Pipe 5I-7872 5I-7873 5I-7874 5I-7875 Fit Caterpillar Excavator CAT 311 311B 312 312B
SKU: 5I-7873
Price: 129.00 USD
Availability: InStock

Fuel Injection Pump Pipe 5I-7872 5I-7873 5I-7874 5I-7875 Fit Caterpillar Excavator CAT 311 311B 312 312B

US$129.00

Fuel Injection Pipe 5I-7872 5I-7873 5I-7874 5I-7875;
Engine 3064 S4K High Pressure Fuel Injection Line;
It is used for Engine Fuel System;
Free Shipping and High Quality Standards!!

Guaranteed Safe Checkout

Product Name: Fuel Injection Pipe
Reference Part Number: 5I-7872, 5I-7873, 5I-7874, 5I-7875, 5I7872 5I7873 5I7874 5I7875
Compatible Machine: Caterpillar Excavator CAT 311 311B 312 312B…

Description:
Tubes are important components of fuel rails, which deliver fuel to fuel injection systems of engines.

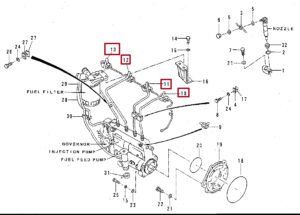

CAT311 5I 7873 5I 7874 5I 7875 Fuel Injection Pipe Diagram 2

Pos. Part No Qty Parts name Comments
1. 184-3989 [4] SUPPORT AS
2. 1R-6573 [4] GASKET
3. 5I-7876 [1] PIPE
4. 094-9597 [3] CLAMP
5. 085-7269 [8] WASHER
6. 5I-5111 [4] NUT
7. 5C-9553 [3] BOLT (16MM LONG)
8. 5I-7834 [1] CLIP
9. 5I-7743 [1] JOINT
10. 5I-7872 [1] PIPE
11. 5I-7873 [1] PIPE
12. 5I-7874 [1] PIPE
13. 5I-7875 [1] PIPE
14. 8T-4136 [4] BOLT (25MM LONG)
15. 7X-0796 [8] LOCKWASHER
16. 5I-7877 [1] BRACKET
17. 094-9596 [3] CLAMP
18. 096-9529 [1] SEAL
19. 5I-7576 [1] FLANGE
20. 5I-7744 [1] SEAL
21. 3B-4505 [2] LOCKWASHER
22. 5I-5108 [2] BOLT
23. 8T-4121 [4] WASHER
24. 096-2500 [4] WASHER
25. 8T-4196 [4] BOLT (35MM LONG)
26. 6V-7357 [1] BOLT (25MM LONG)
27. 094-9581 [2] CLAMP
28. 5I-7829 [1] HOSE AS
29. 5I-7828 [1] HOSE AS
