Fuel Filter Element 509-5694 Fit Excavator Caterpillar CAT320 323 330 336

Product Name: Fuel Filter Element
Reference Part Number: 509-5694
Compatible Machine: Excavator Caterpillar CAT320 323 330 336…

Description:
The fuel filters are designed to remove the small contaminants that cause the most harm. All fuel filters remove some abrasive particles, but many competitive filters are not effective at capturing and retaining the particles that are most damaging to sensitive fuel system components.

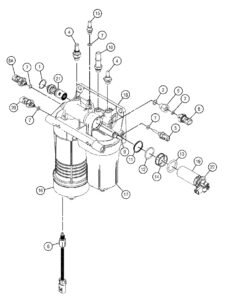

Pos. Part No Qty Parts name Comments
1. 199-7560 [1] RING-RETAINING
2. 228-7102 [1] SEAL-O-RING
3. 238-0112 [1] SENSOR GP-TEMPERATURE (FUEL)
4. 361-7347 Y [2] CONNECTION GP-FUEL
5. 433-4841 [1] ADAPTER
6. 439-5039 [1] SENSOR GP-LIQUID LEVEL (WATER IN FUEL)
7. 277-4993 [5] SEAL-O-RING
8. 320-3060 [1] SENSOR GP-PRESSURE (FUEL FILTER OUTLET)
8A. 320-3060 [1] SENSOR GP-PRESSURE (FUEL FILTER INLET)
9. 356-3986 [1] CONNECTOR AS
277-4993 [1] SEAL-O-RING
10. 492-9114 [1] NIPPLE AS
228-7102 [1] SEAL-O-RING
492-9113 [1] FITTING
11. J [1] SPRING-WAVE
12. J [1] SEAL-O-RING
13. 511-4824 J [1] SEAL-O-RING
14. J [1] SPACER
15. 515-6467 [1] CONNECTION
16. 523-4986 [1] HOUSING AS (FUEL, WATER SEPARATOR)
460-5302 [1] KIT-DRAIN (FUEL FILTER, WATER SEPARATOR)
(INCLUDES DRAIN, KNOB & SEAL)
523-4987 [1] ELEMENT-WATER SEPARATOR
17. 523-4988 [1] HOUSING AS-FUEL (SECONDARY)
354-5833 [1] KIT-DRAIN (FUEL FILTER)
489-7503 [1] HOUSING-FUEL FILTER
509-5694 [1] FILTER ELEMENT-FUEL (SECONDARY)
18. [1] BASE-FUEL FILTER
19. 526-2037 J [1] PUMP AS-FUEL
20. 533-2245 [1] SENSOR AS-PRESSURE
21. 539-7999 [1] VALVE AS-CHECK
22. 6V-7723 [1] RING-RETAINING

AVAILABLE REPAIR KIT(S):
562-1852 J [1] KIT-PUMP (WATER SEPARATOR)
(INCLUDES PUMP AS, O-RING SEALS, SPRING & SPACER)
KIT MARKED J SERVICES PART(S)
Y SEPARATE ILLUSTRATION
