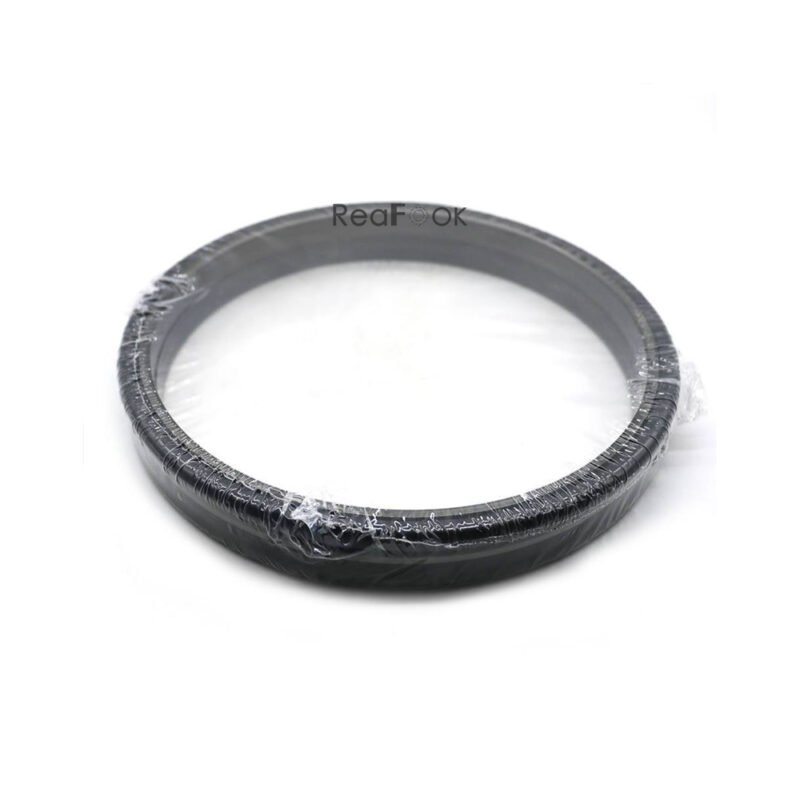

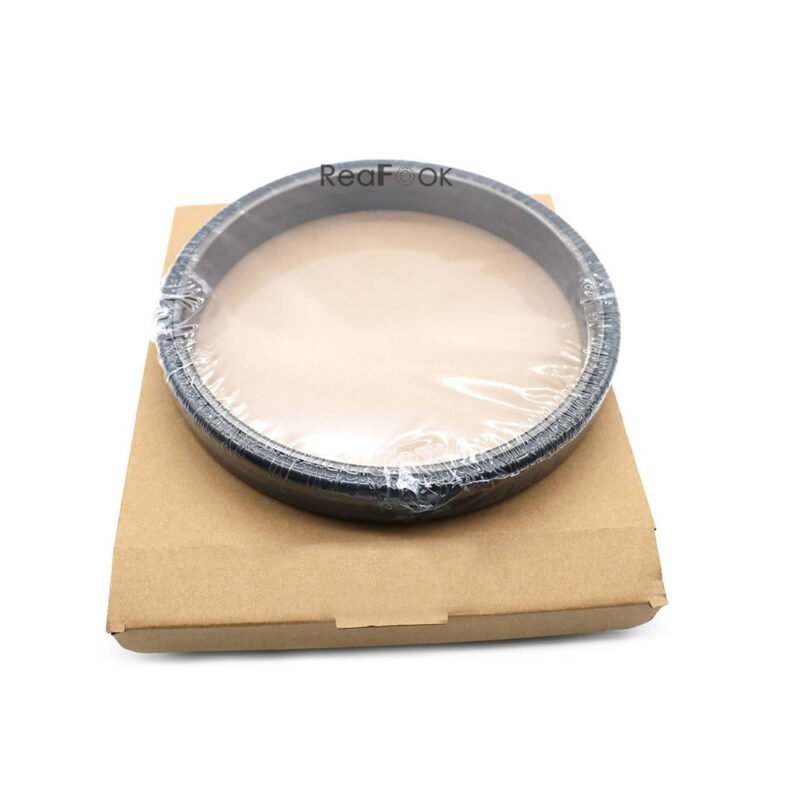

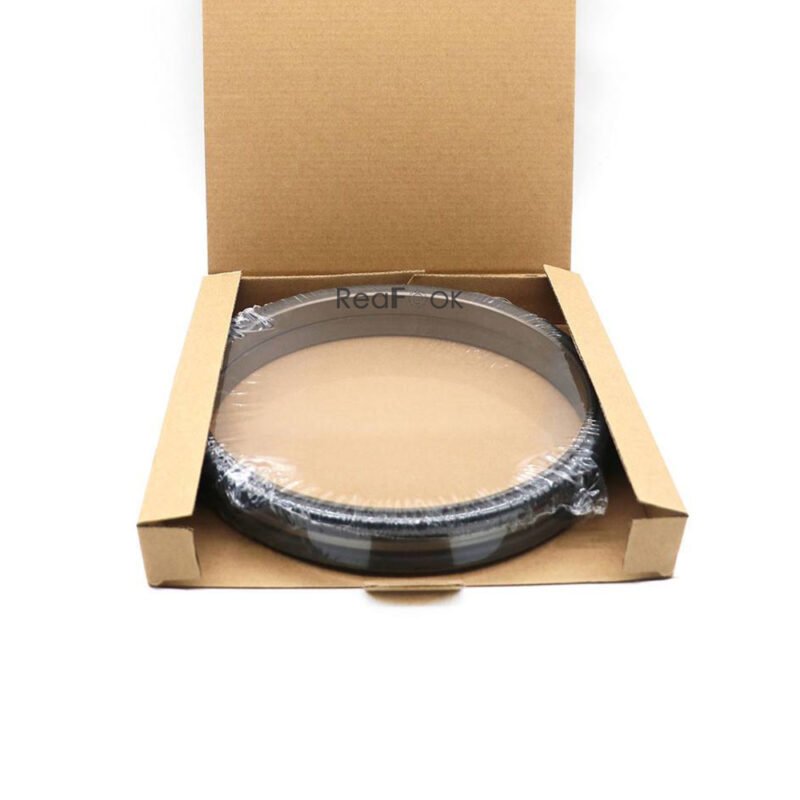

Final Drive Floating Seal Kit 171-9409 096-6789 Fit Excavator Caterpillar CAT307B 307C 308C CR

Product Name: Seal Kit and O-Ring
Reference Part Number: 171-9409, 096-6789
Compatible Machine: Excavator Caterpillar CAT307B 307C 308C CR…

Description:
The Floating seals are used in the final drive of Hydraulic Excavators. They provide an effective sealing solution for the piston motor, such as the axle shaft and the final drive housing, and retain lubricating oil within the system. Floating seals offer high durability, and excellent resistance to wear and tear, and maintain their sealing performance even under harsh conditions, making them suitable for Hydraulic Excavators.

Pos. Part No Qty Parts name Comments
1. 096-6789 [1] SEAL
2. 171-9343 [1] SHAFT
3. 6B-1124 [1] BALL BEARING
4. 096-6826 [1] SEAL-OIL
5. 171-9331 [1] SPINDLE AS
5A. 171-9332 M [3] BOLT (M24X2X70-MM)
6. 095-1735 [1] SEAL-O-RING
7. 7I-2328 [1] RING
8. 171-9339 [1] COVER
9. 198-5022 [2] PLUG
10. 095-1582 [3] SEAL-O-RING
11. 171-9422 [1] SHAFT
12. 171-9337 [1] GEAR-SUN
13. 096-6837 [1] RING-RETAINING
14. 7I-2371 [1] BALL
15. 171-9338 [1] KIT-GEAR
16. 6V-8754 [6] RING-RETAINING
17. 171-9334 [3] SHAFT
18. 171-9342 [1] PLUG
19. 099-6521 B [3] RING-SNAP
099-6522 B [3] RING-SNAP
099-6523 B [3] RING-SNAP
099-6524 B [3] RING-SNAP
099-6543 B [3] RING-SNAP
24. 099-6544 B [3] RING-SNAP
099-6545 B [3] RING-SNAP
099-6546 B [3] RING-SNAP
099-6547 B [3] RING-SNAP #SEBP35390123
099-6548 B [3] RING-SNAP
099-6549 B [3] RING-SNAP
099-6550 B [3] RING-SNAP
31. 171-9421 [6] BEARING
32. 7I-2317 [6] SPACER (28.5X47X1.6-MM THK)
33. 171-9336 [6] BEARING
34. 171-9333 [1] KIT-GEAR
35. 171-9340 [28] PIN
36. 171-9330 [1] HOUSING
37. 171-9341 [2] BEARING
38. 171-9409 [1] KIT-SEAL
39. 095-1575 [2] SEAL-O-RING
B USE AS REQUIRED
M METRIC PART
