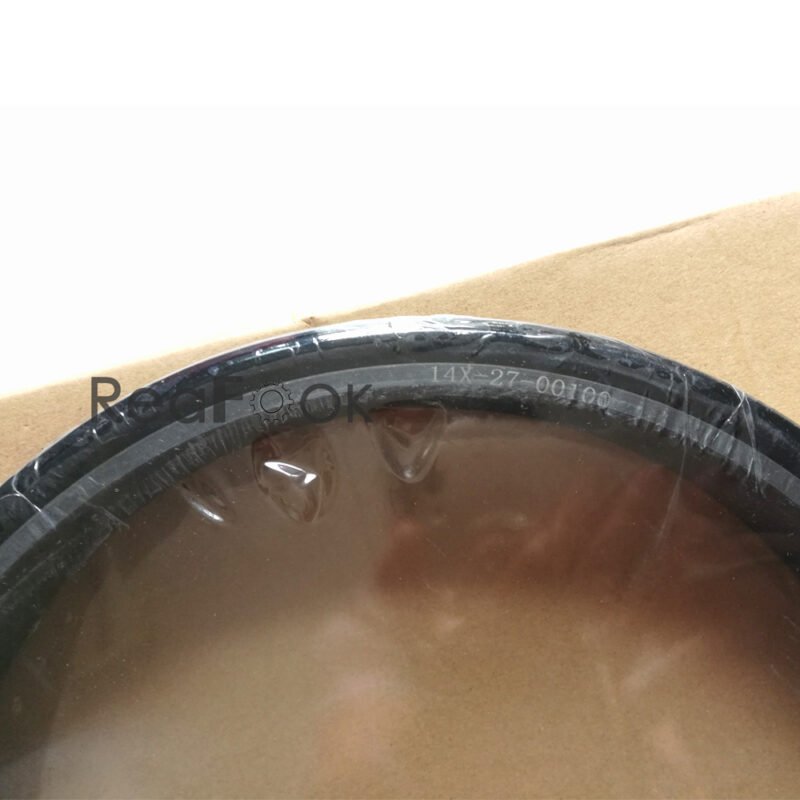

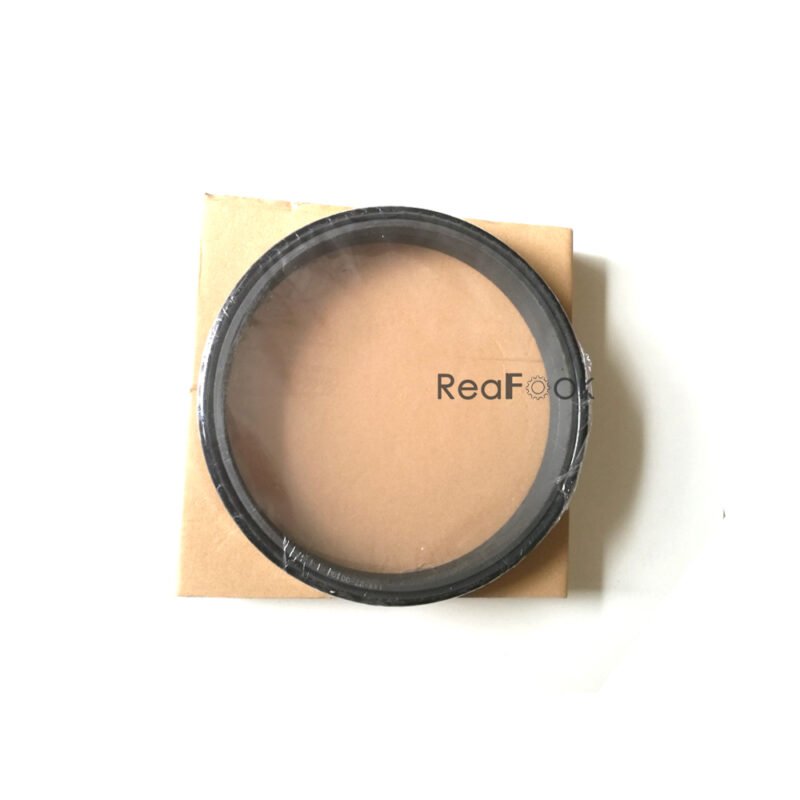

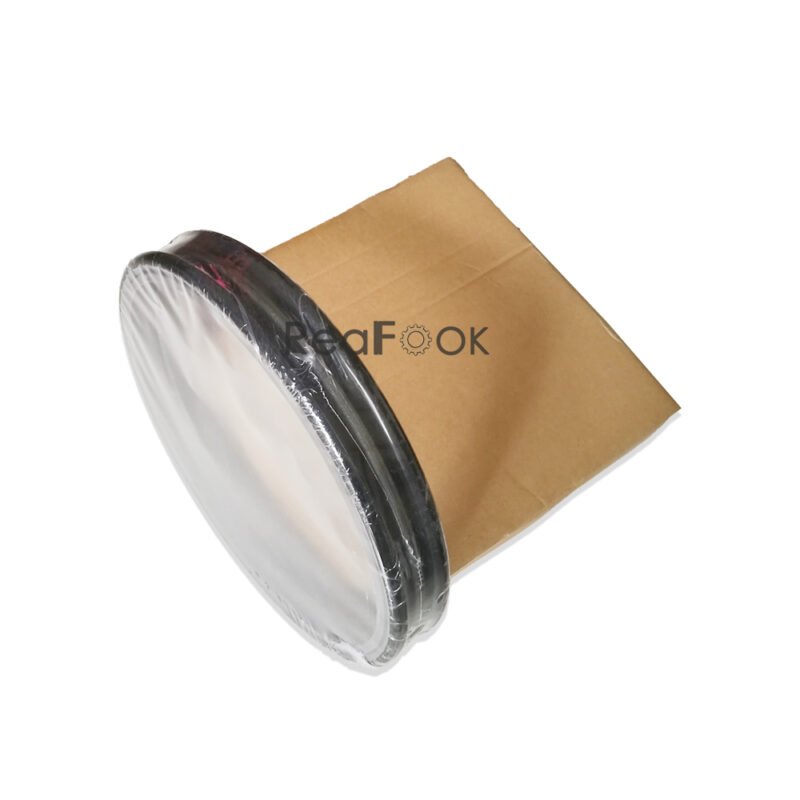

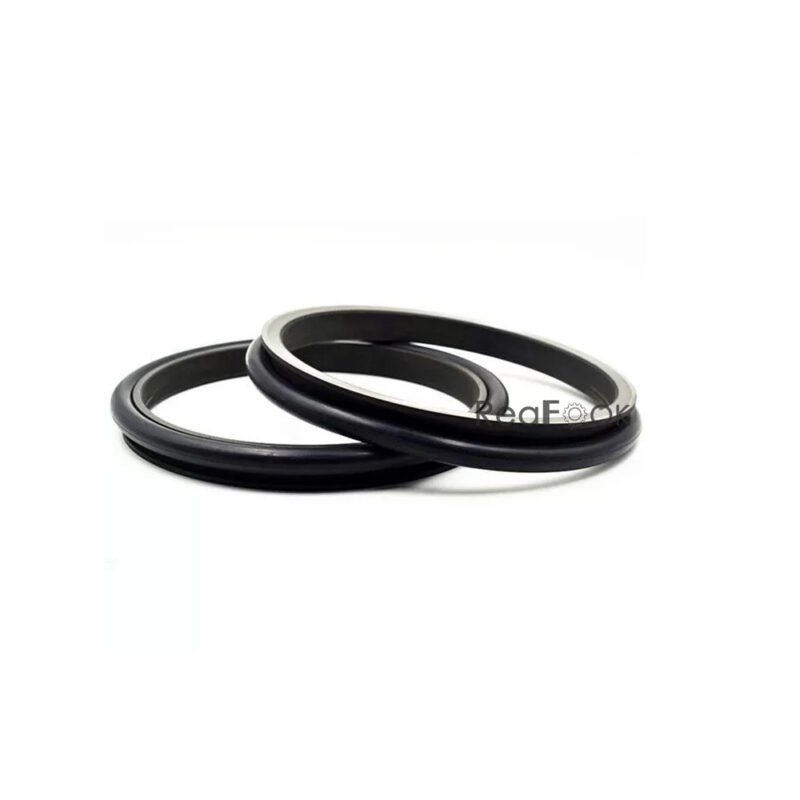

Floating Seal Assy 14X-27-00100 Fit Komatsu Bulldozer D41E-6 D41P-6 D60P-12 D65E-12 D65EX-12 D65PX-12 D85E

Product Name: Floating Seal Assy, Seal Group
Reference Part Number: 14X-27-00100
Compatible Machine: Komatsu Bulldozer D41E-6 D41P-6 D60P-12 D65E-12 D65EX-12 D65PX-12 D85E

Description:
Usually Final Drive Duo Cone Seals maintain an oil-tight seal during rotation in intense applications where misalignment may occur.

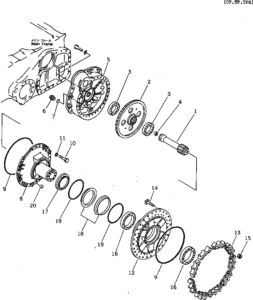

Pos. Part No Qty Parts name Comments
14Y-27-00010 [1] FINAL DRIVE ASS’Y,L.H.
1. 14Y-27-11412 [1] PINION 22.5 kg. [“SN: 60001-UP”]
2. 14X-27-11311 [1] GEAR 74 kg. [“SN: 60001-UP”] analogs:[“14X2711312”]
3. 06040-06024 [2] BEARING 2.25 kg. [“SN: 60001-UP”]
4. 14X-27-11420 [1] COLLAR 0.14 kg. [“SN: 60001-UP”]
5. 14X-27-11113 [1] CASE,L.H. 145 kg. [“SN: 60001-UP”] analogs:[“14X2711114”, “14X2711115”]
5. 14X-27-11123 [1] CASE,R.H. 130.01 kg. [“SN: 60001-UP”]
6. 07044-13620 [1] PLUG 0.496 kg. [“SN: 60001-UP”] analogs:[“0704403620”]
7. 07002-03634 [1] O-RING 0.013 kg. [“SN: 60001-UP”] analogs:[“0700213634”]
8. 14Y-27-11152 [1] COVER,L.H. 144.01 kg. [“SN: 60001-UP”] analogs:[“14Y2711155”]
8. 14Y-27-11162 [1] COVER,R.H. [“SN: 60001-UP”] analogs:[“14Y2711163”, “14Y2711165”, “14Y2711164”]
9. 14X-27-11170 [2] O-RING 0.06 kg. [“SN: 60001-UP”]
10. 01010-51645 [28] BOLT 0.104 kg. [“SN: 60001-UP”]
11. 01643-31645 [28] WASHER 0.072 kg. [“SN: 60001-UP”] analogs:[“802170005”, “0164301645”]
12. 14X-27-11710 [1] HUB 126.2 kg. [“SN: 60001-UP”] analogs:[“14X2711711”]
13. 14X-27-15111 [9] TEETH 8.313 kg. [“SN: 60001-UP”] analogs:[“14X2715112”, “1412732280”, “1412732410”, “14X2777110”]
14.154-27-12320 [27] BOLT 0.337 kg. [“SN: 60001-UP”] analogs:[“1542712293”, “R1542712320”]
15. 01803-02228 [27] NUT 0.11 kg. [“SN: 60001-UP”]
16.14X-27-11721 [2] BEARING 6.8 kg. [“SN: 60001-UP”]
17. 14X-27-11751 [1] COLLAR 3.77 kg.
14X-27-00100 [1] FLOATING SEAL ASS’Y 2.46 kg.
14X-27-00101 [1] FLOATING SEAL ASS’Y 2.46 kg.
20. 07049-01620 [1] PLUG 0.002 kg.
