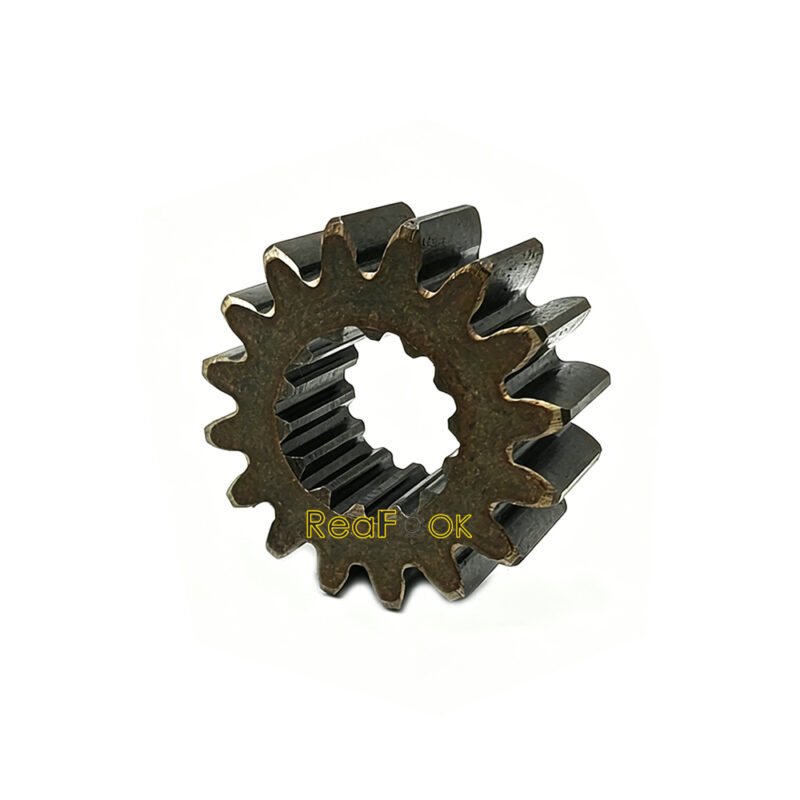

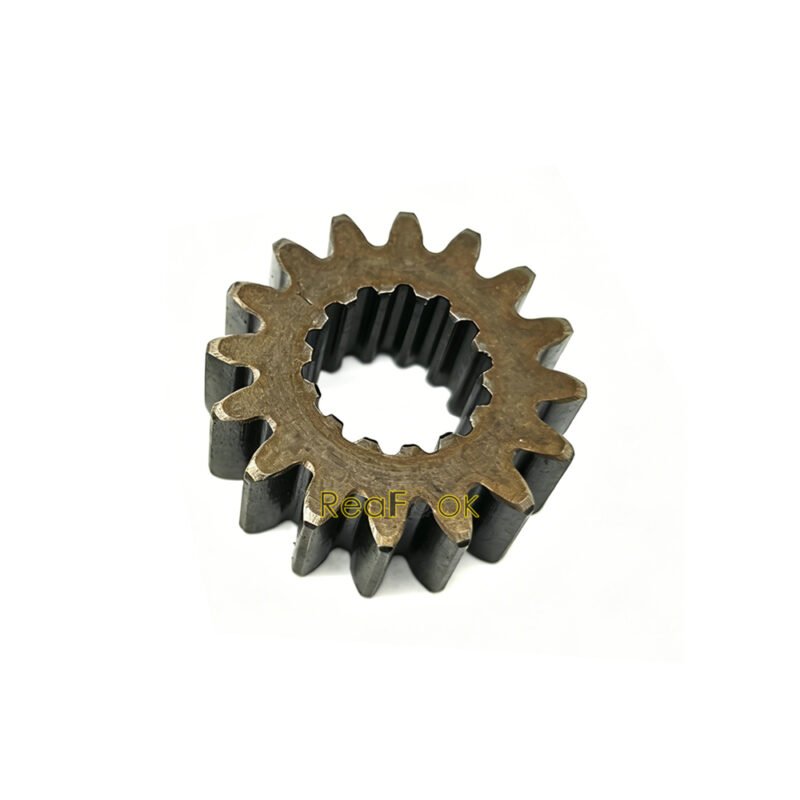

Product Name: Sun Gear
Reference Part Number: 171-9337, 1719337
Fits and Compatible Machines: Excavator Caterpillar CAT 307B 307C 308C…
Description:
A Sun Gear is designed to transfer torque from the input shaft to the planetary Gears, which in turn transmit power to the output shaft. Final Drive Sun Gear transmits rotational power from the drive motor to the final drive assembly, enabling the movement of tracks.
Pos. Part No Qty Parts name Comments
1. 096-6789 [1] SEAL
2. 171-9343 [1] SHAFT
3. 6B-1124 [1] BALL BEARING
4. 096-6826 [1] SEAL-OIL
5. 171-9331 [1] SPINDLE AS
5A. 171-9332 M [3] BOLT (M24X2X70-MM)
6. 095-1735 [1] SEAL-O-RING
7. 7I-2328 [1] RING
8. 171-9339 [1] COVER
9. 198-5022 [2] PLUG
10. 095-1582 [3] SEAL-O-RING
11. 171-9422 [1] SHAFT
12. 171-9337 [1] GEAR-SUN
13. 096-6837 [1] RING-RETAINING
14. 7I-2371 [1] BALL
15. 171-9338 [1] KIT-GEAR
16. 6V-8754 [6] RING-RETAINING
17. 171-9334 [3] SHAFT
18. 171-9342 [1] PLUG
19. 099-6521 B [3] RING-SNAP
099-6522 B [3] RING-SNAP
099-6523 B [3] RING-SNAP
099-6524 B [3] RING-SNAP
099-6543 B [3] RING-SNAP
24. 099-6544 B [3] RING-SNAP
099-6545 B [3] RING-SNAP
099-6546 B [3] RING-SNAP
099-6547 B [3] RING-SNAP
099-6548 B [3] RING-SNAP
099-6549 B [3] RING-SNAP
099-6550 B [3] RING-SNAP
31. 171-9421 [6] BEARING
32. 7I-2317 [6] SPACER (28.5X47X1.6-MM THK)
33. 171-9336 [6] BEARING
34. 171-9333 [1] KIT-GEAR
35. 171-9340 [28] PIN
36. 171-9330 [1] HOUSING
37. 171-9341 [2] BEARING
38. 171-9409 [1] KIT-SEAL
39. 095-1575 [2] SEAL-O-RING
B USE AS REQUIRED
M METRIC PART
Weight
0.5 kg
