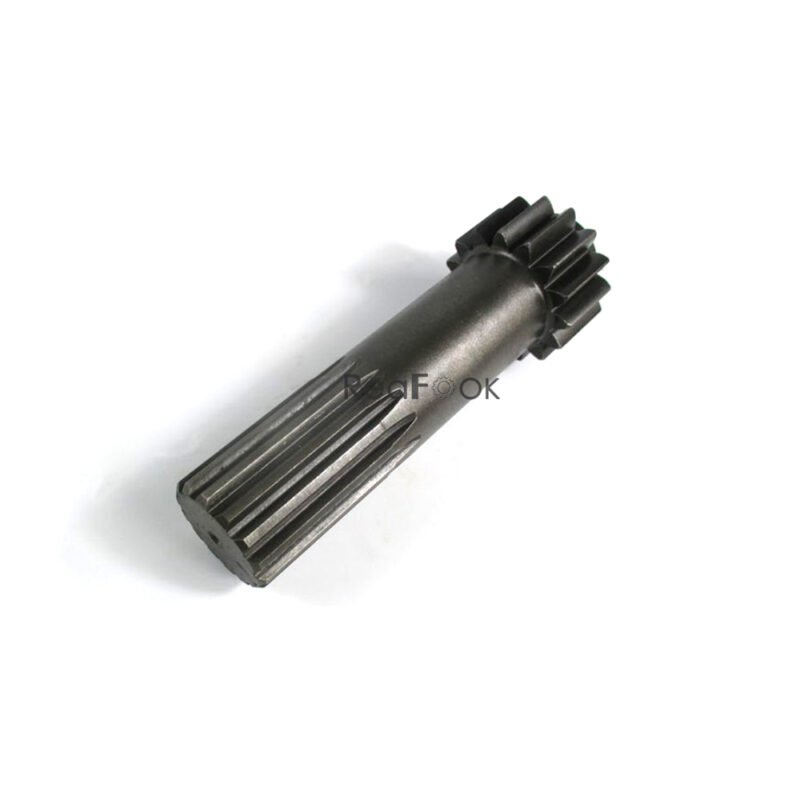

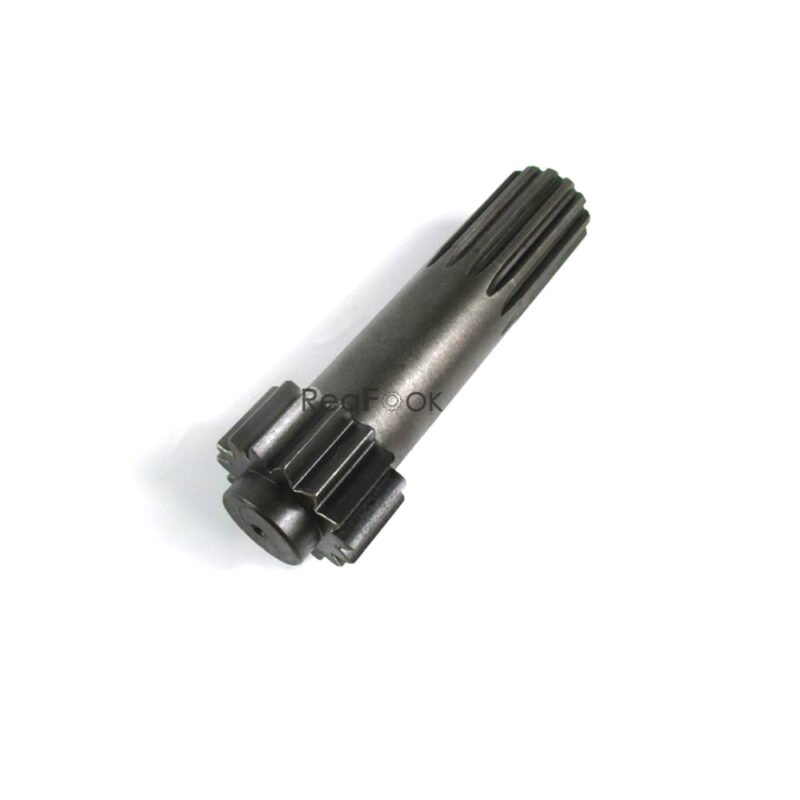

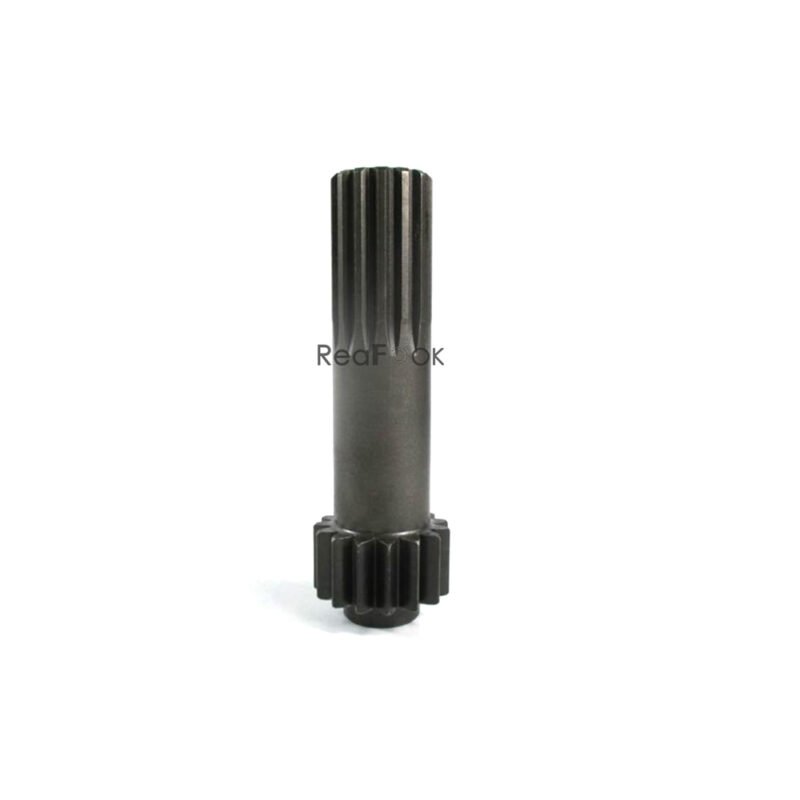

Final Drive Travel Reduction Sun Gear 099-0203 Fit Excavator Caterpillar E120B

Product Name: Sun Gear Shaft, 1st Stage
Reference Part Number: 099-0203
Compatible Machine: Excavator Caterpillar E120B…

Description:
A Sun Gear is designed to transfer torque from the input shaft to the planetary Gears, which in turn transmit power to the output shaft.

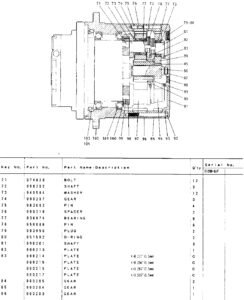

Pos. Part No Qty Parts name Comments
71. 8T-4829 [12] BOLT
72. 099-0202 [3] SHAFT
73. 094-0584 [12] WASHER
74. 099-0207 [3] GEAR
75. 096-3082 [4] PIN
76. 099-0218 [2] SPACER
77. 093-6974 [9] BEARING
78. 095-0886 [6] PIN
79. 099-3996 [2] PLUG
80. 095-1592 [2] O-RING
81. 099-0201 [3] SHAFT
82. 099-0213 [1] PLATE
83. 099-0214 C PLATE
099-0215 C PLATE
099-0216 C PLATE
099-0217 C PLATE
84. 099-0205 [3] GEAR
85. 099-0204 [1] GEAR
86. 099-0203 [1] GEAR
87. 094-0577 C PLATE
094-0578 C PLATE
094-0579 C PLATE
094-0580 C PLATE
88. 095-0968 [1] PLUG
89. 093-1727 [1] RING
90. 093-1728 [1] RING
91. 099-3995 [1] COVER
92. 8T-5001 [16] BOLT
93. 099-0197 [16] WASHER
94. 099-0209 [1] CARRIER
95. 099-0206 [1] GEAR
96. 099-0208 [1] GEAR
97. 099-0210 [1] CARRIER
98. 099-0200 [1] COUPLING
99. 093-7828 [4] PIN
093-8759 B SHIM
093-8760 B SHIM
093-8761 B SHIM
095-9276 B SHIM
095-9277 B SHIM
093-8762 B SHIM
096-0045 B SHIM
096-0857 B SHIM
101. 096-6263 [2] BEARING
102. 099-0212 [1] CASING
085-6799 [1] CASING
085-6800 [1] CASING
103. 099-0198 [2] SEAL, FLOATING
104. 086-1311 [2] O-RING
