Final Drive Travel Reduction Hub Bearing RB40178030 Fit Excavator Kubota U25-3S U27-4 U25S U27-4 CA

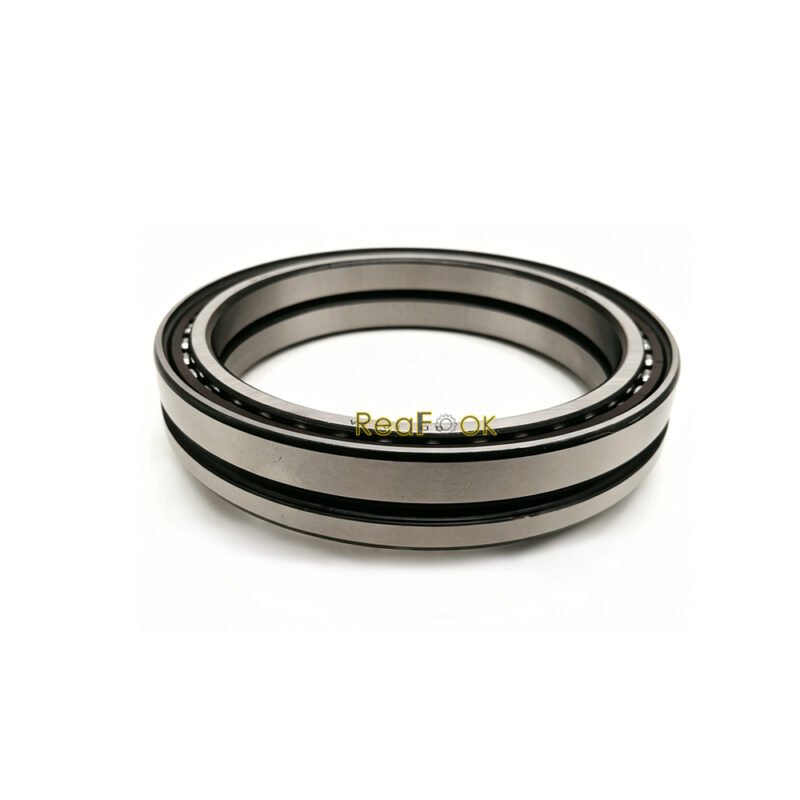

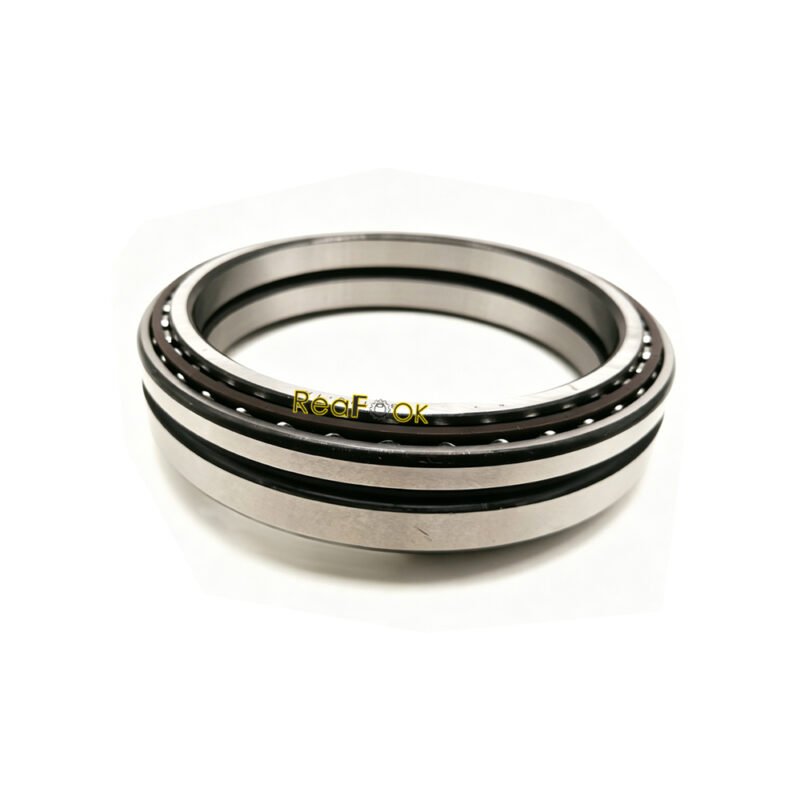

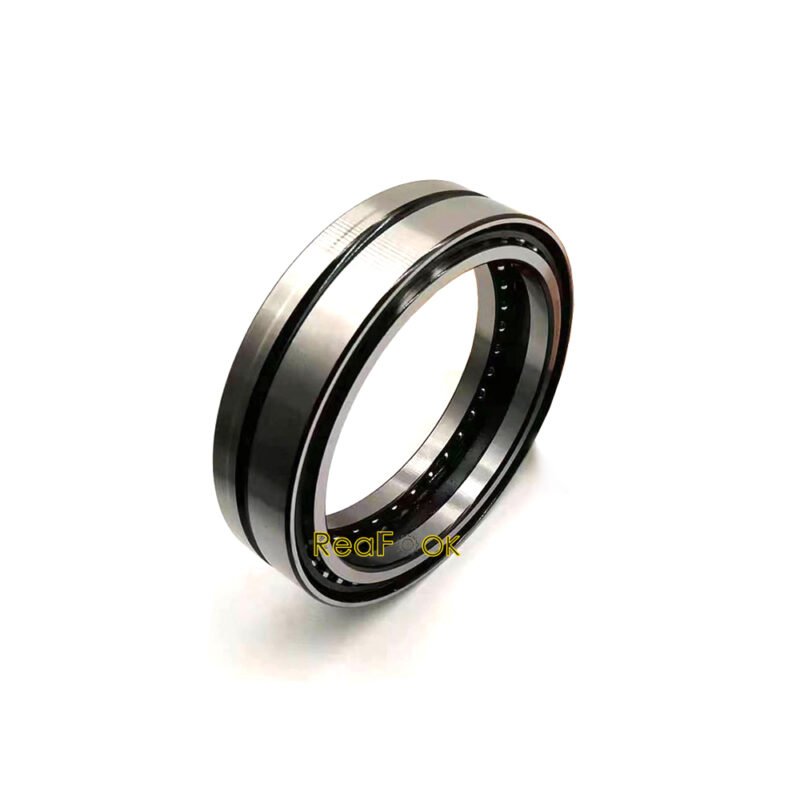

Product Name: Travel Hub Bearing RB40178030
Reference Part Number: RB40178030
Compatible Machine: Excavator Kubota U25-3S U27-4 U25S U27-4 CA…

Description:
The bearing is used in wheel hub and serves as a precision interface between the stationary axle and the rotating wheel, enabling the transfer of both axial and radial loads while minimizing friction and wear. These bearings are enclosed in a protective housing which may include seals, grease, and other protective features to prevent contaminants like dirt, water, and debris from infiltrating the bearing and compromising its performance. The seals also retain lubrication, reducing friction and ensuring prolonged bearing life.

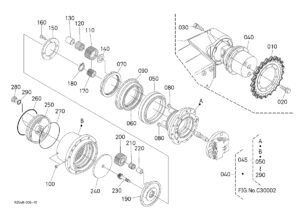

Pos. Part No Qty Parts name Comments
010. RB51114432 [2] SPROCKET,DRIVE ; <=31447 17.6000(lbs); 8.000
010. RB55914430 [2] SPROCKET,DRIVE ; >=31448 18.7880(lbs); 8.540
020. 0112851025 [20] BOLT,SEMS 0.0550(lbs); 0.025
030. 0112851025 [22] BOLT,SEMS 0.0550(lbs); 0.025
040. RB51161290 [2] ASSY MOTOR,WHEEL ; <=31447 51.8100(lbs); 23.550
040. RB55961290 [2] MOTOR,ASSY(WHEEL) ; >=31448 51.1500(lbs); 23.250
045. RB51178000 [2] SPEED REDUCTION 37.4000(lbs); 17.000
050. RB40178020 [4] SEAL,FLOATING 0.7260(lbs); 0.330
050. RB40178050 [4] SEAL(FLOATING) 0.7216(lbs); 0.328
060. RB40178030 [2] BEARING 1.8040(lbs); 0.820
070. RB51178040 [2] NUT,RING 0.4180(lbs); 0.190
080. RB51178050 [4] PLUG 0.0132(lbs); 0.006
090. 0771503205 [218] BALL 5/32 0.0022(lbs); 0.001
100. RB51178060 [4] PLUG 0.0044(lbs); 0.002
110. RB51178070 [8] GEAR 0.3300(lbs); 0.150
120. RB40178110 [8] BEARING,NEEDLE 0.0506(lbs); 0.023
130. RB51178080 [8] BEARING,INNER 0.0946(lbs); 0.043
140. RB40178130 [8] WASHER,THRUST 0.0176(lbs); 0.008
150. RB40178140 [2] PLATE 0.3960(lbs); 0.180
160. 6831113450 [8] SCREW,CSK-HD 0.0110(lbs); 0.005
170. RB51178090 [2] GEAR 0.3300(lbs); 0.150
180. RB51178100 [2] RING,SNAP 0.0022(lbs); 0.001
190. RB51178110 [2] HOLDER 1.2760(lbs); 0.580
200. RB51178120 [6] GEAR 0.4180(lbs); 0.190
210. 6831113510 [6] BEARING,ROLLER 0.0220(lbs); 0.010
220. 6831113520 [6] BEARING,INNER 0.0330(lbs); 0.015
230. RB51178130 [2] GEAR,DRIVE 0.2420(lbs); 0.110
240. RB51178140 [2] PLATE 1.8mm 0.3080(lbs); 0.140
240. RB51178150 [2] PLATE 2.3mm 0.3740(lbs); 0.170
240. RB51178160 [2] PLATE 2.8mm 0.4840(lbs); 0.220
250. RB51178170 [2] COVER 2.5080(lbs); 1.140
260. RB40178470 [2] O RING 0.0308(lbs); 0.014
270. RB40178310 [2] WIRE 0.0198(lbs); 0.009
280. RB51178180 [6] PLUG 0.0418(lbs); 0.019
290. 0481700110 [6] O RING 0.0022(lbs); 0.001
