Name: Final Drive Travel Reducer Planetary Gear RD411-78120 3PCS Fit Excavator Kubota KX161 U45
SKU: RD411-78120
Price: 195.00 USD
Availability: InStock

Final Drive Travel Reducer Planetary Gear RD411-78120 3PCS Fit Excavator Kubota KX161 U45

US$195.00

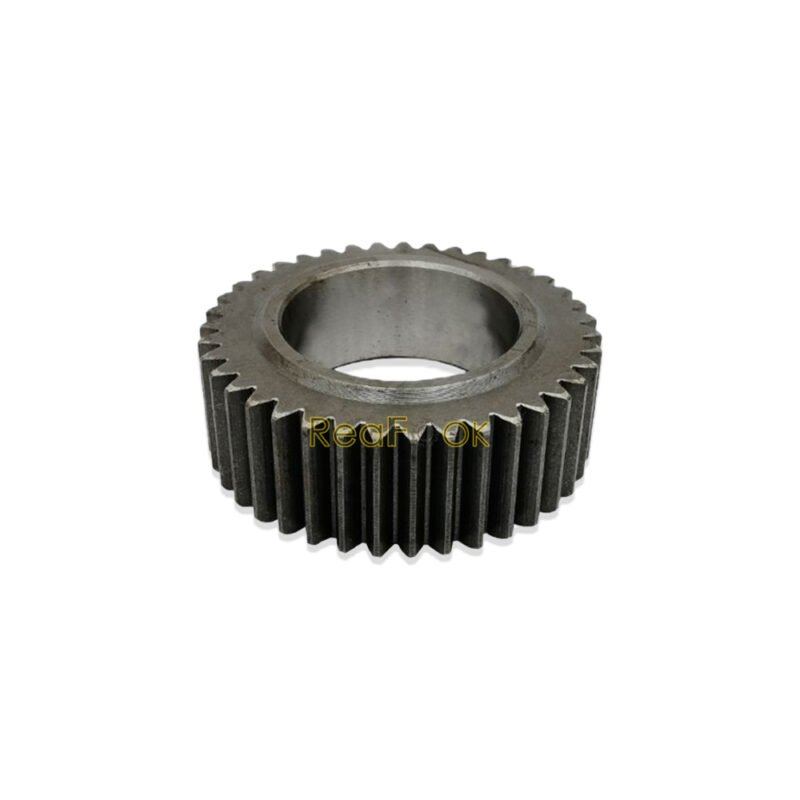

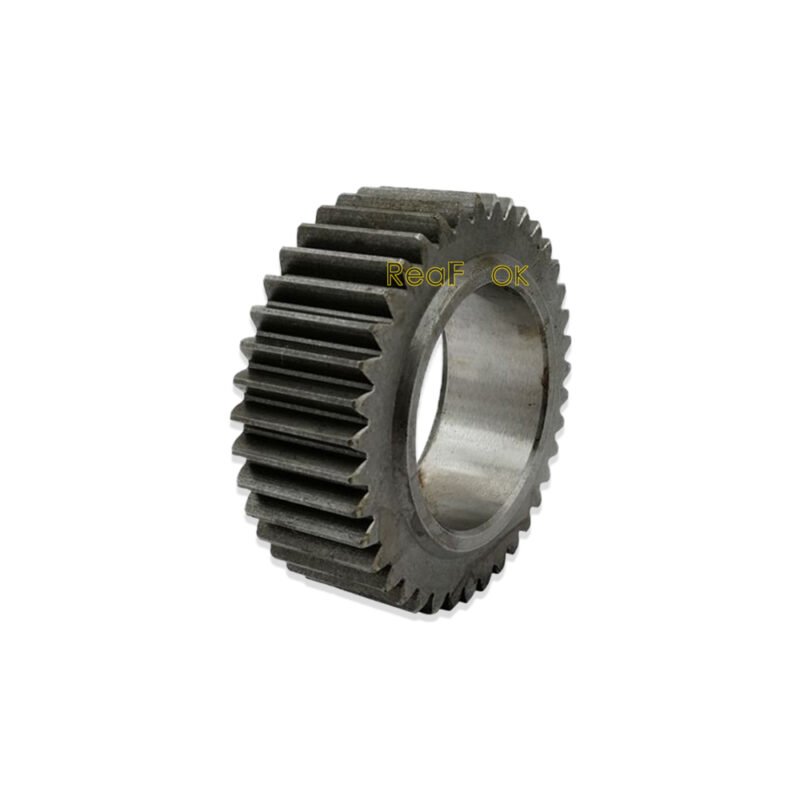

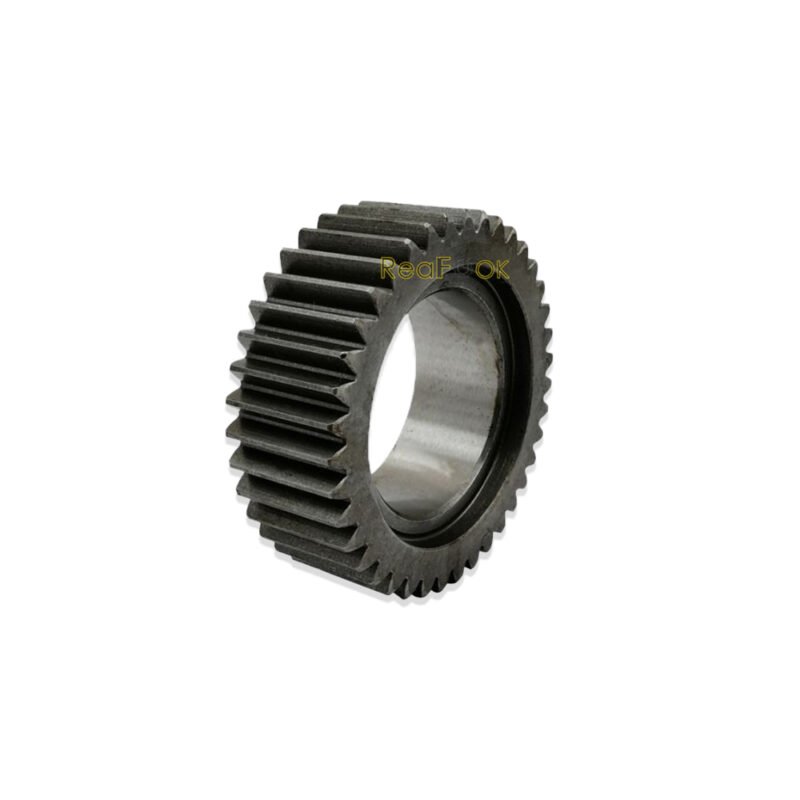

3PCS Planetary Gear RD411-78120;
39 Teeth, ID 48mm, OD 81.2mm, Thickness 30mm;
It is used for Travel Reducer System;
Free Shipping and High Quality Standards!!

All dimensions are manually measured; minor errors are inevitable.

The price includes a total of 3 pieces of planetary gears.

Guaranteed Safe Checkout

Product Name: Planetary Gear 2nd Stage (3 Pieces)
Reference Part Number: RD411-78120
Compatible Machine: KX161 U45…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

KX161 3S Travel Reduction Diagram

Pos. Part No Qty Parts name Comments
010. RD411-14432 [2] SPROCKET,DRIVE
020. 68671-11170 [18] BOLT,HEX-SOCHD
030. 04512-60140 [18] WASHER,SPRING
040. RD538-61290 [2] ASSY MOTOR,WHEEL
045. RD531-78000 [2] ASSY GEAR CASE
050. 68671-13320 [2] SEAL
060. 68671-13330 [2] BEARING
070. RD431-13340 [2] NUT,RING
080. RD411-78110 [4] PLUG
090. 68493-67490 [198] BALL
100. 68311-13380 [4] PLUG
110. RD411-78120 [8] GEAR
120. RD411-78130 [8] BEARING,NEEDLE
130. RD411-78140 [8] BEARING,INNER
140. RD411-78150 [8] WASHER
150. 68671-13440 [2] PLATE
160. 68311-13450 [8] SCREW,CSK-HD
170. RD531-13460 [2] GEAR
180. RD431-13470 [2] WASHER,THRUST
190. RD531-78170 [2] HOLDER
200. RD531-78180 [6] GEAR
210. 68651-13510 [6] BEARING,ROLLER
220. RD411-78190 [6] BEARING,INNER
230. RD531-78210 [2] GEAR,DRIVE
240. RD431-78220 [2] KIT PLATE
250. RD431-78250 [2] COVER
260. RD411-78260 [2] O RING
270. 68671-13610 [2] WIRE
280. 68651-72450 [6] PLUG
290. 04817-00140 [6] O RING
300. RD431-78450 [2] ASSY FLANGE
310. RD431-78330 [4] SPRING
320. RD431-78500 [2] KIT SEAL
330. RD411-11170 [18] BOLT
