Final Drive Travel Reducer Hub Bearing 68671-13330 Fit Excavator Kubota KX057 KX151 KX161 U45 U55

US$147.00

Sold: 2

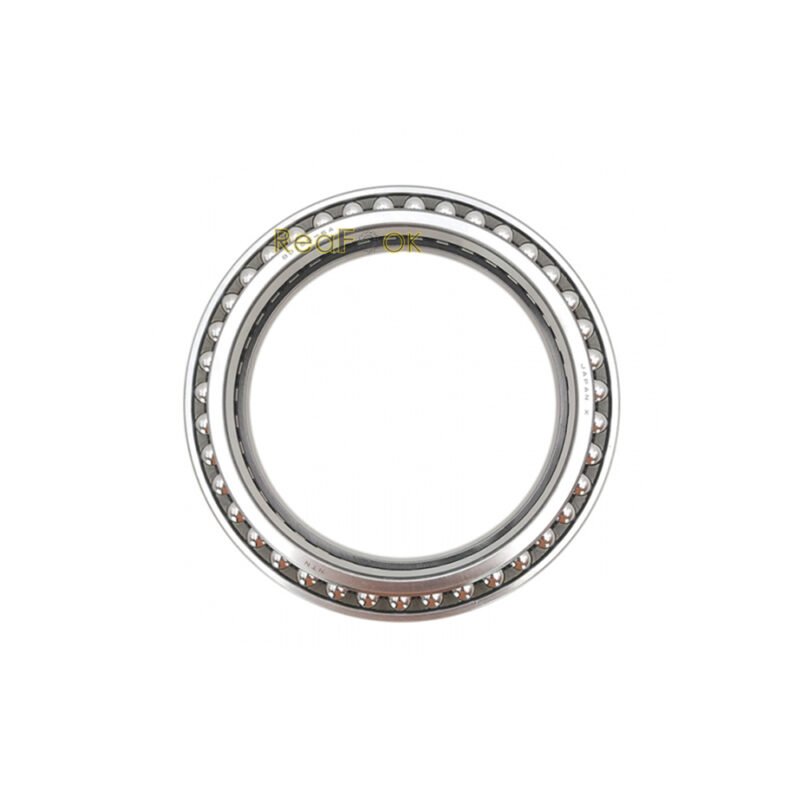

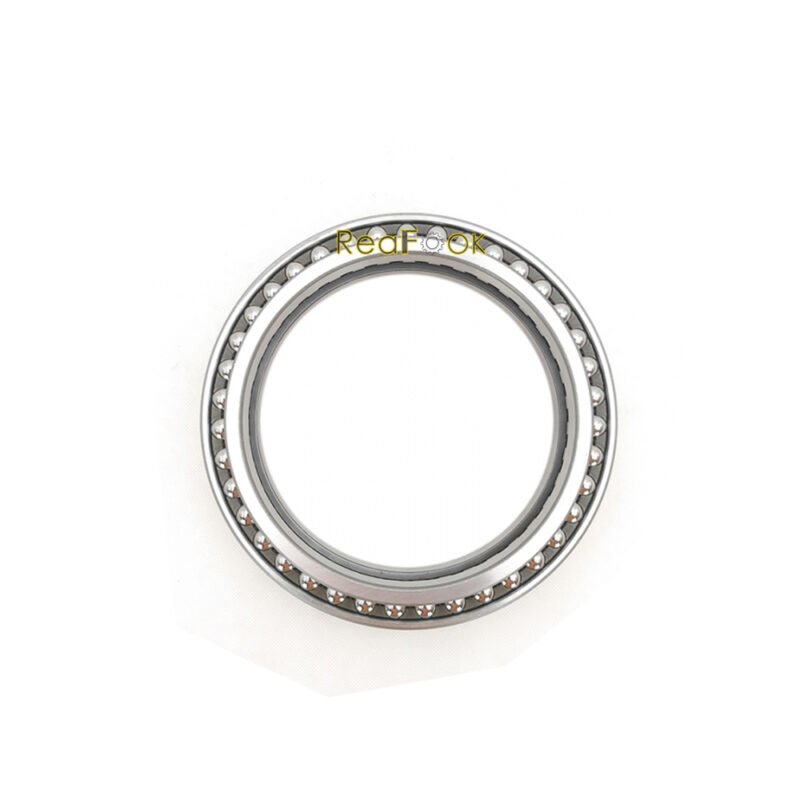

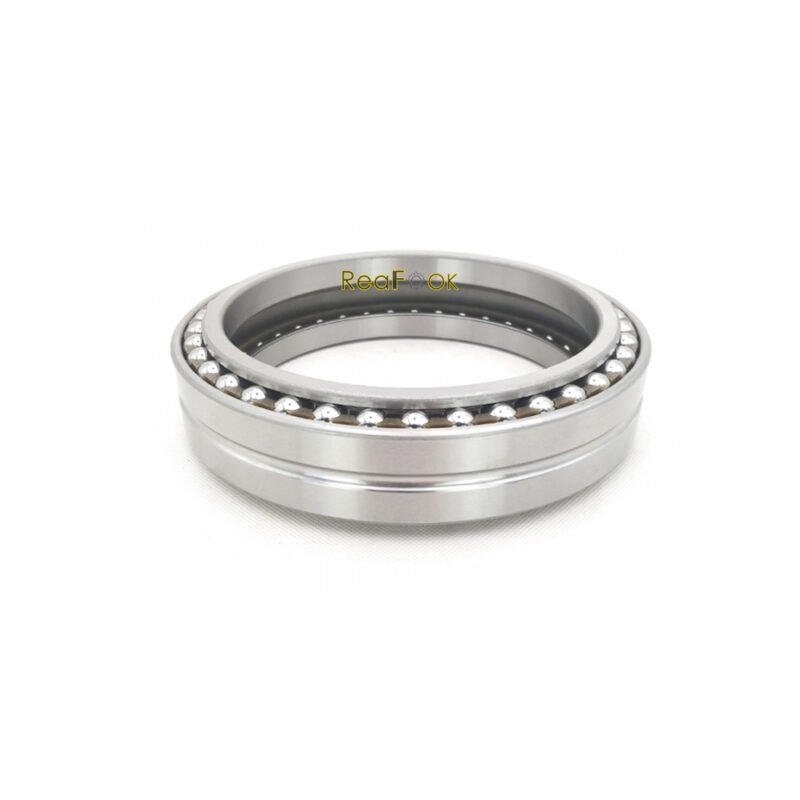

Double Row Travel Bearing 68671-13330;
Bore ID 155mm, OD 198mm, Width 48mm ;
It is used for Travel Reducer System;
Free Shipping and High Quality Standards!!

All dimensions are manually measured; minor errors are inevitable.

Guaranteed Safe Checkout

Product Name: Hub Travel Bearing
Reference Part Number: 68671-13330
Compatible Machine: KX057 KX151 KX161 U45 U55…

Description:
The bearing is used in wheel hub and serves as a precision interface between the stationary axle and the rotating wheel, enabling the transfer of both axial and radial loads while minimizing friction and wear. These bearings are enclosed in a protective housing which may include seals, grease, and other protective features to prevent contaminants like dirt, water, and debris from infiltrating the bearing and compromising its performance. The seals also retain lubrication, reducing friction and ensuring prolonged bearing life.

KX161 3S Travel Reduction Diagram

Pos. Part No Qty Parts name Comments
010. RD411-14432 [2] SPROCKET,DRIVE
020. 68671-11170 [18] BOLT,HEX-SOCHD
030. 04512-60140 [18] WASHER,SPRING
040. RD538-61290 [2] ASSY MOTOR,WHEEL
045. RD531-78000 [2] ASSY GEAR CASE
050. 68671-13320 [2] SEAL
060. 68671-13330 [2] BEARING
070. RD431-13340 [2] NUT,RING
080. RD411-78110 [4] PLUG
090. 68493-67490 [198] BALL
100. 68311-13380 [4] PLUG
110. RD411-78120 [8] GEAR
120. RD411-78130 [8] BEARING,NEEDLE
130. RD411-78140 [8] BEARING,INNER
140. RD411-78150 [8] WASHER
150. 68671-13440 [2] PLATE
160. 68311-13450 [8] SCREW,CSK-HD
170. RD531-13460 [2] GEAR
180. RD431-13470 [2] WASHER,THRUST
190. RD531-78170 [2] HOLDER
200. RD531-78180 [6] GEAR
210. 68651-13510 [6] BEARING,ROLLER
220. RD411-78190 [6] BEARING,INNER
230. RD531-78210 [2] GEAR,DRIVE
240. RD431-78220 [2] KIT PLATE
250. RD431-78250 [2] COVER
260. RD411-78260 [2] O RING
270. 68671-13610 [2] WIRE
280. 68651-72450 [6] PLUG
290. 04817-00140 [6] O RING
300. RD431-78450 [2] ASSY FLANGE
310. RD431-78330 [4] SPRING
320. RD431-78500 [2] KIT SEAL
330. RD411-11170 [18] BOLT

Weight3.3 kg
