Final Drive Travel Reducer Floating Seal 192-1134 Fit Excavator Caterpillar 303 303.5 303.5C 303.5D 303.5E 303C CR 303E CR 304D CR 304E

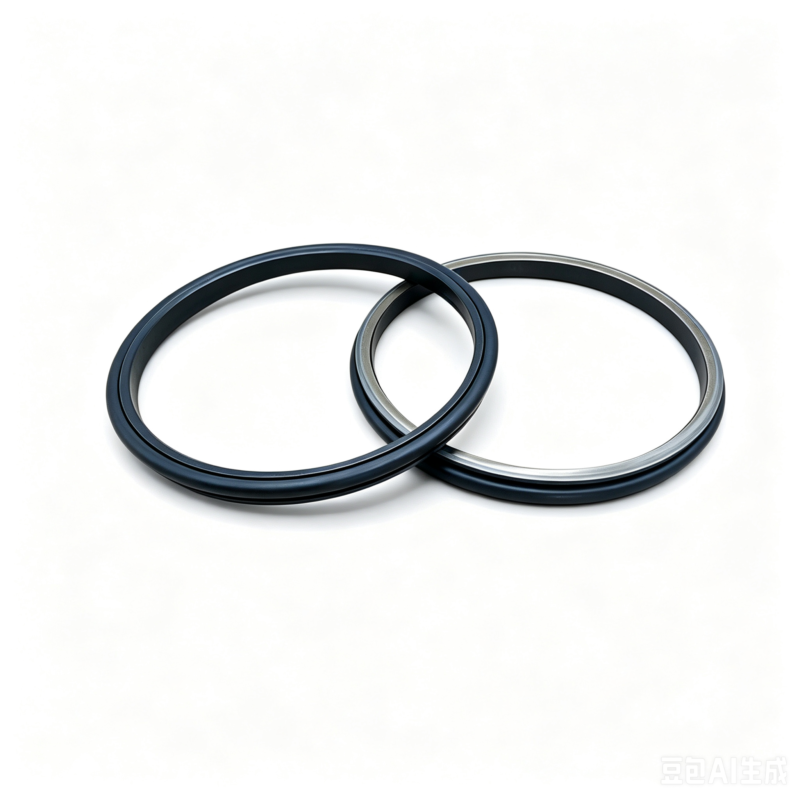

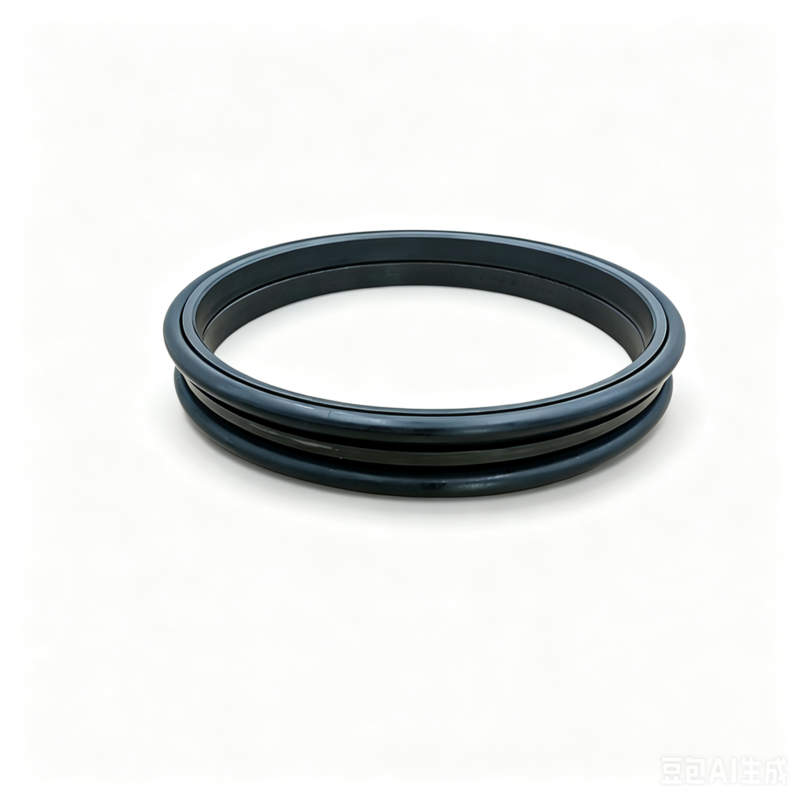

Product Name: Folating Seal Assy
Reference Part Number: 192-1134, 1921134
Compatible Machine: Excavator Caterpillar 303, 303.5, 303.5C, 303.5D, 303.5E, 303C CR, 303E CR, 304D CR, 304E…

Description:
Usually Final Drive Duo Cone Seals maintain an oil-tight seal during rotation in intense applications where misalignment may occur. A Final Drive Motor Seal Kit is a comprehensive package that includes seals and gaskets specifically designed for the final drive motor assembly. The kit aims to ensure proper sealing, preventing fluid leakage from the final drive motor. It includes high-quality components that withstand harsh operating conditions.

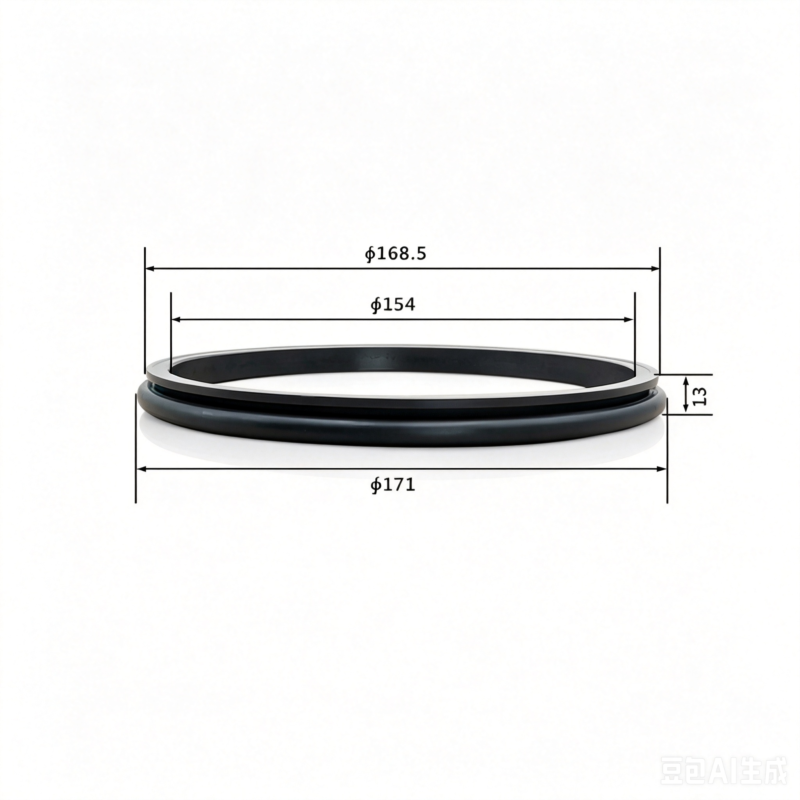

Attributes:
• Material: Rubber
• Outside Diameter: 168 mm (6.614 in)
• Inside Diameter: 154 mm (6.062 in)
• Seal Width: 13 mm (0.511)

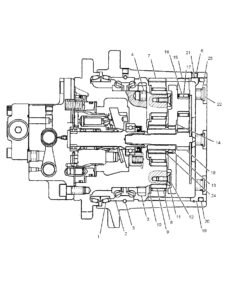

Pos. Part No Qty Parts name Comments
1. 192-1134 [2] SEAL
2. 150-0909 [1] BEARING
3. 280-3098 [1] NUT
4. 150-0810 [2] PLUG
5. 143-2337 [132] BALL
6. 096-5971 [2] PLUG
7. 150-0811 [4] GEAR
8. 150-0812 [4] BEARING ASNEEDLE
9. 150-0813 [4] RACE-INNER
10. 150-0814 [4] WASHER
11. 143-2343 [1] PLATE
12. 143-2344 [4] SCREW
13. 150-0815 [1] GEAR
14. 280-3100 [1] HOLDER
15. 280-3101 [3] GEAR
16. 150-0818 [3] BEARING
17. 150-0819 [3] RACE
18. 280-3102 [1] GEAR
19. 280-3103 [1] COVER
20. 095-1725 [1] SEAL-O-RING
21. 143-2358 [1] WIRE
22. 279-4706 [3] PLUG
23. 3J-1907 [3] SEAL-O-RING
24. 143-2346 [1] RING
