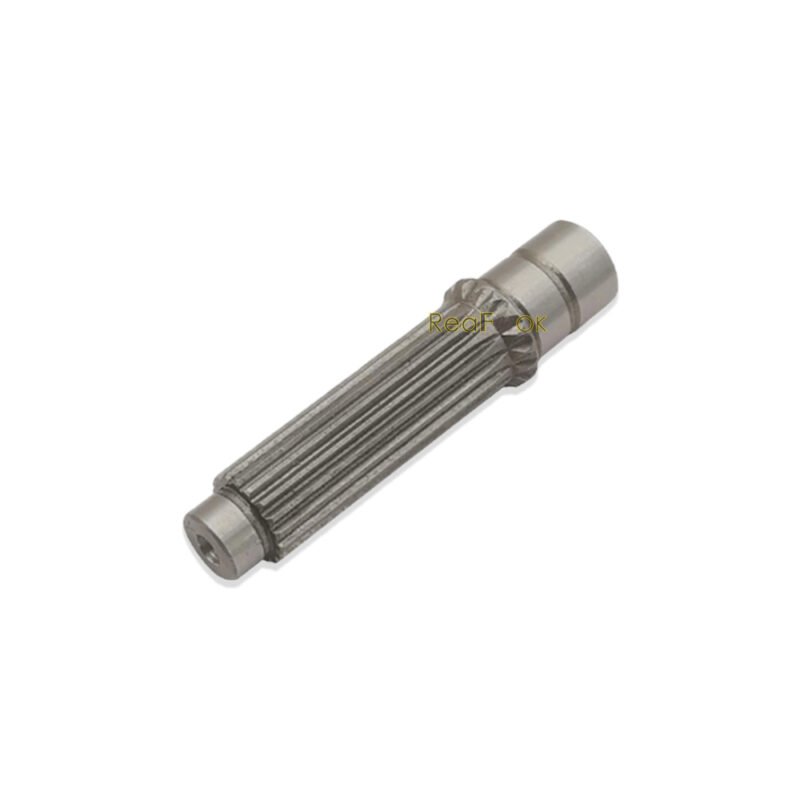

Final Drive Travel Motor Shaft RB40178330 Fit Excavator Kubota U25-3S U27-4 U25S U27-4 CA
US$99.00
Sold: 1
Travel Motor Shaft RB40178330;

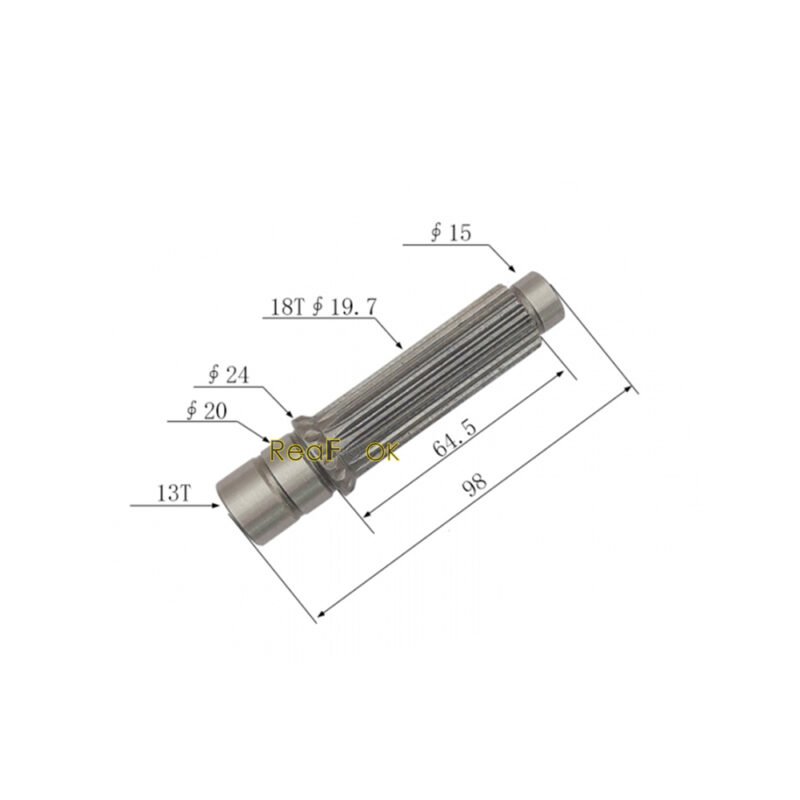

Overall Length 98mm;

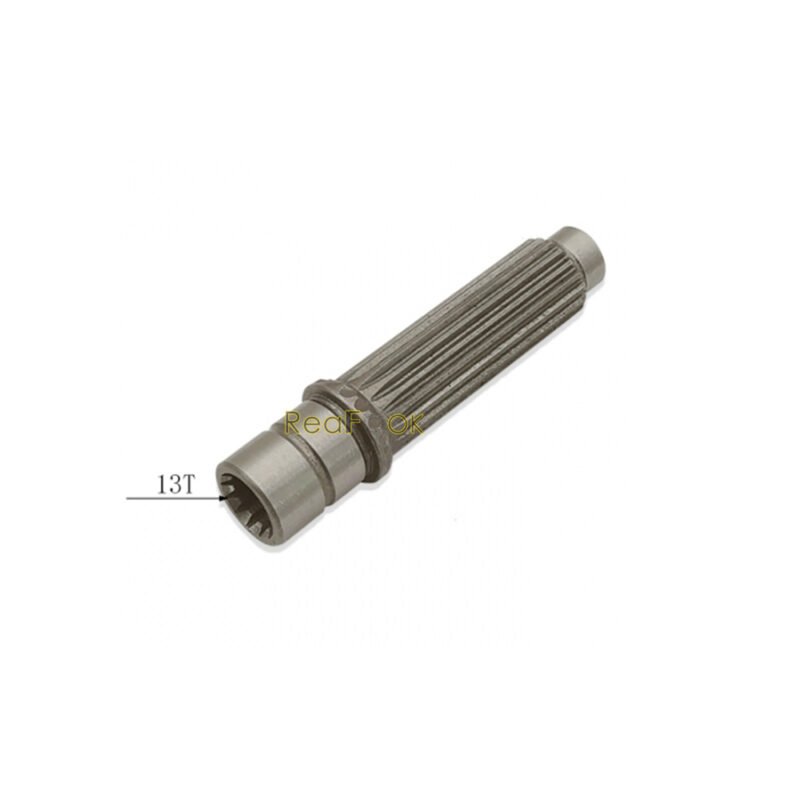

Inner 13 Splines, Outer 18 Slines;
It is used for Final Drive Travel Motor System;
Free Shipping and High Quality Standards!!
All dimensions are manually measured; minor errors are inevitable.
Description:
The Travel Motor Drive Shaft connects directly to the output shaft of the hydraulic motor, which is driven by the hydraulic fluid under pressure. As the motor rotates, it transfers torque to the drive shaft, which in turn transfers this torque to the wheels. This rotational motion is converted into linear motion, allowing the machine to move forward and backward.

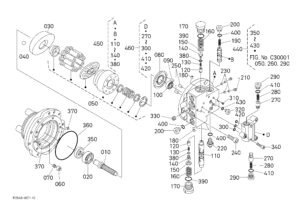

Pos. Part No Qty Parts name Comments
010. RB40178330 [2] SHAFT 0.3960(lbs); 0.180
020. 0810306004 [2] BEARING,BALL 0.1452(lbs); 0.066
030. RB51178200 [2] SWASHPLATE 0.9020(lbs); 0.410
040. RB51178210 [4] BALL 0.0308(lbs); 0.014
050. RB51172100 [2] KIT BLOCK,CYLINDER 2.1120(lbs); 0.960
060. RB51178600 [4] ASSY PISTON 0.0990(lbs); 0.045
070. RB40178610 [4] SPRING 0.0022(lbs); 0.001
080. RB40178620 [2] PLATE,VALVE 0.2200(lbs); 0.100
090. RB40178630 [2] PIN 0.0022(lbs); 0.001
100. 0810306002 [2] BEARING,BALL 0.0660(lbs); 0.030
110. RB51178710 [2] SPOOL 0.1474(lbs); 0.067
120. RB40178720 [4] VALVE,CHECK 0.0088(lbs); 0.004
130. RB40178730 [4] SPRING 0.0022(lbs); 0.001
140. RB40178740 [4] PLUG 0.0154(lbs); 0.007
150. RB40178760 [4] SEAT,SPRING 0.0022(lbs); 0.001
160. RB40178770 [4] SPRING 0.0110(lbs); 0.005
170. RB51178780 [4] CAP 0.2860(lbs); 0.130
180. RB40178810 [4] ORIFICE 0.0022(lbs); 0.001
190. RB10178490 [2] SPRING 0.0022(lbs); 0.001
200. 6865172380 [6] PLUG 0.0396(lbs); 0.018
210. 6851871460 [4] PLUG 0.0066(lbs); 0.003
220. RB40178870 [2] PLUG 0.0880(lbs); 0.040
230. 6867172410 [8] ORIFICE 0.0022(lbs); 0.001
240. 0131110820 [12] BOLT,SOCKET HEAD 0.0264(lbs); 0.012
250. 6849371450 [4] PIN,STRAIGHT 0.0066(lbs); 0.003
270. RB51178920 [4] VALVE,CHECK 0.0154(lbs); 0.007
280. RB51178930 [4] SPRING 0.0022(lbs); 0.001
290. 6865172380 [4] PLUG 0.0396(lbs); 0.018
300. 0481700120 [2] O RING 0.0022(lbs); 0.001
310. RB10178540 [4] PLUG 0.0022(lbs); 0.001
320. RB51178940 [4] PLUG 0.0220(lbs); 0.010
330. RB51178950 [2] PLUG 0.0154(lbs); 0.007
340. 0131110625 [6] BOLT,SOCKET HEAD 0.0132(lbs); 0.006
350. RB51178190 [2] SEAL,OIL 0.0264(lbs); 0.012
360. RB40178650 [2] RING 0.0110(lbs); 0.005
370. 0481700070 [6] O RING 0.0022(lbs); 0.001
380. RB40178750 [4] RING 0.0022(lbs); 0.001
390. 0481700240 [4] O RING 0.0066(lbs); 0.003
400. 0481700110 [8] O RING 0.0022(lbs); 0.001
410. 0481700110 [4] O RING 0.0022(lbs); 0.001
420. 0481700100 [4] O RING 0.0022(lbs); 0.001
430. 0481700080 [4] O RING 0.0022(lbs); 0.001
440. RB51172000 [2] KIT SEAL 0.8580(lbs); 0.390
450. RB51172200 [2] PLATE,KIT(BASE) 3.9600(lbs);1.800
460. RB51178900 [2] ASSY VALVE 1.0780(lbs); 0.490
Weight
0.6 kg
