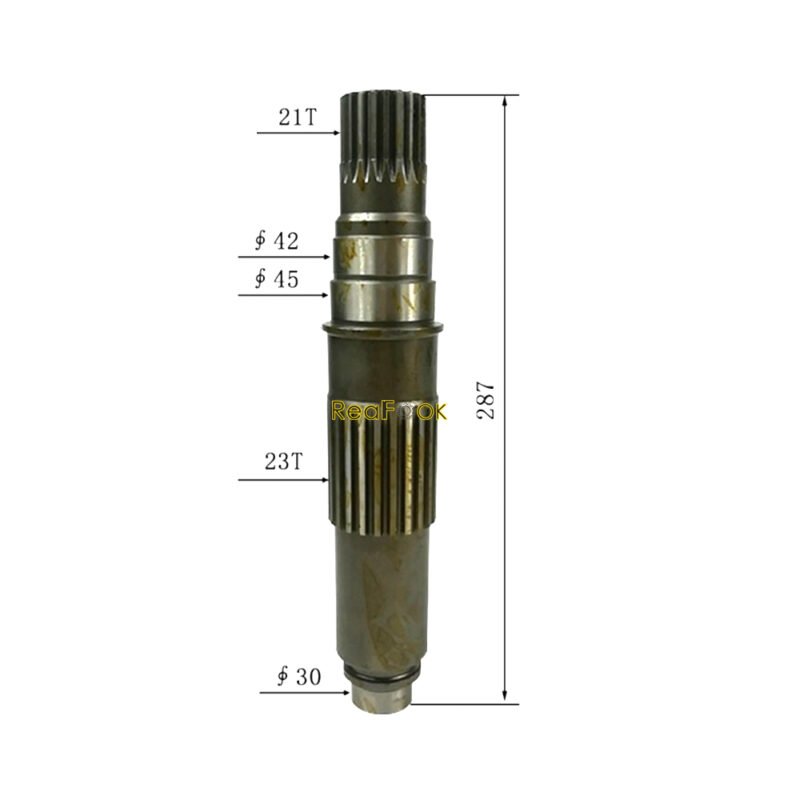

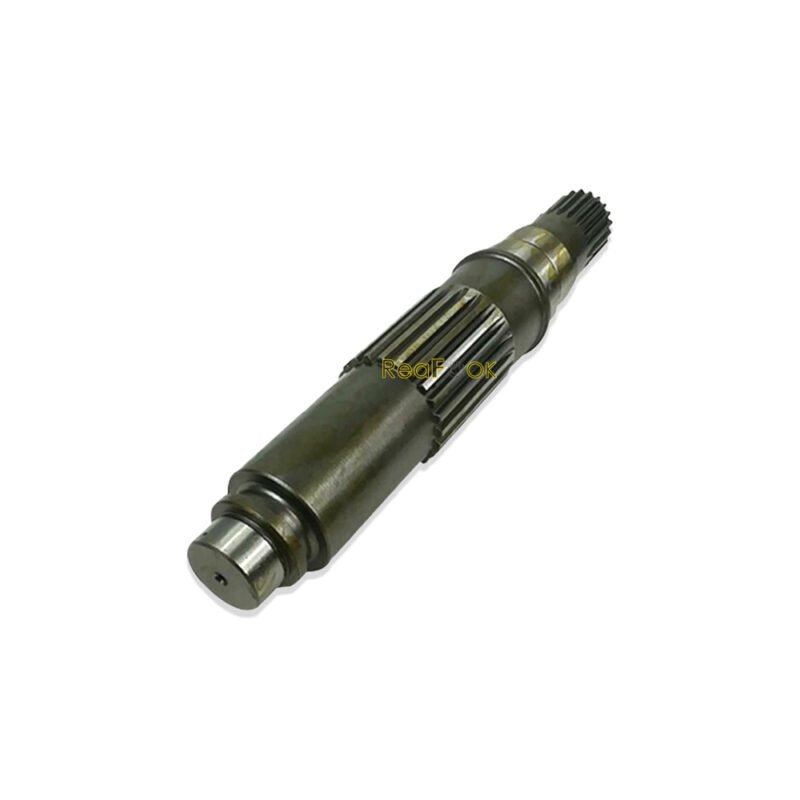

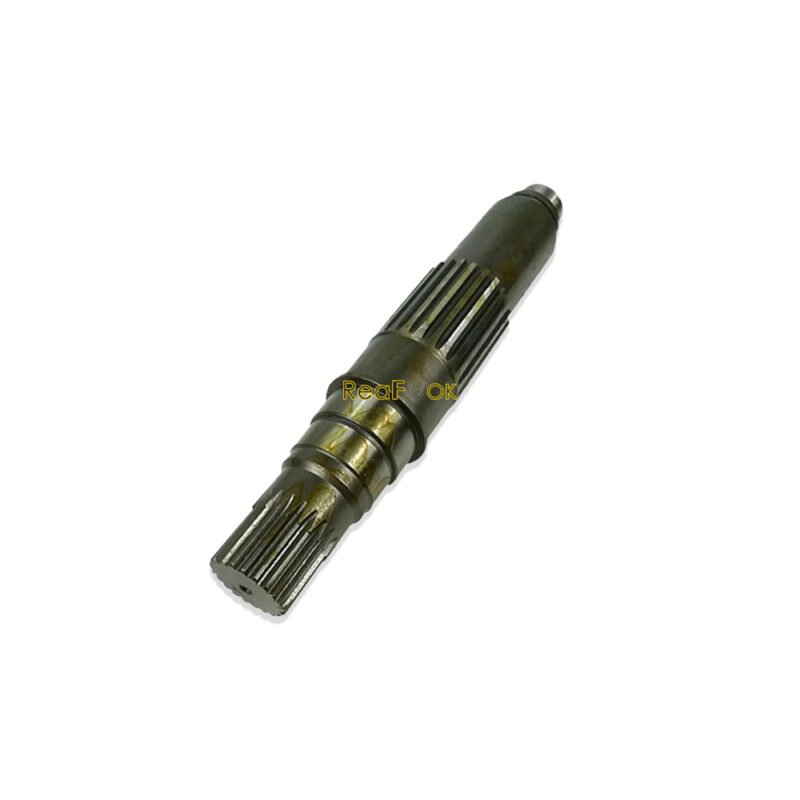

Final Drive Travel Motor Main Shaft XKAH-00410 Fit Excavator Hyundai R210LC-3H R110-7 R110-7A R210LC-7 R210LC-7A R250LC-7

Product Name: Travel Motor Main Shaft, Drive Shaft
Reference Part Number: XKAH-00410
Compatible Machine: Excavator Hyundai R210LC-3H R110-7 R110-7A R140-7 R140LC-7A R180LC-7 R210LC-7 R210LC-7A R210LC-7H R250LC-7 R250LC-7A RC215C-7…

Description:
The Travel Motor Drive Shaft connects directly to the output shaft of the hydraulic motor, which is driven by the hydraulic fluid under pressure. As the motor rotates, it transfers torque to the drive shaft, which in turn transfers this torque to the wheels. This rotational motion is converted into linear motion, allowing the machine to move forward and backward.

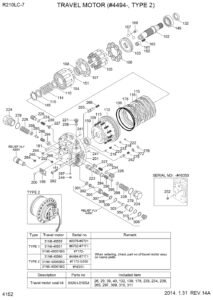

Pos. Part No Qty Parts name Comments
*. 31N6-40060 [1] TRAVEL MOTOR ASSY SEE ILLUST
*. 31N6-40060BG [1] TRAVEL MOTOR ASSY SEE ILLUST
*. 31N6-40061BG [1] TRAVEL MOTOR ASSY SEE ILLUST
N*-1. XKAH-01043 [1] MOTOR DEVICE
*-11. XKAH-00891 [1] C/BLOCK & PISTON KIT
104. XKAH-01044 [2] BLOCK-CYLINDER
104. XKAH-00892 [2] BLOCK-CYLINDER
110. XKAH-00407 [2] WASHER
114. XKAH-00406 [1] SPRING
145. XKAH-00405 [1] RING-SNAP
*-12. XKAH-00893 [1] PISTON ASSY
N105. XKAH-01045 [9] PISTON
N106. XKAH-00419 [9] SHOE
151. XKAH-00404 [6] ROLLER
107. XKAH-00403 [1] PLATE-RETAINER
107. XKAH-01679 [1] PLATE-RETAINER
108. XKAH-00402 [1] BALL-THRUST
*-13. XKAH-00895 [1] PISTON ASSY
N161. XKAH-00422 [1] PISTON
N162. XKAH-00421 [1] SHOE
163. XKAH-00094 [1] SPRING-2 SPEED
102. XKAH-00410 [1] SHAFT-MAIN
103. XKAH-01046 [1] PLATE-SWASH
109. XKAH-00897 [1] PLATE-TIMING
115. XKAH-00399 [3] PLATE-FRICTION
116. XKAH-00401 [4] PLATE-MATING
112. XKAH-00898 [1] PISTON-PARKING
113. XKAH-00397 [9] SPRING
132. XKAH-00388 [1] OIL SEAL
149. XKAH-00899 [1] BEARING-BALL
150. XKAH-00900 [1] BEARING-BALL
139. XKAH-00396 [1] O-RING
178. XKAH-00395 [1] O-RING
181. XKAH-00377 [2] PIN-PARALLEL
167. XKAH-00095 [2] PIVOT
168. XKAH-00034 [2] PIN-PARALLEL
*-21. XKAH-01065 [1] RELIEF VALVE ASSY
*-21. XKAH-01680 [1] RELIEF VALVE ASSY
N301. XKAH-01066 [1] SEAT
N302. XKAH-01064 [1] PLUNGER
N303. XKAH-01063 [1] ROD
N304. XKAH-00668 [1] PISTON
N305. XKAH-00670 [1] BODY
N306. XKAH-01062 [1] PLUG
N307. XKAH-00671 [1] SPRING
N308. XKAH-00669 [1] SHIM
309. XKAH-00035 [1] O-RING
310. XKAH-00035 [1] O-RING
311. XKAH-00665 [1] RING-BACK UP
*-3. XKAH-01035 [1] REAR FLANGE ASSY
*-31. XKAH-01036 [1] REAR FLANGE KIT
201. XKAH-01037 [1] REAR FLANGE
201. XKAH-01677 [1] REAR FLANGE
223. XKAH-01038 [1] MAIN SPOOL
*-32. XKAH-00874 [2] STOPPER ASSY
*-32. XKAH-01400 [2] STOPPER ASSY
N294. XKAH-00875 [1] STOPPER-A
N298. XKAH-00876 [1] STOPPER-B
N295. XKAH-01052 [1] SPOOL
N296. XKAH-01040 [1] SPRING
224. XKAH-00328 [2] PLUG
228. XKAH-00045 [2] SPRING
279. XKAH-00047 [2] O-RING
226. XKAH-00043 [2] PLUG
227. XKAH-00879 [2] VALVE-CHECK
230. XKAH-00046 [2] SPRING
234. XKAH-00048 [2] O-RING
221. XKAH-00032 [1] PLUG-PF
238. XKAH-00035 [1] O-RING
252. XKAH-00327 [4] PLUG-PT
252. XKAH-00050 [4] PLUG-RO
244. XKAH-00880 [5] PLUG
268. XKAH-00056 [2] BALL-STEEL
242. XKAH-00411 [1] VALVE
272. XKAH-00462 [1] SEAT-VALVE
276. XKAH-00382 [1] RING
275. XKAH-00383 [1] SPRING
218. XKAH-00881 [1] SEAT-VALVE
219. XKAH-00392 [1] VALVE
220. XKAH-00391 [1] SPRING
222. XKAH-00390 [1] RING(FOR T-TYPE)
233. XKAH-00389 [1] O-RING
263. XKAH-01039 [1] VALVE-TWO SPEED
263. XKAH-01678 [1] VALVE-TWO SPEED
264. XKAH-01041 [1] PLUG RO
265. XKAH-00052 [1] O-RING
266. XKAH-00384 [1] SPRING-TWO SPEED
241. XKAH-00065 [2] PIN-PARALLEL
282. XKAH-00066 [9] BOLT-SOCKET
297. XKAH-00885 [1] ORIFICE
N199. XKAH-01042 [1] NAME PLATE
200. XKAH-00116 [2] SCREW-RIVET
K. XKAH-01054 [1] SEAL KIT SEE ILLUST
