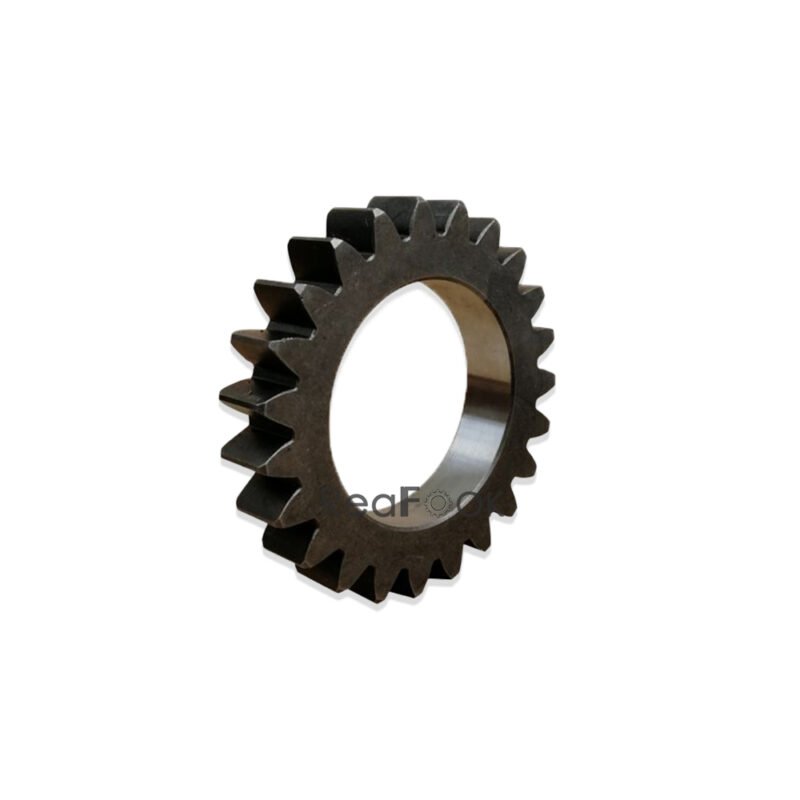

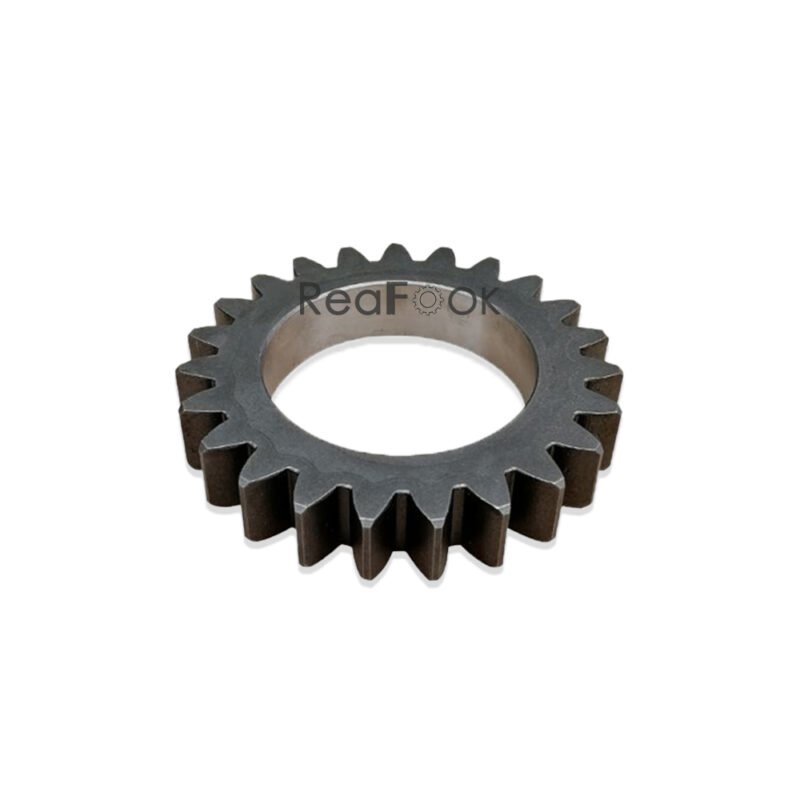

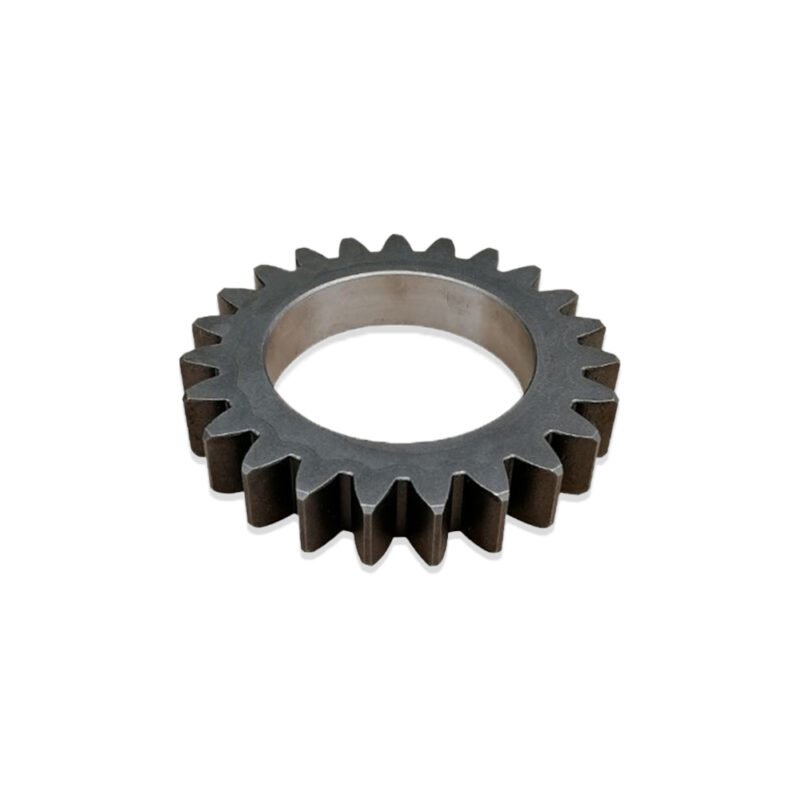

Final Drive Travel Gearbox Planetary Gear 169-5592 Fit Caterpillar Excavator CAT 320C 320D 322C 323D 324D 324E 325C 325D 326D 329D

Product Name: Plantary Gear
Reference Part Number: 169-5592, 1695592
Compatible Machine: Caterpillar Excavator CAT 320C 320D 322C 323D 324D 324E 325C 325D 326D 329D…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

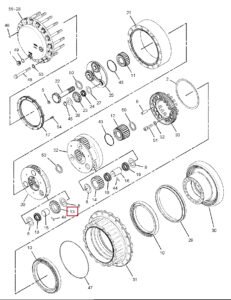

Pos. Part No Qty Parts name
1. 3E-2338 [2] PLUG-PIPE
2. 267-6863 BJ [1] SHIM (0.75-MM THK)
7Y-0752 BJ [1] SHIM (0.8-MM THK)
267-6864BJ [1] SHIM (0.85-MM THK)
267-6865 BJ [1] SHIM (0.9-MM THK)
267-6866 BJ [1] SHIM (0.95-MM THK)
7Y-0753 BJ [1] SHIM (1-MM THK)
267-6867 BJ [1] SHIM (1.2-MM THK)
267-6868 BJ [1] SHIM (1.4-MM THK)
7Y-0754 BJ [1] SHIM (1.6-MM THK)
267-6869 BJ [1] SHIM (1.8-MM THK)
267-6870 BJ [1] SHIM (2-MM THK)
267-6871 BJ [1] SHIM (2.3-MM THK)
5. 094-0578 B [1] PLATE (8-MM THK)
094-0579 B [1] PLATE (9-MM THK)
094-0580 B [1] PLATE (10-MM THK)
8. 094-1528 [12] WASHER (53X84X1-MM THK)
9. 114-1540 J [4] PIN-DOWEL
10. 168-8452 J [2] BALL BEARING
11. 169-5589 [1] GEAR-SUN (24-TEETH)
12. 169-5590 [1] GEAR-SUN (24-TEETH)
13. 169-5592 [3] GEAR PLANETARY (23-TEETH)
14. 169-5593 [3] GEAR PLANETARY (23-TEETH)
15. 169-5601 [3] SHAFT PLANETARY
16. 169-5602 [3] SHAFT PLANETARY
17. 171-9387 [1] GEAR-RING (64-TEETH)
18. 191-2569 [3] BEARING AS (CAGED ROLLER)
19. 191-2570 [6] BEARING AS (CAGED ROLLER)
20. 191-2571 [1] CARRIER PLANETARY
21. 191-2676 [1] GEAR-RING (72-TEETH)
22. 191-2683 [1] GEAR-SUN (20-TEETH)
23. 191-2684 [3] GEAR PLANETARY (21-TEETH)
24. 191-2685 [3] BEARING AS
25. 191-2686 [1] CARRIER AS
191-2687 [3] RACE-BEARING
26. 191-2689 [3] WASHER (34X70X1-MM THK)
27. 191-2690 [3] WASHER (42.3X70X1-MM THK)
28. 199-4503 [1] COVER
29. 207-1571 J [1] SEAL GP-DUOCONE
214-3570 [2] RING-TORIC
30. 267-6797 J [1] HOUSINGMOTOR
31. 267-6798 J [1] HOUSING
32. 267-6799 [1] CARRIERPLANETARY
33. 267-6800 J [1] GEAR-COUPLING
43. 093-1731 [2] RING-RETAINING
44. 095-0891 [6] PIN-SPRING
45. 096-0433 [3] RING-RETAINING
46. 096-3216 M [2] SETSCREWSOCKET (M12X1.75X12-MM)
47. 171-9298 [1] SEAL-O-RING
48. 179-8733 M [16] BOLT (M20X2.5X170-MM)
49. 7M-8485 [2] SEAL-O-RING
50. 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51. 7Y-5217 JM [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52. 8T-3282 J [16] WASHER-HARD (22X35X3.5-MM THK)
53. 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)
54. 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
55. 1U-8846 B SEALANTGASKET

AVAILABLE REPAIR KIT(S):
267-6818 J [1] KIT-FINAL DRIVE BEARING
B USE AS REQUIRED
J KIT MARKED J SERVICES
PART(S) MARKED J
M METRIC PART
