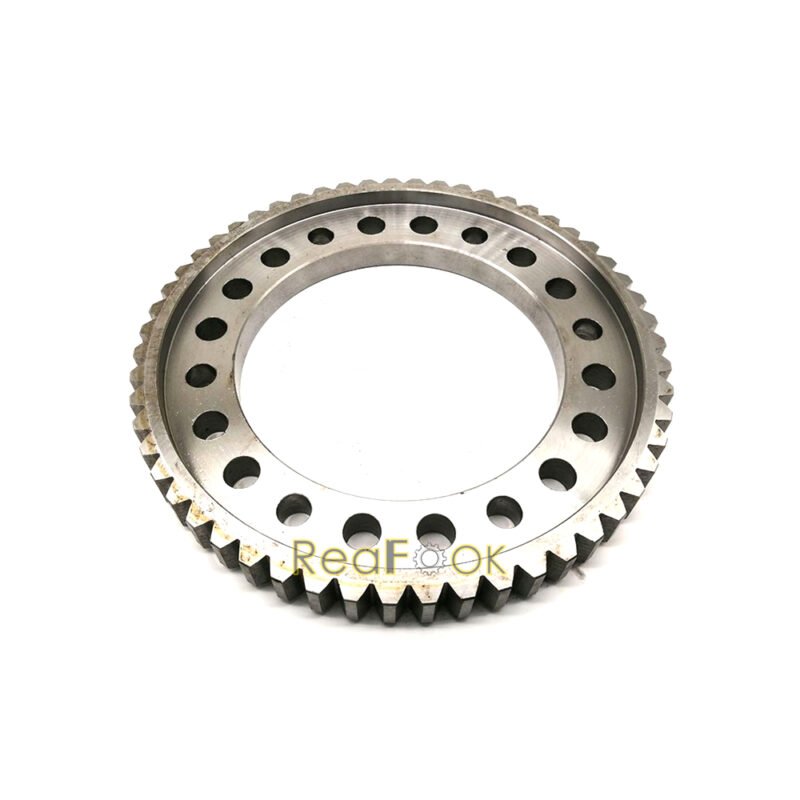

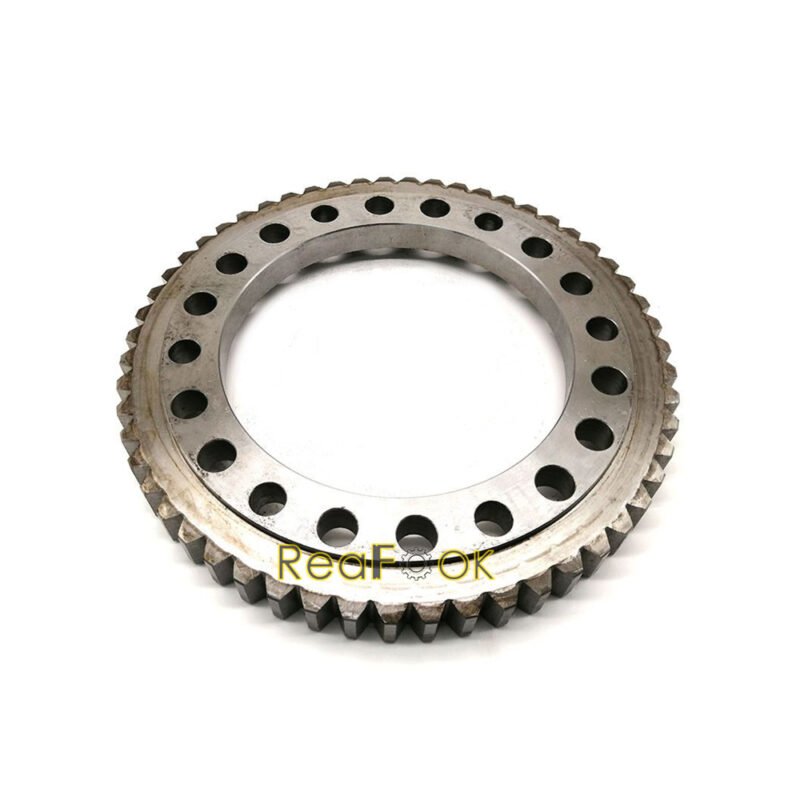

Final Drive Travel Coupling Gear 148-4715 Fit Excavator Caterpillar CAT 320D 320D2 321D 323D 323D2 320E

Product Name: Coupling Gear
Reference Part Number: 148-4715, 1484715
Compatible Machine: Excavator Caterpillar CAT 318F 320 318E 320D 320D2 320E 321D 323F 323D 325F 323D2 319C …

Description:
Gears for use in planetary gear sets of final drives.

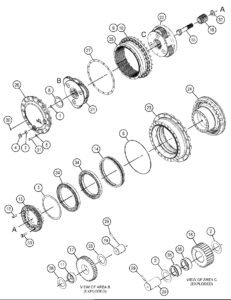

Pos. Part No Qty Parts name Comments
1. 094-0580 [1] PLATE (10-MM THK)
2. 094-0611 [6] WASHER (47.3X76X1- MM THK)
3. 096-1773 B [1] SHIM (0.15-MM THK)
096-1774 B [1] SHIM (0.3-MM THK)
096-1775 B [1] SHIM (0.4-MM THK)
096-1776 B [1] SHIM (0.5-MM THK)
096-1777 B [1] SHIM (0.6-MM THK)
096-1778 B [1] SHIM (0.7-MM THK)
096-1779 B [1] SHIM (0.8-MMTHK)
096-1780B [1] SHIM (1-MM THK)
096-1781 B [1] SHIM (1.6-MM THK)
4. 3E-2338 [2] PLUG-PIPE
5. 5P-8245 [16] WASHER-HARD (13.5X25.5X3-MM THK)
6. 6D-0692 [1] SEAL-O-RING
7. 7M-8485 [2] SEAL-O-RING
8. 7Y-1558 [1] SPACER (90X119.6X7.5-MM THK)
9. 8T-0348 M [28] BOLT-SOCKET HEAD (M16X2X50-MM)
10. 9X-8268 [28] WASHER (17.5X30X3.5-MM THK)
11. 346-5215 [3] BEARING AS
12. 114-1539 [6] PIN-DOWEL
13. 148-4715 [1] GEARCOUPLING (55-TEETH)
14. 174-4874 [1] SEAL GP-DUOCONE
15. 333-2989 [1] GEAR-SUN (12-TEETH)
16. 333-2990 [1] GEAR-SUN (18-TEETH)
17. 333-2991 [3] GEARPLANETARY (38-TEETH)
18. 333-2992 [3] GEARPLANETARY (35-TEETH)
19. 333-2993 [3] SHAFT
20. 333-2994 [3] SHAFT
21. 333-2995 [1] CARRIERPLANETARY
22. 333-2996 [1] CARRIERPLANETARY
23. 333-2998 [1] HOUSING
24. 455-4087 [1] HOUSINGMOTOR (LH)
25. 457-7977 [1] GEAR-RING (90-TEETH)
26. 480-6771 [1] COVER
27. 498-9005 [1] GASKET
28. 094-0584 [6] WASHER (40.3X72X1-MM THK)
29. 095-0891 [6] PIN-SPRING
30. 096-3216 M [2] SETSCREWSOCKET (M12X1.75X12-MM)
31. 143-0811 M [16] BOLT (12X1.75X35-MM)
32. 165-5785 [1] SPACER (40X60.9X1-MM THK)
33. 227-6034 M [14] BOLT-FLANGE HEAD (M16X2X60-MM)
34. 296-6220 [2] BALL BEARING
35. 296-6268 [6] BEARING ASROLLER
B USE AS REQUIRED
M METRIC PART
