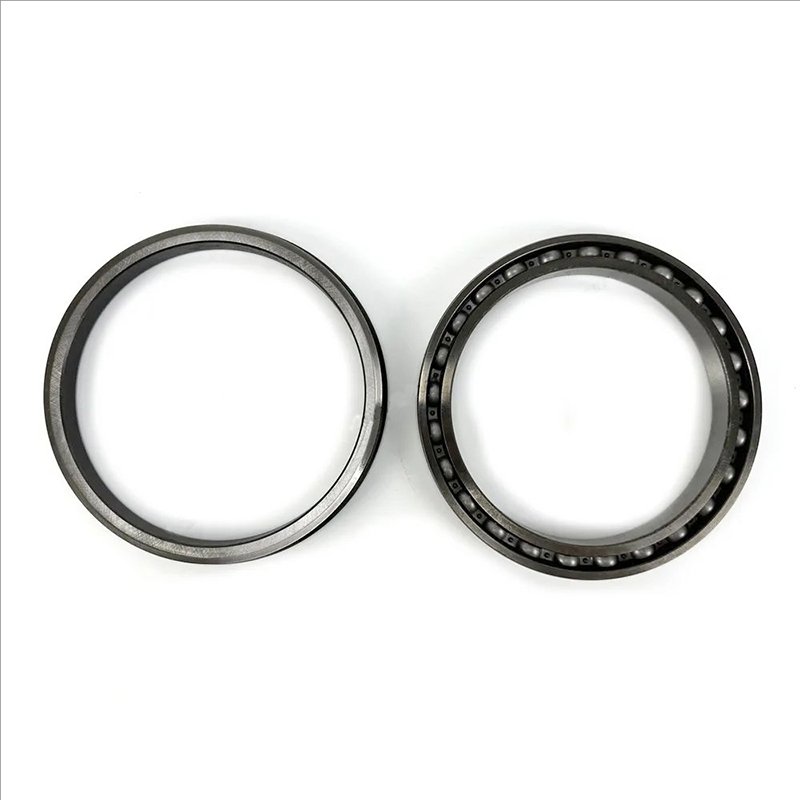

Final Drive Travel Bearing 6669110 with Floating Seal 6669101 Fit Excavator BOBCAT 331 334 425

Product Name: Travel Bearing with Floating Seal Assy
Reference Part Number: 6669110 6669101
Compatible Machine: Excavator Bobcat 331 334 425…

Description:

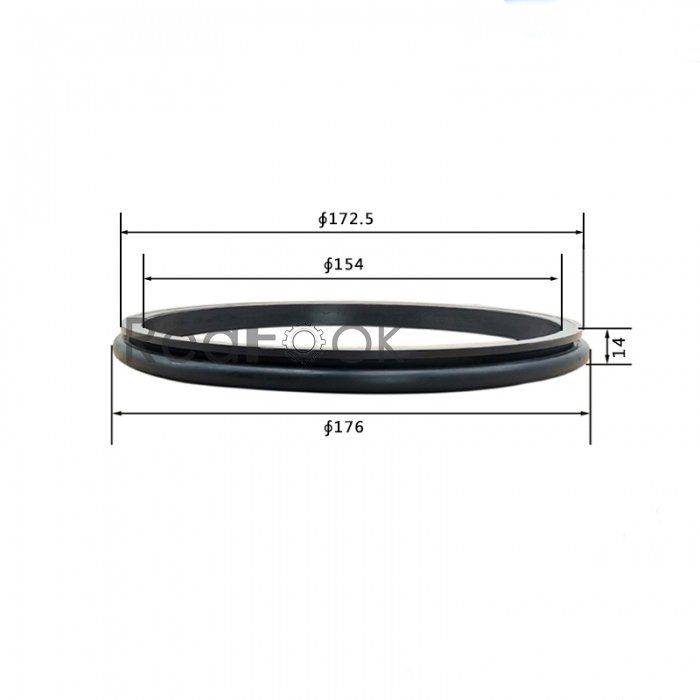

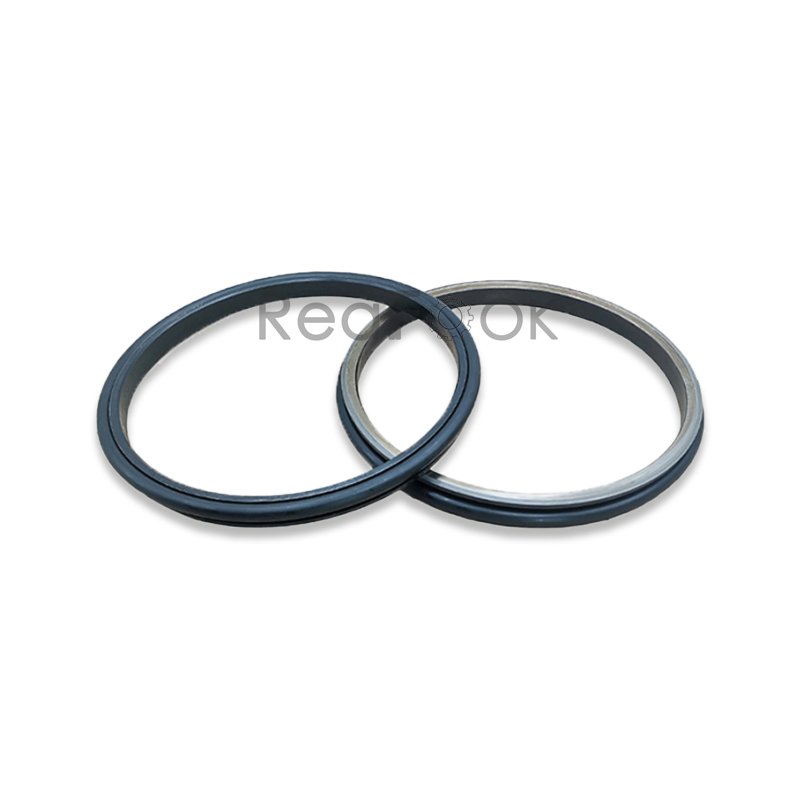

The Floating seals are used in the final drive of Hydraulic Excavators. They provide an effective sealing solution for the piston motor, such as the axle shaft and the final drive housing, and retain lubricating oil within the system. Floating seals offer high durability, and excellent resistance to wear and tear, and maintain their sealing performance even under harsh conditions, making them suitable for Hydraulic Excavators.

Ref. Part Number Description S/N Qty
1 MOTOR, MOTOR, – NLA – W/Ref. 2-60 – Was 6667338, A 2
2 6671915 PLUG 2
3 6671911 O-RING, Incl. W/Ref. 61 2
4 SPRING, SPRING, NLA – Order Ref. 62 – Was 6670138, A 2
5 6671917 WASHER 2
6 6671918 SPOOL 1
7 6671919 BOLT 8
8 6671920 WASHER 8
9 6671901 HOUSING, MOTOR TRAVEL 1
10 6671913 PIN 1
11 6671912 O-RING, Incl. W/Ref. 61 1
12 6671914 BEARING 1
13 6667782 DOWEL PIN 1
14 6671902 PISTON, MOTOR TRAVEL, W/Ref. 63 1
15 6671909 SWASHPLATE, swash 1
16 6670130 BALL 1
17 6671908 SEAL, OIL, Incl. W/Ref. 61 1
18 6669094 HOUSING 1
19 6671903 SHAFT 1
20 7022805 CIRCLIP, Was 6669130, A 2
21 6669124 BEARING 1
22 6669131 RING SNAP 1

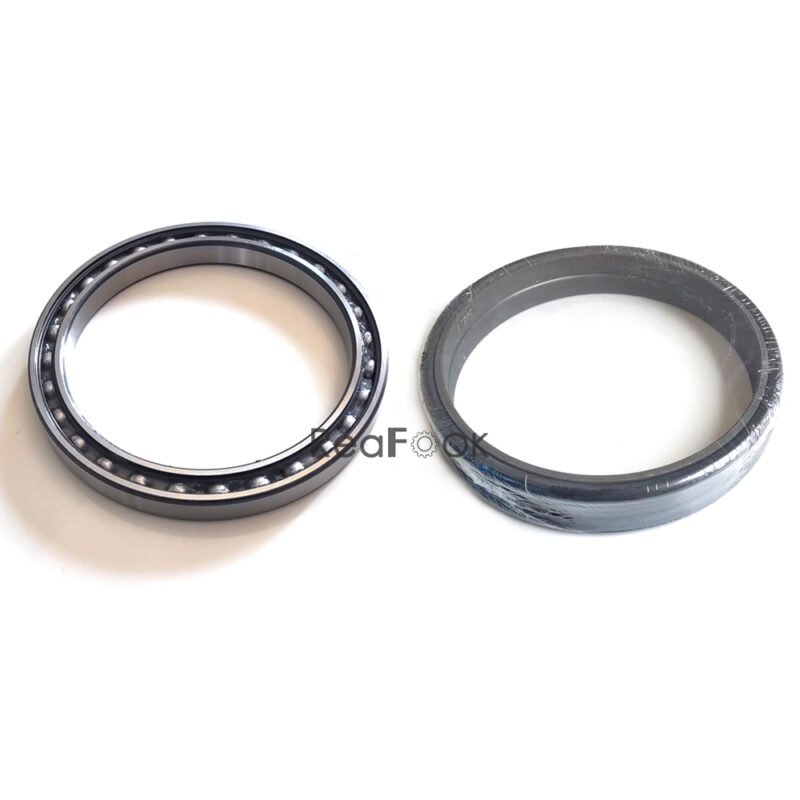

23 6669101 BEARING W/SEAL, W/Seal 1
24 6669108 O-RING, Incl. W/Ref. 61 1
25 6669105 SNAP RING 1
26 6669100 SPACER 1
27 6669110 BEARING MOTOR DRIVE 1
28 6669119 SHIM, 0,2 mm thick x
28 6669120 SHIM, 0,3 mm thick x
28 7461697 SHIM ASSEMBLY, 0,35 mm x
28 6669121 SHIM, 0,4 mm thick x
28 6669122 SHIM, 0,9 mm thick x
28 6669123 SHIM, 0,95 mm thick x
28 7461698 SHIM ASSEMBLY, 2.5 mm x
28 SHIM KIT, SHIM KIT, NLA – Was 6693533, A x
29 6669104 RING SNAP 1
30 6669096 HOUSING 1
31 6669097 GEAR MOTOR SPRING, W/Bearing 3
32 6669102 SNAP RING 3
33 6669098 GEAR 1
34 6670127 GEAR ASSEMBLY, W/Ref. 35 – 40 1
35 CARRIER, CARRIER, NSS 1
36 WASHER, WASHER, NSS 3
37 GEAR, GEAR, NSS 3
38 BEARING, BEARING, NSS – Needle – (18) needed for each gear 54
39 WASHER, WASHER, NSS 3
40 SNAP RING, SNAP RING, NSS 3
41 6669103 SNAP RING 1
42 6670126 GEAR SHAFT 1
43 6667747 SPACER 1
44 6669093 COVER 1
45 6669107 O-RING, Incl. W/Ref. 61 1
46 6669106 RING SNAP 1
47 6667771 PLUG, Use W/Ref. 64 aluminum washer 6675272 – washer not included with plug 2
47 6676161 PLUG, W/Rubber O-ring 2
48 6670133 WASHER, metal 2
49 6670132 SPRING 2
50 6669597 SHIM, .0007″ (0,2 mm) thick x
50 6669598 SHIM, .012″ (0,3 mm) thick x
50 6669599 SHIM, .019″ (0,5 mm) thick x
51 6670131 PISTON 2
52 6671910 O-RING, Incl. W/Ref. 61 2
53 6670139 PLUG 1
54 6671922 O-RING, Incl. W/Ref. 61 2
55 SPRING, SPRING, NLA – Order Ref. 62 – Was 6686078, A 1
56 6671918 SPOOL, Was 6670137, A 1
57 6670136 ADAPTER 1
58 6671922 O-RING, Incl. W/Ref. 61 2
59 6670134 VALVE RELIEF, Relief – Available as an assembly only 1
59 6679326 WASHER, SEALING, sealing – for plug 1
59 58K016 O-RING 1
60 6670135 BOLT 4
61 6670129 KIT SEAL, includes Ref. 3, 11, 17, 24, 45, 52, 54 & 58 x
61 6670128 KIT SEAL, Ref. 23 & 61 (6670129 kit)
62 7359258 KIT SPRING, Ref. 4 & 55 1
63 6671904 VALVE, PLATE, valve plate only – included W/Ref. 14 1
64 6675272 WASHER 1
64 O-RING, O-RING, NSS – Order 6676161 1
