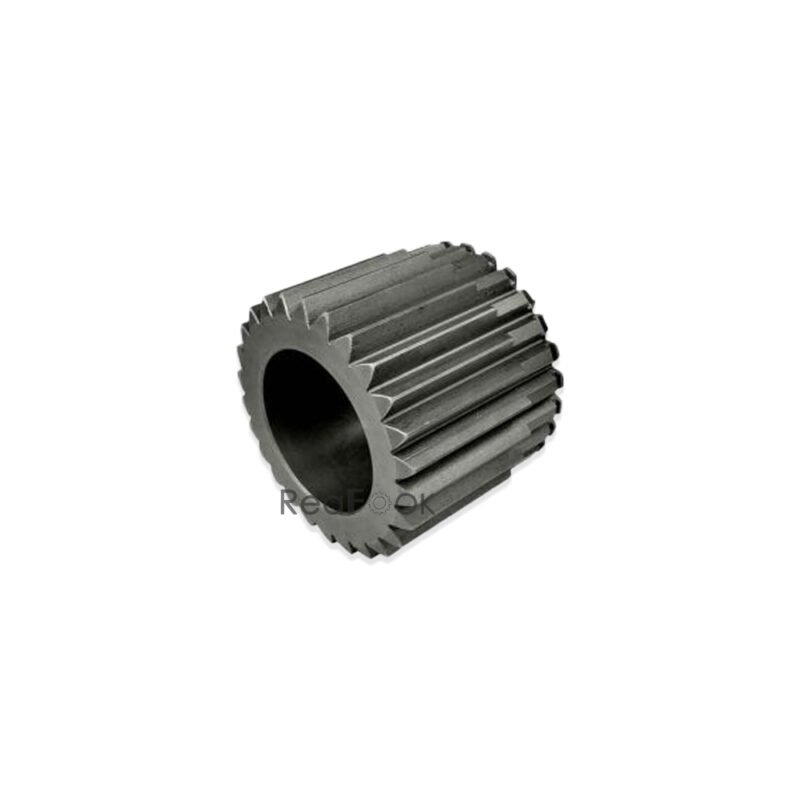

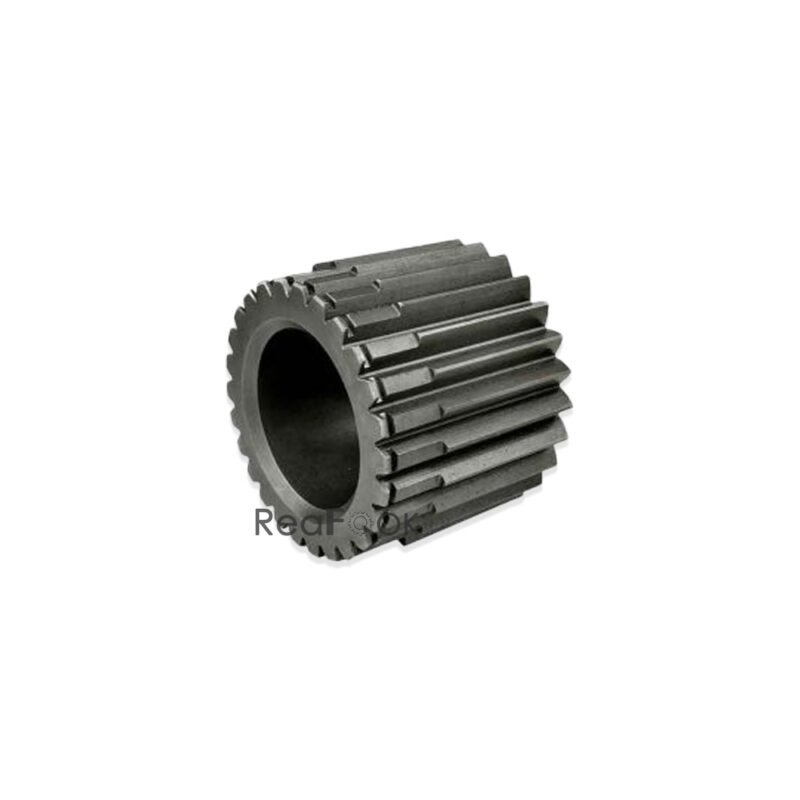

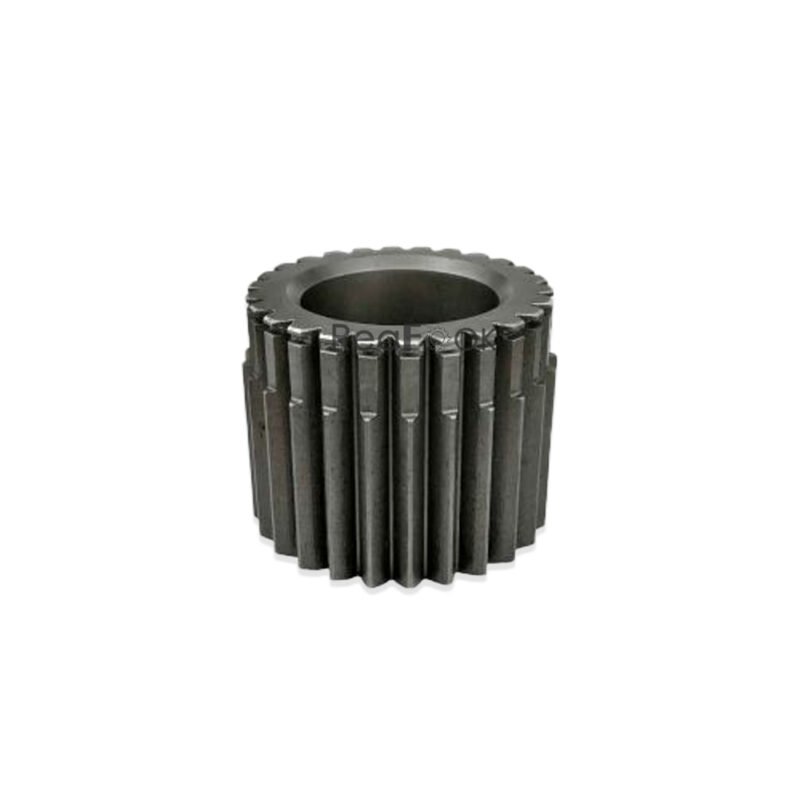

Final Drive Sun Gear SA7117-30290 Fit Volvo Excavator EC140 EC160B EC150 EC180B EC210 EC200B EC210B EC210D

Product Name: Sun Gear
Reference Part Number: SA7117-30290
Compatible Machine: Volvo Excavator EC140C EC160B EC160C EC160D EC150 EC180B EC200B EC210 EC210B EC210D…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

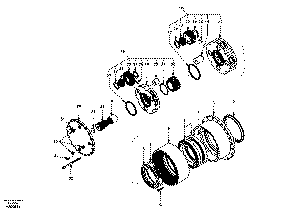

Pos. Part No Qty Parts name Comments
SA7117-30050 [1] Travel Gearbox
1. SA7117-30100 [1] Housing
2. SA7117-30110 [2] Ball bearing
3. SA7117-30120 [1] Seal
4. SA7117-30140 [1] Shim T=0.1
SA7117-30150 [1] Shim T=0.9

SA7117-30160 [1] Shim T=1.0
SA7117-30170 [1] Shim T=1.2
5. SA7117-30130 [1] Retainer
6. SA9011-11206 [12] Bolt
7. SA9324-21212 [2] Pin
8. SA7117-30190 [1] Ring gear
9. SA7117-30180 [1] Flexible coupling
10. SA7117-30200 [1] Carrier No 2
11. SA7117-30210 [1] Planet carrier
12. SA7117-30240 [4] Planetary Gear
13. SA7117-30230 [8] Needle bearing
14. SA7117-30220 [8] Thrust washer
15. SA7117-30250 [4] Pin
16. SA9325-06012 [4] Spring pin
17.SA7117-30260 [1] Thrust ring
18. SA7117-30270 [1] Carrier No 1
19. SA7117-30280 [1] Carrier
20. SA7117-30290 [1] Sun gear
21. SA7117-30300 [1] Ring
22. SA7117-30340 [3] Planetary gear
23. SA7117-30320 [3] Needle bearing
24. SA7117-30310 [6] Thrust washer
25. SA7117-30360 [3] Pin
26. VOE951955 [3] Spring pin
27. SA7117-30260[1] Thrust ring
28. SA7117-30350[1] Cover
29. SA7117-15230[1] Pad
30. A7117-30370 [20] Hexagon screw
31. SA9023-11004 [2] Set screw
32. SA9415-43042 [3] Plug
33. SA7117-30330 [1] Sun gear
