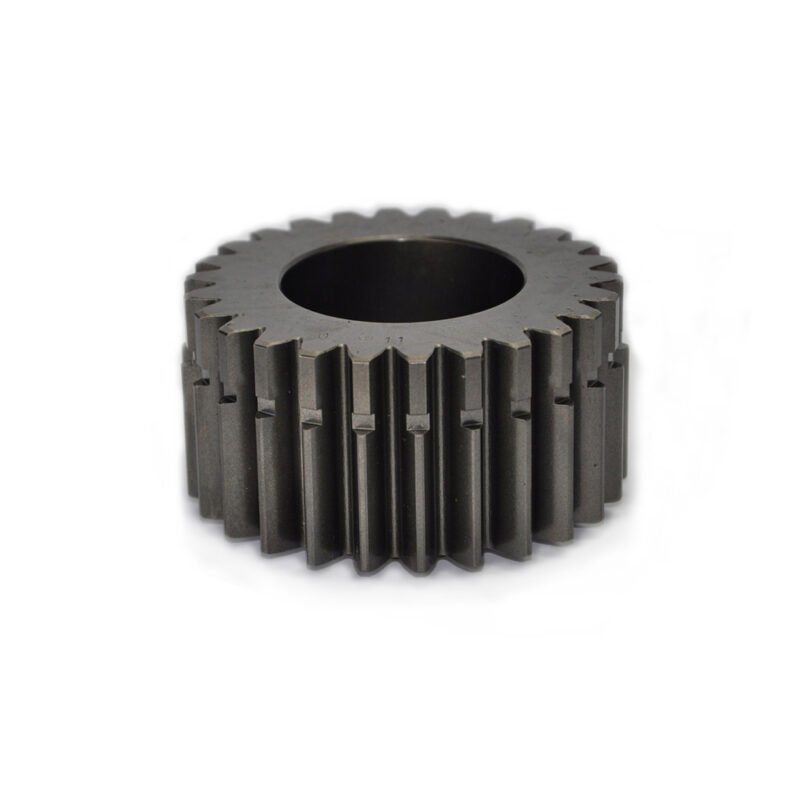

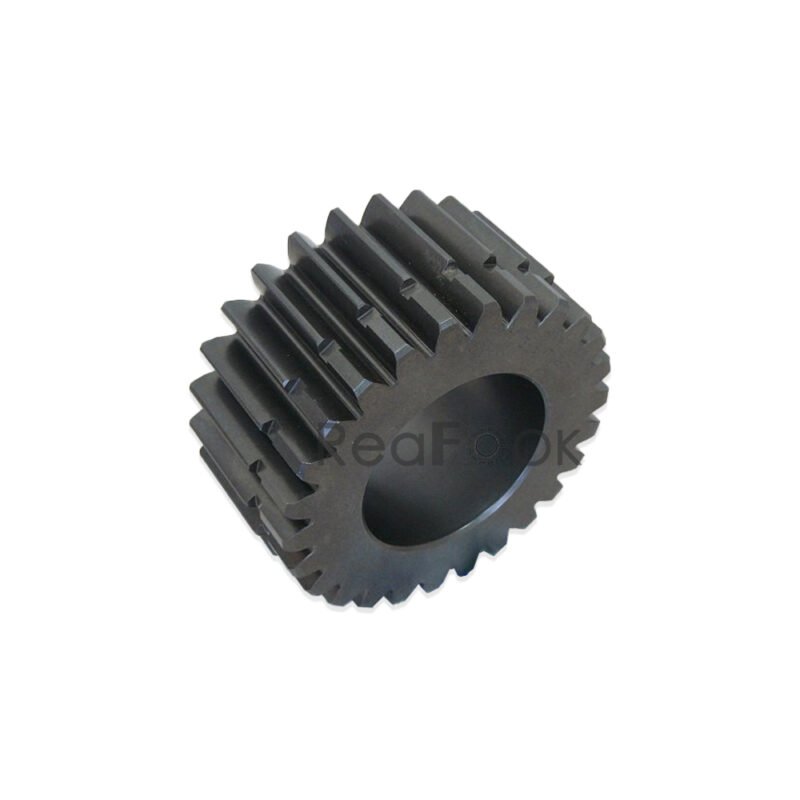

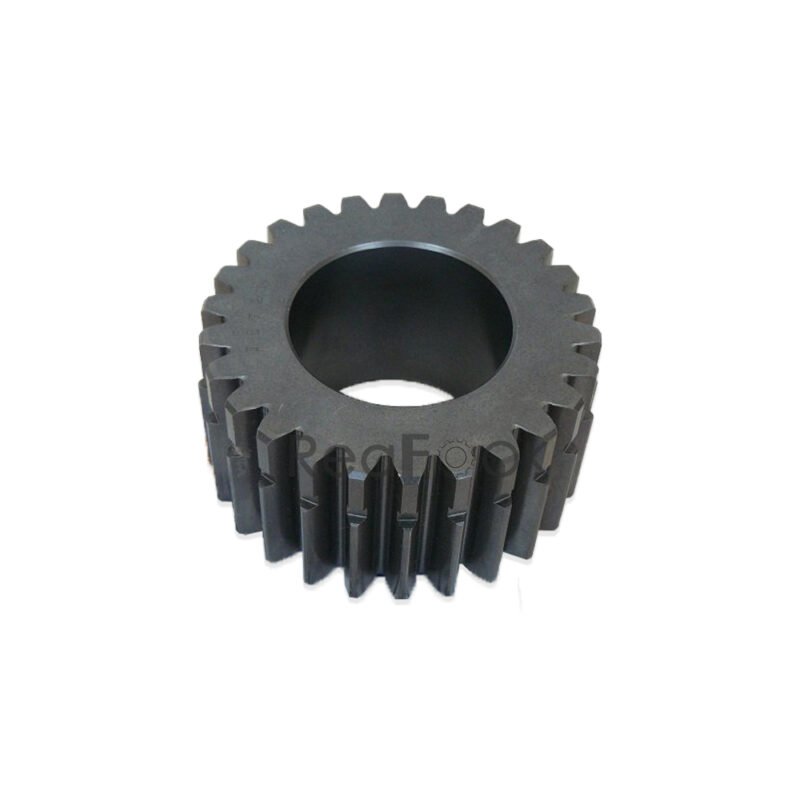

Final Drive Sun Gear K9000798 Fit Doosan Excavator DX300LC DX300LCA Solar 300LC-7A 300LC-V 300LL

Product Name: Travel Sun Gear No.2
Reference Part Number: K9000798
Compatible Machine: Doosan Excavator DX300LC DX300LCA Solar 300LC-7A 300LC-V 300LL…

Description:
Gear for use in planetary gear sets of final drives.



Pos. Part No Qty Parts name Comments

-. 404-00098C [1] TRAVEL REDUCTION GEAR

-. 170402-00009 [1]

10. K1003028 [1] KIT;CARRIER NO.2

10A. K1000713 [1] CARRIER NO.2

10B. K9000795 [3] GEAR;PLANETARY NO.2

10C. K9000796 [6] WASHER;THRUST NO.2

10D. K9000797 [3] PIN NO.2

10E. K1000719 [45] ROLLER;NEEDLE

10G. S5740900 [3] PIN;SPRING

14. K9000798 [1] GEAR;SUN NO.2
15. K1003027 [1] KIT;CARRIER NO.1

15A. K1000712 [1] CARRIER NO.1

15B. K9000799 [3] GEAR;PLANETARY NO.1

15C. K9000800 [6] WASHER;THRUST NO.1

15D. K9000801 [3] PIN NO.1

15E. K1000720 [3] BEARING;NEEDLE ROLLER

15G. S5740650 [3] PIN;SPRING M4X20

19. K9000802 [1] GEAR;SUN NO.1
20. K1000707 [1] HOUSING
21. 110931-00382 [1]
22. K9000803 [4] PIN;DOWEL
23. K9000804 [1] GEAR;RING
24. K9000805 [1] WASHER;THRUST NO.4
25. K1000716 [1] COVER
26. K9000806 [1] GASKET
27. K9000807 [1] BUSHING;THRUST NO.3
28. K9000808 [1] BUSHING;THRUST NO.2
29. K9000809 [1] BUSHING;THRUST NO.1
30. K9000789 [1] STOPPER
31. K9000789B [1]
32. K9000810 [1] BUSHING;THRUST NO.4
33. K9000811 [1] BUSHING;OIL
34. K9000812 [1] COUPLING
35. K9000813 [2] BEARING;ANGULAR
36. 2180-6059 [1] SEAL;FLOATING
37. S6501150 [1] RING;SNAP
38. S6501100 [1] RING;SNAP
39. V2180-1217D174 [1] O-RING
40. K9000790 [1] BEARING;GUIDE
41. S2212061 [32] BOLT;SOCKET M10X1.5X25
42. S2212061 [16] BOLT;SOCKET M10X1.5X25
43. S2219661 [24] BOLT;SOCKET M14X100
44. S2215061 [17] BOLT;SOCKET M12X1.75X25
45. S2215061 [37] BOLT;SOCKET M12X1.75X25
46. 2181-1890D3 [3] PLUG
47. S8000141 [3] O-RING
48. K1003029 [1] KIT;CARRIER NO.3

5A. K9001290 [1] CARRIER NO.3

5B. K9000791 [4] GEAR;PLANETARY NO.3

5C. K9000792 [8] WASHER;THRUST NO.3

5D. K9001291 [4] PIN NO.3

5E. K1000718 [72] ROLLER;NEEDLE

5G. S5741240 [4] PIN;SPRING

9. K9000794 [1] GEAR;SUN NO.3
