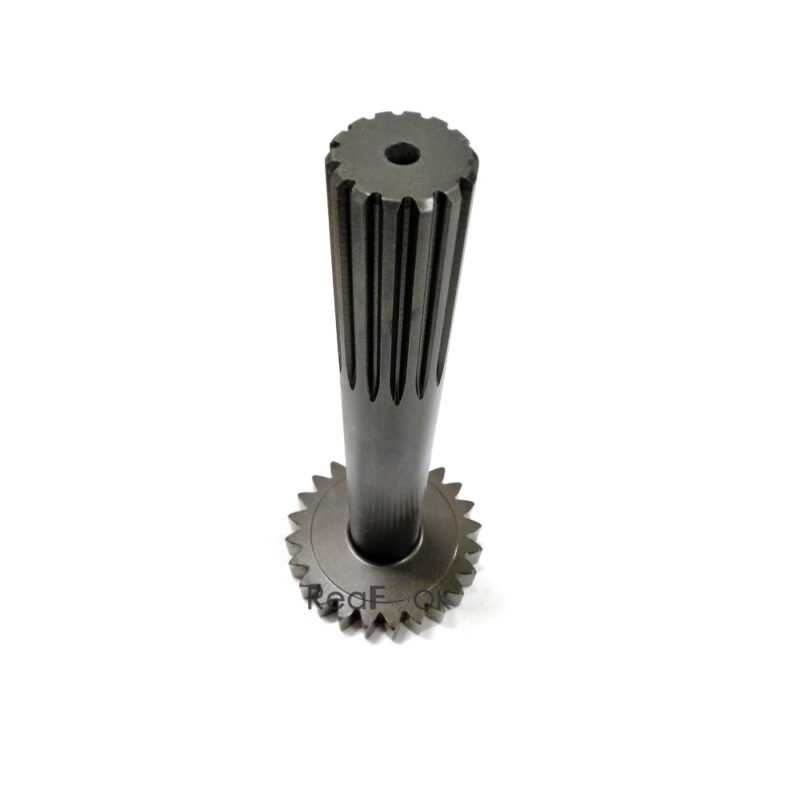

Final Drive Sun Gear 110-7049 Fit Caterpillar Excavator CAT 320B 322BL 325 325L 325B

Product Name: Sun Gear
Reference Part Number: 110-7049, 1107049
Compatible Machine: Caterpillar Excavator CAT 320B 322BL 325 325L 325B…

Description:
The Final Drive Sun Gear is used to transmit power from the hydraulic motor to the wheels to receive the necessary power for movement contributing to the overall functionality and mobility of the machinery in heavy-duty applications.

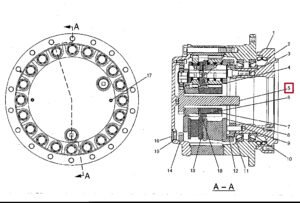

Pos. Part No Qty Parts name Comments
1. 114-1386 [1] HOUSING
2. 3T-8500 [1] SEAL GP
3. 7Y-5217 [16] BOLT
4. 110-7056 [3] GEAR (Z=23)
5. 110-7049 [1] GEAR (Z=14)
6. 094-0574 [2] RINGRETAINING
7. 110-7051 [1] GEAR (Z=23)
8. 110-7059 [1] CARRIER
9. 114-1540 [4] DOWEL
10. 168-8452 [2] BEARING
11. 7Y-0746 B [1] SHIM (T=0.15mm)
7Y-0747 B [1] SHIM (T=0.0.3mm)
7Y-0748B [1] SHIM (T=0.4mm)
7Y-0749 B [1] SHIM (T=0.5mm)
7Y-0750 B [1] SHIM (T=0.6mm)
7Y-0751 B[1] SHIM (T=0.7mm)
7Y-0752 B [1] SHIM (T=0.8mm)
7Y-0753 B [1] SHIM (T=1.0mm)
7Y-0754 B [1] SHIM (T=1.6mm)
12. 7Y-0219 [1] GEAR (Z=58)
13. 110-7058 [1] CARRIER
14. 110-7055 [1] GEAR (Z=66)
15. 7M-8485 [2] SEAL-O-RING (ID=29.74mm)
16. 3E-2338 [2] PLUG
17. 096-3216 [2] SETSCREW
18. 7Y-0248 [1] SPACER
B USE AS REQUIRED
