Final Drive Planetary Carrier K1003027 Fit Doosan Excavator DX300LC DX300LCA Solar 300LC-7A 300LC-V 300LL

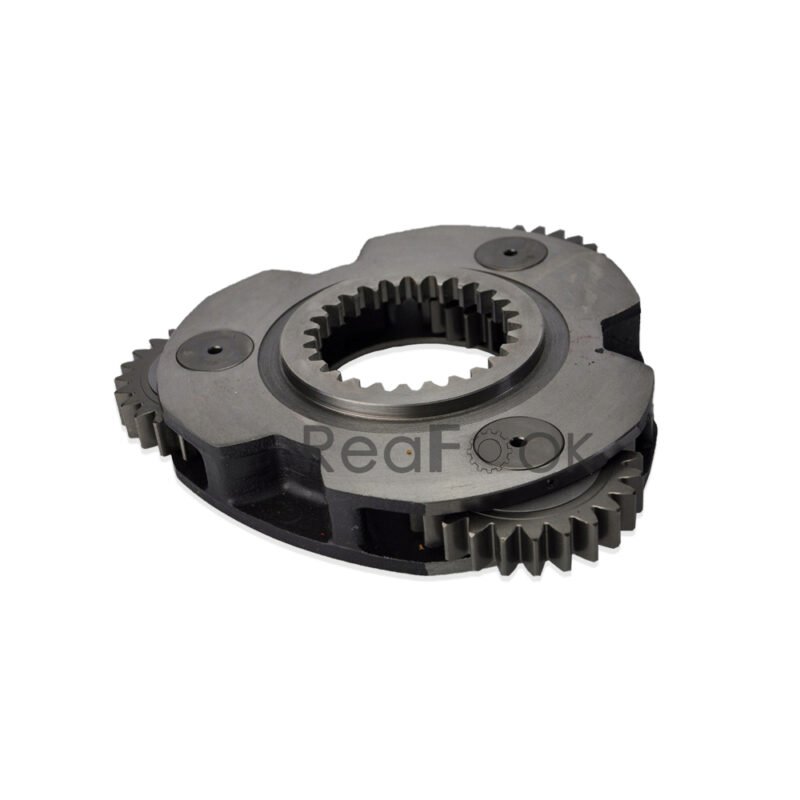

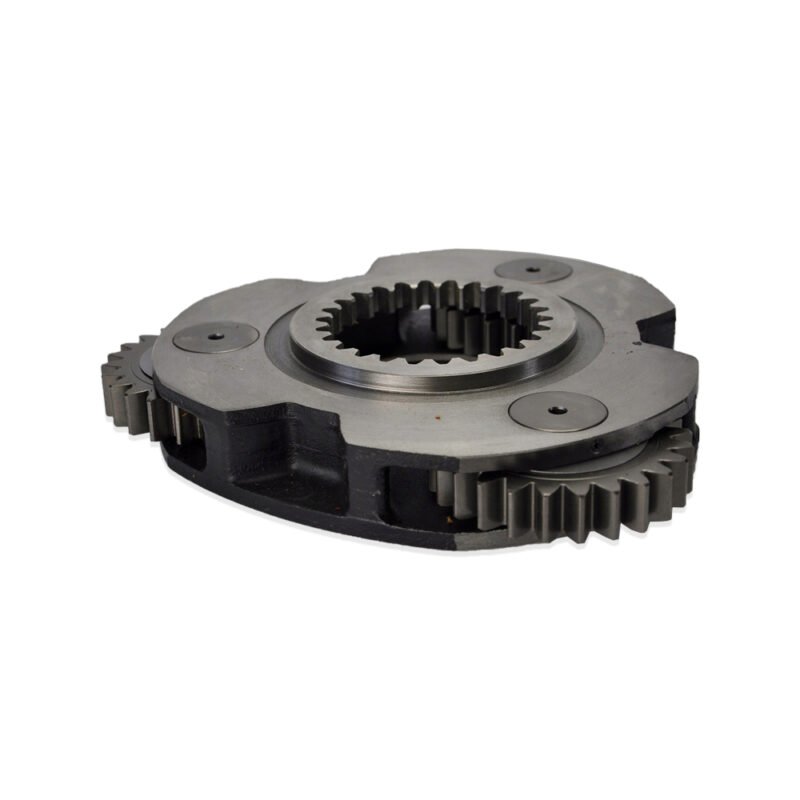

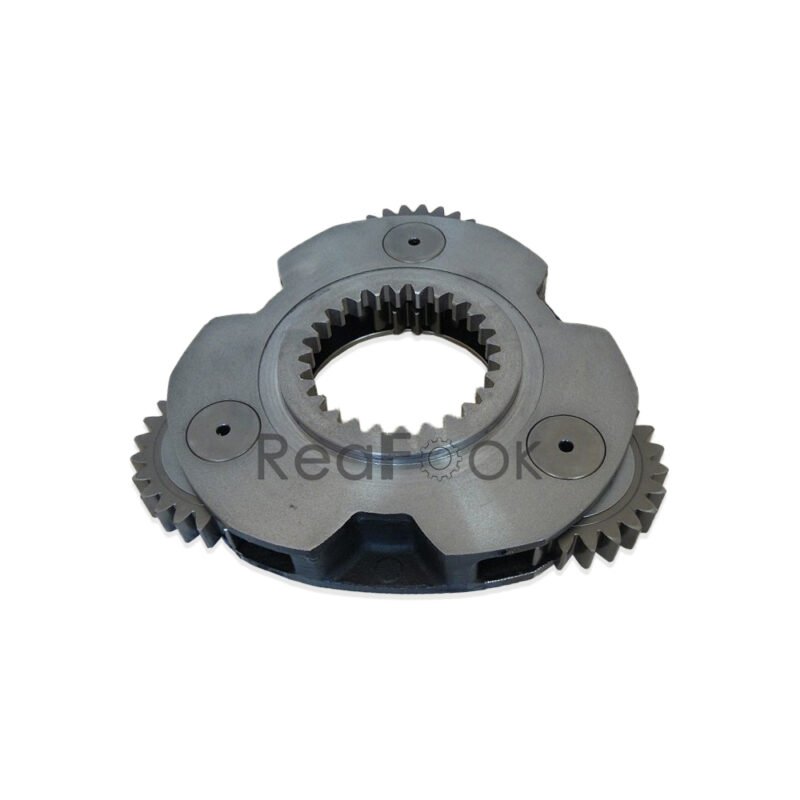

Product Name: Travel Planet Carrier Kit No.1
Reference Part Number: K1003027, K1000712
Compatible Machine: Doosan Excavator DX300LC DX300LCA Solar 300LC-7A 300LC-V 300LL…

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. The planetary carrier is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

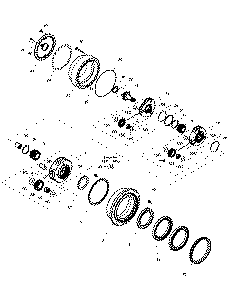

Pos. Part No Qty Parts name Comments

-. 404-00098C [1] TRAVEL REDUCTION GEAR

-. 170402-00009 [1]

10A. K1000713 [1] CARRIER NO.2

10B. K9000795 [3] GEAR;PLANETARY NO.2

10C. K9000796 [6] WASHER;THRUST NO.2

10D. K9000797 [3] PIN NO.2

10E. K1000719 [45] ROLLER;NEEDLE

10G. S5740900 [3] PIN;SPRING

14. K9000798 [1] GEAR;SUN NO.2
15. K1003027 [1] KIT;CARRIER NO.1

15A. K1000712 [1] CARRIER NO.1

15B. K9000799 [3] GEAR;PLANETARY NO.1

15C. K9000800 [6] WASHER;THRUST NO.1

15D. K9000801 [3] PIN NO.1

15E. K1000720 [3] BEARING;NEEDLE ROLLER

15G. S5740650 [3] PIN;SPRING M4X20

19. K9000802 [1] GEAR;SUN NO.1
20. K1000707 [1] HOUSING
21. 110931-00382 [1]
22. K9000803 [4] PIN;DOWEL
23. K9000804 [1] GEAR;RING
24. K9000805 [1] WASHER;THRUST NO.4
25. K1000716 [1] COVER
26. K9000806 [1] GASKET
27. K9000807 [1] BUSHING;THRUST NO.3
28. K9000808 [1] BUSHING;THRUST NO.2
29. K9000809 [1] BUSHING;THRUST NO.1
30. K9000789 [1] STOPPER
31. K9000789B [1]
32. K9000810 [1] BUSHING;THRUST NO.4
33. K9000811 [1] BUSHING;OIL
34. K9000812 [1] COUPLING
35. K9000813 [2] BEARING;ANGULAR
36. 2180-6059 [1] SEAL;FLOATING
37. S6501150 [1] RING;SNAP
38. S6501100 [1] RING;SNAP
39. V2180-1217D174 [1] O-RING
40. K9000790 [1] BEARING;GUIDE
41. S2212061 [32] BOLT;SOCKET M10X1.5X25
42. S2212061 [16] BOLT;SOCKET M10X1.5X25
43. S2219661 [24] BOLT;SOCKET M14X100
44. S2215061 [17] BOLT;SOCKET M12X1.75X25
45. S2215061 [37] BOLT;SOCKET M12X1.75X25
46. 2181-1890D3 [3] PLUG
47. S8000141 [3] O-RING
48. K1003029 [1] KIT;CARRIER NO.3

5A. K9001290 [1] CARRIER NO.3

5B. K9000791 [4] GEAR;PLANETARY NO.3

5C. K9000792 [8] WASHER;THRUST NO.3

5D. K9001291 [4] PIN NO.3

5E. K1000718 [72] ROLLER;NEEDLE

5G. S5741240 [4] PIN;SPRING

9. K9000794 [1] GEAR;SUN NO.3
