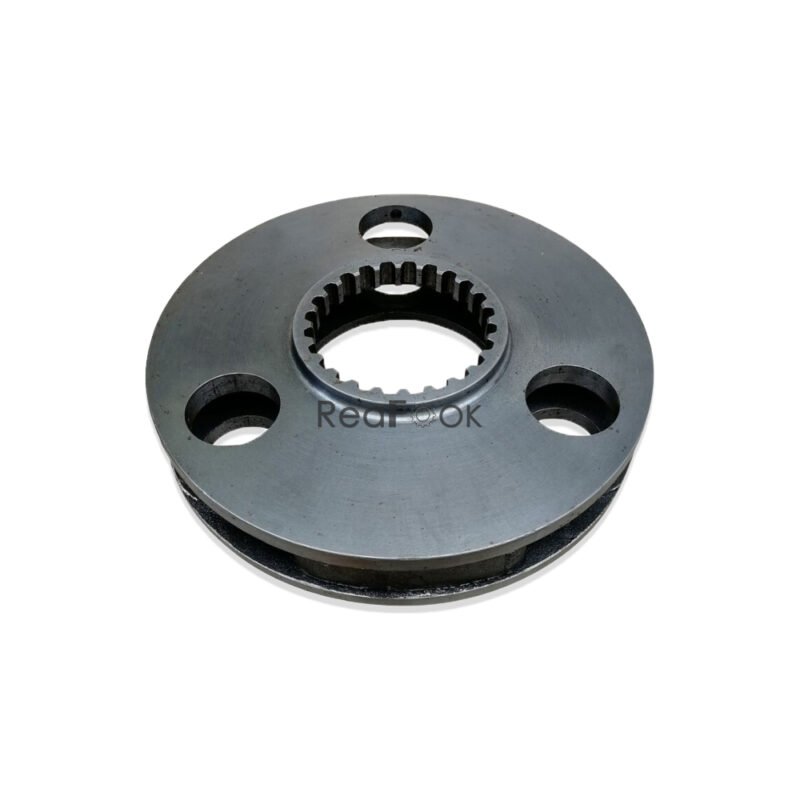

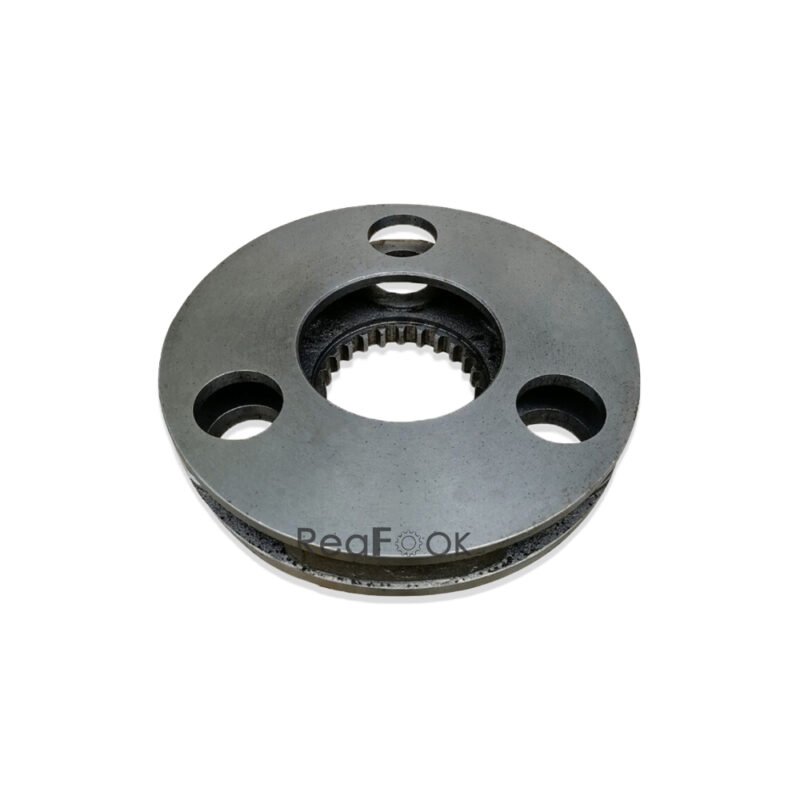

Final Drive Planetary Carrier 191-2571 Fit Caterpillar Excavator CAT 320C 320DFM 322C 323D 323EL 324D 324E 325C 325D 326DL 329DL 329E

Product Name: Planetary Carrier
Reference Part Number: 191-2571, 1912571
Compatible Machine: Caterpillar Excavator CAT 320C 320DFM 322C 323D 323EL 324D 324E 325C 325D 326DL 329DL 329E..

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

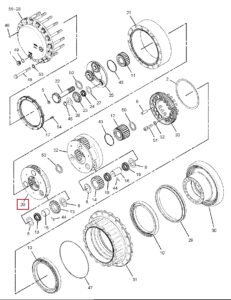

Pos. Part No Qty Parts name
1. 3E-2338 [2] PLUG-PIPE
2. 267-6863 BJ [1] SHIM (0.75-MM THK)
7Y-0752 BJ [1] SHIM (0.8-MM THK)
267-6864BJ [1] SHIM (0.85-MM THK)
267-6865 BJ [1] SHIM (0.9-MM THK)
267-6866 BJ [1] SHIM (0.95-MM THK)
7Y-0753 BJ [1] SHIM (1-MM THK)
267-6867 BJ [1] SHIM (1.2-MM THK)
267-6868 BJ [1] SHIM (1.4-MM THK)
7Y-0754 BJ [1] SHIM (1.6-MM THK)
267-6869 BJ [1] SHIM (1.8-MM THK)
267-6870 BJ [1] SHIM (2-MM THK)
267-6871 BJ [1] SHIM (2.3-MM THK)
5. 094-0578 B [1] PLATE (8-MM THK)
094-0579 B [1] PLATE (9-MM THK)
094-0580 B [1] PLATE (10-MM THK)
8. 094-1528 [12] WASHER (53X84X1-MM THK)
9. 114-1540 J [4] PIN-DOWEL
10. 168-8452 J [2] BALL BEARING
11. 169-5589 [1] GEAR-SUN (24-TEETH)
12. 169-5590 [1] GEAR-SUN (24-TEETH)
13. 169-5592 [3] GEAR PLANETARY (23-TEETH)
14. 169-5593 [3] GEAR PLANETARY (23-TEETH)
15. 169-5601 [3] SHAFT PLANETARY
16. 169-5602 [3] SHAFT PLANETARY
17. 171-9387 [1] GEAR-RING (64-TEETH)
18. 191-2569 [3] BEARING AS (CAGED ROLLER)
19. 191-2570 [6] BEARING AS (CAGED ROLLER)
20. 191-2571 [1] CARRIER PLANETARY
21. 191-2676 [1] GEAR-RING (72-TEETH)
22. 191-2683 [1] GEAR-SUN (20-TEETH)
23. 191-2684 [3] GEAR PLANETARY (21-TEETH)
24. 191-2685 [3] BEARING AS
25. 191-2686 [1] CARRIER AS
191-2687 [3] RACE-BEARING
26. 191-2689 [3] WASHER (34X70X1-MM THK)
27. 191-2690 [3] WASHER (42.3X70X1-MM THK)
28. 199-4503 [1] COVER
29. 207-1571 J [1] SEAL GP-DUOCONE
214-3570 [2] RING-TORIC
30. 267-6797 J [1] HOUSINGMOTOR
31. 267-6798 J [1] HOUSING
32. 267-6799 [1] CARRIERPLANETARY
33. 267-6800 J [1] GEAR-COUPLING
43. 093-1731 [2] RING-RETAINING
44. 095-0891 [6] PIN-SPRING
45. 096-0433 [3] RING-RETAINING
46. 096-3216 M [2] SETSCREWSOCKET (M12X1.75X12-MM)
47. 171-9298 [1] SEAL-O-RING
48. 179-8733 M [16] BOLT (M20X2.5X170-MM)
49. 7M-8485 [2] SEAL-O-RING
50. 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51. 7Y-5217 JM [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52. 8T-3282 J [16] WASHER-HARD (22X35X3.5-MM THK)
53. 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)
54. 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
55. 1U-8846 B SEALANTGASKET

AVAILABLE REPAIR KIT(S):
267-6818 J [1] KIT-FINAL DRIVE BEARING
B USE AS REQUIRED
J KIT MARKED J SERVICES
PART(S) MARKED J
M METRIC PART
