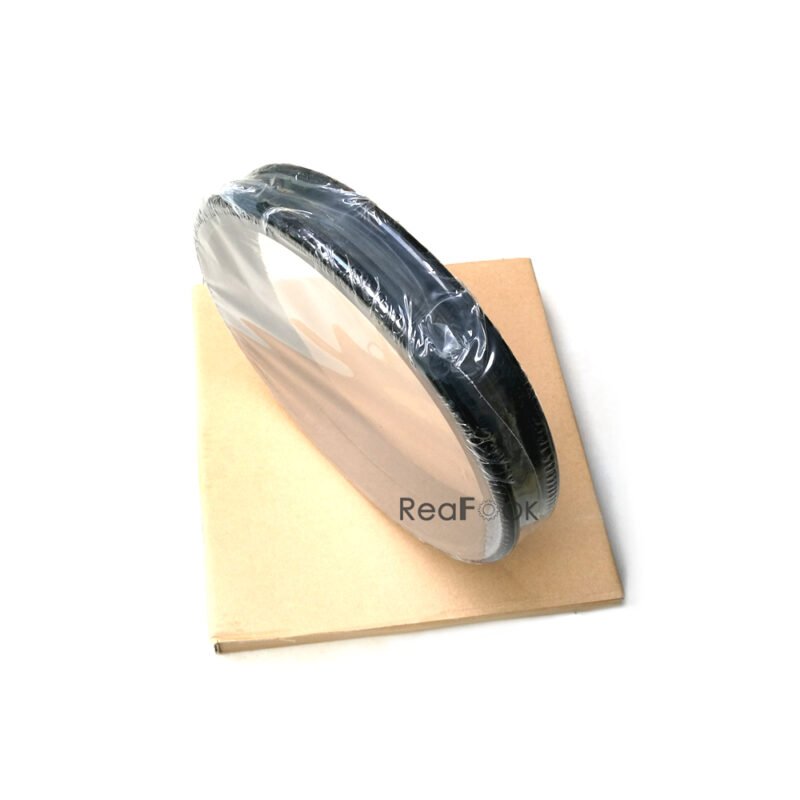

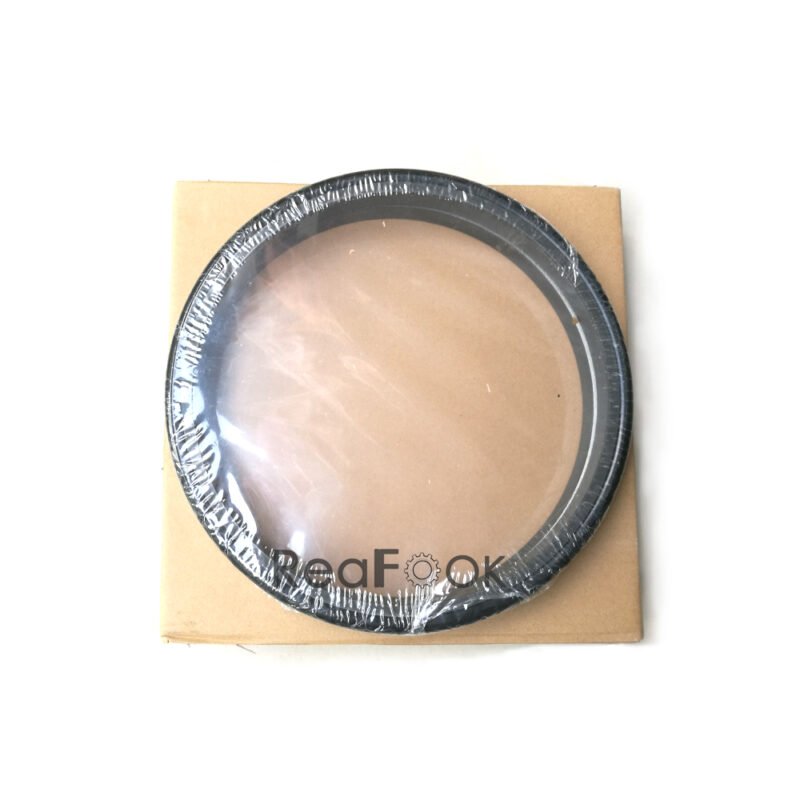

Final Drive Floating Seal Group TZES100-250-A Fit Excavator Komatsu PC100-5 PC100-6 PC120-3 PC120-5 PC120-6 PC128UU-1 PC128US-1 PC130-5 PC130-6

Product Name: Seal Group
Reference Part Number: TZES100-250-A
Compatible Machine: Excavator Komatsu PC100-5 PC100-6 PC120-3 PC120-5 PC120-6 PC128UU-1 PC128US-1 PC130-5 PC130-6 PC60-6 PC60-7…

Description:
The Floating seals are used in the final drive of Hydraulic Excavators. They provide an effective sealing solution for the piston motor, such as the axle shaft and the final drive housing, and retain lubricating oil within the system. Floating seals offer high durability, and excellent resistance to wear and tear, and maintain their sealing performance even under harsh conditions, making them suitable for Hydraulic Excavators.

Attributes:
• Prevents lubricating oil leakage
• Resistant to wear and tear
• Effective sealing for piston

Applications:
This Floating Seal is used to provide effective sealing and retain lubricating oil while preventing contaminants from entering the piston motor.

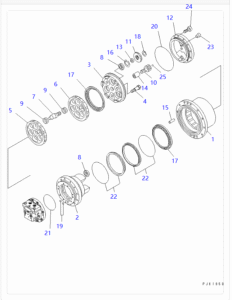

Pos. Part No Qty Parts name Comments
1. TZ266B1001-00 [1] HUB,MOTOR TZ263B1102-01 [1] SPINDLE KIT 49.5 kg.
TZ263B1132-05 [1] SPINDLE ASS’Y 49.5 kg.
4. TZ200B1019-03 [3] BOLT 0.344 kg. analogs: [“TZ200B101902”]
TZ263B1104-00 [1] RV GEAR ASS’Y19 kg.
TZ263B1204-00 [1] RV GEAR KIT 10 kg.
7. TZ200B1009-01 [3] SHAFT 1.397 kg.
8. TZ200B1022-00 [6] BEARING 0.56 kg.
9. TZ200B1023-00 [6] BEARING 0.26 kg.
10. TZ270B1006-00 [1] GEAR 0.381 kg.
TZ264B1107-00 [1] SPUR GEAR KIT
12. TZ266B1008-00 [1] COVER 9.16 kg.
13. TZ200B1014-01 [3] PIECE 0.04 kg.
14. TZ269B1015-00 [1] COUPLING 0.25 kg.
15. TZ225B1017-00 [24] PIN 0.141 kg.
16. TZ150A1020-00 [3] SNAP RING KIT 0.925 kg.
17. TZ200B1021-01 [2] BEARING 3.41 kg. analogs: [“TZ200B102100”]
18. 04064-03515 [3] RING,BACK-UP
19. 07000-11007 [2] O-RING
20. TZARP568-378-7 [1] O-RING
21. TZJW1516-G37-7 [1] O-RING
22. TZES100-250-A [2] SEAL (K1)
23. TZGM1-2 [2] PLUG
24. TZJB1176M12-32 [10] BOLT
25. 04260-00952 [1] BALL
K1. TZ276B9000-00 [1] SERVICE
TZ15Z-25-42-10 [1] SEAL
TZ266B2035-00 [1] O-RING
TZJB2401-P26-9 [2] O-RING
07000-12016 [4] O-RING
07000-12018 [3] O-RING
TZ266B2039-00 [1] O-RING
07000-12010 [2] O-RING
07002-02034 [1] O-RING
07000-12011 [4] O-RING
07000-12014 [2] O-RING
07000-12020 [4] O-RING
TZJB2407T2-P14 [4] RING
TZJB2407T3-P20 [4] RING
