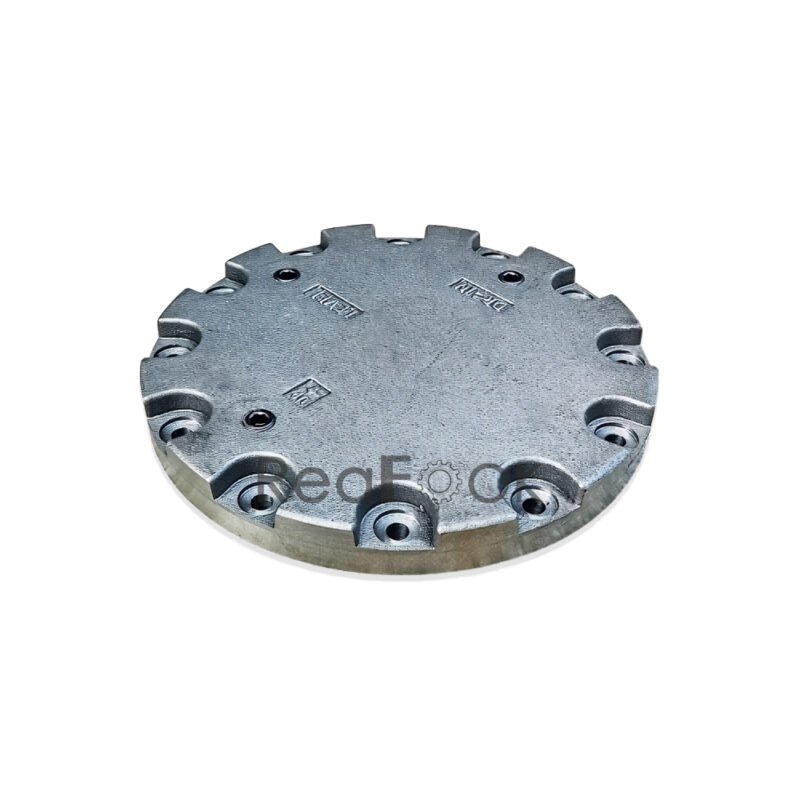

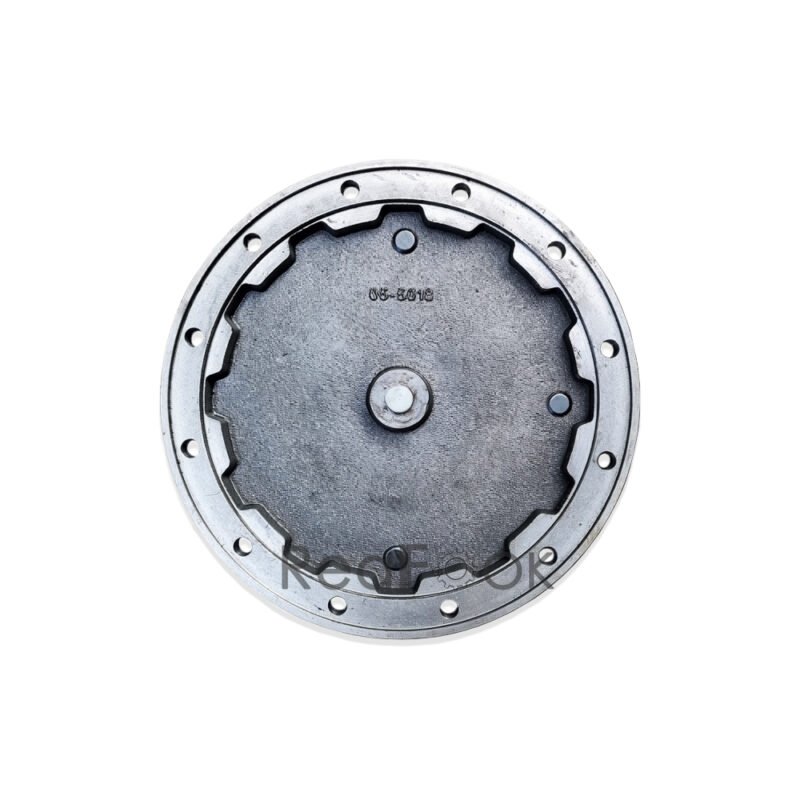

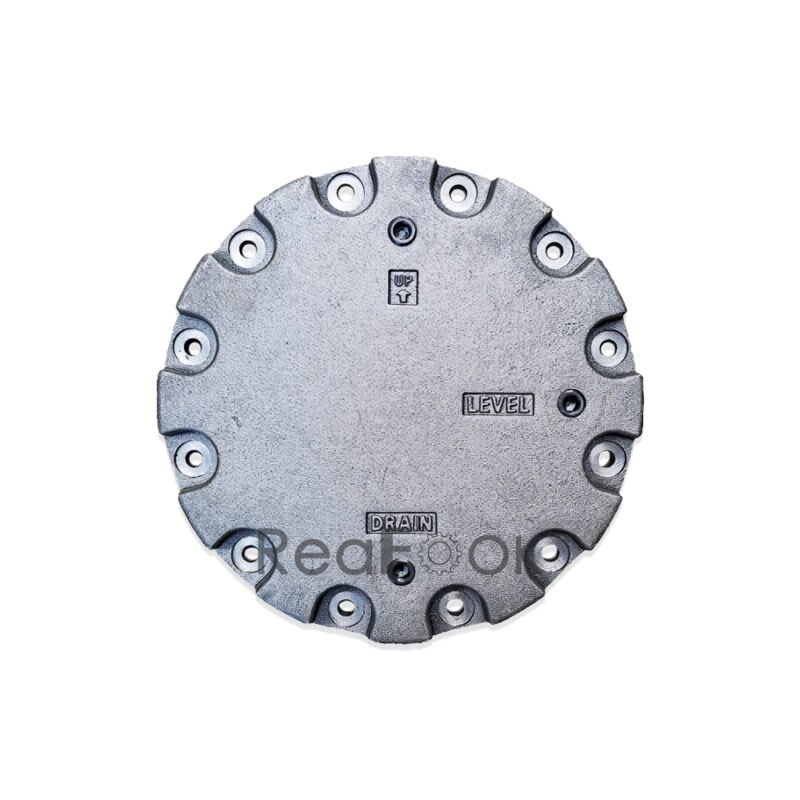

Final Drive Cover 2034833 Fit Hitachi Excavator EX200-3 EX200-3C EX200-3E EX200-5 EX210H-5

Product Name: Cover
Reference Part Number: 2034833
Compatible Machine: Hitachi Excavator EX200-3 EX200-3C EX200-3E EX200-5 EX210H-5 EX210LC-5…

Description:
The final drive covers prevent the intrusion of dirt, debris and other contaminants into the final drive with a large diameter cutout to avoid contact with other components.

Parts on group SWING DEVICE:
Pos. Part No Qty Parts name Comments
9134825 [2] TRAVEL DEVICE ASS’Y I 9148909 (for assembly of machine)
(9148909) [2] TRAVEL DEVICE ASS’Y (for transportation)
9150472 [2] TRAVEL DEVICE ASS’Y I 9155253 (for assembly of machine)
(9155253) [2] TRAVEL DEVICE ASS’Y (for transportation)
9142964 [2] TRAVEL DEVICE ASS’Y I 9144136 (for assembly of machine)
(9144136) [2] TRAVEL DEVICE ASS’Y (for transportation)
00. 9146471 [1] MOTOR;OIL I 9149087 (for assembly of machine)
00. (9144066) [1] MOTOR;OIL (for transportation)
00. (9149087) [1] MOTOR;OIL (for transportation)
00. (9149085) [1] MOTOR;OIL (for transportation)
00. 9133918 [1] MOTOR;OIL I 9149085 (for assembly of machine)
00. 9142661 [1] MOTOR;OIL I 9144066 (for assembly of machine)
02. 4114753 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1018736 [1] DRUM
05. 1020990 [1] SPROCKET Y 1018740
05. 1018740 [1] SPROCKET
06. J932055 [16] BOLT
07. A590920 [16] WASHER;SPRING
08. 3047448 [1] HUB
09. 3057125 [1] NUT
10. 4246783 [1] PIN;KNOCK
12. 1019147 [1] CARRIER
13. 3063957 [3] GEAR;PLANETARY
14. 4317122 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4315838 [3] PIN
17. 4116309 [3] PIN;SPRING
18. 3063959 [1] GEAR;SUN
20. 1020184 [1] GEAR;RING
20. 1018789 [1] GEAR;RING
21. J931640 [24] BOLT
23. 2034836 [1] CARRIER
24. 4192979 [2] SPACER
25. 3063956 [3] GEAR;PLANETARY
26. 4317121 [3] BRG.;NEEDLE
27. 4210851 [6] PLATE;THRUST
28. 4309995 [3] PIN
29. 4192020 [3] PIN;SPRING
30. 3063958 [1] GEAR;SUN
32. 2034835 [1] CARRIER
33. 3063955 [3] GEAR;PLANETARY
34. 4210849 [3] BRG.;NEEDLE <200,SS,HG,LV,X,E,H,K>
34. 4317120 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2034834 [1] SHAFT;PROP.
40. 2034833 [1] COVER
41. 4285323 [1] PIN;STOPPER
42. J011230 [12] BOLT;SEMS
43. 4245797 [3] PLUG
47. M492564 [2] SCREW;DRIVE
48. 3053559 [1] NAME-PLATE
