Final Drive Coupling Gear 7Y-0219 Fit Caterpillar Excavator CAT 320B 322BL 325 325L 325B
US$270.00

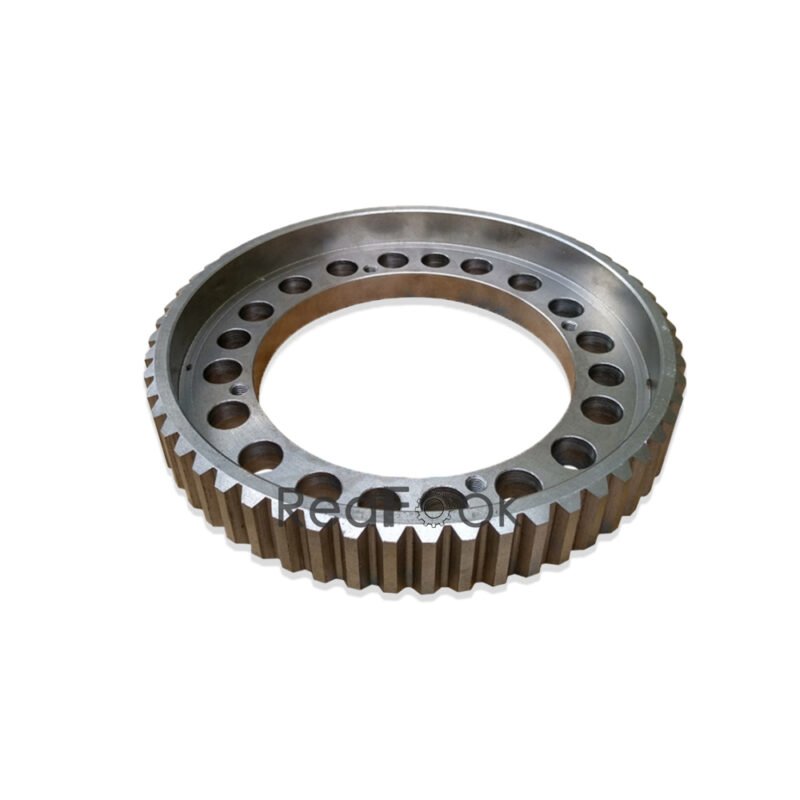

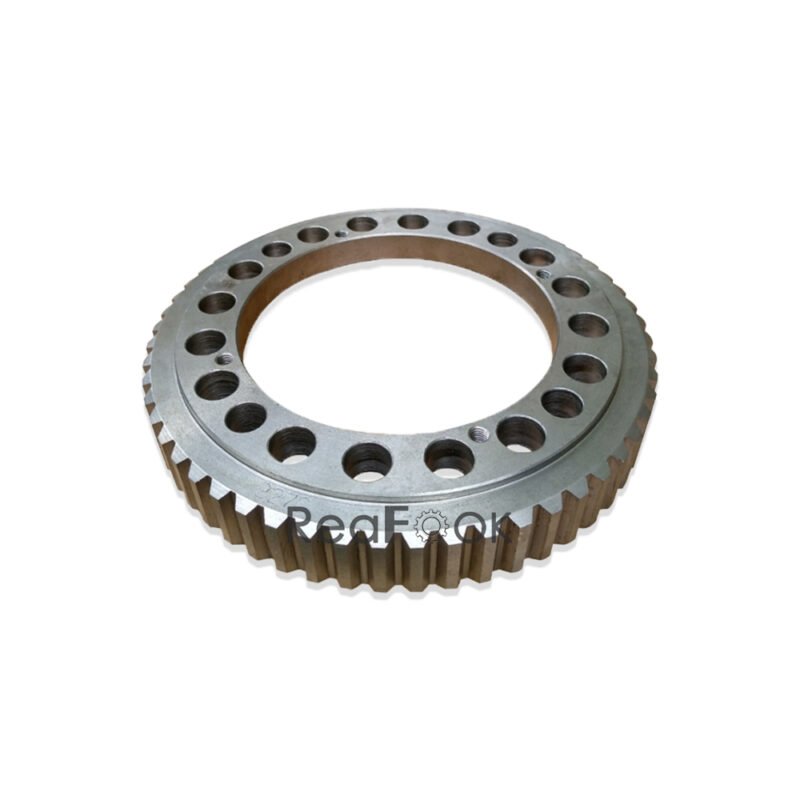

Coupling Gear 7Y-0219;
Nos of Teeth: 58T;
Outer Diameter 298.3mm, Width 36mm;
It is used for Final Drive System;
Free Shipping and High Quality Standards!!
Description:
The Final Drive Coupling Gear is situated within the equipment’s drivetrain, connecting the transmission output shaft to the drive wheels’ input shaft for efficient torque transmission, enabling smooth propulsion and maneuverability of the equipment.

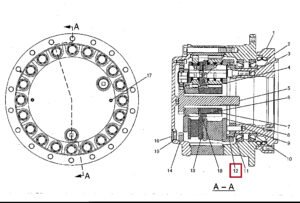

Pos. Part No Qty Parts name Comments
1. 114-1386 [1] HOUSING
2. 3T-8500 [1] SEAL GP
3. 7Y-5217 [16] BOLT
4. 110-7056 [3] GEAR (Z=23)
5. 110-7049 [1] GEAR (Z=14)
6. 094-0574 [2] RINGRETAINING
7. 110-7051 [1] GEAR (Z=23)
8. 110-7059 [1] CARRIER
9. 114-1540 [4] DOWEL
10. 168-8452 [2] BEARING
11. 7Y-0746 B [1] SHIM (T=0.15mm)
7Y-0747 B [1] SHIM (T=0.0.3mm)
7Y-0748B [1] SHIM (T=0.4mm)
7Y-0749 B [1] SHIM (T=0.5mm)
7Y-0750 B [1] SHIM (T=0.6mm)
7Y-0751 B[1] SHIM (T=0.7mm)
7Y-0752 B [1] SHIM (T=0.8mm)
7Y-0753 B [1] SHIM (T=1.0mm)
7Y-0754 B [1] SHIM (T=1.6mm)
12. 7Y-0219 [1] GEAR (Z=58)
13. 110-7058 [1] CARRIER
14. 110-7055 [1] GEAR (Z=66)
15. 7M-8485 [2] SEAL-O-RING (ID=29.74mm)
16. 3E-2338 [2] PLUG
17. 096-3216 [2] SETSCREW
18. 7Y-0248 [1] SPACER
B USE AS REQUIRED
Weight
8 kg
