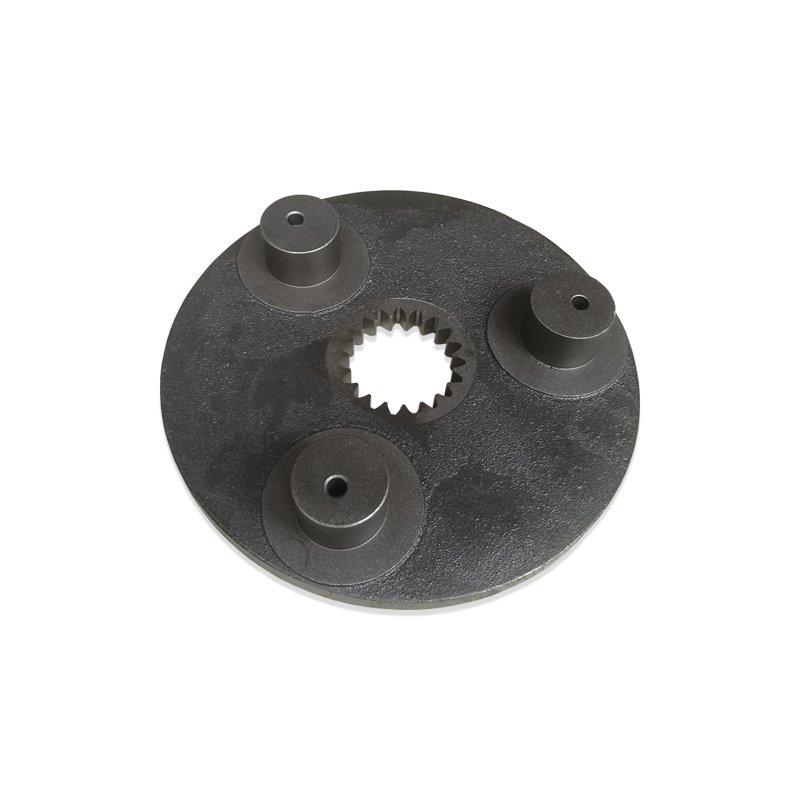

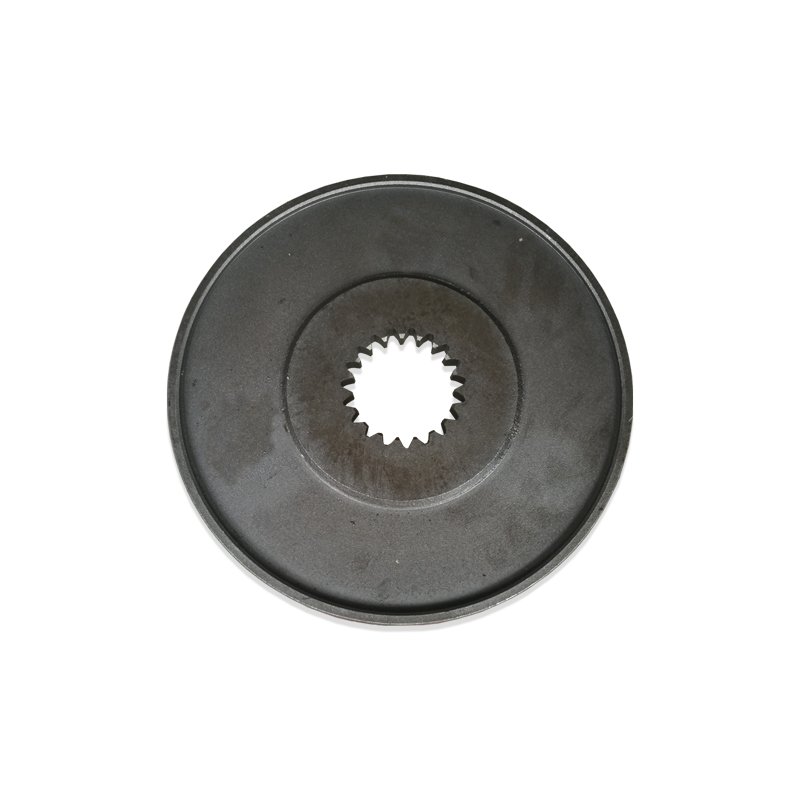

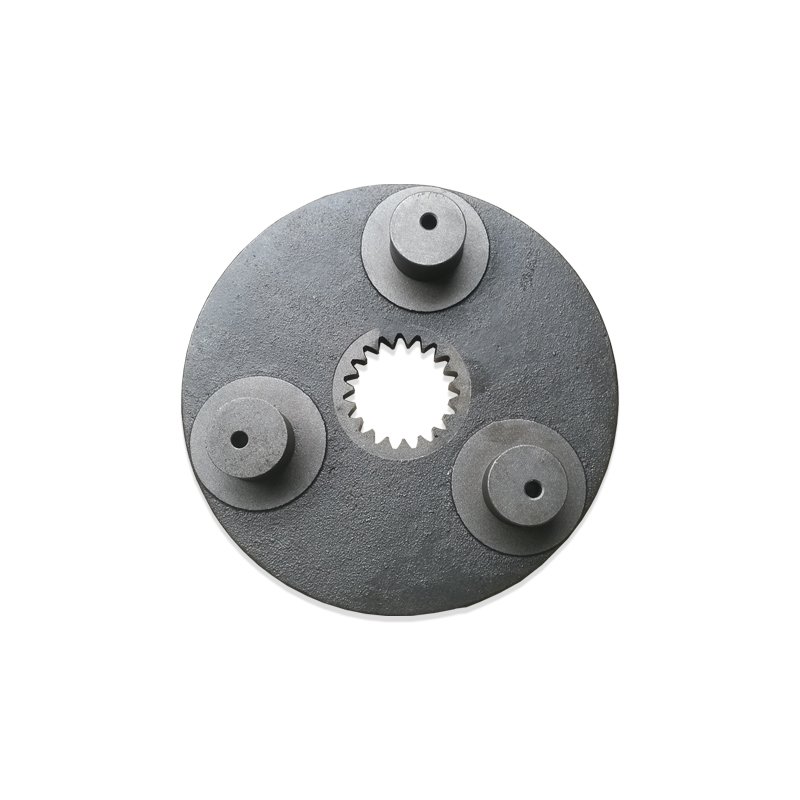

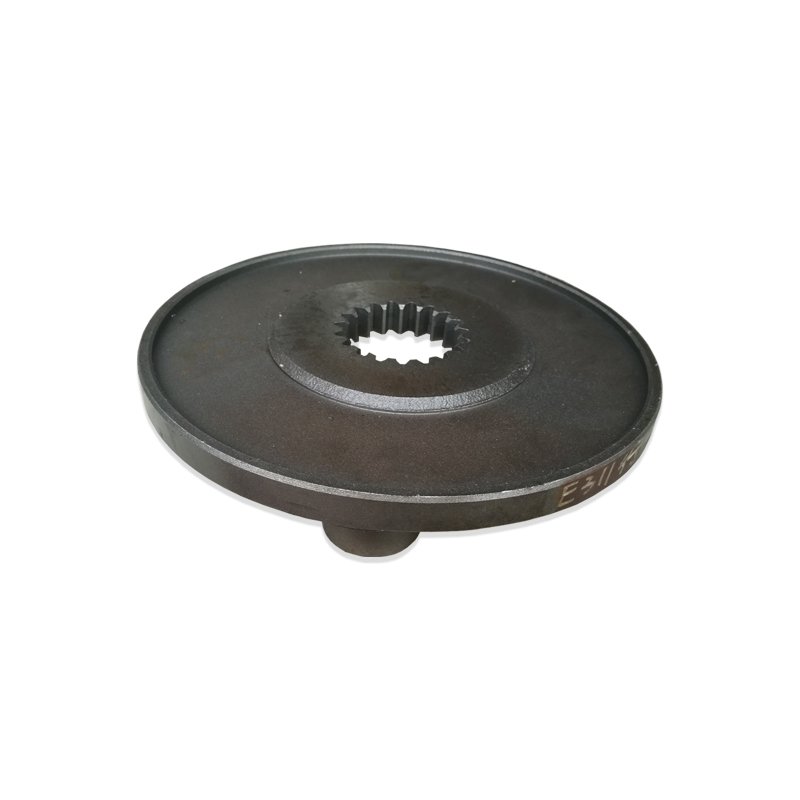

Final Drive Planetary Carrier 6i-6514 6i6514 Fit Caterpillar Excavator CAT311-A 311 311B

The carrier assemblies are key components in the drive train that connect the planet gears with the sun gear in a planetary drive system.

Reference Part Number: 6i-6514

Application: Fit Caterpillar Excavator CAT311-A 311 311B

Parts List:
Pos. Part No Qty Parts name
1. 1U-8846 B GASKET MAKER (10ml)
2. 099-7048 [1] SEAL
3. 099-7049 [2] BEARING
4. 1R-5468 [4] PLUG
5. 099-7050 [1] NUT
6. 6I-6492 [4] BEARING
7. 6I-6493 [4] GEAR
8. 6I-6494 [4] RACE
9. 8T-1158 [16] BOLT (20mm LONG)
10. 099-7057 [4] SCREW
11. 095-0968 [3] PLUG
12. 6I-6497 [3] BEARING#XEBP72000141
13. 6I-6498 [3] RACE
14. 099-7064 [3] PIN
15. 6I-6511 [1] COVER
16. 6I-6512 [1] PLATE
17. 6I-6513 [3] GEAR
18. 6I-6514 [1] CARRIER
19. 6I-6515 [1] GEAR
20. 102-6452 B [1] PLATE KIT
21. 099-7059 [1] RING
22. 6I-6518 [1] GEAR
23. 6I-6519 [4] PLUG
24. 6I-6520 [1] HOUSING
25. 6I-6485 [4] PLATE
