Engine Turbocharger 7256748 Fit Bobcat Loaders S740 S750 S770 S850 T740 T750 T770
US$395.00
Sold: 3
Turbocharger 7256748;
It is used for Engine Electrical System;
Free Shipping and High Quality Standards!!
Product Name: Turbocharger
Reference Part Number: 7256748
Compatible Machine: Bobcat Skid Steer Loaders S740 S750 S770 S850 A770, Track Loaders T740 T750 T770 T870…
Description:
An Engine Turbocharger increases the power output and efficiency of an internal combustion engine by compressing the incoming air before it enters the engine’s cylinders. It utilizes a turbine and a compressor mounted on a common shaft to achieve this process.
Turbo shaft fault
- Potential Causes: poor lubrication, foreign material from intake air, defective shaft/bearing, oil leak from shaft bearing
- Symptoms: No engine power, fluctuating rpm, hard starting, black smoke, noise from turbo
Poor/faulty waste-gate actuator (stuck wastegate, broken wastegate linkage)
- Potential Causes: Foreign material from intake air, abnormal blow-by-gas, defective actuator
- Symptoms: No engine power, fluctuating rpm, black smoke, emission control fail
Intake air/exhaust gas leaking
- Potential Causes: Damaged hoses & clamps, faulty gaskets, faulty turbo shaft bearing/seal
- Symptoms: No engine power, fluctuating rpm, black smoke, emission control fail, noise of air/gas leaking
When replacing a turbocharger always prime the turbo with clean engine oil and rotate by hand prior to completing installation.

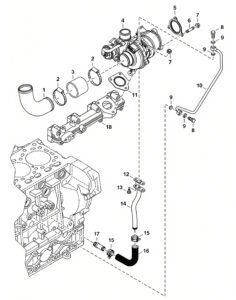

Ref # Part # Description Q-ty
1. 7256823 PIPE, INTAKE 1
2. 7030828 CLAMP, HOSE 2
3. 7256807 HOSE 1
4. 7256748 TURBOCHARGER 1
4. 7256748REM TURBOCHARGER D34 1
5. 7030341 GASKET TURBOCHARGER 1
6. 7256728 BOLT,STUD 3
7. 7419234 NUT HEX Was 7030370 6
8. 7261662 SCREW 2
9. 7030420 RING, SEAL 4
10. 7256825 TUBE, OIL 1
11. 7256787 GASKET TURBOCHARGER 1
12. 7030339 GASKET, TURBOCHARGER 1
13. 7030282 BOLT 2
14. 7256827 PIPE, OIL 1
15. 7030308 CLAMP, HOSE (BREATHER/TURBOCHARGER) 2
16. 7249373 HOSE, RETURN Engine 000001 – 037568
16. 7352077 HOSE FORMED Engine 039213 & Above
17. 7030401 PLUG, OIL 1
18. – MANIFOLD, EXHAUST, 1
1. 7256823 PIPE, INTAKE 1
2. 7030828 CLAMP, HOSE 2
3. 7256807 HOSE 1
4. 7256748 TURBOCHARGER 1
4. 7256748REM TURBOCHARGER D34 1
5. 7030341 GASKET TURBOCHARGER 1
6. 7256728 BOLT,STUD 3
7. 7419234 NUT HEX Was 7030370 6
8. 7261662 SCREW 2
9. 7030420 RING, SEAL 4
10. 7256825 TUBE, OIL 1
11. 7256787 GASKET TURBOCHARGER 1
12. 7030339 GASKET, TURBOCHARGER 1
13. 7030282 BOLT 2
14. 7256827 PIPE, OIL 1
15. 7030308 CLAMP, HOSE (BREATHER/TURBOCHARGER) 2
16. 7249373 HOSE, RETURN Engine 000001 – 037568
16. 7352077 HOSE FORMED Engine 039213 & Above
17. 7030401 PLUG, OIL 1
18. – MANIFOLD, EXHAUST, 1
| Weight | 7.0 kg |
|---|
