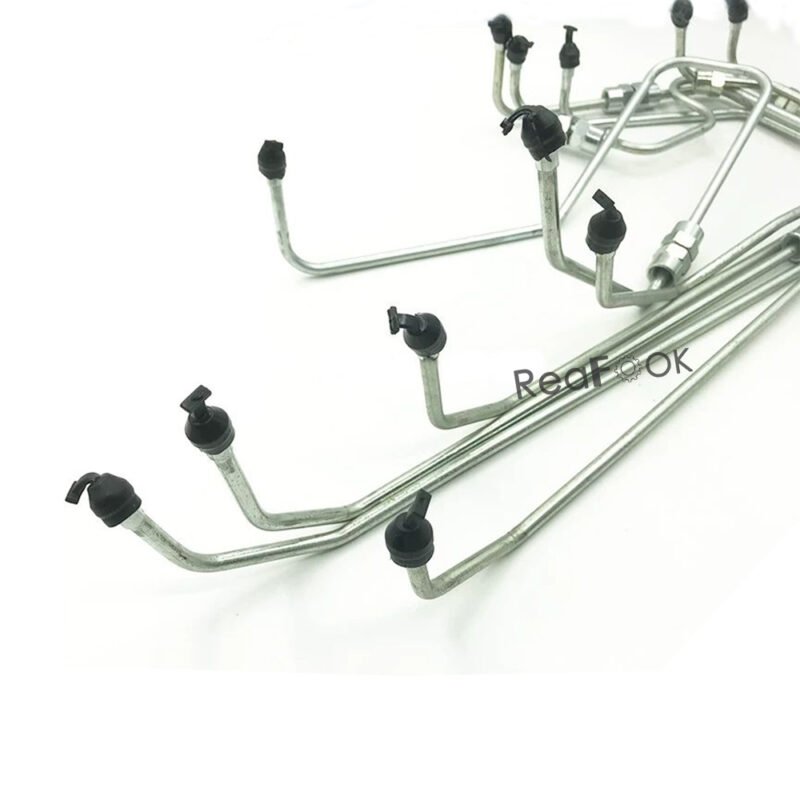

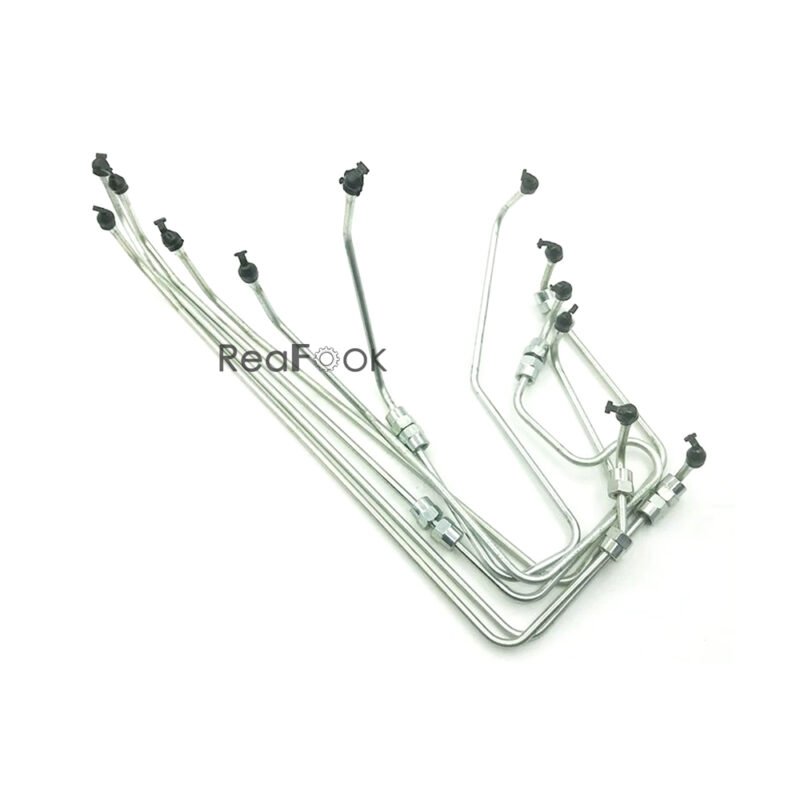

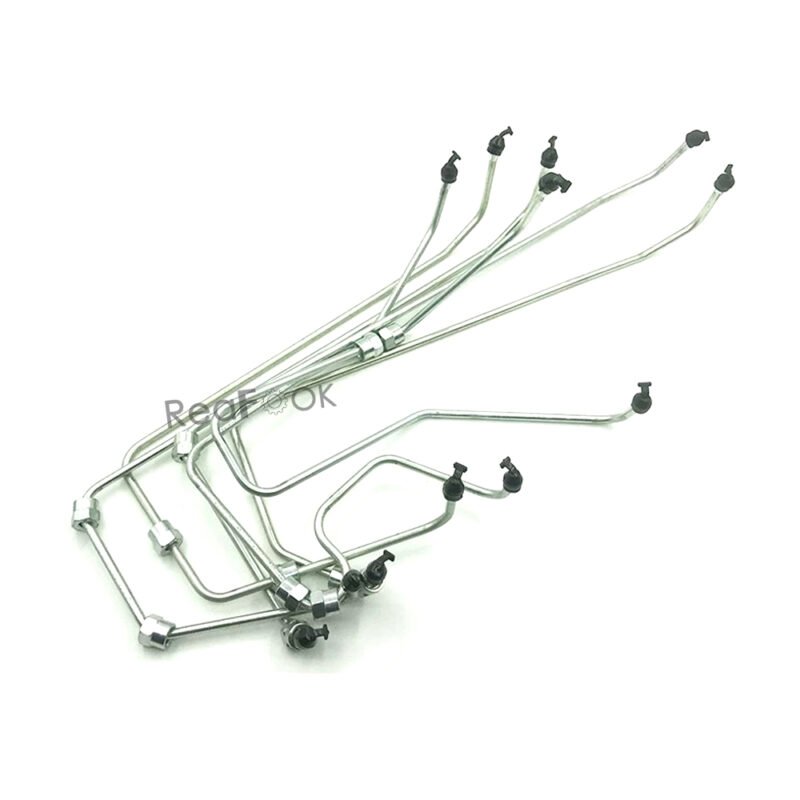

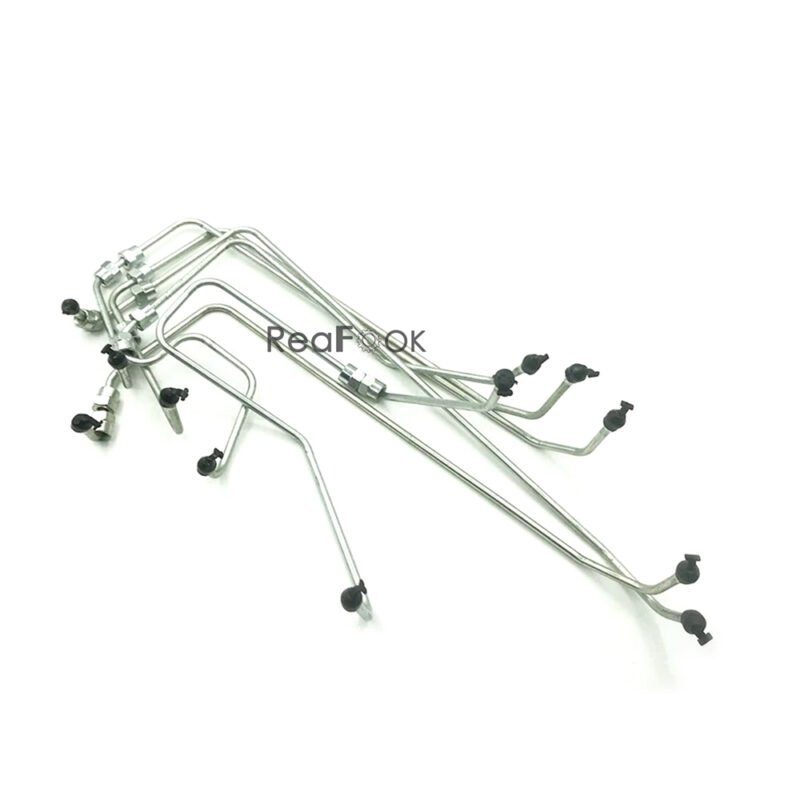

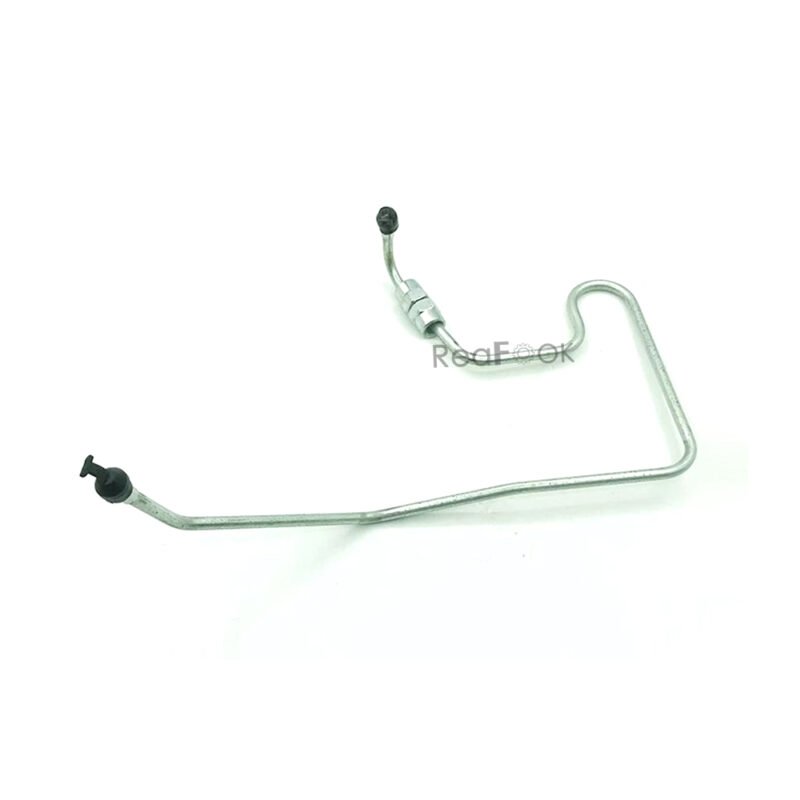

Engine S6K Fuel Injection Lines Pipe 212-8599 212-8600 212-8601 212-8602 212-8603 212-8604 Fit Caterpillar Excavator CAT 320C 320D 321C 323DL

Product Name: Fuel Injection Lines Pipe
Reference Part Number: 212-8599 212-8600 212-8601 212-8602 212-8603 212-8604, 2128599 2128600 2128601 2128602 2128603 2128604
Compatible Machine: Caterpillar Excavator CAT 320C 320D 321C 323DL…

Description:
Fuel Injection Lines Pipe transports pressurized fuel from the fuel tank to fuel injectors for efficient combustion.

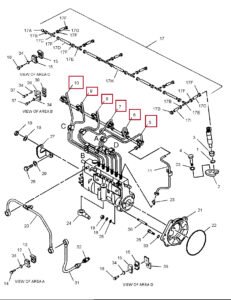

Pos. Part No Qty Parts name Comments
1. 1R-6573 [6] GASKET
2. 113-0363 [6] SUPPORT
3. 154-0489 [6] SEAL-RUBBER
4. 8T-4189M [6] BOLT (M8X1.25X20-MM)
5. 212-8599 [1] PIPE
6. 212-8600 [1] PIPE
7. 212-8601 [1] PIPE
8. 212-8602 [1] PIPE
9. 212-8603 [1] PIPE
10. 212-8604 [1] PIPE
11. 212-8605 [1] PIPE
12. 094-9596 [2] CLAMP
13. 094-9597 [2] CLAMP
14. 5C-9553M[2] BOLT (M6X1X16-MM)
15. 094-9581 [8] CLAMP
16. 6V-7357 M[4] BOLT (M6X1X25-MM)
17. 212-8606 [1] HOSE AS
17A. 094-7235 [1] CAP
17B. 096-0174 [3] CLIP-HOSE
17C. 195-8366 [2] FITTING
17D. 212-8497 [4] HOSE
17E. 195-8369 [4] FITTING
17F. 195-8372 [22] CLIP
17G. 195-8368 [6] HOSE
17H. 212-8607 [1] HOSE
17I. 217-5474 [1] HOSE
18. 7X-0796 [5] LOCKWASHER
19. 6V-8231M [5] NUT (M10X1.25-THD)
20. 193-2702 [1] PIPE
21. 5I-7576 [1] FLANGE
22. 096-9529 [1] SEAL-O-RING
23. 5I-7743 [1] FITTING
24. 125-2983 [1] FITTING
25. 8T-4121 [4] WASHERHARD (11X21X2.5-MM THK)
26. 5I-5108M [2] BOLT (M8X1.25X18-MM)
27. 212-8509 [1] BRACKET
28. 8T-4179M [1] BOLT (M12X1.75X20-MM)
29. 096-2501 [1] LOCKWASHER
30. 212-8499 [4] STUD
31. 5I-8070 [1] PIPE
