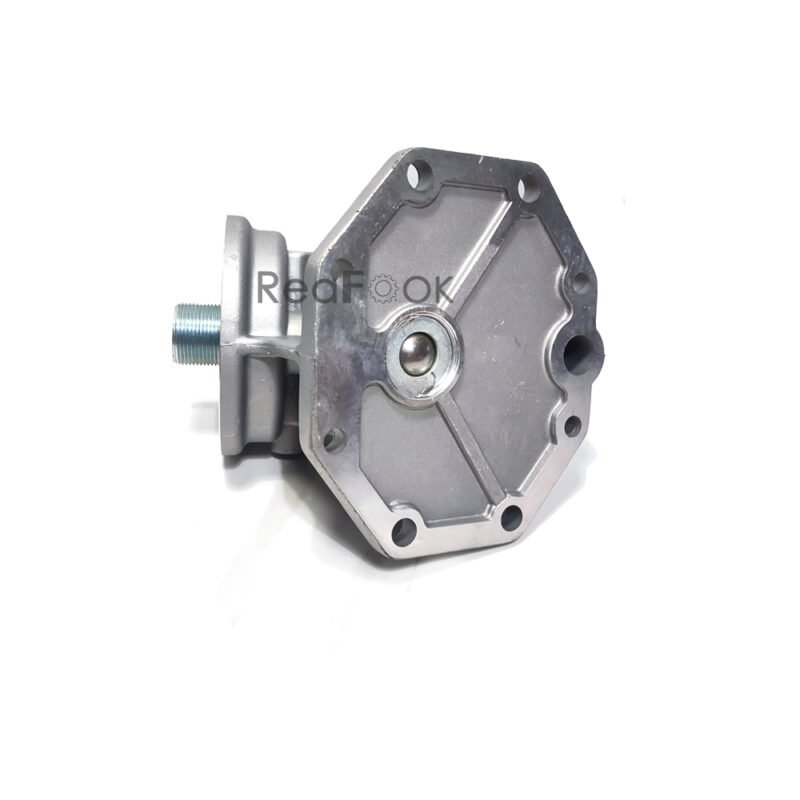

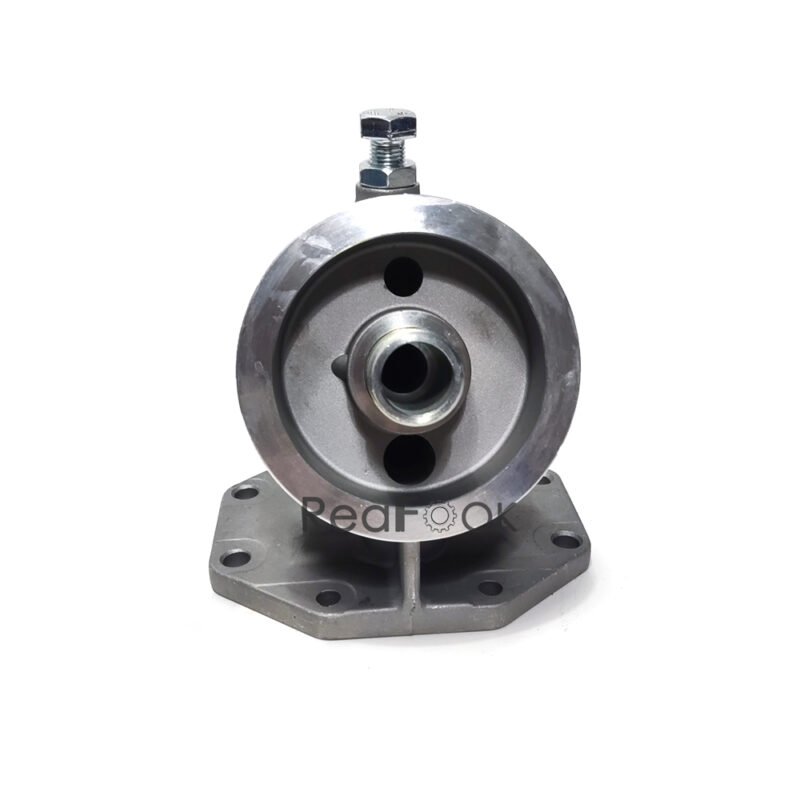

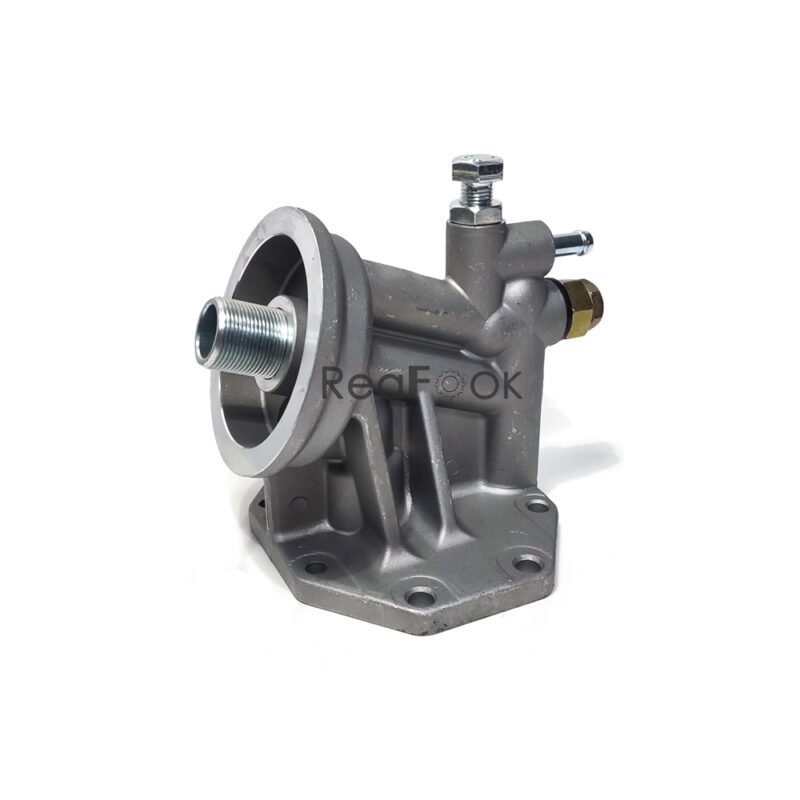

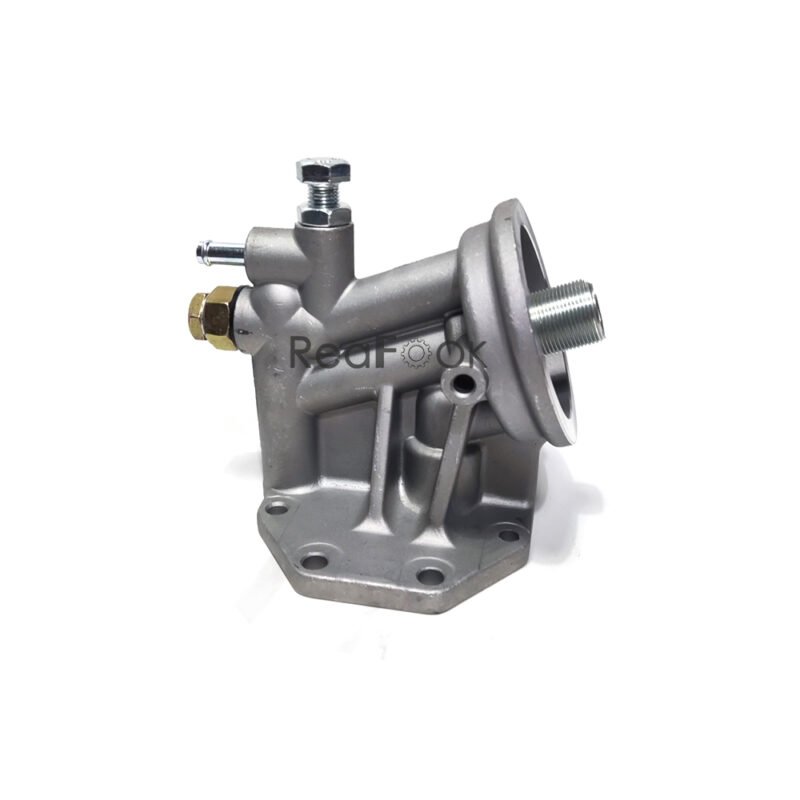

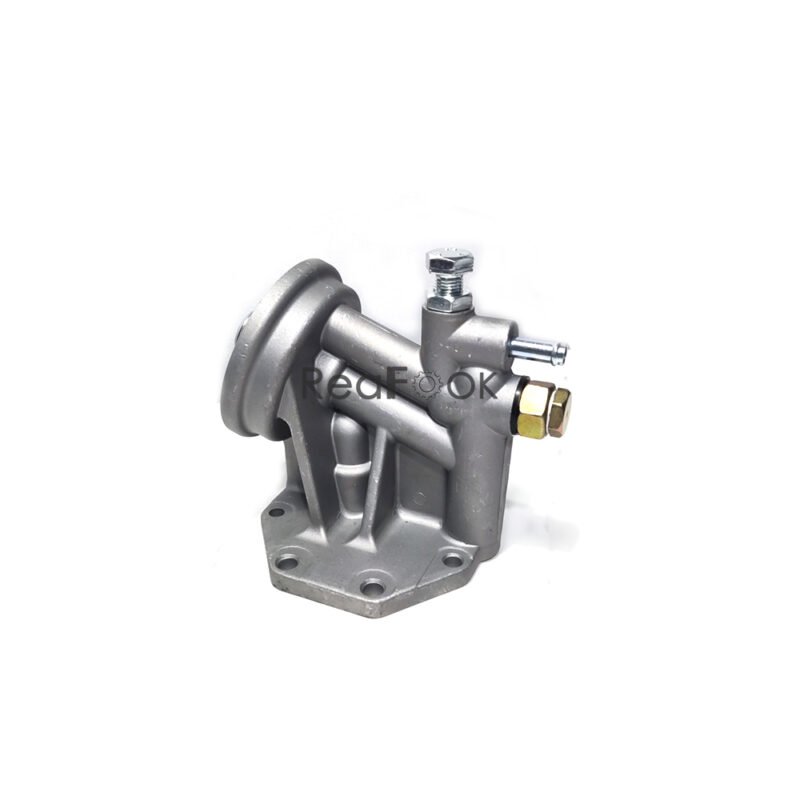

Name: Engine Oil Filter Bracket 125-2974 Fit Excavator Caterpillar CAT311B 312B 320B
SKU: 125-2974
Price: 99.00 USD
Availability: InStock

Engine Oil Filter Bracket 125-2974 Fit Excavator Caterpillar CAT311B 312B 320B

US$99.00

Engine Oil Filter Bracket 125-2974;
It’s Used for Engine System;
Free Shipping and High Quality Standards!!

Quantity	Discount (%)	Price
1 - 9	—	US$99.00
10+	39.39 %	US$60.00

Guaranteed Safe Checkout

Product Name: Bracket Assy; Engine Oil Filter
Reference Part Number: 125-2974, 1252974
Compatible Machine: Excavator Caterpillar CAT311B 312B 320B…

Description:
An Oil Filter Mount Bracket is used to attach an oil filter to the engine block. The purpose of the bracket is to provide a more convenient and efficient way to change the oil filter and ensure proper operation of the engine oil filter unit. The bracket is bolted to the engine block and provides a secure mounting point for the oil filter.

Attributes:
• Provide resistance to rust and other forms of corrosion
• Withstands extreme temperature and pressure

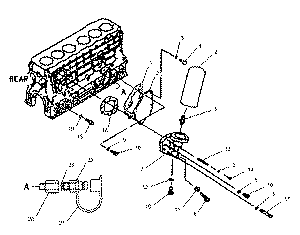

CAT311B 312B 320B 125 2974 Engine Oil Filter Bracket Diagram

Pos. Part No Qty Parts name Comments
1. 125-2972 [1] GASKET
2. 125-2973 [1] COVER
3. 3B-4505 [6] LOCKWASHER
4. 8T-4908 M [2] BOLT (M8X1.25X25-MM)
5. 7X-0796 [8] LOCKWASHER
6. 1R-0739 [1] FILTER AS-ENGINE OIL (STANDARD EFFICIENCY)
7. 125-2974 [1] BRACKET AS
8. 125-2975 [1] CONNECTOR
9. 094-7925 [1] VALVE
10. 5I-8026 [1] VALVE AS
11. 125-2976 M [1] NUT (M14X1.5-THD)
12. 5B-5947 [1] GASKET
13. 125-2977 [2] STUD
14. 5C-7261 M [2] NUT (M8X1.25-THD)
15. 5I-8066 [1] VALVE AS-RELIEF
16. 8T-4136 M [8] BOLT (M10X1.5X25-MM)
17. 8T-7329 M [2] BOLT (M8X1.25X55-MM)
18. 125-2979 [1] GASKET
19. 5B-5947 [1] GASKET
20. 135-2368 ADAPTER
21. 8C-3445 [1] CAP-DUST
22. 8C-3446 [1] VALVE-SAMPLING
23. 3J-7354 [1] SEAL-O-RING
M METRIC PART
