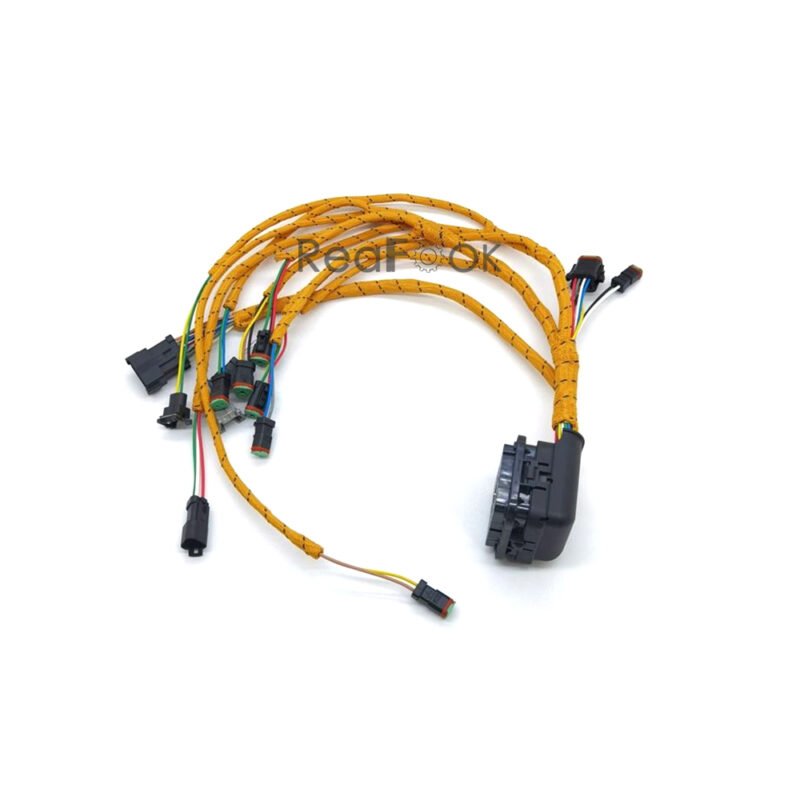

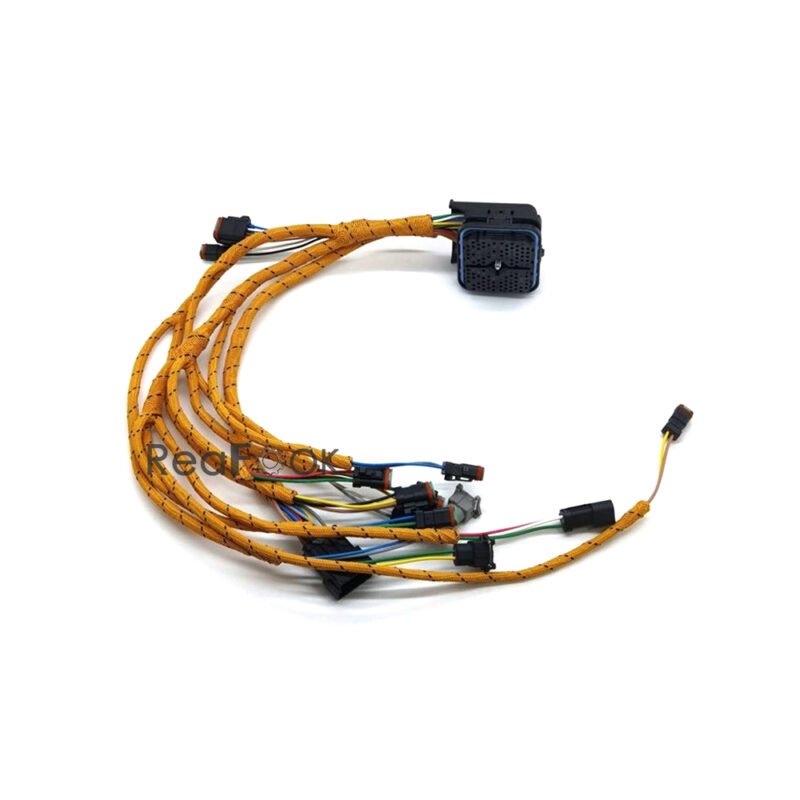

Engine Harness 198-2713 Fit Excavator Caterpillar 324D 325D 328D 329D M325D

Product Name: Engine Harness
Reference Part Number: 198-2713, 1982713
Compatible Machine: Excavator Caterpillar 324D 325D 328D 329D M325D, Wheel Loader 950H 962H…

Description:
The control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in Cat engines.

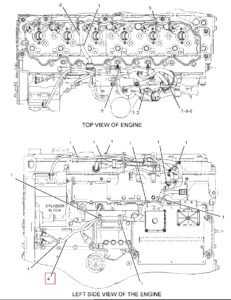

Pos. Part No Qty Parts name Comments
1. 3S-2093 [12] STRAP-CABLE
2. 4P-5918 [1] CLIP
4. 198-2713 [1] HARNESS AS-ENGINE (ELECTRONIC CONTROL MODULE)
305-5362 [4] TERMINAL AS (18-GA)
180-9340 [60] SOCKET-CONNECTOR (14-GA TO 18-GA)
9X-3401 [15] PIN-CONNECTOR (16-GA TO 18- GA)
-OR
126-1767 [15] PIN-CONNECTOR (14-GA TO 16-GA)
8T-8737 [77] PLUG-SEAL
119-3662E TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM)
125-7874E TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
125-7875E TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
264-5732 [1] PLUG AS-CONNECTOR (120-PIN)
211-6807 [1] COVER-CONNECTOR
155-2270 [5] KIT-CONNECTING PLUG (2-PIN)
155-2260 [3] KIT-CONNECTING PLUG (3-PIN)
155-2265 [1] KIT-CONNECTING PLUG (8-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE)
102-8802 [1] KIT-RECEPTACLE (2-PIN)
102-8803 [1] KIT-RECEPTACLE (3-PIN)
102-8801 [1] KIT-RECEPTACLE (12-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
111-2416 [1] PLUG AS-CONNECTOR (2-PIN)
100-3320 [1] PLUG AS-CONNECTOR (2-PIN)
5. 206-1345 [9] STRAP-CABLE
6. 222-5917 [1] HARNESS AS-ENGINE (FUEL INJECTION)
6N-7523 [1] WASHER (6.48X11.9X1.57-MM THK)
135-5975 [1] GROMMET-WIRING
155-2255 [1] KIT-CONNECTING PLUG (12-PIN)
(INCLUDES PLUG AS & WEDGE)
7. 4P-8134 [1] CLIP (LADDER)
8. 6V-2317 M [1] BOLT (M8X1.25X30-MM)
9. 9M-1974 [1] WASHER-HARD (8.8X16X2-MM THK)
E ORDER BY THE CENTIMETER
M METRIC PAR
