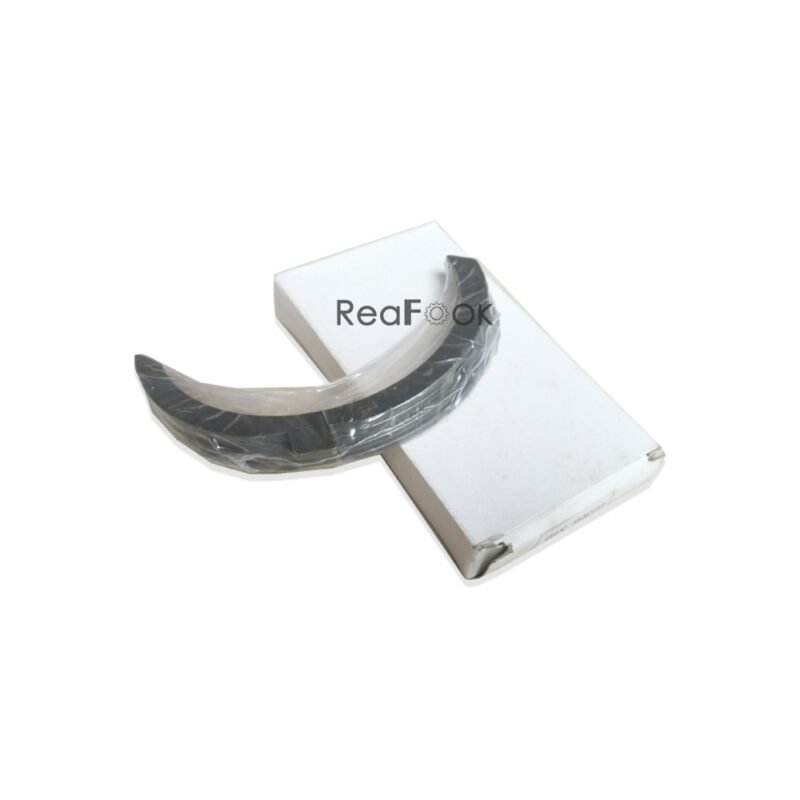

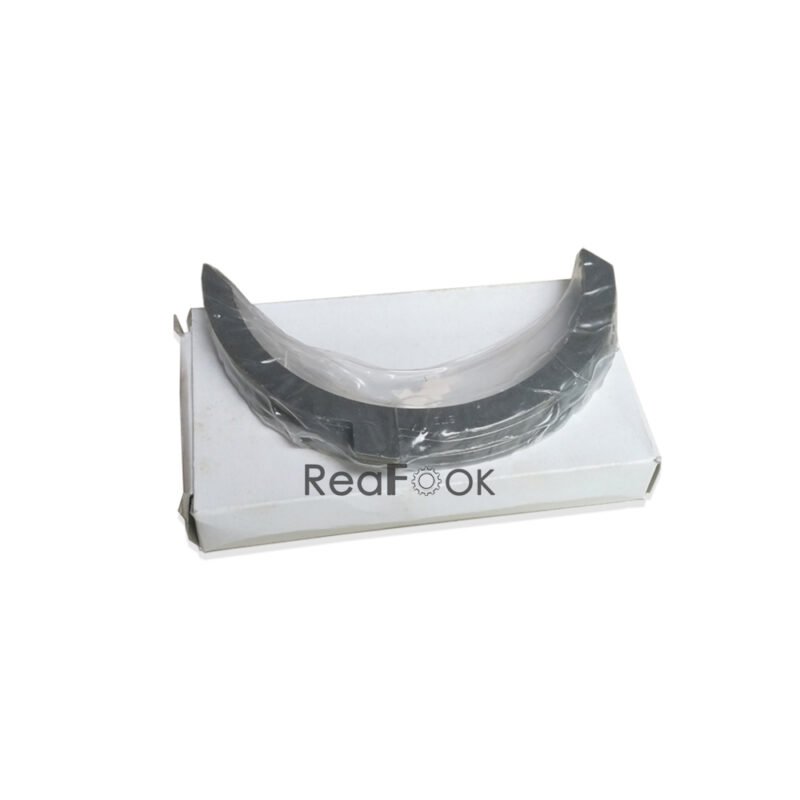

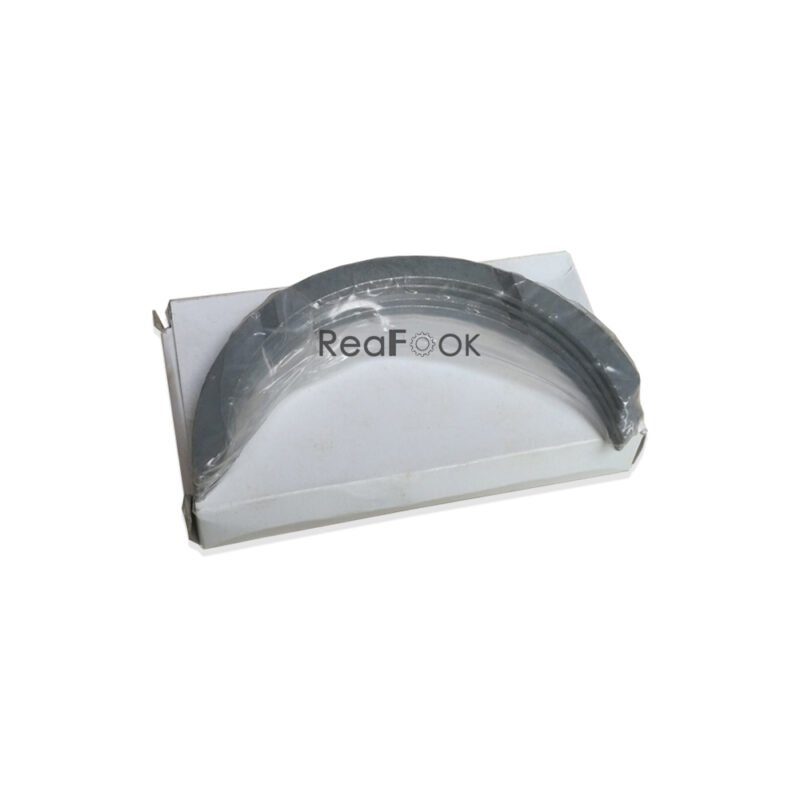

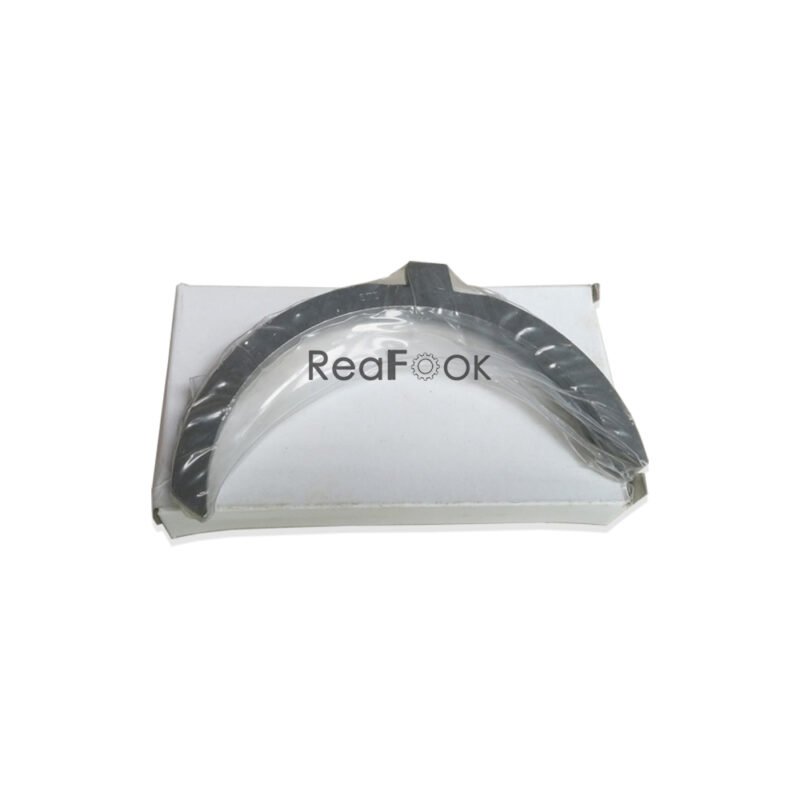

Engine Crankshaft Thrust Washer 65.01150-0017A 65.01150-0018B Fit Excavator Doosan Solar 300LC-5 340LC-7 340LC-5 400LC-3 400LC-5 420LC-5 500LC-5 DX340 DX420 DX480 DX500
US$65.00
STD Thrust Washer 65.01150-0017A 65.01150-0018B;
65.01150-0048A, 65.01150-0052B WASHER THRUST 0.25;
65.01150-0049A, 65.01150-0053B WASHER THRUST 0.50;
Fit Engine DE12T DE12TIS D2366;
It is used for Engine Crankshaft;
Free Shipping and High Quality Standards!!
The price include totally 4 pcs of thrust washers as 1 engine set.
Product Name: Thrust Washer
Reference Part Number: 65.01150-0017A, 65.01150-0018B
Compatible Machine: Excavator Doosan Solar 300LC-V 340LC-7 340LC-V 400LC-3 400LC-V 420LC-V 470LC-V 500LC-V, DX340LCA DX420LCA DX480LCA DX500LCA…

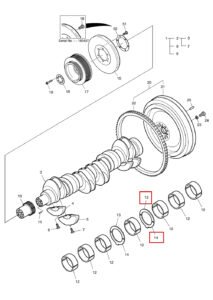

Pos. Part No Qty Parts name Comments
1. 65.02101-7541A [1] CRANK SHAFT ASS’Y 65.02101-7541B
1. 65.02101-7541B [1] CRANKSHAFT ASS’Y
10. 65.02115-0008B [1] GEAR;CRANK SHAFT
11. 06.22022-0912 [1] PIN;DOWEL
12. 65.01110-6055A [7] METAL;MAIN STD
12. 65.01110-6068A [7] METAL;MAIN 0.25
12. 65.01110-6069A [7] METAL;MAIN 0.50
12. 65.01110-6070A [7] METAL;MAIN 0.75
13. 65.01150-0017A [2] WASHER;THRUST
13. 65.01150-0048A [2] WASHER;THRUST 0.25
13. 65.01150-0049A [2] WASHER;THRUST 0.50
14. 65.01150-0018B [2] WASHER;THRUST
14. 65.01150-0052B [2] WASHER;THRUST 0.25
14. 65.01150-0053B [2] WASHER;THRUST 0.50
15. 65.02201-7032 [1] DAMPER;VIBRATION 65.02201-7033
15. 65.02201-7033 [1] DAMPER;VISCOUS
16. 06.01914-3215 [6] BOLT ASS’Y M10X25 65.90020-0062B
16. 65.90020-0062B [6] BOLT;HEX M10X20
17. 65.02601-0180 [1] PULLEY;V-BELT
18. 65.90720-0022 [1] WASHER 65.90701-0088
18. [-] 06.02106-0622
18. 65.90701-0088 [1] WASHER
19. 06.02106-0623 [8] BOLT;SOCKET HEAD
19. 06.02106-0622 [8] BOLT;SOCKET HEAD
2. 65.02101-7054A [1] CRANK SHAFT ASS’Y 65.02101-7054B
2. 65.02101-7054B [1] CRANK SHAFT ASS’Y
20. 65.02301-5103 [1] FLYWHEEL ASS’Y
21. 65.02301-0249 [1] FLYWHEEL
22. 65.02310-0011B [1] GEAR;STARTER RING
23. 06.16731-2110 [8] WASHER;SPRING
24. 65.90001-0084 [8] BOLT;HEX. M14X1.5X40
25. 06.22022-1010 [1] PIN ; DOWEL
3. 65.02101-0054 [1] SHAFT;CRANK
3. 65.02101-0054A [1] SHAFT;CRANK
4. 65.02110-0014 [4] WEIGHT;BALANCE
4. 65.02110-0014E [4] WEIGHT;COUNTER
5. 65.02110-0013 [4] WEIGHT;BALANCE
5. 65.02110-0013E [4] WEIGHT;COUNTER
51. 120121-00071 [6] BOLT
52. 120808-00786 [1]
6. 65.90430-0012B [8] BOLT;CRANK SHAFT
7. 65.90430-0013B [8] BOLT;CRANK SHAFT
8. 65.02101-0057 [1] CRANK SHAFT ASS’Y 65.02101-0057A
8. 65.02101-0057A [1] SHAFT;CRANK
9. 65.02101-0060 [1] CRANK SHAFT ASS’Y 65.02101-0057A
9. 65.02101-0060A [1] CRANK SHAFT ASS’Y
| Weight | 0.5 kg |
|---|---|
| Option | STD: 65.01150-0017A and 65.01150-0018B, 0.25: 65.01150-0048A and 65.01150-0052B, 0.50: 65.01150-0049A, 65.01150-0053B |
