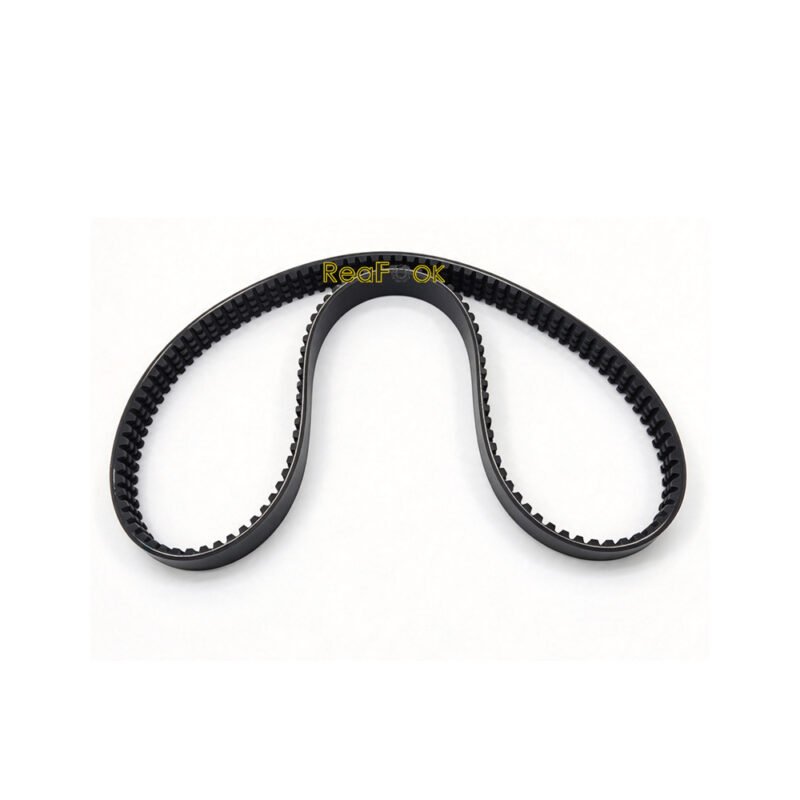

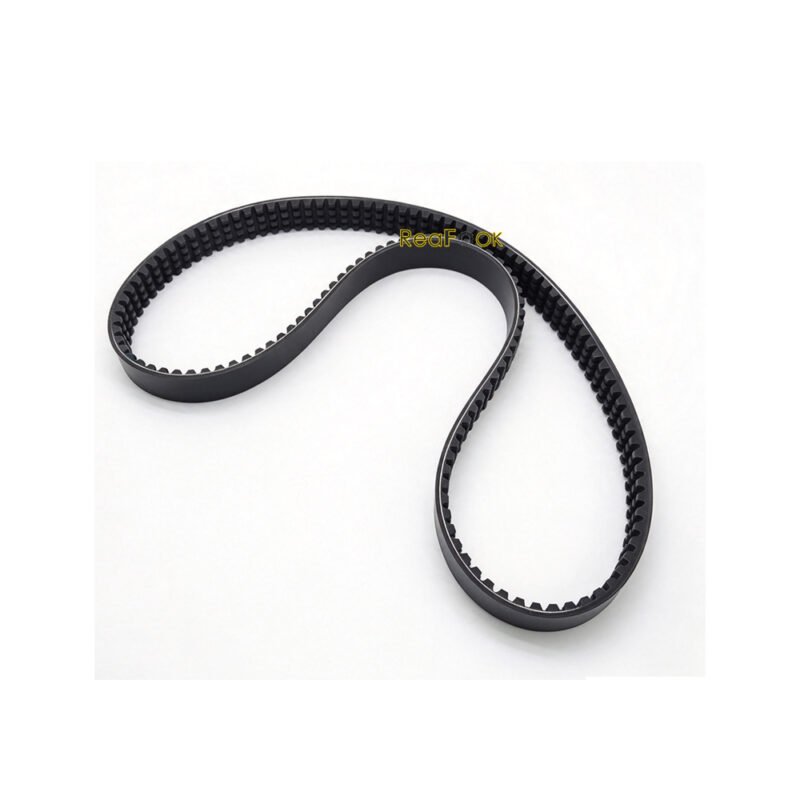

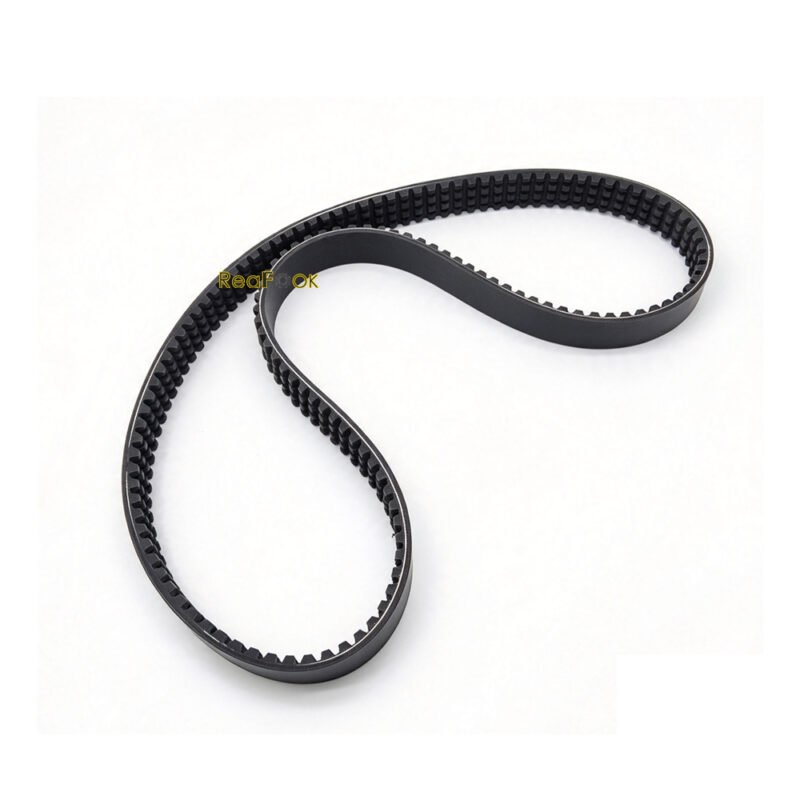

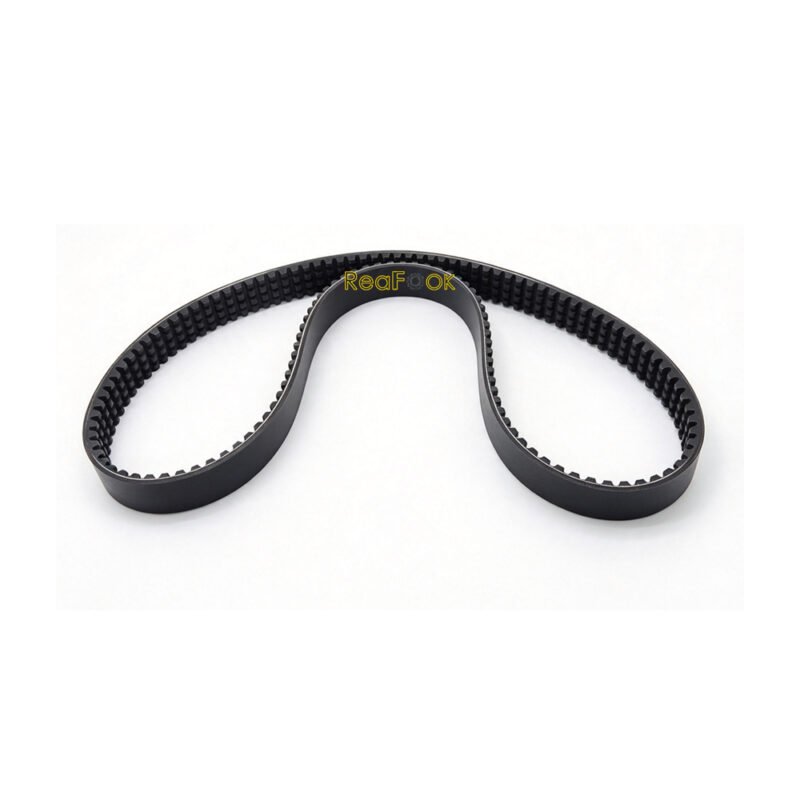

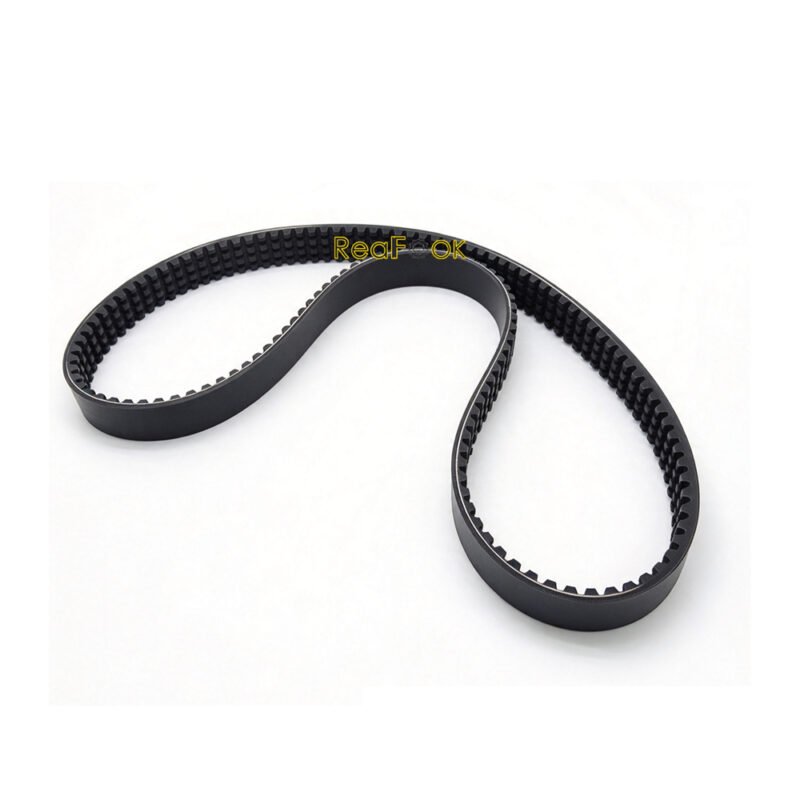

Drive Belt 7188792 Fit Bobcat Loader S630 S650 T630 T650

Product Name: Drive Belt
Reference Part Number: 7188792, 7147859
Compatible Machine: Fit Bobcat Skid Steer Loaders S630 S650; Track Loaders T630 T650…

Description:
Quieter, long-lasting belt. Advanced variable cog design practically eliminates noise and slippage.

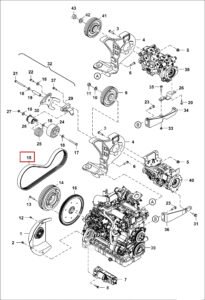

Ref #    Part #    Description     Q-ty
1   7142422 SHIELD, FLYWHEEL 1
2   59CM816 SCREW HEX FLG HD CAP 5
3   17C832 BOLT 2
4   7147861 MOUNT ENGINE 1
5   83D8 LKNUT HEX FLG GR8 3
6   7135124 SCREW HEX PREAPPLIED 4
7   – STARTER, B16488R 1
8   45C620 SCREW FLGD HEX CAP 3
9   7147858 PULLEY, PUMP HYD 1
10   7366583 WASHER CHAMFER Was 6576033 1
11   7366582 NUT HEX LOCK Was 96D12 1
12   7155238 SCREW CSNK 2
13   7110310 SCREW FLTHD HEX CAP 6
14   7141780 PULLEY ENGINE 1
15   7188792 BELT DRIVE Was 7147859 1
16   – FLYWHEEL, ENG ASSY, B27826 1
17   7CM12100 SCREW HEX HD CAP 1
18   7152658 WASHER STOP 5
19   7152605 SLEEVE PIVOT 1
20   6688003 SCREW 2
21   55CM12120 SCREW HEX W/T 10.9 1
22   56CM1235 SCREW HEX HD W/T 10.9 Was 55CM1235 1
23   7147745 SCREW 2
24   7167165 WHEEL ASSY TENSIONER
legacy wheel tensioner – Kit Service Tensioner 46891442 may be available as an update/alternative to full Idler Assembly 1
25   7145358 SPRING TORSION 1
26   7010368 COVER Was 7194123 1
27   53DM12 NUT HEX THDLK PREAPPL 1
28   7274780 ARM ASSY TENSIONER W/ 7141853 & 7157718 – Was 7167164 1
28   7157718 SPRING DAMPER 1
28   7141853 BUSHING IGLIDE 1
29   7131211 MOUNT ARM MACH 1
30   7269058 ARM STOP Was 7174407 1
31   45C828 SCREW HEX FLNG W/T Was 45C824 2
32   7269057 IDLER ASSEMBLY
NLA – Ref. 17-19, 21, 22, 24, 25 & 27-30 – Order Components – alternate option 7518604 service tensioner or kit service tensioner 46891442 if available – Was 71417881
33   43DM10 NUT FLANGED HEX 2
34   – MOUNT, PUMP, NLA – SJC – Order 7201407 kit, mount – Was 7142103 1
35   59CM1060 SCREW HX FLNG W/T8.8 2
36   – MOUNT, NLA – manual controls – Order 7201407 kit, mount – Was 7142189 1
37   49C636 SCREW HEX FLGHD W/T 2
38   – PUMP, HYD, – SJC 1
39   – ENGINE 1
40   – PUMP, HYD, – manual controls, AHC & ACS 1
41   7155309 PULLEY PUMP MACH 1
42   6805550 WASHER PULLEY 1
43   96D16 NUT HEX LOCK Was 96D12 1
