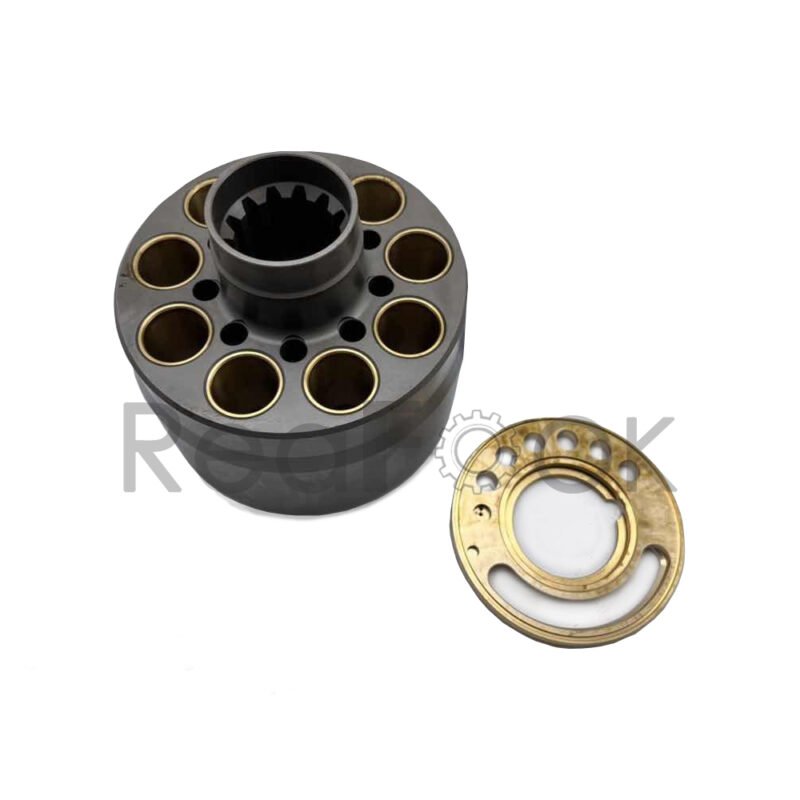

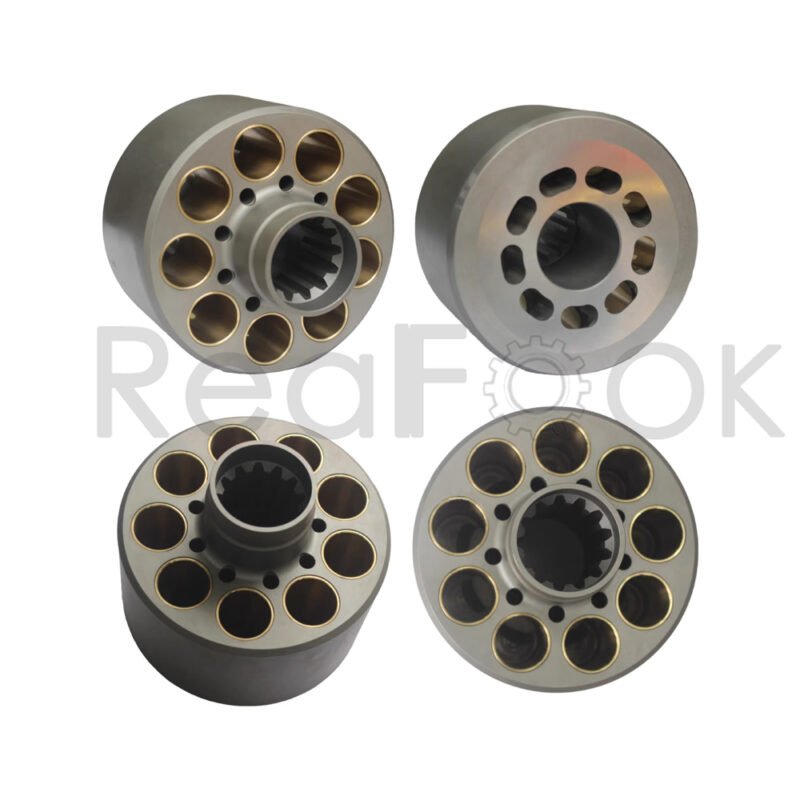

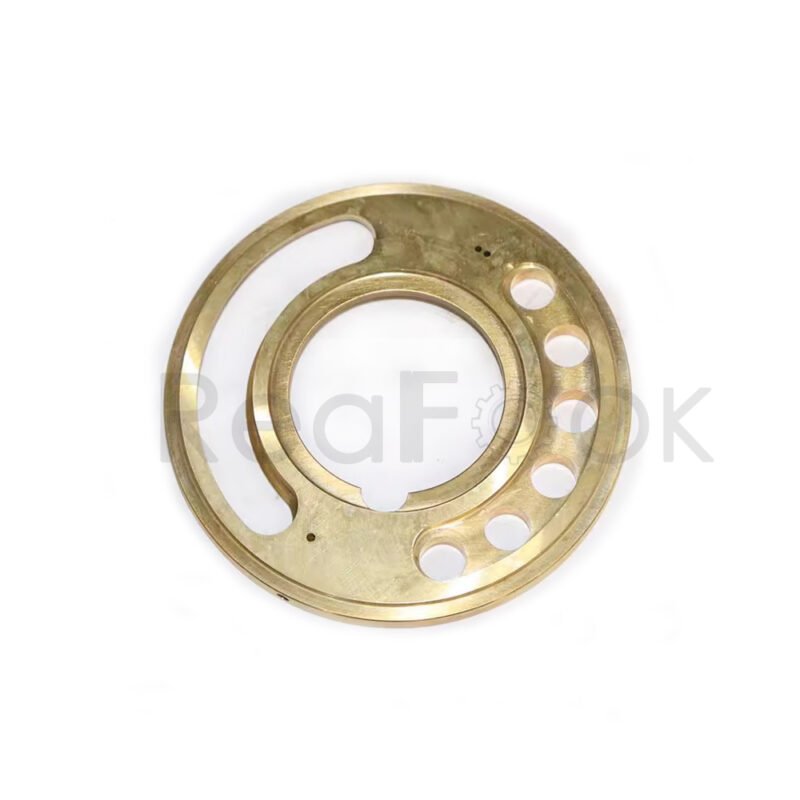

Hydraulic Pump Spare Parts Cylinder Block Barrel 173-3497 118-4053 Valve Plate Piston Shoe 114-0491 Fit Caterpillar Excavator CAT320 320C 320D

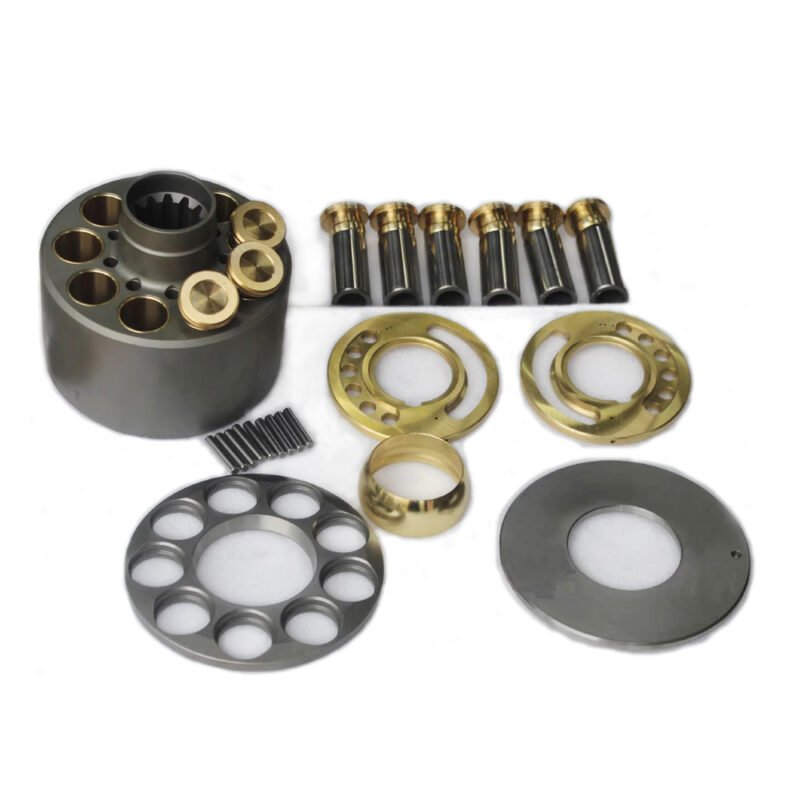

Product: Barrel(Cylinder Block), Valve Plate, Shoe Plate, Set Plate (Retainer), Pin, Ball Guide, Piston AS
Reference Part Number: 118-4053 118-4054 173-3498 114-0491…
Compatible Machine: Caterpillar Excavator CAT320 320C 320D

Parts List for your 320C EXCAVATOR:
Pos. Part No Qty Parts name Comments
1 094-1882 [5] PLUG
2 8T-4136 [10] BOLT (L=25mm)
3 095-1578 [2] SEAL-O-RING (ID=9.80mm)
4 095-0946 [2] RING
5 129-7921 [2] RING
6 150-5785 [10] DOWEL
7 114-0491 [2] PISTON AS
8 8T-5376 [4] SEAL-O-RING (ID=79.40mm)
9 173-3498 [1] BARREL AS  118-4053  1184054
10 177-8740 [1] SEAL-O-RING (ID=385.60mm)
11 096-1445 [2] PLUG
12 160-4409 [2] ORIFICE
13 158-9022 [1] COVER
14 8T-3338 [2] SEAL-O-RING (ID-84.40mm)
15 129-7859 [2] BEARING SET
16 118-4057 [18] SPRING
17 7Y-4215 [2] SPACER
18 173-3427 [2] GUIDE
19 173-3473 [2] PLATE
20 177-2461 [2] SWASHPLATE
21 173-3428 [1] BEARING
22 177-2583 [4] BEARING
23 129-7927 [2] BEARING
24 129-7855 [1] GASKET
25 173-3392 [1] SHAFT
26 7M-8485 [2] SEAL-O-RING (ID=29.74mm)
27 8J-4645 [2] PLUG
28 3J-1907 [1] SEAL-O-RING (ID=11.89mm)
29 9S-4191 [1] PLUG
30 8T-4196 [2] BOLT (L=35mm)
31 4I-1022 [2] ORIFICE
32 094-1875 [6] DOWEL
33 8T-4137 [2] BOLT (L=20mm)
34 126-2016 [1] PUMP GP
35 173-3496 [1] BARREL AS
36 8T-4192 [10] BOLT (L=25mm)
37 129-7854 [1] CASE
38 173-3391 [1] SHAFT
39 129-7925 [1] SEAL
40 096-3983 [1] RING
41 096-3944 [1] SEAL-O-RING (ID=94.40mm)
