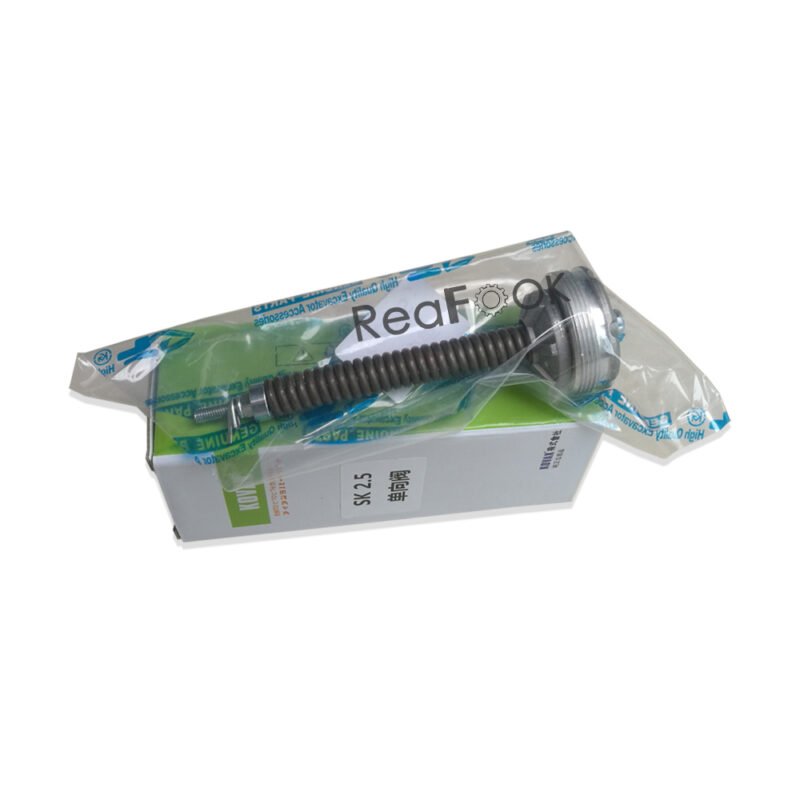

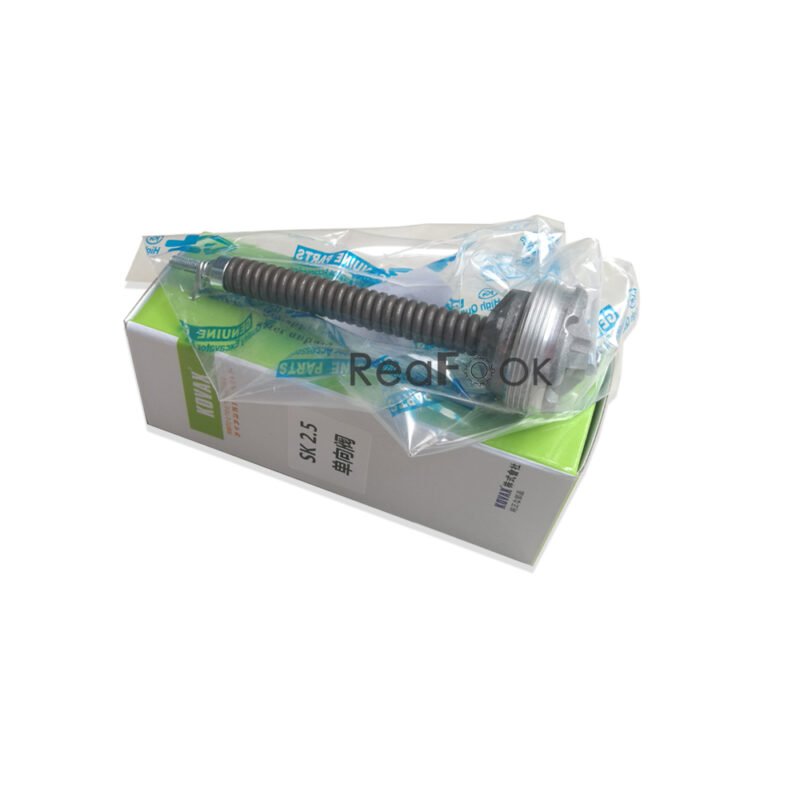

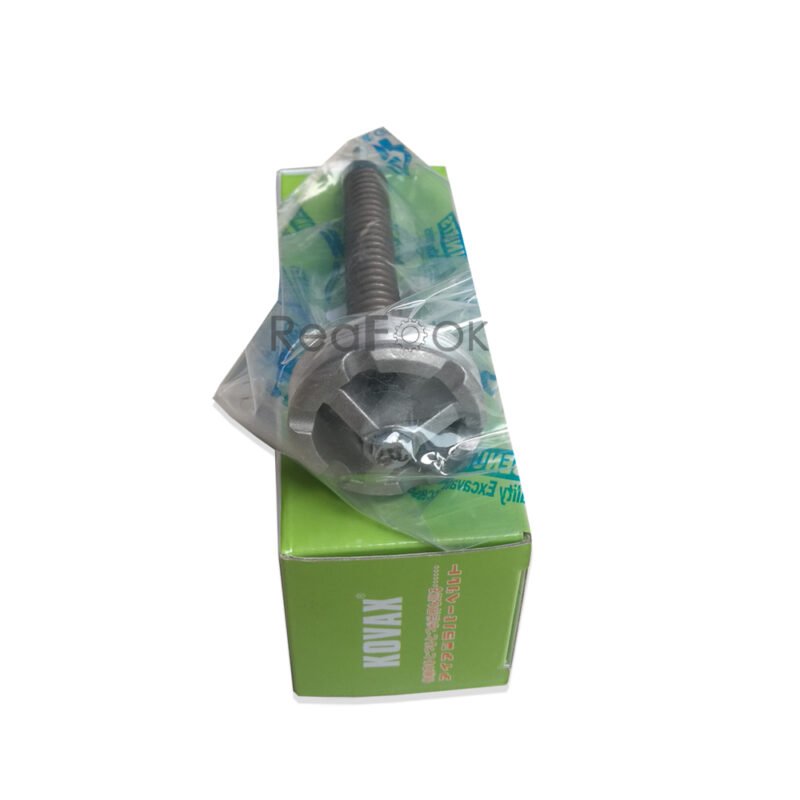

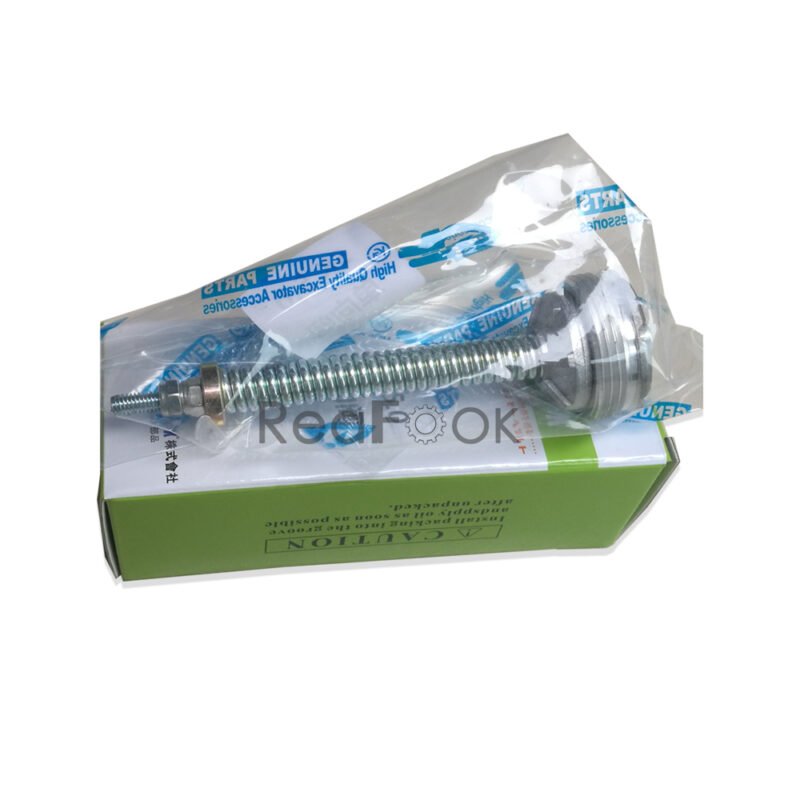

Check Valve YN21V00013F1 Fit Excavator Kobelco SK200LC-6ES SK210LC-6E SK200-6ES SK250LC-6E
US$90.00
Check Valve YN21V00013F1;
One-way Hydraulic Oil Return;
It is used for Swing Motor Assembly;
Free Shipping and High Quality Standards!!
Product Name: Check Valve
Reference Part Number: YN21V00013F1
Compatible Machine: Excavator Kobelco SK200LC-6ES SK210LC-6E SK200-6ES SK250LC-6E…
Description:
The relief valve groups prevent excessive pressure buildup by releasing fluid when the safety threshold has been reached.

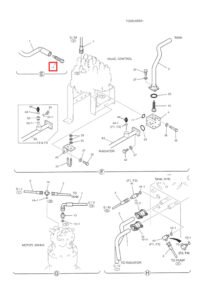

Pos. Part No Qty Parts name Comments
.. YN32H00034F4 [1] LINE KOB HYDRAULIC LINES, UPPER (Rotation-N&B), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: F4
1. YN32H01172P1 [1] TUBE KOB TUBE, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
3. YN32H01176P1 [1] TUBE KOB TUBE, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
4. YN32H01171P1 [1] BLOCK KOB BLOCK, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1 Superseded by part number: YN32H01193P1
5. ZX21M08075 [2] HOSE KOB (DR), PF 1/2, 750mm Long (29-1/2 in), QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
6. ZX22M12110 [1] HOSE ASSY. KOB (Dr)(PF 3/4)(1100mm Long (43-19/64 in)), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
7. ZX22M12076 [1] HOSE,Hyd, 19mm ID x 32mm OD x 76mm L KOB HOSE (M/U)(PF 3/4)(L=760mm), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1 Superseded by part number: ZX22M12080
8. ZG15F05100 [1] COUPLING KOB COUPLING, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
8-3. ZG15G05100 [1] GASKET,50.85mm ID x 67.20mm OD KOB GASKET, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2 Superseded by part number: R44P0089D4S3
10. ZG15F04300 [1] COUPLING KOB COUPLING, QTY-F1: 3, QTY-F2: 3, QTY-F3: 3, QTY-F4: 3
10-3. ZG15F04300 [1] COUPLING KOB GASKET, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
11. YN21V00013F1 [1] CHECK VALVE KOB VALVE ASSY, CHECK (250kPa), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1, Remarks: (M42XP1.5)
12. YN21V00007F1 [1] CHECK VALVE KOB VALVE ASSY, CHECK (490kPa), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1, Remarks: (1 1/4)
13. ZH22X12000 [1] HYD CONNECTOR KOB (Incls. O-Ring ZD12P02400) (PF 3/4), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
13-1. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
14. 2444Z2360 [1] TEE KOB (2) 1/2″ PF x 3/8″ PF x 64mm Long (Incls. O-Ring ZD12P01400), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
14-1. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
15. HH55X12012G3 [1] TEE KOB TEE (2-PF 3/4 – PF 1/2), QTY-F1: -, QTY-F2: 1, QTY-F3: -, QTYF4: 1
15-1. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm, QTY-F1: -, QTY-F2: 1, QTY-F3: -, QTY-F4: 1
17. ZD11G04500 [1] O-RING,44.40mm ID x 50.60mm OD x 3.10mm KOB ID 44.40 ± 0.41 x OD 50mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
18. YN32H01142P1 [1] SUPPORT KOB SUPPORT, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
19. YN32H01141P1 [1] SUPPORT KOB SUPPORT, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
20. YN32H01140P1 [1] SUPPORT KOB SUPPORT, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
22. 2432T5299 [1] CLAMP KOB CLAMP, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
23. 45Z91D84 [1] O-RING KOB ID 56.74 ± 0.25 OD 63.80mm, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
24. 2420T2948D20 [1] U-BOLT KOB M08x1.25x ID 44x 80mm Long, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
25. YN03H01074P1 [1] BUSHING KOB BUSHING, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
26. ZC46X38014 [1] CLIP KOB Clamp — Ø38.1mm Single Cable, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
27. ZW16K12000 [1] WASHER KOB ID 13 x OD 21 x Th 2.5mm, QTY-F1: 8, QTY-F2: 8, QTY-F3: 8, QTY-F4: 8
28. YN02B01031D2 [1] SPACER KOB SPACER (L=22.5mm), QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
29. ZS18C12035 [1] SCREW,Hex, M12 x 35mm KOB M12x1.75x35mm, QTY-F1: 4, QTY-F2: 4, QTY-F3: 4, QTY-F4: 4
30. ZS18C10020 [1] SCREW,Hex, M10 x 20mm KOB M10x1.50x20mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
31. ZS18C10055 [2] SCREW,Hex, M10 x 55mm KOB M10x1.50x55mm, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
32. HS18C10125G1 [1] CAPSCREW KOB SCREW CAPSCREW (M10X125mm), QTY-F1: 4, QTY-F2: 4, QTY-F3: 4, QTY-F4: 4
33. ZS18C12040 [1] SCREW,Hex, M12 x 40mm KOB M12x1.75x40mm, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
34. ZS28C12025 [1] CAP,Hex Socket Head, M12 x 25mm KOB Screw — M12x1.75x25mm, QTY-F1: 4, QTY-F2: 4, QTY-F3: 4, QTY-F4: 4
35. ZW16H08000 [1] WASHER KOB ID 08 x OD 18 x Th 3.2mm, QTY-F1: 4, QTY-F2: 4, QTY-F3: 4, QTY-F4: 4
36. ZW16H10000 [1] WASHER KOB ID 11 x OD 24 x Th 3.2mm, QTY-F1: 9, QTY-F2: 9, QTY-F3: 9, QTY-F4: 9
37. ZW16H12000 [1] WASHER KOB ID 13 x OD 26 x Th 3.2mm, QTY-F1: 8, QTY-F2: 8, QTY-F3: 8, QTY-F4: 8
38. ZN18C08007 [1] NUT KOB M08x1.25mm, QTY-F1: 8, QTY-F2: 8, QTY-F3: 8, QTY-F4: 8
39. ZN18C10008 [1] NUT KOB M10x1.50mm, QTY-F1: 2, QTY-F2: 2, QTY-F3: 2, QTY-F4: 2
40. ZH32X12000 [1] 90 ELBOW,Male, 30 Degree Fl, PF 3/4″ x PF 3/4″, O-Ring KOB Elbow, 90° — 3/4 PF (Incls. O-Ring 237-6012), QTY-F1: 1, QTYF2: -, QTY-F3: 1, QTY-F4: –
40-1. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm, QTY-F1: 1, QTY-F2: -, QTY-F3: 1, QTY-F4
41. 2444R399D8 [1] ELBOW KOB ELBOW (PF1/2 – PF1), QTY-F1: 1, QTY-F2: -, QTY-F3: 1, QTY-F4:
41-1. ZD12P02900 [1] O-RING KOB ID 28.70 ± 0.29 x OD 35mm, QTY-F1: 1, QTY-F2: -, QTY-F3: 1, QTY-F4: –
42. ZS28C12040 [1] SCREW,Hex Socket Head, M12 x 40mm KOB M12x1.75x40mm, QTY-F1: 4, QTY-F2: 4, QTY-F3: 4, QTY-F4: 4
43. YN32H01178P1 [1] TUBE KOB TUBE, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
44. ZH22X08000 [1] HYD CONNECTOR KOB (Incls. O-Ring ZD12P01800), QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
44-1. ZD12P01800 [1] O-RING KOB ID 17.8mm x OD 20.2mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1,QTY-F4: 1
46. YN32H01184P1 [1] SUPPORT KOB SUPPORT, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
47. YN32H01066P1 [1] CLAMP KOB 94x38x31mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
48. ZS18C12065 [1] SCREW,Hex, M12 x 65mm KOB M12x1.75x65mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
49. ZN18C12010 [1] NUT KOB M12x1.75mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1
50. HH55Q08008G3 [1] TEE,PF 1/2″ x PF 1/2″, O-Ring KOB (PF 1/2) (Incls. O-Ring ZD12P01800), QTY-F1: -, QTY-F2: -, QTY-F3: 1, QTY-F4: 1
50-1. ZD12P01800 [1] O-RING KOB ID 17.8mm x OD 20.2mm, QTY-F1: -, QTY-F2: -, QTY-F3: 1, QTYF4: 1
51. ZH32X08000 [1] 90 ELBOW,Male, 30 Degree Fl, PF 1/2″ x PF 1/2″, O-Ring KOB Elbow, 90° — 1/2″PT (Incls. O-Ring ZD12P01800)
51-1. ZD12P01800 [1] O-RING KOB ID 17.8mm x OD 20.2mm,
| Weight | 0.5 kg |
|---|
