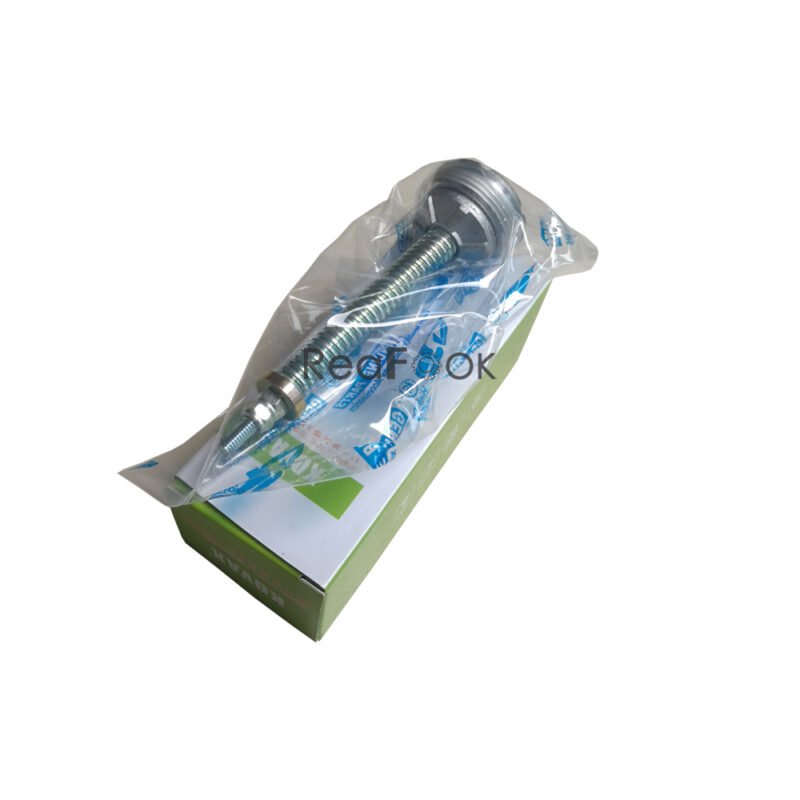

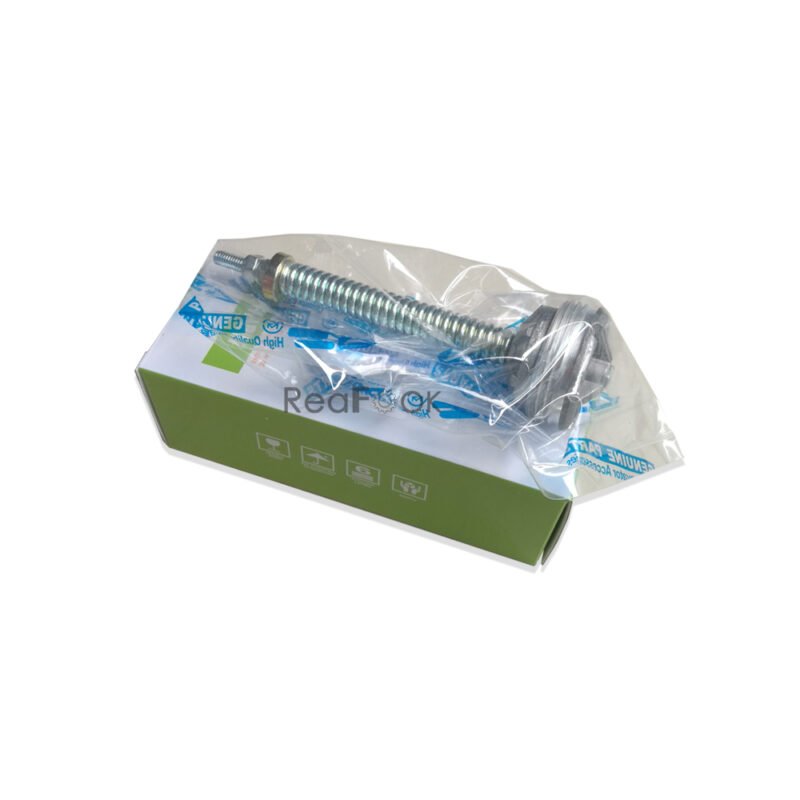

Check Valve YN21V00007F1 Fit Excavator Kobelco SK200-6 SK200-6E SK200SR SK210LC-6E SK235SR

Product Name: Check Valve
Reference Part Number: YN21V00007F1
Compatible Machine: Excavator Kobelco SK160LC-6E SK200-6 SK200-6ES SK200LC-6 SK200-6ES SK200SR SK200SRLC SK210LC SK210LC-6E SK235SR SK235SR-1E SK250LC SK250LC-6E…

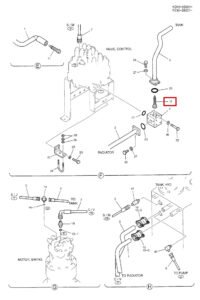

Pos. Part No Qty Parts name Comments
. . YN32H00030F1 [1] HYD LINES, RETURN
1. YN32H01172P1 [1] TUBE KOB
2. YN32H01173P1 [1] TUBE KOB
3. YN32H01176P1 [1] TUBE KOB
4. YN32H01193P1 [1] BLOCK KOB
5. ZX21M08075 [2] HOSE KOB 750mm Long (29-1/2 in)
6. ZX22M12110 [1] HOSE ASSY. KOB 1100mm Long (43-19/64 in)
7. ZX22M12076 [1] HOSE,Hyd, 19mm ID x 32mm OD x 76mm L KOB Superseded by part number: ZX22M12080
8. ZG15F05100 [1] COUPLING KOB
8-3. ZG15G05100 [1] GASKET,50.85mm ID x 67.20mm OD KOB Superseded by part number: R44P0089D4S3
10. ZG15F04300 [3] COUPLING KOB
10-3. ZG15G04300 [2] GASKET,43mm ID x 58mm OD KOB Superseded by part number: R44P0089D7S3
11. YN21V00013F1 [1] CHECK VALVE KOB ASSY
12. YN21V00007F1 [1] CHECK VALVE KOB ASSY
13. ZH22X12000 [1] HYD CONNECTOR KOB (Incls. O-Ring ZD12P02400)
13-1. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
14. 2444Z2360 [1] TEE KOB (2) 1/2″ PF x 3/8″ PF x 64mm Long (Incls. O-Ring ZD12P01400)
14-1.ZD12P01400 [1] O-RING KOB ID 13.80 ± 0.19 x OD 18mm
17. ZD11G04500 [1] O-RING,44.40mm ID x 50.60mm OD x 3.10mm KOB ID 44.40 ± 0.41 x OD 50mm
18. YN32H01142P1 [1] SUPPORT KOB
19. YN32H01141P1 [1] SUPPORT KOB
20. YN32H01100P1 [1] SUPPORT KOB
22. 2432T5299 [2] CLAMP KOB
23. 45Z91D84 [2] O-RING KOB ID 56.74 ± 0.25 OD 63.80mm
24. 2420T2948D20 [2] U-BOLT KOB M08 x 1.25 x ID 44 x 80mm Long, Serial Range: YQ10-05501-YQ10-05857
. . 2420T2948D20 [1] U-BOLT KOB M08 x 1.25 x ID 44 x 80mm Long, Start Serial: YQ10-05858
25. YN03H01074P1 [1] BUSHING KOB
26. ZC46X38014 [1] CLIP KOB Ø38.1mm Single Cable
27. ZW16K12000 [8] WASHER KOB ID 13 x OD 21 x Th 2.5mm
28. YN02B01031D2 [2] SPACER KOB
29. ZS18C12035 [4] SCREW,Hex, M12 x 35mm KOB M12 x 1.75 x 35mm
30. ZS18C10025 [1] SCREW,Hex, M10 x 25mm KOB M10 x 1.50 x 25mm
31. ZS18C10055 [2] SCREW,Hex, M10 x 55mm KOB M10 x 1.50 x 55mm
32. HS18C10125G1 [4] CAPSCREW KOB SCREW CAP
33. ZS18C12040 [2] SCREW,Hex, M12 x 40mm KOB M12 x 1.75 x 40mm
34. ZS28C12025 [4] CAP,Hex Socket Head, M12 x 25mm KOB Screw, M12 x 1.75 x 25mm
35. ZW16H08000 [4] WASHER KOB ID 08 x OD 18 x Th 3.2mm
36. ZW16H10000 [9] WASHER KOB ID 11 x OD 24 x Th 3.2mm
37. ZW16H12000 [8] WASHER KOB ID 13 x OD 26 x Th 3.2mm
38. ZN18C08007 [8] NUT KOB M08 x 1.25mm,
40. ZH32X12000 [1] 90 ELBOW,Male, 30 Degree Fl,
41. 2444R399D8 [1] ELBOW KOB
42. ZS28C12035 [4] CAPSCREW,Hex Socket Head, M12 x 35mm KOB SCREW M12 x 1.75 x 35mm
46. YN32H01184P1 [1] SUPPORT KOB
47. YN32H01066P1 [1] CLAMP KOB 94 x 38 x 31mm
48. ZS18C12065 [1] SCREW,Hex, M12 x 65mm KOB M12 x 1.75 x 65mm
49. ZN18C12010 [1] NUT KOB M12 x 1.75mm
54. YN32H01236P1 [1] CLAMP, Start Serial: YQ10-05858
55. YN32H01239P1 [1] CLAMP, Start Serial: YQ10-05858
56. ZS28C08070 [2] SCREW,Hex Socket Head, M8 x 70mm KOB CAP, Start Serial: YQ10-05858
57. ZW16K08000 [2] WASHER,8mm ID x 15.5mm OD x 1.6mm
