Chain Sprocket 1010325 Drive Gear Fit Excavator EX100 EX120 EX130H-5 EX135UR ZX110 ZX120 ZX125US ZX130-3
US$550.00

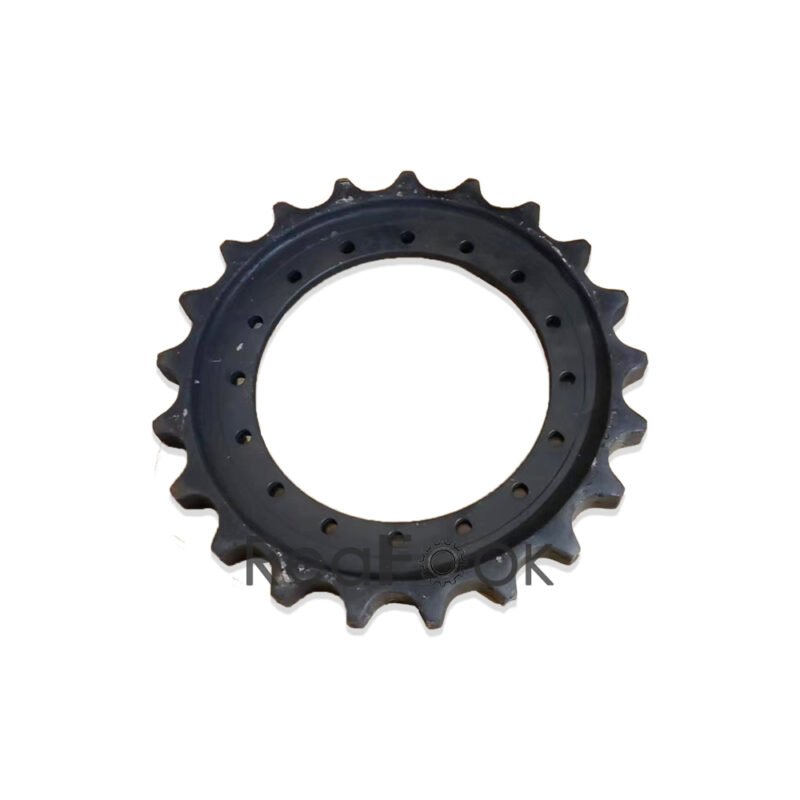

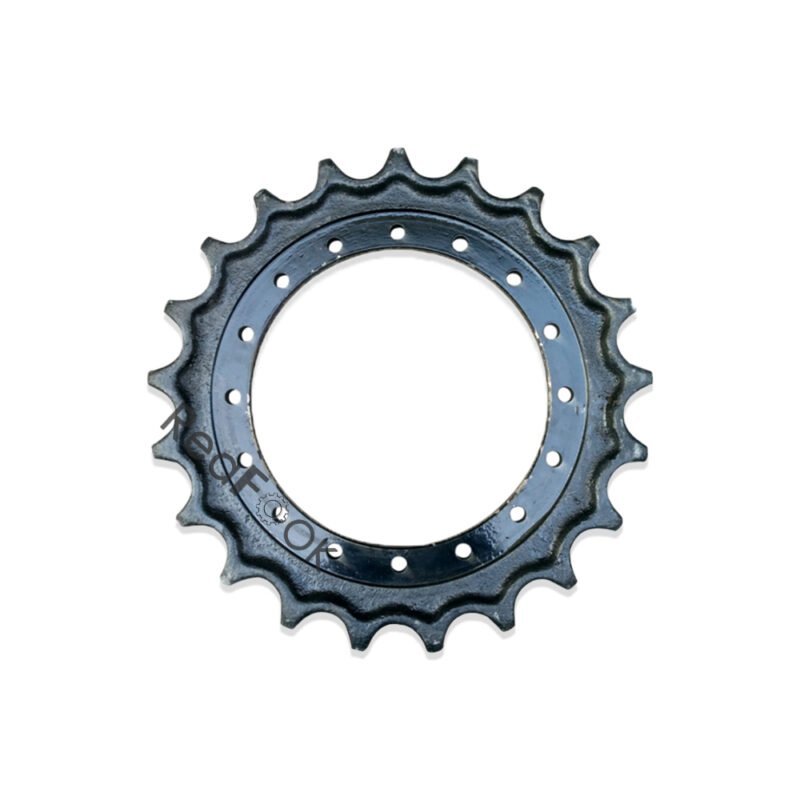

Chain Sprocket 1010325;
21 Teeth; ID 355mm, OD 590mm;
It’s used for Undercarriage Track System;
Free Shipping and High Quality Standards!!
Product Name: Sprocket
Reference Part Number: 1010325
Compatible Machine: Excavator Hitachi EX100 EX100-2 EX100-3 EX100-3C EX100-5 EX120 EX120-2 EX120-3 EX120-3C EX120-5 EX130H-5 EX135UR ZX110 ZX110-3 ZX120 ZX120-3 ZX125US ZX130-3 ZX130K…
Description:
The Chain Sprocket for the undercarriage is a type of sprocket that is part of the track or chain drive system. The chain sprocket is responsible for transferring power from the engine to the undercarriage track, enabling movement and traction. It is a round, toothed wheel made of durable materials such as steel or cast iron. It is designed with precision to ensure proper engagement with the drive chain or track, and its teeth are carefully shaped to match the corresponding links or lugs.
Attributes:
• Effectively engage and grip the chain links.
• Reliable power transmission and minimizes slippage.
• Withstand the impacts, abrasion, and heavy loads.

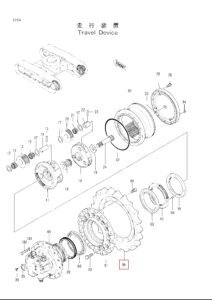

Pos. Part No Qty Parts name Comments
00-42. 9091651 [2] TRAVEL DEVICE ASS’Y
00-42. 9116396 [2] TRAVEL DEVICE ASS’Y
00-42. 9116397 [2] TRAVEL DEVICE ASS’Y
00-42. 9116398 [2] TRAVEL DEVICE ASS’Y
00. 9096731 [1] MOTOR;OIL
00. 9116375 [1] MOTOR;OIL
00. 9116379 [1] MOTOR;OIL
00. 9116383 [1] MOTOR;OIL
02. 4110369 [1] SEAL;GROUP
03. 4228851 [2] BRG.;ROL. Y 4321887
03. 4321887 [2] BRG.;ROL.
05. 1010325 [1] SPROCKET
06. J931640 [16] BOLT
09. 4148012 [1] PIN;KNOCK
11. 1013926 [1] CARRIER
12. 3043236 [3] GEAR;PLANETARY
13. 4115435 [6] BRG.;NEEDLE
14. 4245966 [3] PIN
15. 4144020 [3] PIN;SPRING
16. 3043237 [1] GEAR;SUN
17. 4192982 [12] PLATE;THRUST
18. 2028137 [1] CARRIER
19. 4252721 [1] SPACER
20. 3049946 [3] GEAR;PLANETARY
21. 4252658 [3] BRG.;NEEDLE
22. 4178203 [3] PIN
23. 4192020 [3] PIN;SPRING
24. 2028798 [1] SHAFT;PROP.
25. 4258916 [1] PIN;STOPPER
26. 2028799 [1] COVER
28. J011230 [12] BOLT;SEMS
30. 1016324 [1] GEAR;RING
31. 1016125 [1] DRUM
32. 4269322 [1] O-RING
33. J931660 [16] BOLT
34. 4245797 [3] PLUG
35. 3053559 [1] NAME-PLATE
36. M492564 [2] SCREW;DRIVE
39. 3057124 [1] NUT
42. 3059034 [1] HUB
132. 4272305 [28] BOLT
134. J222016 [28] WASHER
| Weight | 36 kg |
|---|
