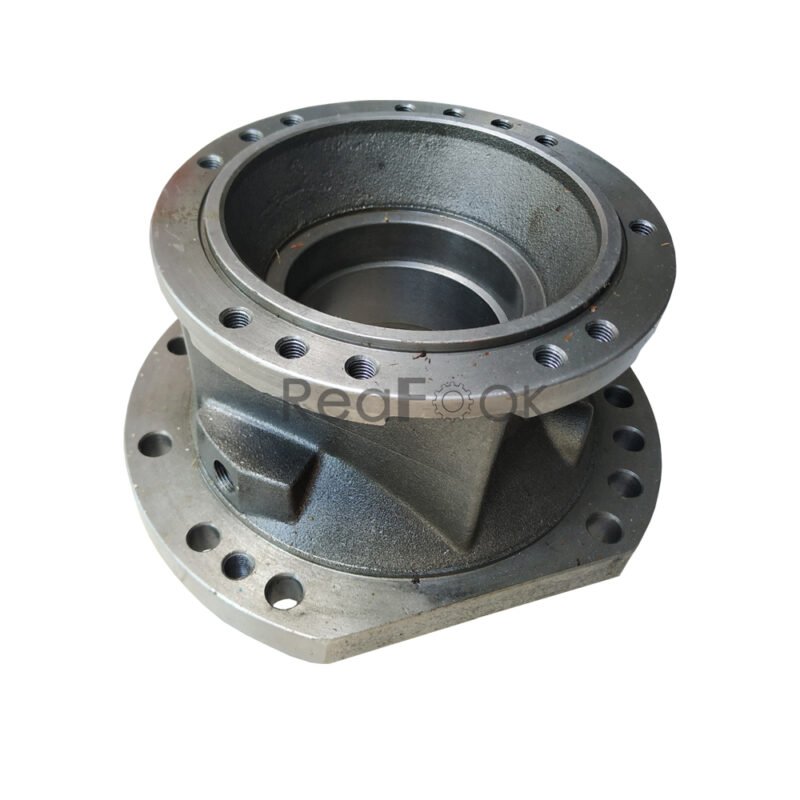

Swing Reduction Case 22B-26-11111 203-26-61142 Hub Fit Excavator Komatsu PC120-6 PC128US-2 PC128UU-2 PC128US-2 PC138US-2E PC138US-2 PC138USL-2

Product Name: Case
Reference Part Number: 22B-26-11111, 203-26-61142
Compatible Machine: Excavator Komatsu PC120-6 PC128US-2 PC128UU-2 PC128US-2 PC138US-2E PC138US-2 PC138USL-2…

Pos. Part No Qty Parts name Comments
22B-26-01000 [1] SWING MACHINERY 118 kg.
1. 22B-26-11111 [1] CASE [“22B2611112”]
2. 203-26-61110 [1] GEAR 14 kg.
3. 203-26-61120 [1] CARRIER 1.1 kg.
4. 203-26-61130 [1] CARRIER 4.1 kg.
5. 203-26-61220 [1] SHAFT 12.81 kg.
6. 203-26-61150 [1] GEAR
7. 203-26-61160 [3] GEAR
8. 203-26-61170 [1] GEAR
9. 203-26-61180 [3] GEAR
10. 201-26-62240 [3] SHAFT
11. 203-26-61250 [3] SHAFT
12. 201-26-62270 [3] BEARING
13. 203-26-61270 [3] BEARING
14. 20S-26-71160 [6] WASHER
15. 09233-12920 [6] WASHER
16. 20S-26-71250 [6] PIN
17. 20S-26-71190 [3] RING
18. 04064-05520 [1] RING
19. 203-26-61280 [1] SPACER
20. 203-26-61391 [2] SPACER
21. 203-26-61310 [1] COLLAR 0.25 kg.
22. 201-26-62330 [1] BEARING 1.71 kg.
23. 203-26-61320 [1] BEARING 2.19 kg.
24. 203-26-61340 [1] COLLAR 2.2 kg.
25. 07000-12080 [1] O-RING [“SN: 5001-UP”] analogs: [“0700002080”]
26. 07012-00145 [1] SEAL
27. 203-26-61360 [2] O-RING
28. 22B-26-11120 [1] PIPE
29. 07042-30312 [1] PLUG [“890001453”, “0704220312”]
30. 07049-01620 [2] PLUG
31. 04020-01638 [2] PIN
