Bucket Link Conrod 2406P5434D1 2406P5434D2 Fit Excavator Kobelco SK200 SK200-2 SK200-3 SK200-5

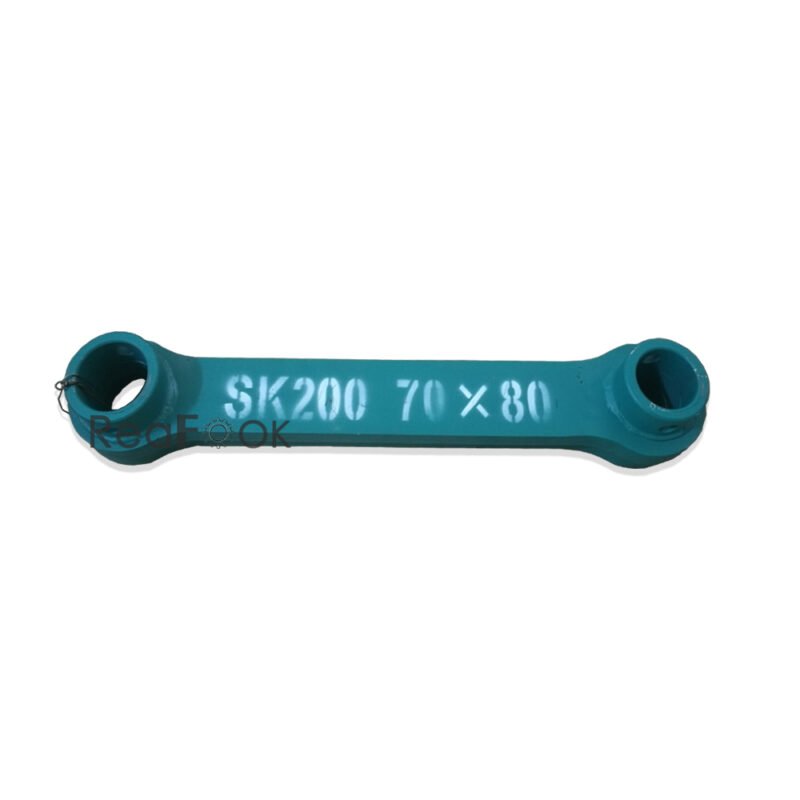

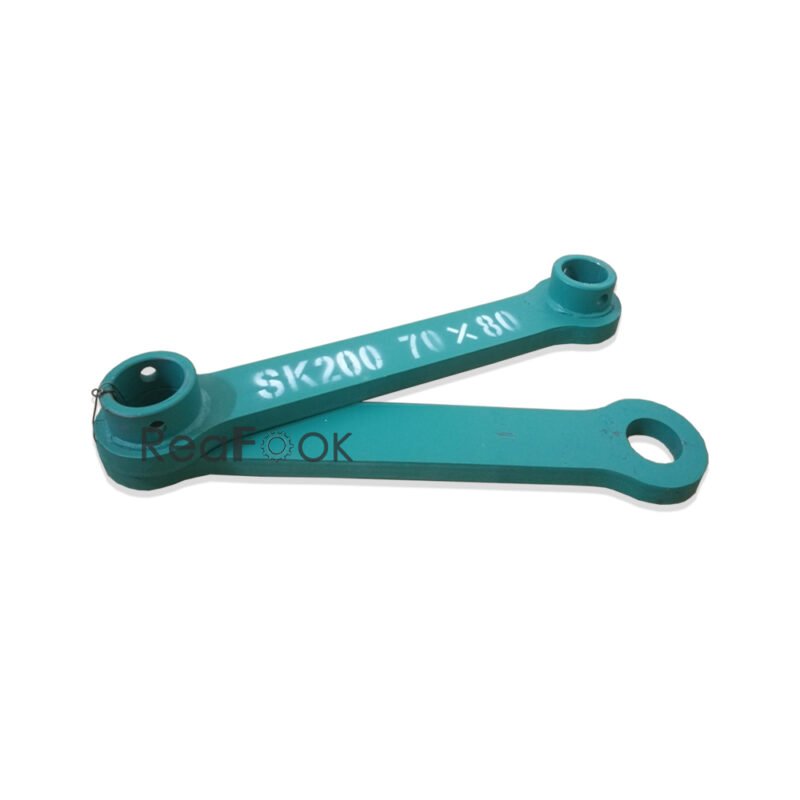

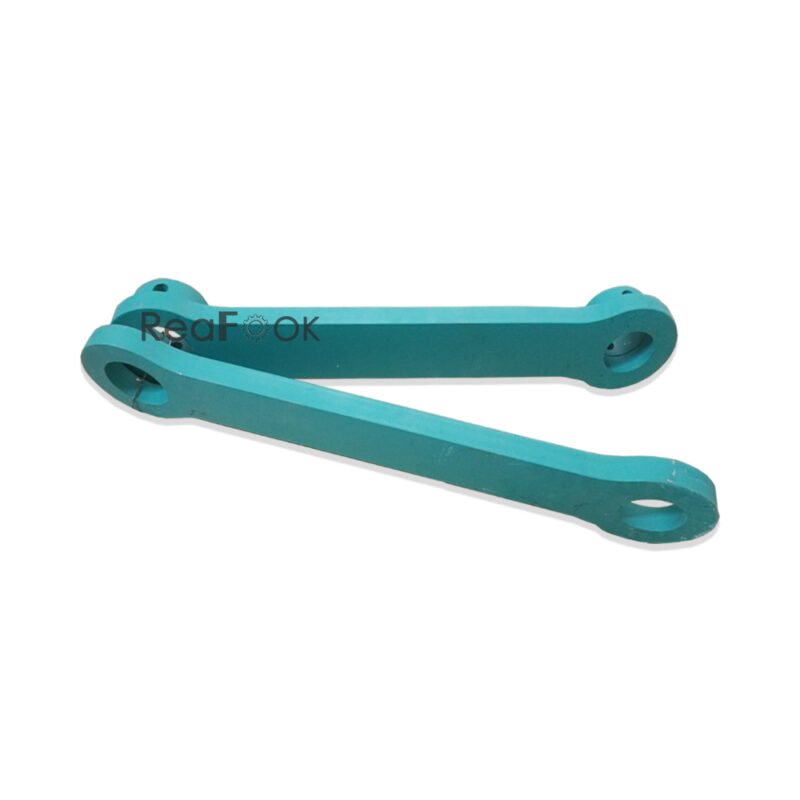

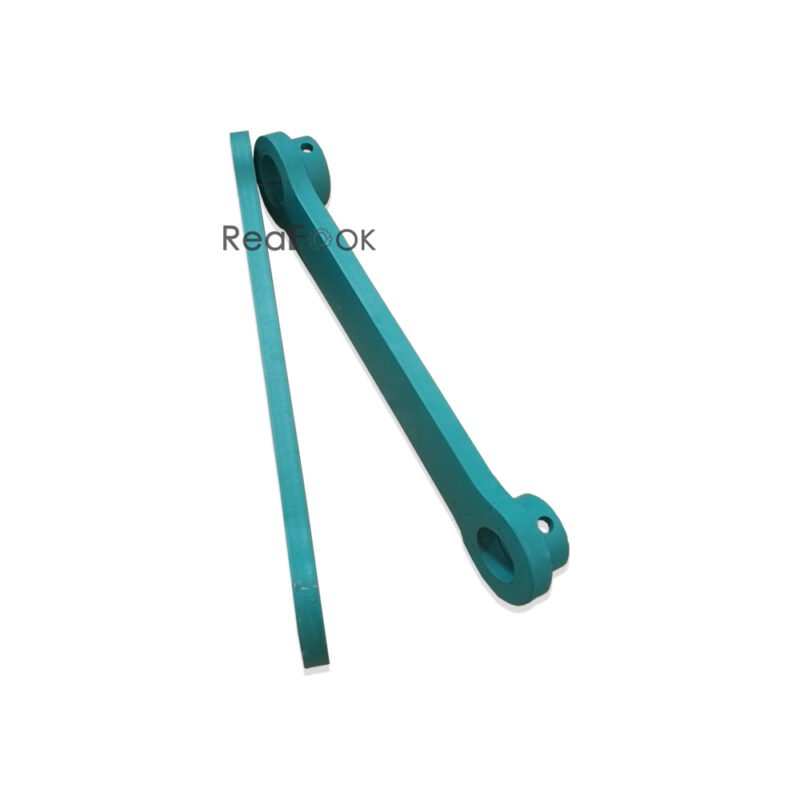

Product Name: Link Conrod
Reference Part Number: 2406P5434D1 2406P5434D2
Compatible Machine: Excavator Kobelco SK200 SK200-2 SK200-3 SK200-5…

Description:
A Link for a bucket linkage are important components that contribute to the functionality and smooth operation of the bucket attachment. The inner race is mounted on a shaft or pivot point, while the outer race is housed within a bracket or housing. The link is designed to withstand the heavy loads and stresses associated with digging, lifting, and other bucket operations.

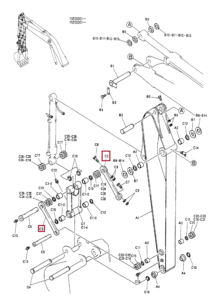

Pos. Part No Qty Parts name Comments
. . YN12B00108F1 [1] ARM
A1. YN12B00107P1 [1] ARM
A2. YN12B01081P1 [2] BUSHING KOB
A3. YN12B01079P1 [2] BUSHING KOB
A4. YN12B01080P1 [2] BUSHING KOB
. . YN12B00021F1 [1] ARM INSTAL
B1. YN02B01042P1 [1] PIN KOB Superseded by part number: YN12B01699P1
B2. YN12B01077P1 [1] PIN KOB
B3. 2418T12469 [1] PLATE KOB 150 x 50 xTh 12mm, 2-Ø16 Holes
B4. ZS18C14025 [2] SCREW,Hex, M14 x 25mm KOB M14x2.0x25mm
B5. HS18C16150G1 [1] SCREW KOB M16x2.0x150mm Superseded by part number: HS18C16150G2
B6. ZN18C16013 [2] NUT KOB M16x2.0mm
B7. YN02B01015P1 [2] SHIM KOB SHIM (3.0)
B8. B16T0442D53 [2] SHIM,92mm ID x 160mm OD x 0.5mm Thk KOB ID 92 x OD 160 x Th 0.5mm
B9. YN02B01092P1 [2] SHIM KOB SHIM (3.0)
B10. B16T0442D78 [2] SHIM,87mm ID x 140mm OD x 0.5mm Thk KOB ID 87 x OD 140 x Th 0.5mm
B11. B16T0442D77 [2] SHIM,87mm ID x 140mm OD x 0.9mm Thk KOB ID 87 x OD140 x Th 0.9mm
B12. B16T0442D76 [2] SHIM,140mm OD x 87mm ID x 1.2mm Thk KOB ID 87 x OD 140 x Th 1.2mm
B13. B16T0442D62 [2] SHIM,87mm ID x 140mm OD x 1.6mm Thk KOB ID 87 x OD140 x Th 1.6mm
B14. B16T0442D40 [2] SHIM,92mm ID x 160mm KOB
. . YN12B00083F1 [1] ARM GROUP
C1. YN12B01002F2 [1] LINK CONROD KOB
C1-2. YN12B01082P1 [2] BUSHING KOB
C1-3. YN12B01083P1 [2] BUSHING KOB
C1-4.YN12B01129P1 [1] LINK, BUCKET
C2. 2406P5434D1 [1] LINK CONROD KOB
C3. 2406P5434D2 [1] LINK CONROD KOB
C4. YN12B01073P1 [2] PIN KOB
C5. YN12B01074P1 [1] PIN KOB
C6. YN12B01075P1 [1] PIN KOB
C7. HS18C16130G1 [1] SCREW KOB M16x2.0x130mm Superseded by part number: HS18C16130G2
C8. HS18C16140G1 [1] SCREW KOB M16x2.0x140mm Superseded by part number: HS18C16140G2
C9. ZN18C16013 [4] NUT KOB M16x2.0mm
C10. 2445R220D4 [8] SEAL,78.7mm ID x 95mm OD x 5mmThk Dust Superseded by part number: 84499640
C11. 2445R220D3 [2] SEAL,70mm ID x 85mm OD x 5mm Thk KOB
C12. 2445R220D6 [2] SEAL,90mm ID x 105mm
OD x 6mm Thk KOB Dust — ID 90 X OD 105 x Th 6mm
C13. ZG91S02000 [4] LUBE NIPPLE,1/8″ NPT x 1/8″ NPT KOB 1/8″ PT –Straight
C14. ZG91U02000 [1] LUBE NIPPLE KOB 90° x 1/8″ PT
C15. YN12B01009P1 [2] SHIM,3mm Thk KOB (3.0)
C16. B16T0442D1 [2] SHIM,130mm OD x 72mm ID x 1.2mmThk
C17. YN12B01078P1 [4] SHIM KOB ID 82 x OD140 x Th 3.0mm
C18. YN12B01084P1 [4] SHIM KOB ID 82 x OD140 x Th 1.2mm
C21. B16T0442D57 [2] SHIM,72mm ID x 130mm OD x 0.5mm Thk
C22. B16T0442D44 [2] SHIM,72mm ID x 130mm OD x 0.9mmThk KOB
C23. B16T0442D2 [2] SHIM,130mm OD x 72mm ID x 1.6mmThk
C24. YN12B01122D1 [4] SHIM,82mm ID x 140mm OD x 0.5mm
C25. YN12B01122D2 [4] SHIM,82mm ID x 140mm OD x 0.9mm Thk
C26. YN12B01122D3 [4] SHIM,82mm ID x 140mm KOB
