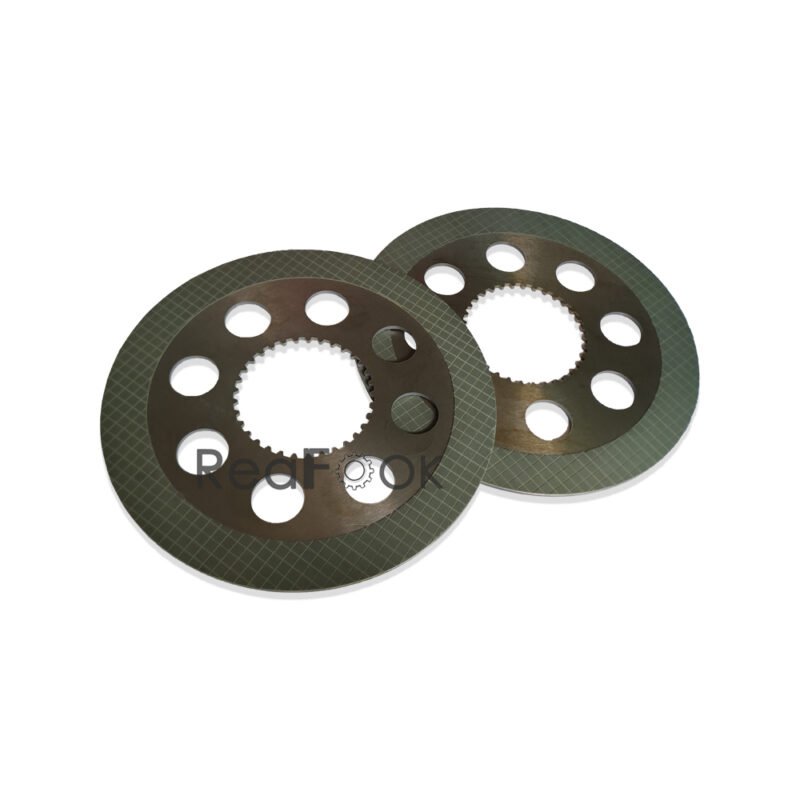

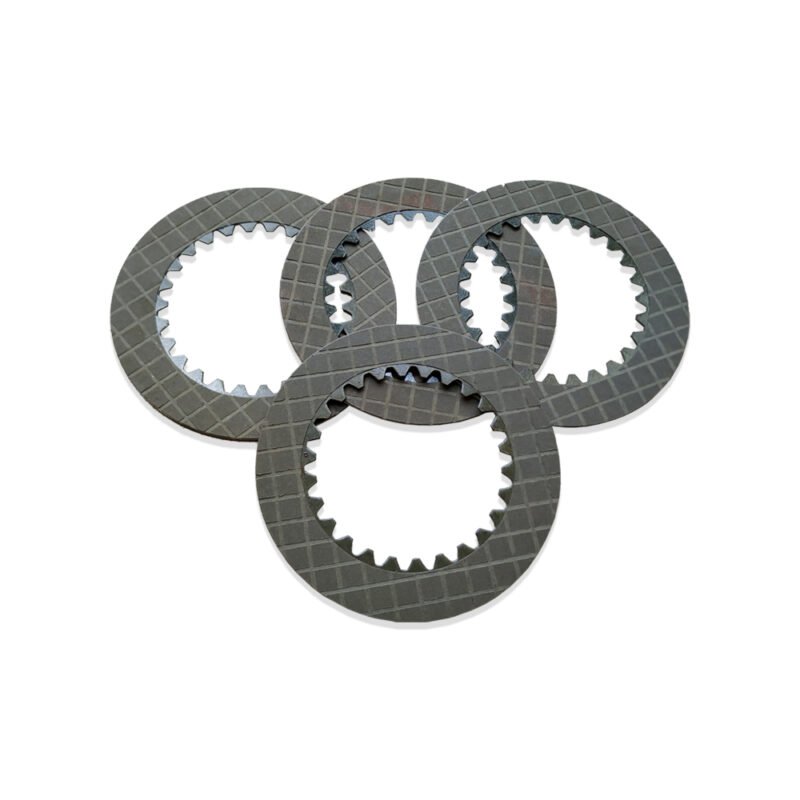

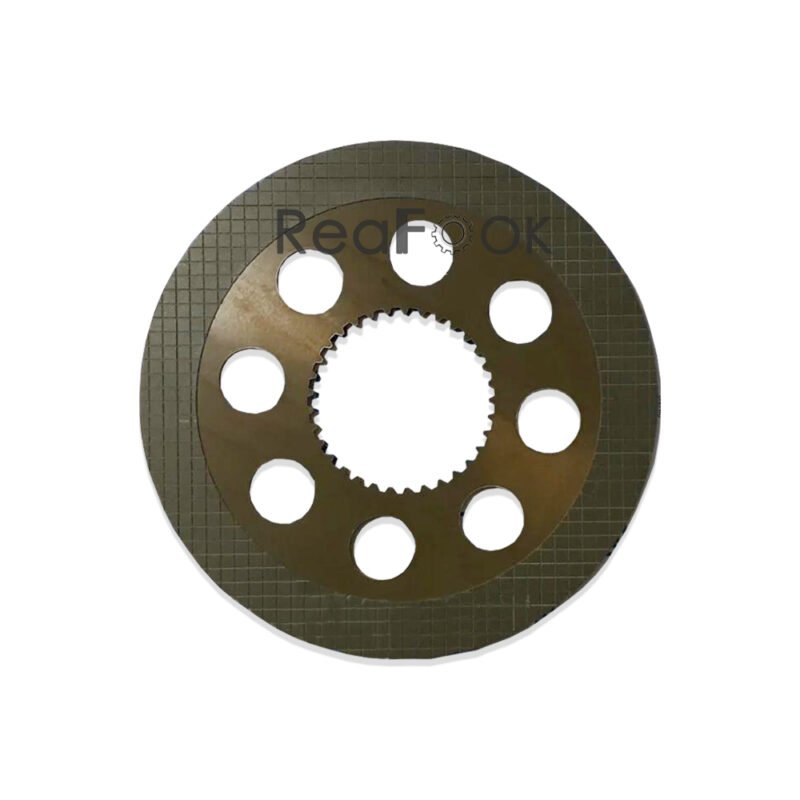

Brake Disk 163G3-02131 Brake Ring 163G3-02141 Friction Plate Fit Hitachi Wheel Loader ZW220 ZW220-HCMF

Product Name: Brake Disk, Brake Ring
Reference Part Number: 163G3-02131, 163G3-02141
Compatible Machine: Hitachi Wheel Loader ZW220 ZW220-HCMF…

Description:
A friction plate is an essential component found in various types of motors, particularly those equipped with clutches or brakes. It is designed to facilitate the transfer of torque between rotating components, allowing for smooth engagement and disengagement of power transmission.

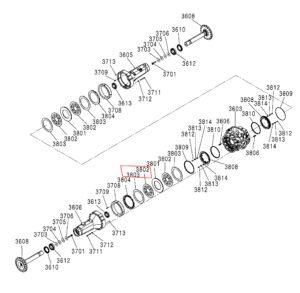

Pos. Part No Qty Parts name Comments
163G3-00011 [1] AXLE ASSY;REAR This PART NO. consists of all parts shown in AXLE ASSY (R) (1/4) (TPD) to (4/4) (TPD).
3603. 163G3-02011 [1] BODY;DIFF;R
3605. 163G3-02041 [1] TUBE;AXLE;R
3606. 163G3-02051 [1] TUBE;AXLE;R
3608. 163G3-02061 [2] SHAFT;AXLE
3610. 16603-03611 [2] SEAL;OIL
3612. 163G3-02511 [2] BEARING Y 163G3-02551
3612. 163G3-02551 [2] BEARING
3613. 11874-32061 [2] BEARING Y 163G3-02561
3613. 163G3-02561 [2] BEARING
3701. 16503-02061 [2] BOLT
3703. 16703-02151 [2] SHIM 0.1mm
3704. 16703-02161 [2] SHIM 0.2mm
3705. 16703-02171 [2] SHIM 0.25mm
3706. 16703-02181 [6] SHIM 0.5mm
3708. 163G3-02471 [2] GEAR;RING
3709. 101T3-02241 [8] PIN
3711. 01106-16130 [40] BOLT
3712. 190A3-02051 [40] WASHER
3713. 02212-16040 [4] PIN
3801. 163G3-02151 [2] RING;BRAKE
3802. 163G3-02131 [4] DISK;BRAKE
3803. 163G3-02141 [4] RING;BRAKE
3804. 163G3-02161 [2] PLATE;END
3806. 16783-02501 [16] PIN
3808. 163G3-02241 [2] PISTON
3809. 163G3-02251 [2] D-RING
3810. 16423-02142 [2] D-RING
3812. 16763-02371 [16] BOLT
3813. 16763-02381 [16] ADAPTER
3814. 163G3-02541 [16] SPRING;RETURN
