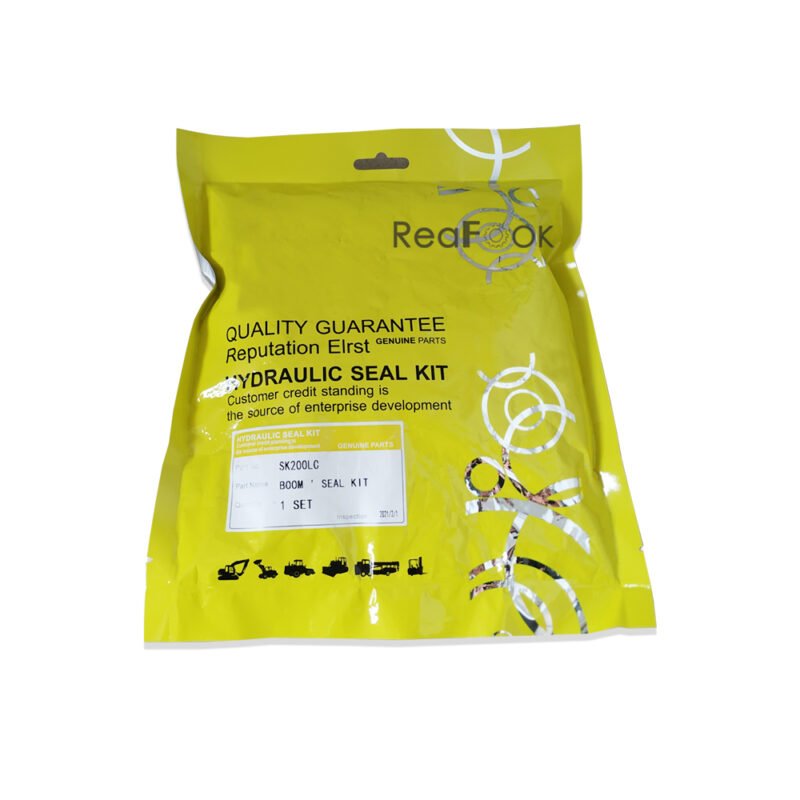

Hydraulic Boom Cylinder Seal Kit 2438U1102R500 Fit Excavator Kobelco SK200 SK200LC SK210 SK210LC Mark IV
US$95.00
Boom Cylinder Repair Kit 2438U1102R500;
L.H. Boom Seal Kit, Service Kit 2438U1102R500P;
Rod 85mm x Bore 125mm;
It is used for Hydraulic Cylinder System;
Free Shipping and High Quality Standards!!
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 | — | US$95.00 |
| 2 - 3 | 21.05 % | US$75.00 |
| 4 - 7 | 31.58 % | US$65.00 |
| 8+ | 42.11 % | US$55.00 |
Product Name: Hydraulic Boom Cylinder Seal Kit, Repair Kit, Service Kit
Reference Part Number: 2438U1102R500, 2438U1102R500P
Compatible Machine: Excavator Kobelco SK200 SK200LC SK210 SK210LC Mark IV…
Description:

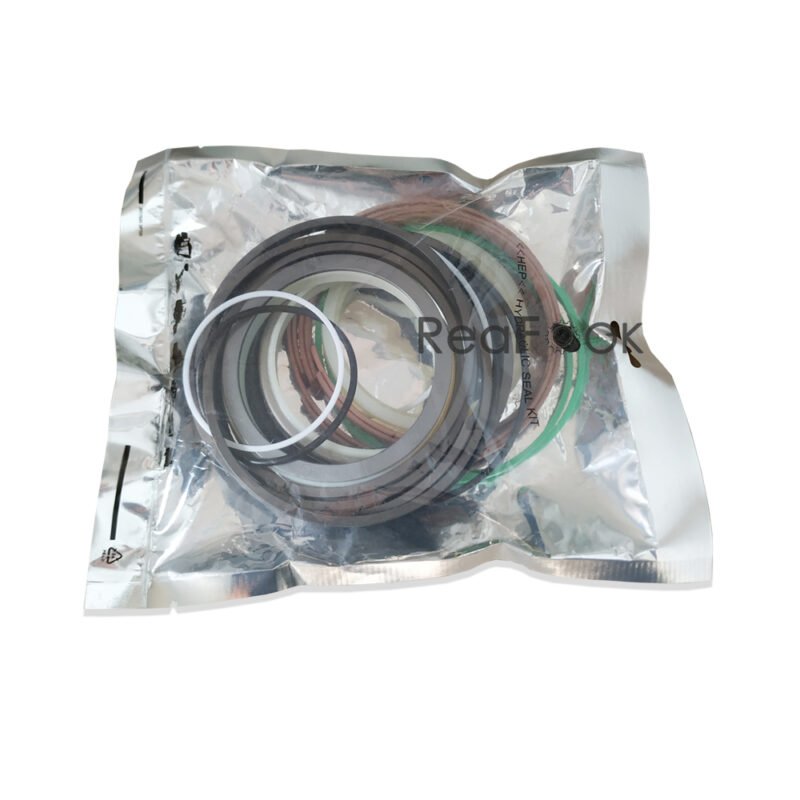

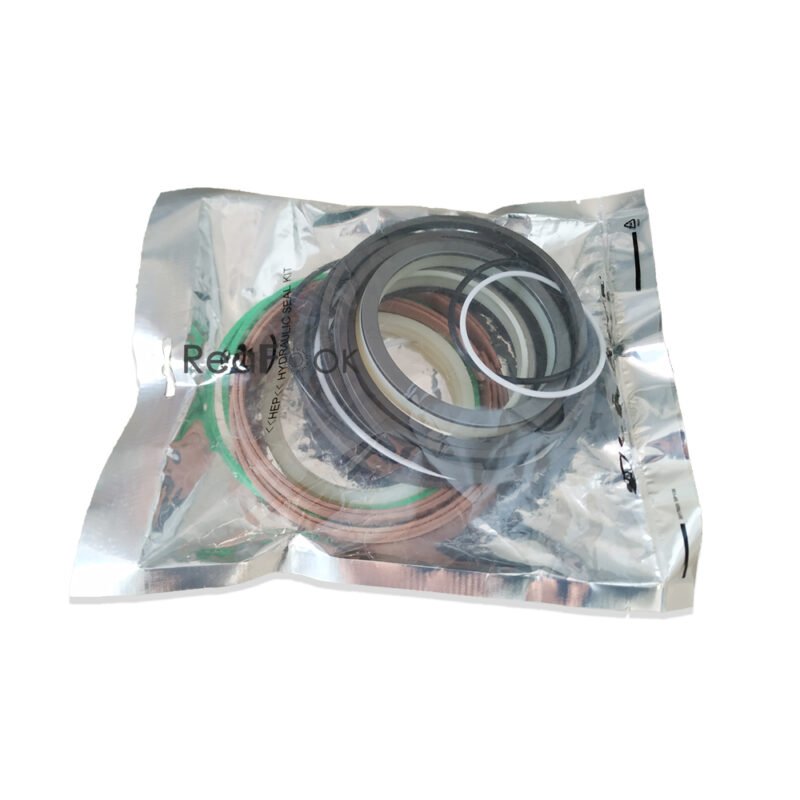

The Kits provide easy field service, repair, or replacement of seals on boom cylinders of heavy duty equipment. It includes all of the necessary basic oil seals, for example, back up rings, o-ring, seal assembly, rings, U-cup seal, seal ring, buffer seal and lip type seal.

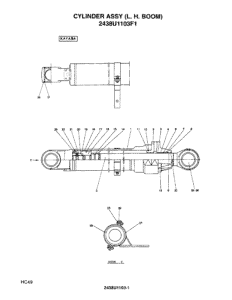

Pos. Part No Qty Parts name Comments
. . 2438U1103F1 [1] CYLINDER KOB ASSY
1. 2438U1102S1 [1] BARREL KOB
2. 2438U1102S2 [1] PISTON ROD KOB
3. 2438U1102S3 [1] CYLINDER HEAD KOB
4. 2438U959S4 [1] BUSHING KOB Superseded by part number: 2438U1106S17
5. 2438U959S5 [1] RING KOB
6. 2438U959S6 [1] BACK-UP RING KOB
7. 2438U959S7 [1] RING KOB
8. 2438U959S8 [1] RING KOB
9. 2438U959S9 [1] RING KOB
11. ZD12G12000 [1] O-RING,3.1mm Thk x 119.4mm ID, 90 Duro x OD 125mm
12. 2438U1102S12 [1] O-RING KOB
13. ZS23C20070 [8] SCREW,Hex Socket Head, M20x2.5x70mm
14. 2438U1102S14 [1] BEARING KOB
15. 2438U1102S15 [1] RING KOB
16. 2438U1102S16 [1] PISTON KOB
17. 2438U675S20 [1] RING KOB
18. 2438U1102S18 [2] RING KOB
19. 2438U675S28 [2] RING KOB
20. 2438U959S18 [1] SHIM KOB
21. 2438U959S19 [1] NUT KOB
22. 2438U999S21 [1] SET SCREW KOB Set — M12x1.75mm
23. 2436U330S16 [1] BALL KOB
24. 2438U1102S24 [1] BUSHING KOB
25. 2438U1102S25 [1] BUSHING KOB
26. 2438U1102S26 [2] SEAL KOB
27. 2438U1102S27 [1] U-BRACKET KOB
28. 2438U1102S28 [1] U-BRACKET KOB BAND
29. 2438U1102S29 [2] SCREW KOB Superseded by part number: ZS18C10035
30. 2438U999S30 [2] LOCK WASHER KOB Superseded by part number: ZW26X10000
31. 2438U1102S31 [2] SEAL KOB
35. LP01V00008S009 [1] RING KOB
. . 2438U1102R200 [1] REPAIR KIT KOB CONSISTS OF REF 15, 17, 18, 19 Superseded by part number: 2438U1102R200P
. . 2438U1102R500 [1] REPAIR KIT KOB CONSISTS OF REF 6-9, 11, 12, 15, 17-19, 35 Superseded by part number: 2438U1102R500P
. . 2438U1102R600 [1] REPAIR KIT KOB CONSISTS OF REF 6, 7, 8, 9, 11, 12, 35 Superseded by part number: 2438U1102R100, 2438U1102R600P
| Weight | 0.8 kg |
|---|
