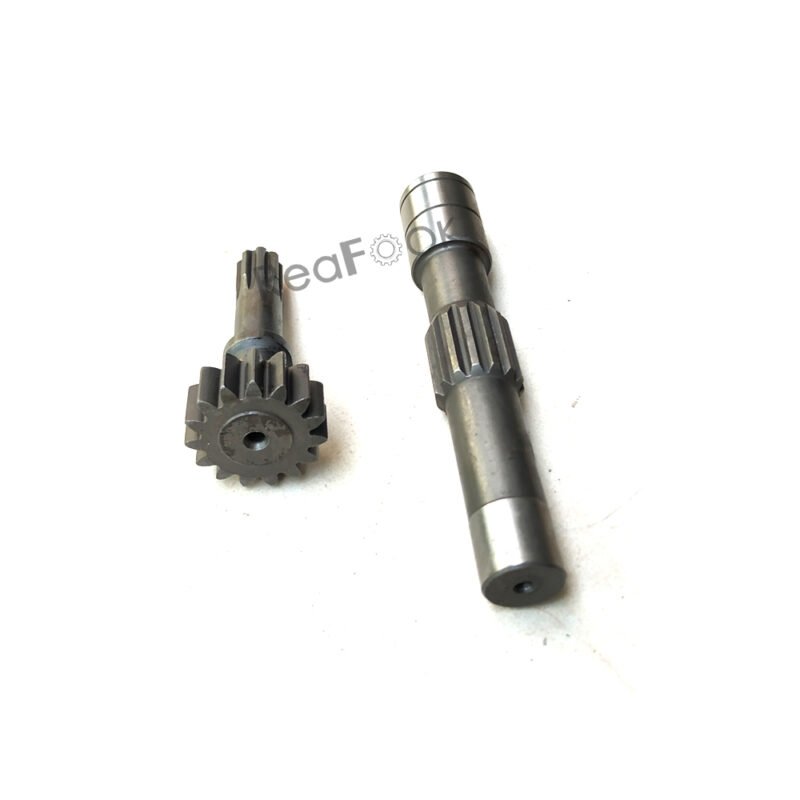

Sun Gear with Travel Motor Drive Shaft 6670126 6671903 for Final Drive Fit Excavator BOBCAT 331 334 425

Product Name: Sun Gear, Travel Motor Shaft
Reference Part Number: 6670126 6671903
Compatible Machine: Excavator Bobcat 331 334 425…

Description:
Gear for use in planetary gear sets of final drives.

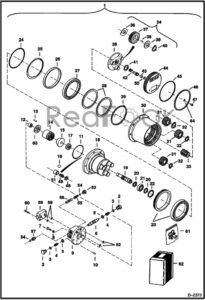

S/N   Part Number    Part Name    Qty

1 MOTOR, MOTOR, – NLA – W/Ref. 2-60 – Was 6667338, A 2
2 6671915 PLUG 2
3 6671911 O-RING, Incl. W/Ref. 61 2
4 SPRING, SPRING, NLA – Order Ref. 62 – Was 6670138, A 2
5 6671917 WASHER 2
6 6671918 SPOOL 1
7 6671919 BOLT 8
8 6671920 WASHER 8
9 6671901 HOUSING, MOTOR TRAVEL 1
10 6671913 PIN 1
11 6671912 O-RING, Incl. W/Ref. 61 1
12 6671914 BEARING 1
13 6667782 DOWEL PIN 1
14 6671902 PISTON, MOTOR TRAVEL, W/Ref. 63 1
15 6671909 SWASHPLATE, swash 1
16 6670130 BALL 1
17 6671908 SEAL, OIL, Incl. W/Ref. 61 1
18 6669094 HOUSING 1
19 6671903 SHAFT 1
20 7022805 CIRCLIP, Was 6669130, A 2
21 6669124 BEARING 1
22 6669131 RING SNAP 1
23 6669101 BEARING W/SEAL, W/Seal 1
24 6669108 O-RING, Incl. W/Ref. 61 1
25 6669105 SNAP RING 1
26 6669100 SPACER 1
27 6669110 BEARING MOTOR DRIVE 1
28 6669119 SHIM, 0,2 mm thick x
28 6669120 SHIM, 0,3 mm thick x
28 7461697 SHIM ASSEMBLY, 0,35 mm x
28 6669121 SHIM, 0,4 mm thick x
28 6669122 SHIM, 0,9 mm thick x
28 6669123 SHIM, 0,95 mm thick x
28 7461698 SHIM ASSEMBLY, 2.5 mm x
28 SHIM KIT, SHIM KIT, NLA – Was 6693533, A x
29 6669104 RING SNAP 1
30 6669096 HOUSING 1
31 6669097 GEAR MOTOR SPRING, W/Bearing 3
32 6669102 SNAP RING 3
33 6669098 GEAR 1
34 6670127 GEAR ASSEMBLY, W/Ref. 35 – 40 1
35 CARRIER, CARRIER, NSS 1
36 WASHER, WASHER, NSS 3
37 GEAR, GEAR, NSS 3
38 BEARING, BEARING, NSS – Needle – (18) needed for each gear 54
39 WASHER, WASHER, NSS 3
40 SNAP RING, SNAP RING, NSS 3
41 6669103 SNAP RING 1
42 6670126 GEAR SHAFT 1
43 6667747 SPACER 1
44 6669093 COVER 1
45 6669107 O-RING, Incl. W/Ref. 61 1
46 6669106 RING SNAP 1
47 6667771 PLUG, Use W/Ref. 64 aluminum washer 6675272 – washer not included with plug 2
47 6676161 PLUG, W/Rubber O-ring 2
48 6670133 WASHER, metal 2
49 6670132 SPRING 2
50 6669597 SHIM, .0007″ (0,2 mm) thick x
50 6669598 SHIM, .012″ (0,3 mm) thick x
50 6669599 SHIM, .019″ (0,5 mm) thick x
51 6670131 PISTON 2
52 6671910 O-RING, Incl. W/Ref. 61 2
53 6670139 PLUG 1
54 6671922 O-RING, Incl. W/Ref. 61 2
55 SPRING, SPRING, NLA – Order Ref. 62 – Was 6686078, A 1
56 6671918 SPOOL, Was 6670137, A 1
57 6670136 ADAPTER 1
58 6671922 O-RING, Incl. W/Ref. 61 2
59 6670134 VALVE RELIEF, Relief – Available as an assembly only 1
59 6679326 WASHER, SEALING, sealing – for plug 1
59 58K016 O-RING 1
60 6670135 BOLT 4
61 6670129 KIT SEAL, includes Ref. 3, 11, 17, 24, 45, 52, 54 & 58 x
61 6670128 KIT SEAL, Ref. 23 & 61 (6670129 kit)
