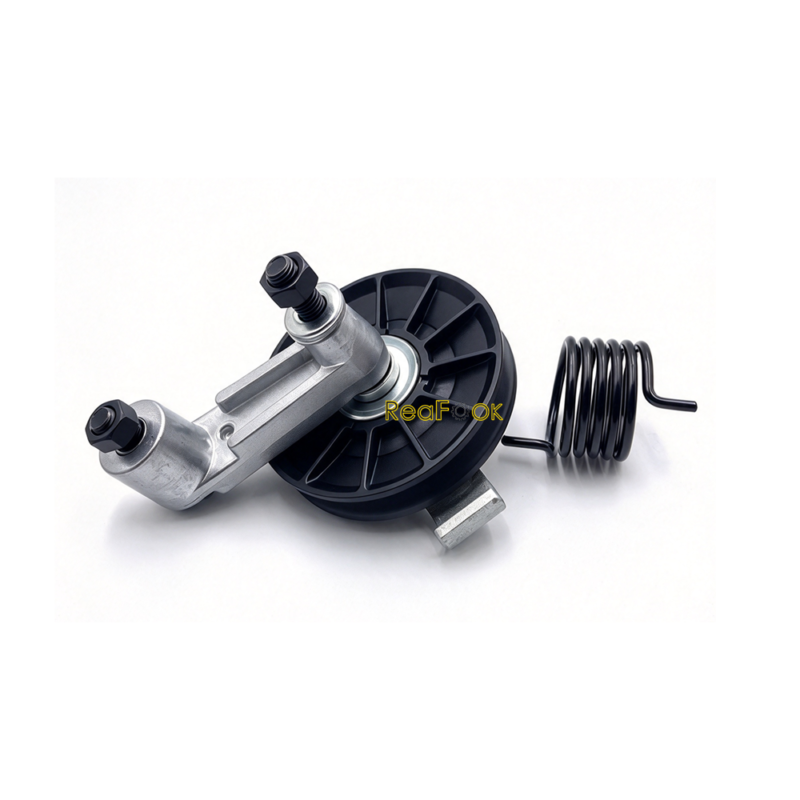

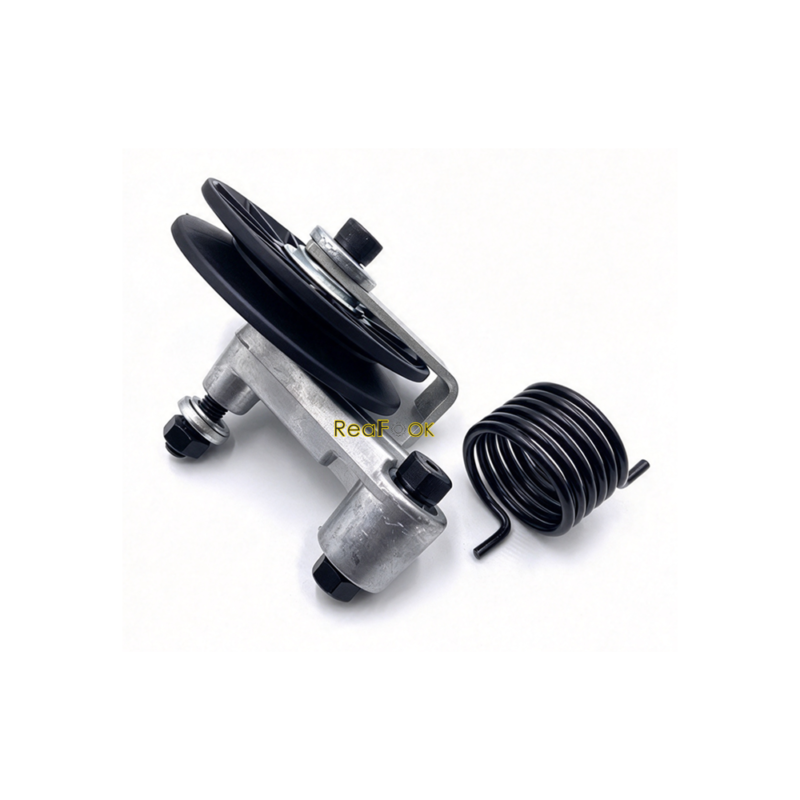

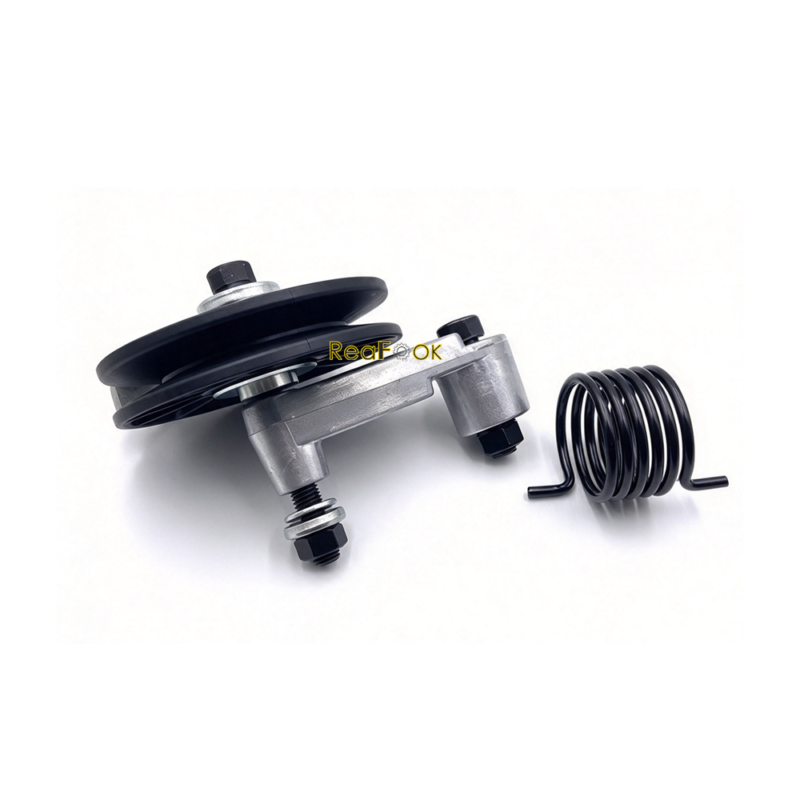

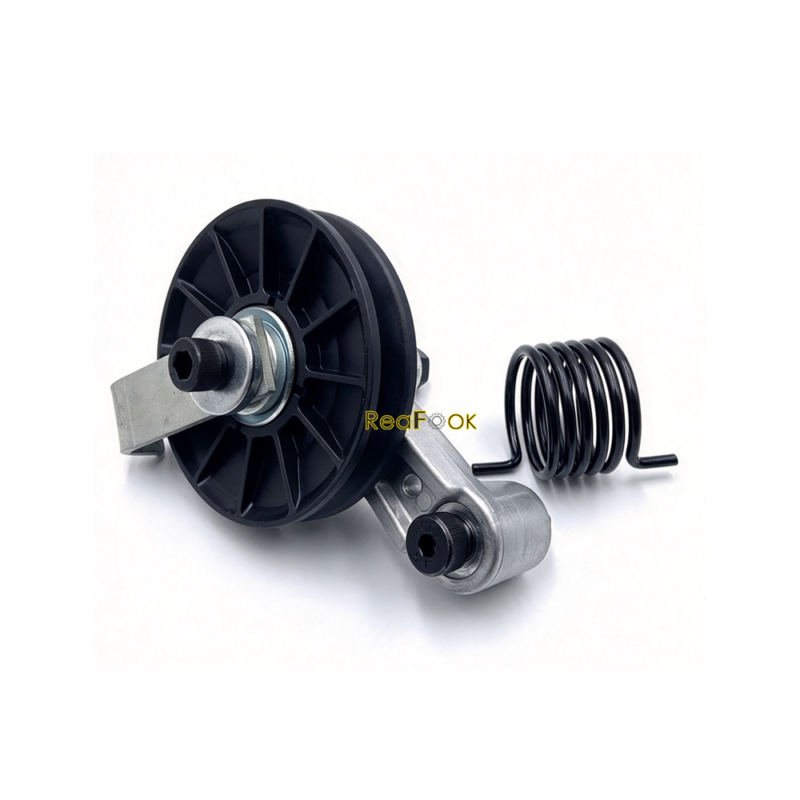

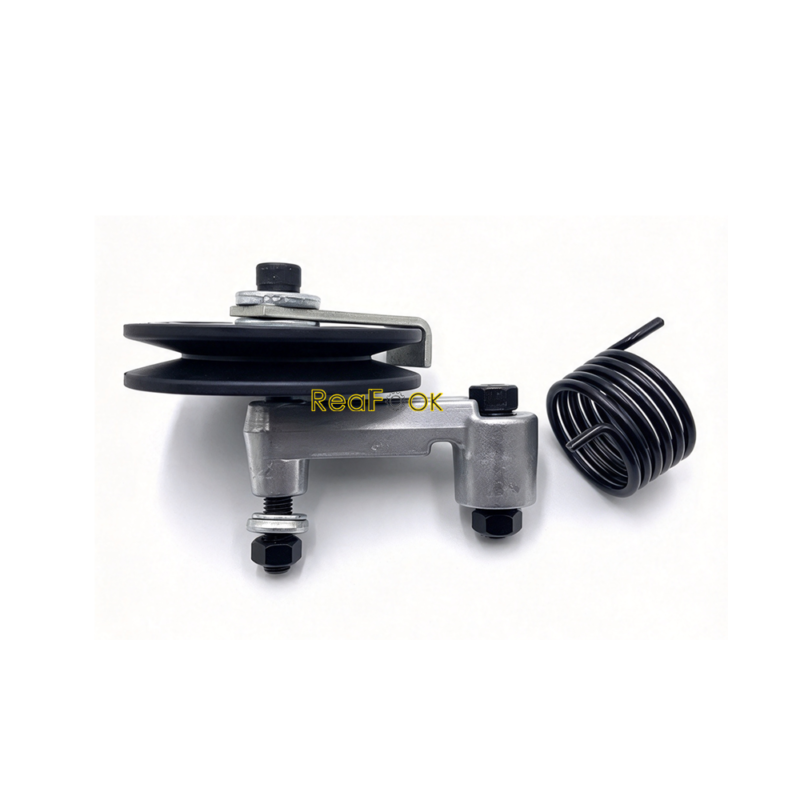

Belt Tensioner 7302291 Fit Skid-Steer Loader Bobcat S130 S160 S175 S185 S205 S220 S300

Product Name: Belt Tensioner Kit
Reference Part Number: 7302291, 6702474
Compatible Machine: Fit Skid-Steer Loader Bobcat S130 S160 S175 S185 S205 S220 S300

Description:
Belt tensioners drive belts, preventing belt slippage and reducing maintenance.

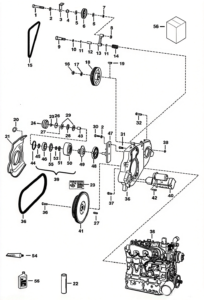

Ref # Part # Description Q-ty
1 73G656 SCREW 1
2 6704484 WASHER FLAT thrust 3
3 6702474 RETAINER fan drive idler belt 1
4 6704443 BUSHING SPACER spacer 1
5 6660995 RING GREASE grease 2
6 6662997 PULLEY IDLER fan drive idler 1
7 6704444 WASHER COUNTERBORED 1
8 61D6 NUT HEX FINISHED GR5 1
9 38C820 SCREW SHOULDER shoulder 1
10 6655781 BEARING THRUST 1
11 6704820 O-RING 2
12 6670682 BEARING SLEEVE nylon 1
13 6725212 ARM IDLER W/Ref. 12 1
14 6700115 SPRING TORSION 1
15 BELT, FAN DRIVE PE1890 1
16 92D12 NUT W/PATCH 1
17 6576033 WASHER CHAMFER 1
18 6726539 PULLEY to hyd. pump – 3 groove – 7.95″ (202 mm) dia. 1
19 6682261 KEY SQUARE Was 6J807 1
20 6703022 SPRING CLIP 3
21 7109712 SHIELD Was 6726937 1
22 6903122 GREASE, MULTI PURPOSE Use W/Ref. 39 – Was 6599719 x
23 6709030 DECAL belt tension – spring loaded idler 1
24 6708770 CAP DUST dust 1
25 43C610 SCREW HEX CAP pre-applied thread locker – Was 17C610 1
26 6705232 WASHER FLAT 1
27 14J1808 PIN CSPR STRAIGHT 2
28 6710585 WASHER wave spring 1
29 6705231 WASHER 2
30 47C620 SCREW HEX HD W/T GR8 Was 17C620 1
31 6719828 SCREW FLTHD HEX CAP 2
32 17C828 BOLT hyd pump mount 2
33 85D8 NUT PRETRQ HEX LOCK 2
34 6736775 BELT DRIVE pump drive 1
35 6598275 BOLT 6
36 6728062 MOUNT 1
37 6719825 SCREW FLTHD HEX CAP 7
38 ENGINE, NA1529 1
39 6735884 IDLER, BELT DRIVE ASSY spring loaded – Ref. 24 – 29 & 43 – 53 – Also Order Ref. 23 1
39 6714212 PULLEY, PUMP HYD IDLER Ref. 43 – 46 & 49 – 53, 1
40 STARTER, B16488R 1
41 FLYWHEEL ASSY, NLA – W/ring gear – Order 7155781 flywheel Engine 7Z9999 & Below BTI388
41 7155781 FLYWHEEL ENGINE ASSEMBLY – W/ring gear Engine 8A0001 & Above BTI388
41 6510470 GEAR STARTER RING 1
42 35C620 SCREW FLGD HEX CAP 3
43 6682442 BEARING bronze sleeve 1
44 6658847 RING SNAP 1
45 6658536 RING SNAP 1
46 6668114 BEARING ball 1
47 6735883 BRACKET 1
48 6705491 SPRING torsion 1
49 6711699 HUB ASSEMBLY 1
50 6704391 PULLEY idler 1
51 6685735 SEAL Was 6661112 1
52 6703168 BEARING thrust 1
53 6664209 SEAL 1
54 6633583 SEALANT, POLYURETHANE 300 ML
55 SYNTHETIC OIL, 15W50 QT, NLA – Was 6661405
56 7302291 KIT, BELT TENSIONER Ref. 1, 3-11, 13 & 14
