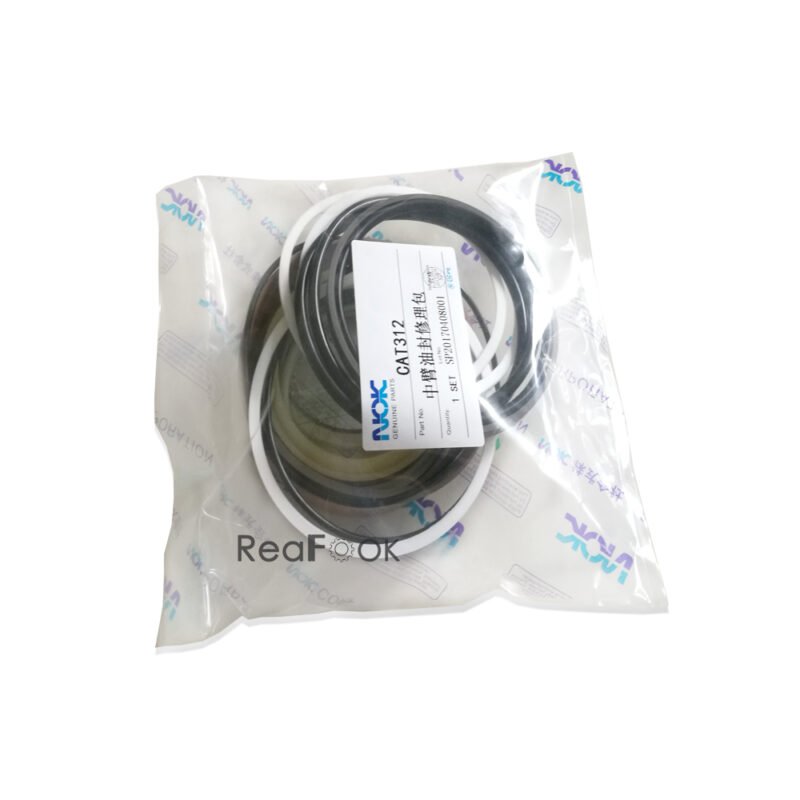

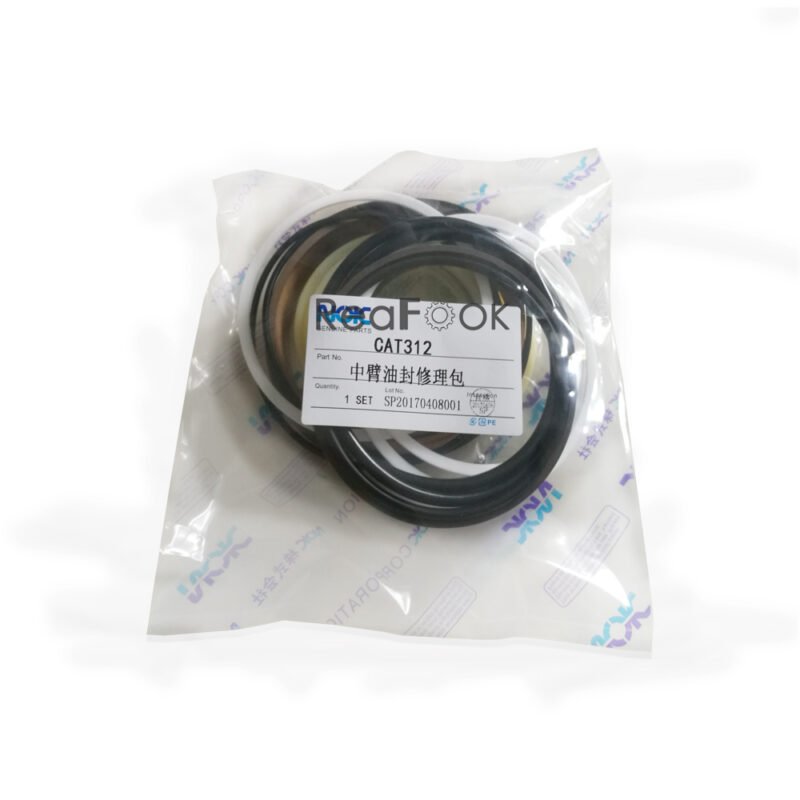

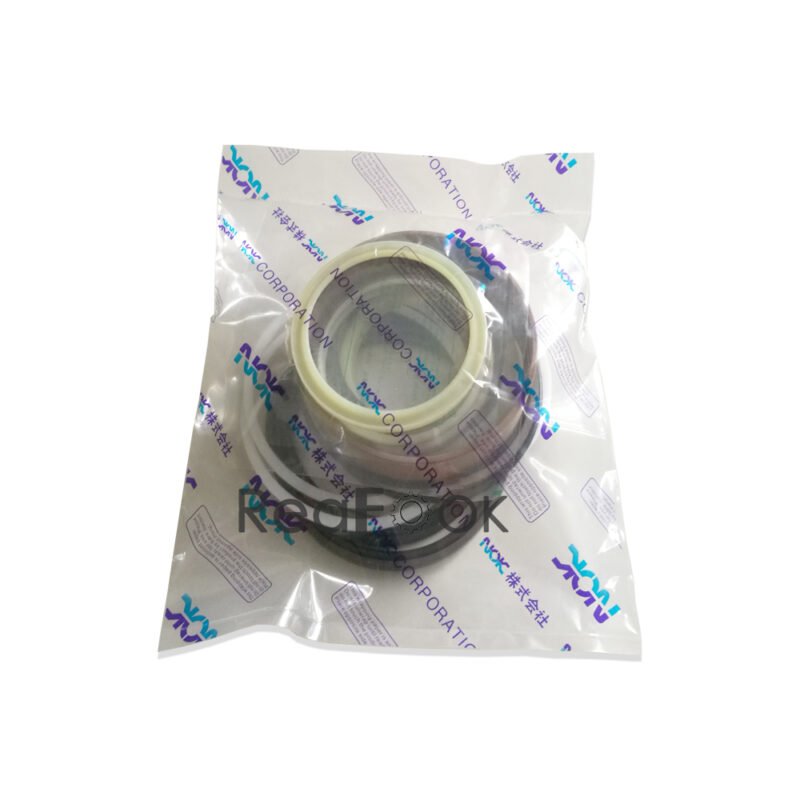

Hydraulic Arm Stick Cylinder Seal Kit 5i-3047 Fit Excavator Caterpillar CAT312

Product Name: Hydraulic Arm Cylinder Seal Kit, Repair Kit
Reference Part Number: 5I-3047, 5I3047
Compatible Machine: Excavator Caterpillar CAT312…

Description:
The Kits provide easy field service, repair, or replacement of seals on boom cylinders of heavy duty equipment. It includes all of the necessary basic oil seals, for example, back up rings, o-ring, seal assembly, rings, U-cup seal, seal ring, buffer seal and lip type seal.

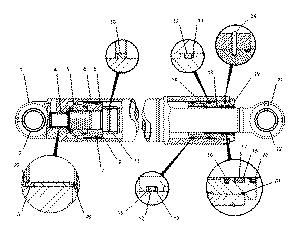

Pos. Part No Qty Parts name Comments
1. 5I-3032 [1] CYLINDER AS
2. 5I-3035 [1] BEARING-SLEEVE
3. 103-8442 [1] RING
4. 105-7398 [1] STOP
5. 5I-3024 M [1] LOCKNUT
6. 093-1604 J [1] RING
7. 9X-3592 J [1] SEAL AS
8. 093-1630 J [1] RING
9. 125-1551 [1] PISTON
10. 6I-6921 J [1] RING-SEAL
11. 5I-3046 [1] STOP
12. 095-1628 J [2] SEAL-O-RING (109.6MM ID)
13. 099-0681 J [3] RING-BACKUP
14. 096-8139 [1] RING-RETAINING
15. 114-0755 [1] BEARING-SLEEVE
16. 093-1484 J [1] SEAL-BUFFER
17. 093-1479 J [1] SEAL-U-CUP
18. 096-1054 J [1] RING-BACKUP
19. 099-0686 [1] HEAD
20. 116-3387 J [1] SEAL-LIP
21. 125-1584 [1] ROD AS
22. 5I-3035 [1] BEARING-SLEEVE
23. 095-1676 J [1] SEAL-O-RING (119.4MM ID)
24. 099-0695 [1] RING
25. 103-8441 [1] RING-RETAINING
26. 8T-4241 [2] RING-RETAINING (44.8MM ID)

AVAILABLE REPAIR KIT(S):
5I-3047 J [1] KIT-SEAL
PARTS MARKED J INCLUDE KIT(S) J
M: METRIC PART
