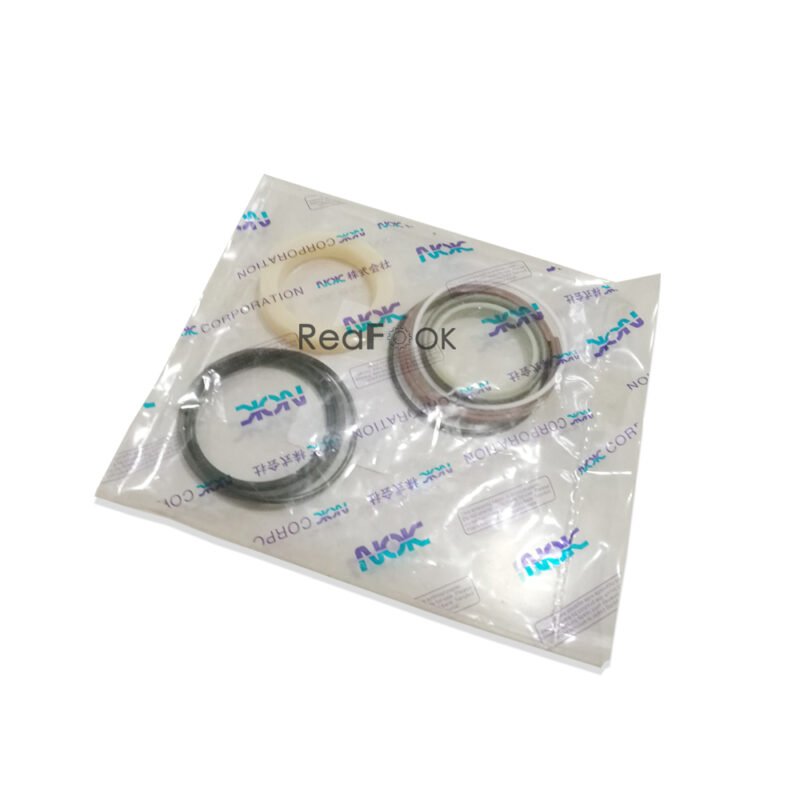

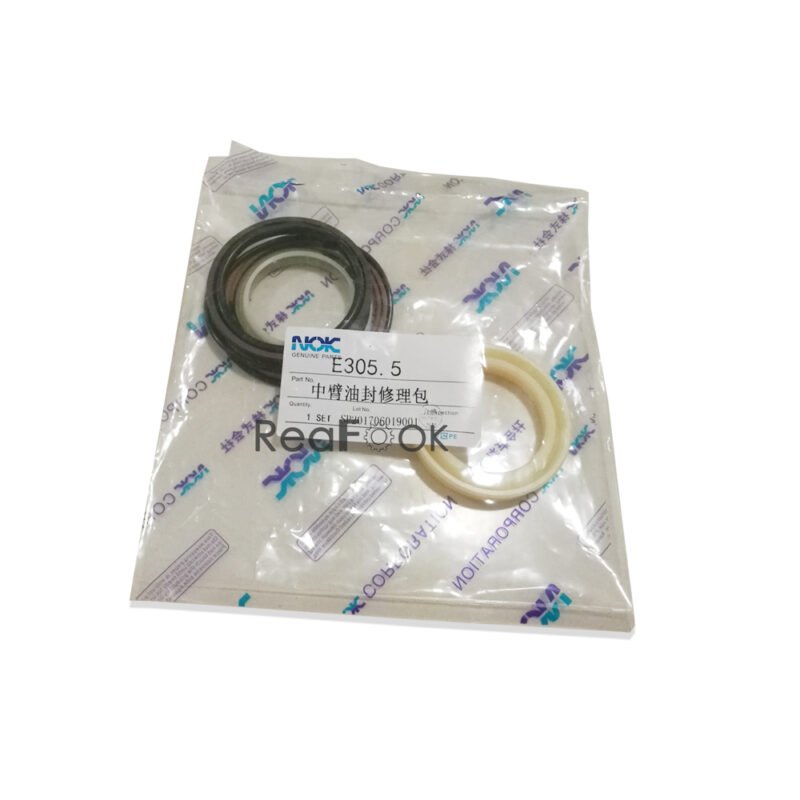

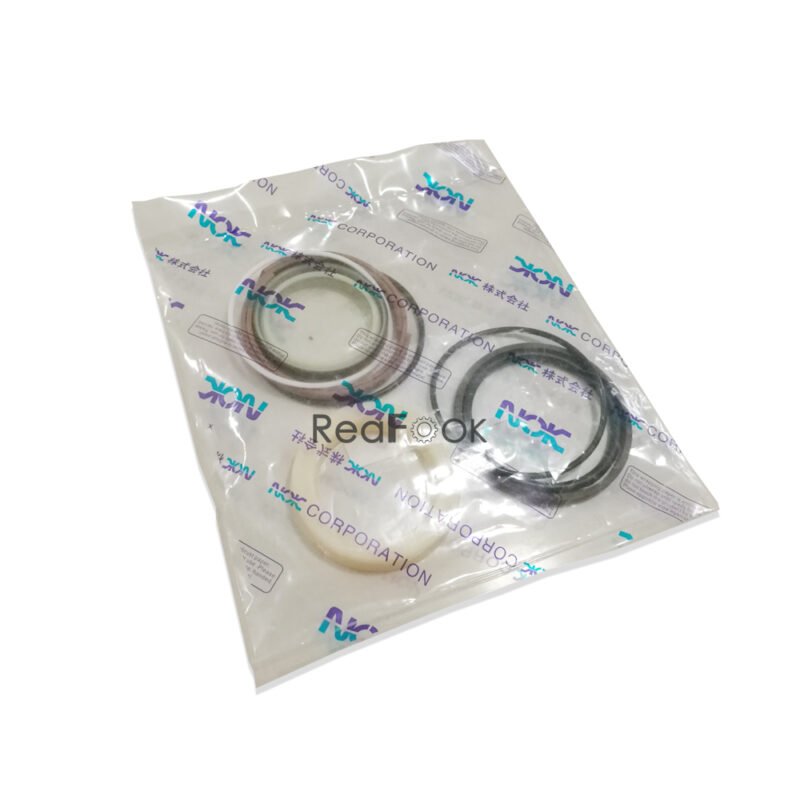

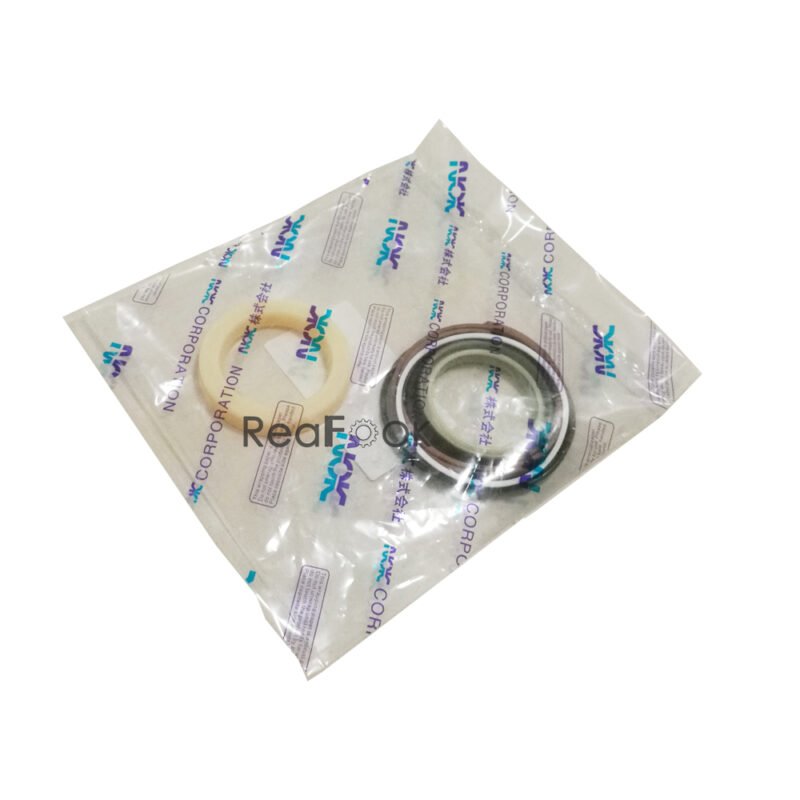

Hydraulic Arm Stick Cylinder Seal Kit 199-0609 Fit Excavator Caterpillar 305 305.5 306

Product Name: Hydraulic Arm Stick Cylinder Seal Kit, Repair Kit
Reference Part Number: 199-0609, 1990609
Compatible Machine: Excavator Caterpillar 305 305.5 306…

Description:
The Kits provide easy field service, repair, or replacement of seals on boom cylinders of heavy duty equipment. It includes all of the necessary basic oil seals, for example, back up rings, o-ring, seal assembly, rings, U-cup seal, seal ring, buffer seal and lip type seal.

Pos. Part No Qty Parts name Comments
1. 176-8508 [1] FITTING-GREASE
2. 170-8837 [1] FITTING
3. 199-0595 [1] HEAD
4. 198-9417 [1] BUSHING
5. 170-8773 H [1] RING
6. 170-8774 H [1] RING
7. 199-0596 H [1] SEAL
8. 199-0597 H [1] RING
9. 199-0598 H [1] SEAL
10. 199-0599 [1] PISTON
11. 217-7970 [1] BOLT AS
12. 199-0601 [2] RING
13. 171-0666 [1] SCREW (M10X1.5-MM)
14. 170-8858 [1] BALL
15. 170-8804 [1] BEARING
16. 199-0603 [1] SEAL
17. 199-0604 [1] RING
18. 170-8807 [2] STOP
19. 140-5166 JL [2] BUSHING
20. 170-8786 [4] RING
21. 199-0606 [1] PIPE AS
22. 198-9427 [1] PLUG
23. 198-9428 H [2] SEAL
24. 199-0607 [1] FITTING
25. 095-1592 [1] SEAL-O-RING
26. 198-9430 [1] HOLDER

AVAILABLE REPAIR KIT(S):
199-0609 H [1] KIT-SEAL (STICK CYLINDER) (INCLUDES SEAL AS)
199-0610 J [1] KIT-TUBE (STICK CYLINDER) (INCLUDES TUBE AS) #SEBP46010164
199-0611 L [1] KIT-ROD (STICK CYLINDER) (INCLUDES ROD AS)

H KIT MARKED H SERVICES PART(S) MARKED H
J KIT MARKED J SERVICES PART(S) MARKED J
L KIT MARKED L SERVICES PART(S) MARKED L
