Name: 6N-9988 Shut-off Solenoid 12V Fit Caterpillar Excavators Generators Truck Engines Paving Compactors 225 3208 PR-1000 PS-500 CB614
Price: 85.00 USD
Availability: InStock

6N-9988 Shut-off Solenoid 12V Fit Caterpillar Excavators Generators Truck Engines Paving Compactors 225 3208 PR-1000 PS-500 CB614

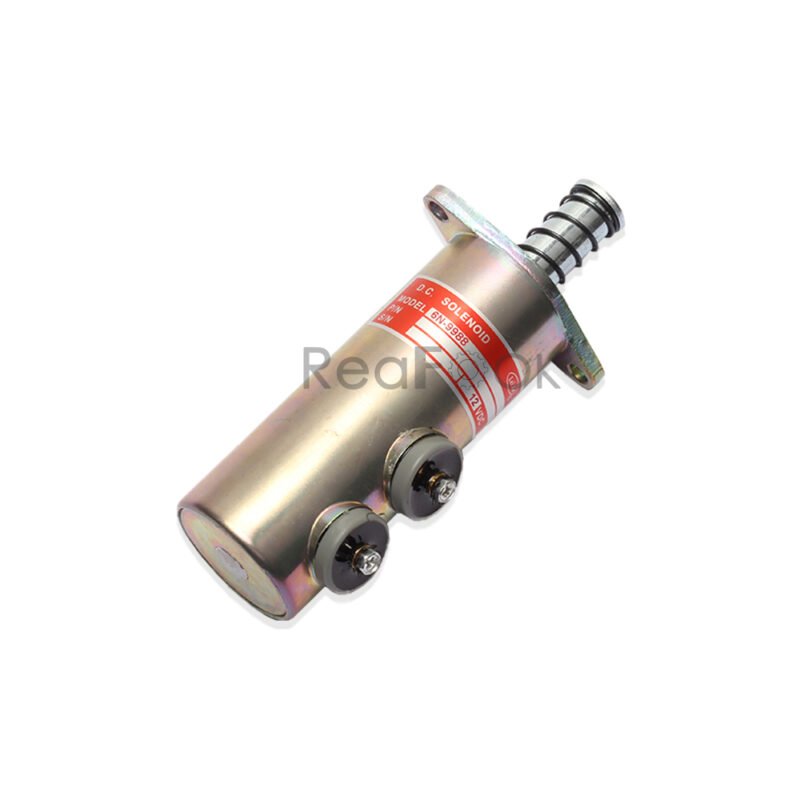

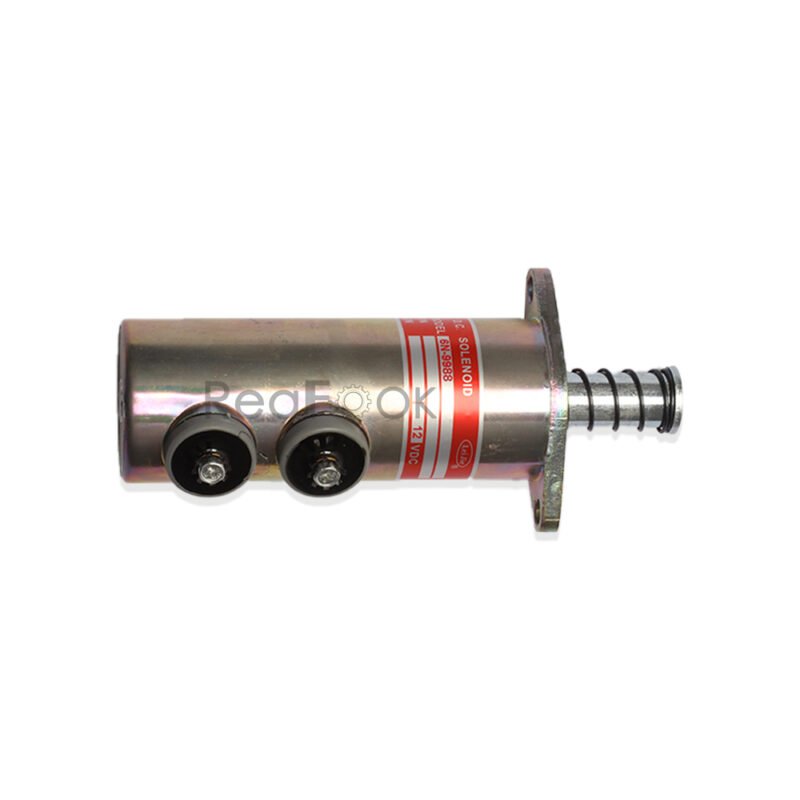

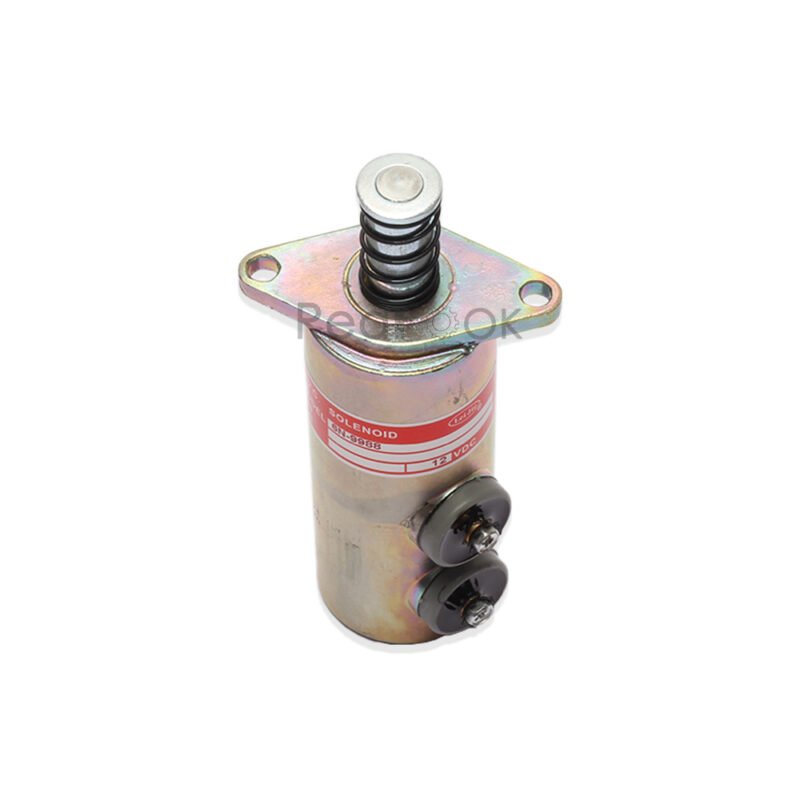

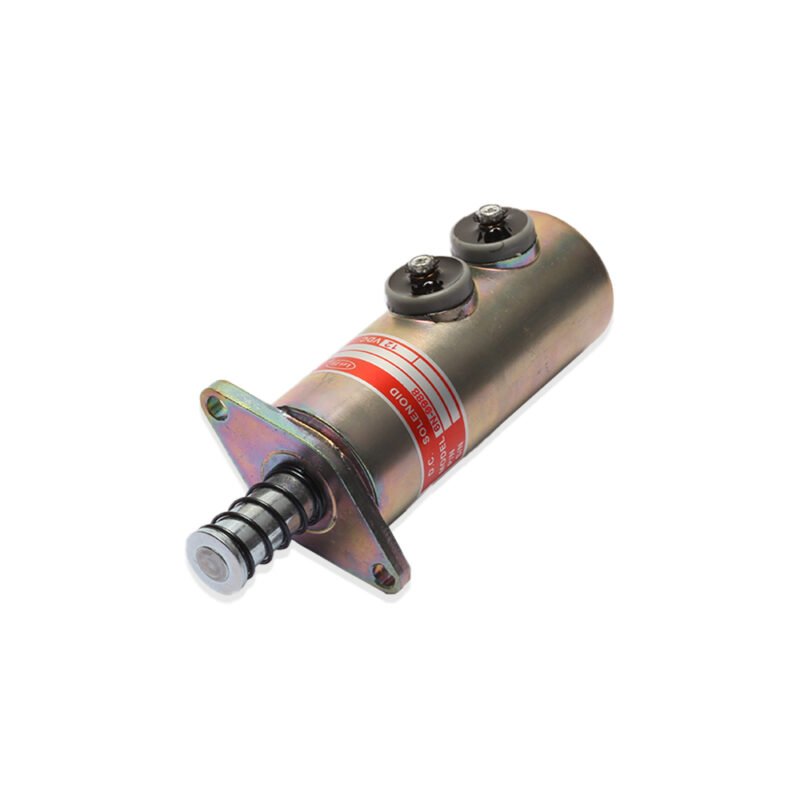

6N-9988 Shut-off Solenoid, Engine Shut Off (12V)
Prevent accidents and protect the Engine from Damage
Used in many Diesel Engines including Generators, construction, and Mining Equipment
Premimum Quality Standards!

Product Name: Shut-off Solenoid, Stop Solenoid
Reference Part Number: 6N-9988
Compatible Machine: Cat PR-1000, 3208, 1160, 225, CB-614, CP-553, CS-551, CS-553, PS-500…

Description:
An Engine shut-off Solenoid is an Electronic device that is typically used in diesel engines to control the fuel supply to the Engine. When the Solenoid is activated it stops the fuel supply to the Engine, causing the Engine to shut off. This safety feature can be used to prevent incidents or damage to the Engine.

Attributes:
• Mounting hole distance 63.5mm
• Type-Pull
• Coil wire temp rating:-Class H (180C)
• Operating Voltage Range:- 18-38.4 VDC at 93C coil Temperature.
• Heat soak to 25C Energize for 70s with 38.4 VDC RE-Energize with 21.6VDC

This Solenoid is widely used in Cat PR-1000, 3208, 1160, 225, CB-614, CP-553, CS-551, CS-553, and PS-500 Cold Planers, Generators, Industrial Truck Engines, Marine Products, and Paving Compactors.

Weight	0.5 kg
