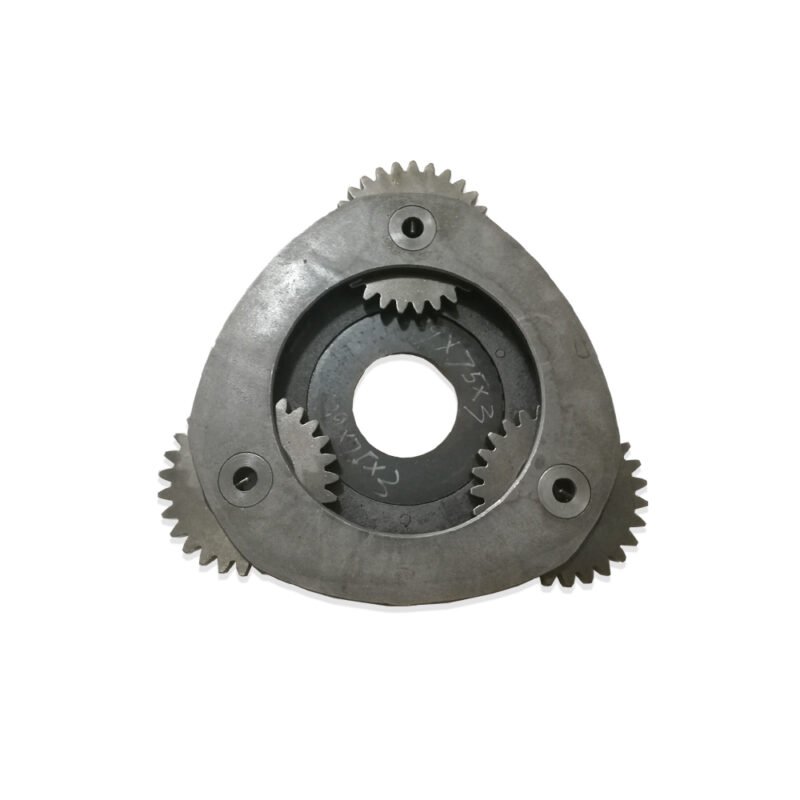

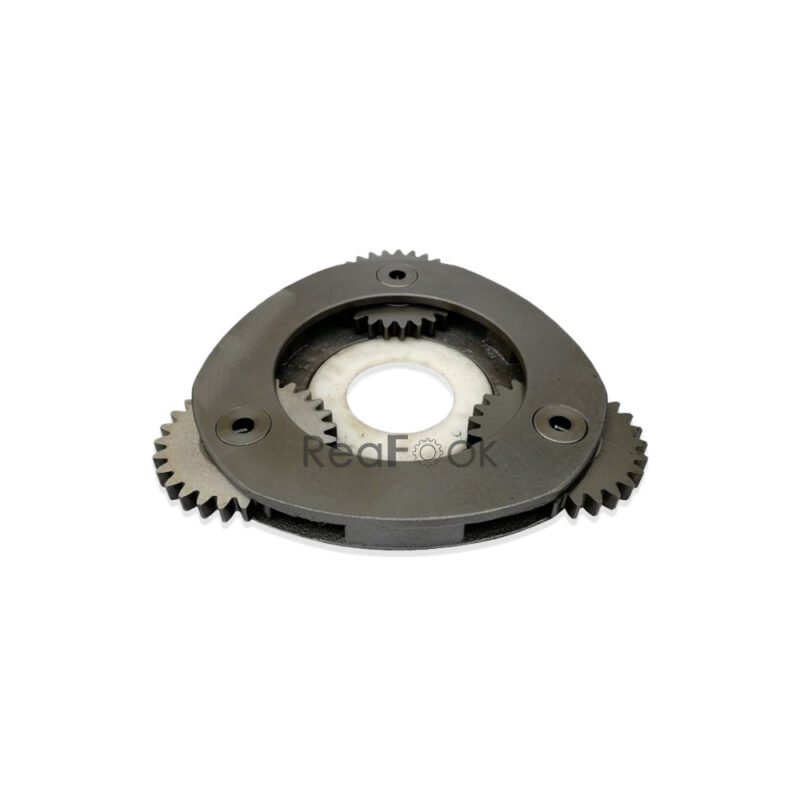

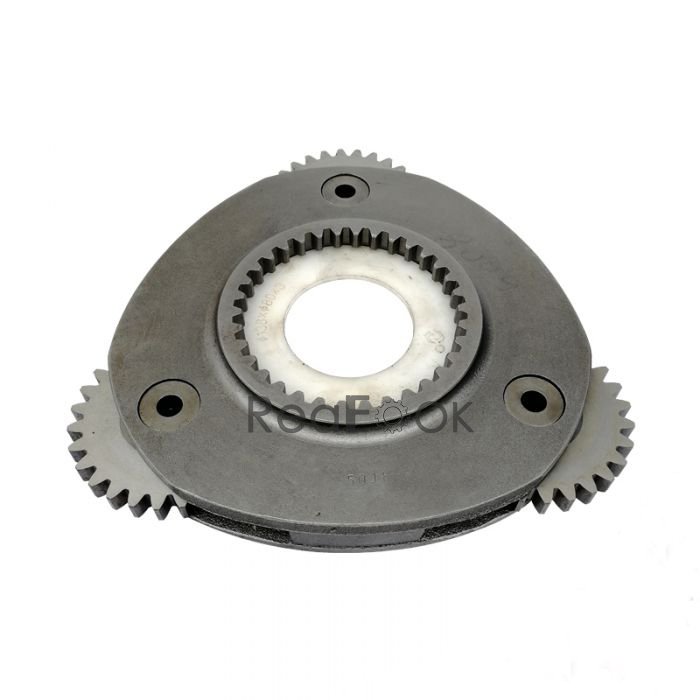

Final Drive Planetary Carrier 1013982 Assembly Fit Hitachi Excavator EX200-2 EX200K-2

Product Name: Planetary Carrier Assembly
Reference Part Number: 1013982
Compatible Machine: Hitachi Excavator EX200-2 EX200K-2, CX350DR CX500 CX550…

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

Parts on group TRAVEL DEVICE:
Pos. Part No Qty Parts name Comments
01-47. 9116393 [2] TRAVEL DEVICE ASS’Y
01. 9116390 [1] MOTOR;OIL
02. 4114753 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1013983 [1] DRUM
05. 1010203 [1] SPROCKET
06. J932055 [16] BOLT
07. 3047448 [1] HUB
09. 4246783 [1] PIN;KNOCK
10. A590920 [16] WASHER;SPRING
11. 1013981 [1] GEAR;RING
12. J931660 [20] BOLT
13. 4246792 [1] O-RING
14. 1013980 [1] CARRIER
15. 3047444 [3] GEAR;PLANETARY
16. 4210850 [6] BRG.;NEEDLE
17. 4246790 [3] PIN
18. 4116309 [3] PIN;SPRING
19. 3047443 [1] GEAR;SUN
20. 4269295 [12] PLATE;THRUST
21. 1013979 [1] CARRIER
22. 4246785 [2] SPACER
23. 3047446 [3] GEAR;PLANETARY
24. 4246786 [3] BRG.;NEEDLE
25. 4246789 [3] PIN
26. 4246358 [3] PIN;SPRING
27. 3047442 [1] GEAR;SUN
29. 1013982 [1] CARRIER
30. 3047447 [3] GEAR;PLANETARY
31. 4246787 [3] BRG.;NEEDLE
32. 4246788 [3] PIN
33. 4192020 [3] PIN;SPRING
34. 2028213 [1] SHAFT;PROP.
36. 2028212 [1] COVER
38. J011230 [16] BOLT;SEMS
40. 4245797 [3] PLUG
42. M492564 [2] SCREW;DRIVE
43. 3053559 [1] NAME-PLATE
45. 3057125 [1] NUT
46. 4192983 [6] PLATE;THRUST
47. 4285323 [1] PIN;STOPPER
132. 4248607 [28] BOLT
133. 4018545 [28] WASHER
